Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
3. Install the new bulb in the reverse order
of removal.

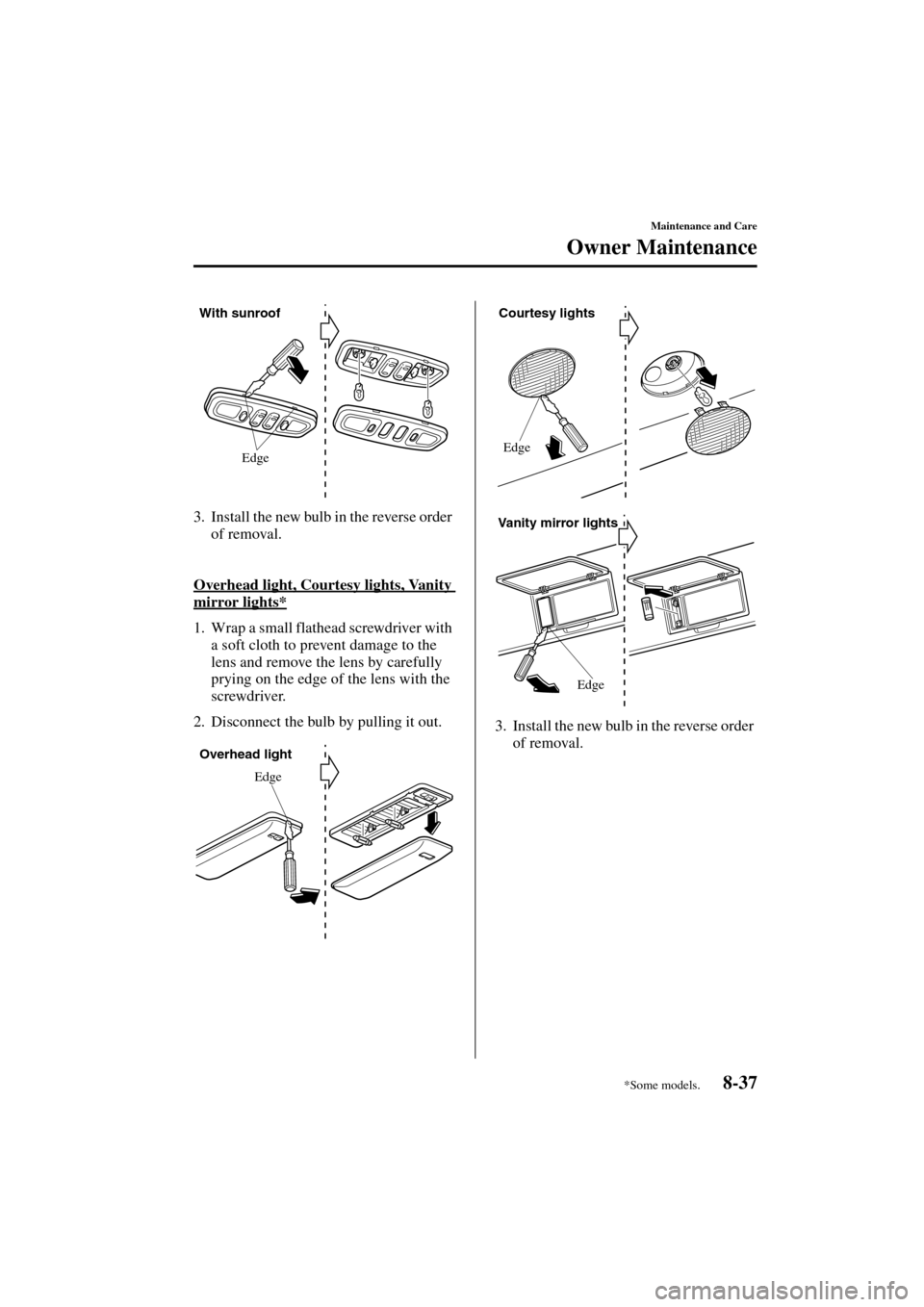

Overhead light, Courtesy lights, Vanity
mirror lights*
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
Edge
With sunroof
Edge
Overhead light
Courtesy lights
Edge
Vanity mirror lights
Edge
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 37 Wednesday, July 9, 2003 4:19 PM

8-41
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Fuse block (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1
P. W I N D30APower windows*,
For protection of
various circuits
2
WIPER20AWindshield
wipers and
washer
3 SUN ROOF 15AMoonroof*, For
protection of
various circuits
4
R.WIP10ARear window
wiper and washer
5
SEAT20AFor protection of
various circuits
6
M.DEF10AMirror defroster*,
For protection of
various circuits
7
A/C10AAir conditioner,
For protection of
various circuits
8
DRL10AFor protection of
various circuits
9
———
10
H/CLEAN20AFor protection of
various circuits
11—— —
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
12 HAZARD 10AHazard warning
flashers
13 ROOM 15AOverhead lights,
Map lights,
Luggage
compartment light
14
AUX
POWER25A Accessory socket
15
CLOSER
LH20AFor protection of
various circuits
16
AUDIO10AAudio system, For
protection of
various circuits
17
D.LOCK30APower door
locks*, For
protection of
various circuits
18
P/SEAT30A
Power seat*
19ENGINE10AEngine control
system
20
METER10A Instrument cluster
21
STOP15A Brake lights
22
CLOSER
RH20AFor protection of
various circuits
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 41 Wednesday, July 9, 2003 4:19 PM

10-6
Specifications
Form No. 8S06-EA-03H

Light Bulbs
Exterior light
*1Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulbCategory
Wattage ECE R SAE
Headlights 60/55 HB2—
Front turn signal lights/Front side-marker lights 21/5—#1157NA
Fog lights
*55 H11—
Parking lights 5 W5W #168
Side turn signal lights
*15WY5W—
Rear turn signal lights 21 WY21W—
Brake lights/Taillights 21/5 W21/5W #7443
Taillights/Rear side-marker lights 5 W5W #168
High-mount brake light 5 W5W #168
Reverse lights 16 W16W #921
License plate lights 5 W5W—
Light bulbCategory
Wattage ECE R
Overhead lights/Map lights 5 W5W
Overhead light 8—
Luggage compartment light 8—
Courtesy lights 5 W5W
Vanity mirror lights
*3—
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 6 Wednesday, July 9, 2003 4:19 PM
