window MAZDA MODEL MPV 2004 (in English) Owner's Manual

6-2
Interior Comfort
Form No. 8S06-EA-03H
Climate Control System

Operating the Climate Control
System
Operate the climate control system with
the engine running.

Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the air
conditioner to dehumidify the air.

Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.

Check the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

Replacement of the Cabin Air
Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
Operating Tips
J16R_8S06-EA-03H_Edition1.book Page 2 Wednesday, July 9, 2003 4:19 PM

6-5
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Control Panel (Front)
A/C0123
4
0123REAR
Temperature control dialA/C switch Rear window defroster switchFan control dial
Air intake selector switch
Rear air-conditioner main switchMode selector dial
(page 5-38)
(page 6-12)
ColdHot
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM

6-9
Interior Comfort
Climate Control System
Form No. 8S06-EA-03H

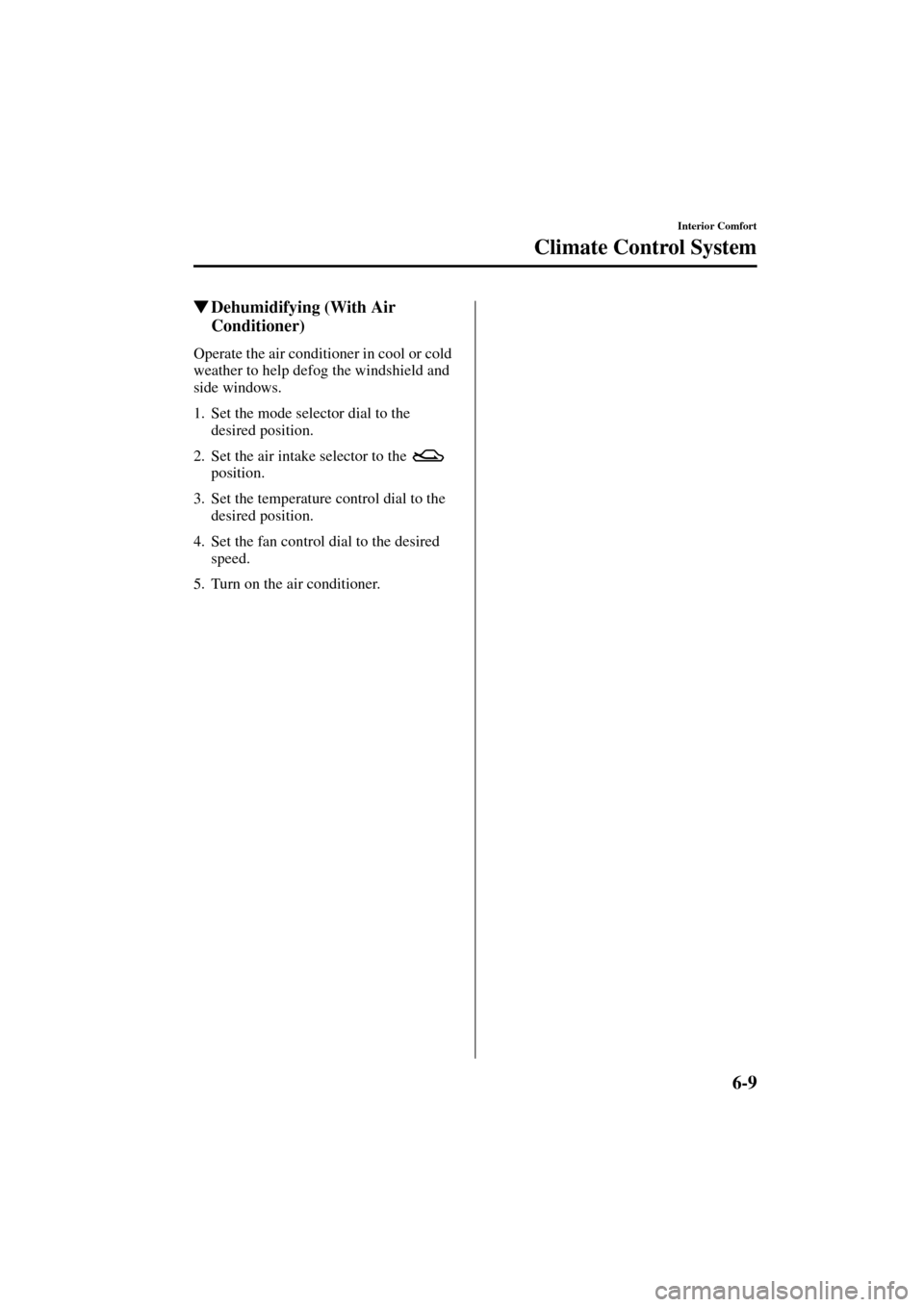

Dehumidifying (With Air
Conditioner)
Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the
desired position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
5. Turn on the air conditioner.
J16R_8S06-EA-03H_Edition1.book Page 9 Wednesday, July 9, 2003 4:19 PM

8-20
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
2. Separate the air cleaner housing and
remove the filter.
3. Wipe inside the air cleaner housing
with a damp cloth.
4. Clean or replace the filter.
5. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Air filterAir cleaner housing
Wiper Blades
•Hot waxes applied by automatic car
washers have been known to affect
the cleanability of windows.
•To prevent damage to the wiper
blades, don’t use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 20 Wednesday, July 9, 2003 4:19 PM

8-22
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
4. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.

Replacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm. •Don’t bend the stiffeners. You need
to use them again.
•If the metal stiffeners are switched,
the blade’s wiping efficiency could
be reduced.
So don’t use the driver’s side metal
stiffeners on the passenger’s side, or
vice versa.
•Be sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was
in the old blade rubber.
NOTE
Install the blade so that the tabs are
toward the bottom of the wiper arm.
CAUTION
Ta b
To prevent damage to the wiper arm
and other components, don’t move the
wiper by hand.
To prevent damage to the rear window,
don’t let the wiper arm fall on it.
CAUTION
Push
Plastic locking clip
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 22 Wednesday, July 9, 2003 4:19 PM

8-40
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 DEFOG 40ARear window
defroster
2 BTN 60ASTOP, HAZARD,
ROOM, D.LOCK
and DRL fuses
3 ABS 60AAntilock brake
system
*, For
protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEAT 30ARear heater
*, For
protection of
various circuits
8 IG KEY2 40AA/C, P.WIND*,
MOONROOF*an
d R.WIP fuses
9 A/C 10AAir conditioner,
For protection of
various circuits
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
10 TAIL 15A Taillights
11
AC PW R15A Inverter
12HORN15A Horn
13
FOG 15AFor protection of
various circuits
14
EEC 5AFor protection of
various circuits
15
HEAD L 15AHeadlight-left
16HEAD R 15AHeadlight-right
17HID L 20A—
18HID R 20A—
19 IG KEY1 60AMETER,
ENGINE and
WIPER fuses
20 EGI INJ 30AFor protection of
various circuits
21 FUEL PUMP 20A Fuel pump
22 MAIN 120AFor protection of
all circuits
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 40 Wednesday, July 9, 2003 4:19 PM

8-41
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Fuse block (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1
P. W I N D30APower windows*,
For protection of
various circuits
2
WIPER20AWindshield
wipers and
washer
3 SUN ROOF 15AMoonroof*, For
protection of
various circuits
4
R.WIP10ARear window
wiper and washer
5
SEAT20AFor protection of
various circuits
6
M.DEF10AMirror defroster*,
For protection of
various circuits
7
A/C10AAir conditioner,
For protection of
various circuits
8
DRL10AFor protection of
various circuits
9
———
10
H/CLEAN20AFor protection of
various circuits
11—— —
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
12 HAZARD 10AHazard warning
flashers
13 ROOM 15AOverhead lights,
Map lights,
Luggage
compartment light
14
AUX
POWER25A Accessory socket
15
CLOSER
LH20AFor protection of
various circuits
16
AUDIO10AAudio system, For
protection of
various circuits
17
D.LOCK30APower door
locks*, For
protection of
various circuits
18
P/SEAT30A
Power seat*
19ENGINE10AEngine control
system
20
METER10A Instrument cluster
21
STOP15A Brake lights
22
CLOSER
RH20AFor protection of
various circuits
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 41 Wednesday, July 9, 2003 4:19 PM

8-42
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
23
ACC .
DELAY30APower windows
delay,
For protection of
various circuits
24
METER15AInstrument
cluster,
INH switch
25
ST.SIGN10A Starter signal
26 CIGAR 25A Lighter
27—— —
28—— —
J16R_8S06-EA-03H_Edition1.book Page 42 Wednesday, July 9, 2003 4:19 PM

8-49
Maintenance and Care
Appearance Care
Form No. 8S06-EA-03H

Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
Don’t scrape or scratch the inside of
the rear window. You may damage the
rear window defroster grid.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 49 Wednesday, July 9, 2003 4:19 PM

11-3
Index
Form No. 8S06-EA-03H
D
Dashboard Illumination ................... 5-23
Daytime Running Lights
.................. 5-35
Defroster
Rear window
............................. 5-38
Dimensions
...................................... 10-5
Door Locks
......................................... 3-8
Driving In Flooded Area
.................. 4-11
Driving Tips
....................................... 4-7
Automatic transaxle
.................. 5-13
Break-in period
........................... 4-7
Driving in flooded area
............. 4-11
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-9
Winter driving
............................. 4-9
E
Easy Closure .................................... 3-12
Emergency Starting
.......................... 7-17
Flooded engine
.......................... 7-17
Jump-starting
............................ 7-18
Push-starting
............................. 7-21
Emergency Towing
.......................... 7-22
Emission Control System
................... 4-3
Engine
Coolant
...................................... 8-12
Exhaust gas
................................. 4-5
Hood release
............................. 3-24
Oil
............................................. 8-10
Overheating
............................... 7-15
Starting
........................................ 5-3
Engine Compartment Overview
........ 8-9
Engine Coolant
Overheating
............................... 7-15
Engine Coolant Temperature
Gauge
............................................... 5-22
Exhaust Gas
....................................... 4-5
E
Exterior Care ....................................8-45
Eyeglass Holder
................................6-49
F
Flasher
Hazard warning
.........................5-39
Headlights
.................................5-34
Flat Tire
..............................................7-3
Changing
.....................................7-8
Spare tire and tool storage
...........7-3
Fluids
Classification
.............................10-4
Owner maintenance
.....................8-7
Fog Lights
........................................5-36
Foot Brake
..........................................5-4
Front Console
...................................6-50
Front Seats
(Electrically Operated Seats)
..............2-8
Front Seats
(Manually Operated Seats)
.................2-3
Fuel
Filler lid and cap
.......................3-23
Gauge
........................................5-23
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-38
Panel description
.......................8-40
Replacement
..............................8-38
G
Gauges ..............................................5-20
Glove Box
........................................6-50
J16R_8S06-EA-03H_Edition1.book Page 3 Wednesday, July 9, 2003 4:19 PM
