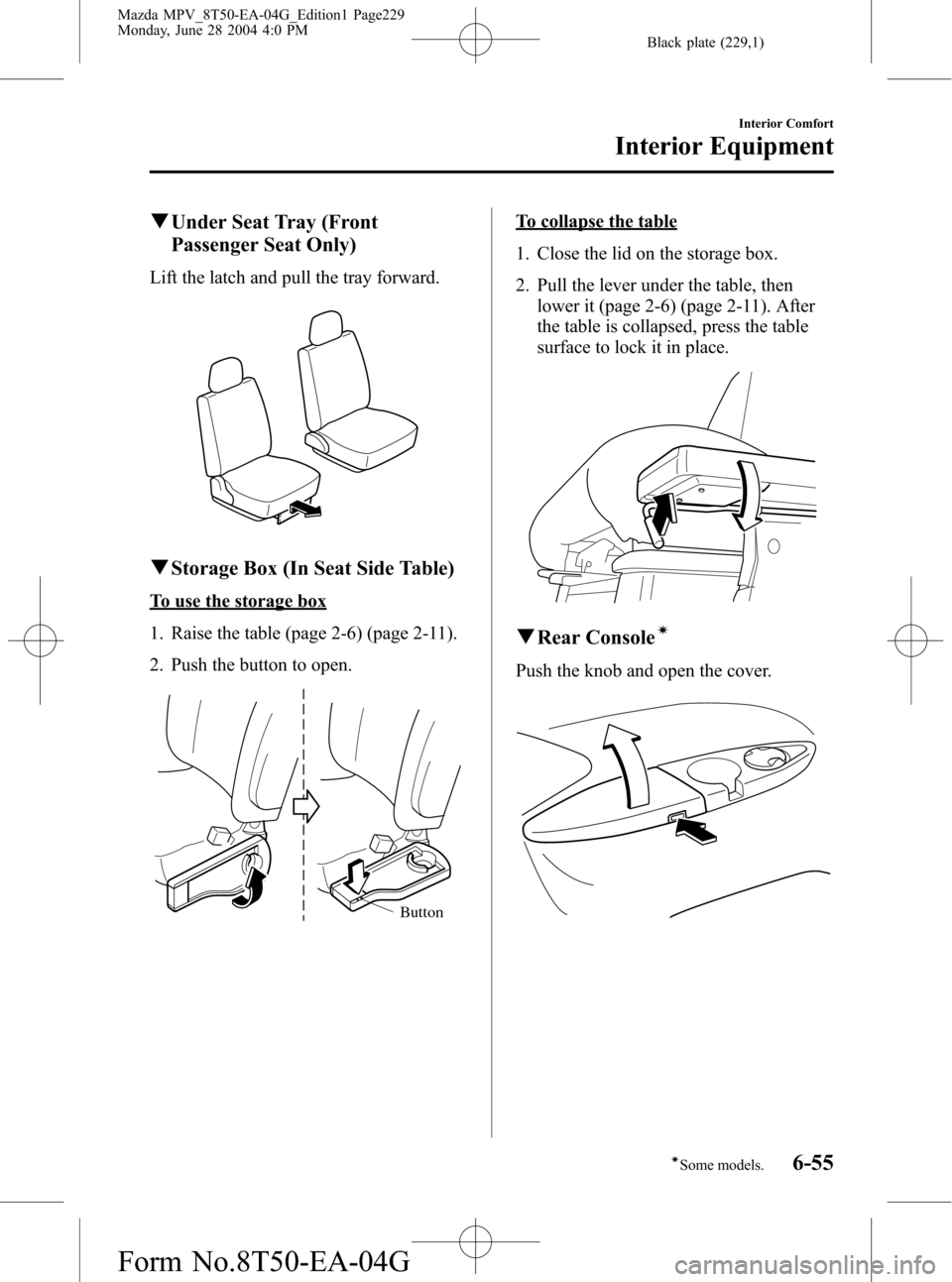

Black plate (229,1)
qUnder Seat Tray (Front
Passenger Seat Only)
Lift the latch and pull the tray forward.
qStorage Box (In Seat Side Table)
To use the storage box
1. Raise the table (page 2-6) (page 2-11).
2. Push the button to open.
Button
To collapse the table
1. Close the lid on the storage box.
2. Pull the lever under the table, then
lower it (page 2-6) (page 2-11). After
the table is collapsed, press the table
surface to lock it in place.
qRear Consoleí
Push the knob and open the cover.
Interior Comfort
Interior Equipment
6-55íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page229
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (236,1)
qJack
To remove the jack
1. Remove the cover.
2. Remove the tool bag.
3. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
WARNING
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
7-4
In Case of an Emergency
Flat Tire
Mazda MPV_8T50-EA-04G_Edition1 Page236
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (237,1)
CAUTION
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
lDon't exceed 80 km/h (50 mph).
lAvoid driving over obstacles.
Also, don't drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the ground
clearance is reduced about 25 mm (1
in).
lDon't use a tire chain on this tire
because it won't fit properly.
lDon't use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
lDo not tow a trailer while using this
tire.
lUse only one temporary spare tire on
your vehicle at the same time.
To remove the spare tire
1. Have everyone get out of the vehicle
and away from the vehicle and traffic.2. For side-spoiler equipped vehicles,
remove the fasteners on both sides of
the spoiler cap by turning them
counterclockwise.
Pull the spoiler cap out.
NOTE
After installing the side spoiler cap,
make sure it is securely attached.
In Case of an Emergency
Flat Tire
7-5
Mazda MPV_8T50-EA-04G_Edition1 Page237
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (238,1)
3. Locate the spare tire carrier socket cap
on the right, in front of the second-row
seat. Unscrew it by turning it
counterclockwise.
4. Remove the spare tire lever and lug
wrench from the tool bag.
5. Raise the reclining lever and push the
front seatback forward and out of the
way.
Make sure the seatback is locked.
6. Insert the spare tire lever into the spare
tire carrier socket. Fit the lug wrench to
the opposite end of the spare tire lever.
Lug wrench
Spare tire
lever
7. Slowly turn the lug wrench
counterclockwise until the spare tire
reaches the ground and the cable
becomes loose.
CAUTION
lDo not loosen the cable too much as
this may cause damage to the spare
tire carrier.
lTurning the lug wrench with the seat
reclined could damage the seatback
material.
lApplying excessive lateral force
while the spare tire lever is attached
may result in damage to the socket.
NOTE
The spare tire lever remains locked in
the socket while the spare tire is being
lowered.
Unless the cable is rolled up
completely, the spare tire lever cannot
be removed from the socket.
7-6
In Case of an Emergency
Flat Tire
Mazda MPV_8T50-EA-04G_Edition1 Page238
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (240,1)
CAUTION
Applying excessive lateral force while
the spare tire lever is attached may
result in damage to the socket.
NOTE
Unless the cable is rolled up
completely, the spare tire lever cannot
be removed from the socket.
3. Replace the spare tire carrier cap in the
socket and turn it until the spare tire is
pulled up tight.
WARNING
Loose Spare Tire Carrier Socket:
A loose spare tire carrier socket cap is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being badly
injured or even killed.
Always screw the spare tire carrier
socket cap completely tight and make
sure the spare tire is locked in the
highest position.
CAUTION
If you hear rattling from the spare tire
carrier while the vehicle is moving, the
spare tire carrier cable may be cut.
Have it repaired at an Authorized
Mazda Dealer as soon as possible.
7-8
In Case of an Emergency
Flat Tire
Mazda MPV_8T50-EA-04G_Edition1 Page240
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (241,1)
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.
lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
NOTE
Make sure the jack is well lubricated
before using it.1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
CAUTION
If the jack leans towards the front or the
rear when jacking up, lower the vehicle
until the wheels are firmly on the
ground. Then confirm that the parking
brake is set, the shift lever is in Park
(P), then push the blocks firmly under
the blocked tire.
In Case of an Emergency
Flat Tire
7-9
Mazda MPV_8T50-EA-04G_Edition1 Page241
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (242,1)
qRemoving a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the jack lever.
NOTE
Force the end of the jack lever firmly
between wheel and cover, or removal
will be difficult.
CAUTION
Align the notch on the wheel cover
with the valve stem when installing it.
Tire valve
Notch
Damage could occur during installation
if the wheel cover is not properly
aligned.2. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any lug nuts until the tire
has been raised off the ground.
3. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
7-10
In Case of an Emergency
Flat Tire
Mazda MPV_8T50-EA-04G_Edition1 Page242
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (243,1)
WARNING
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn't designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
4. Insert the jack lever and attach the lug
wrench to tire jack.
5. Turn the lug wrench clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
6. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel.
In Case of an Emergency
Flat Tire
7-11
Mazda MPV_8T50-EA-04G_Edition1 Page243
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (244,1)
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key Antitheft lug nut
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure
to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don't use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
2. Mount the spare tire.
7-12
In Case of an Emergency
íSome models.
Flat Tire
Mazda MPV_8T50-EA-04G_Edition1 Page244
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (245,1)
3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Don't Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary. Do not apply oil or grease
to lug nuts and bolts and do not
tighten the lug nuts beyond the
recommended tightening torque.4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf)108―147
(11―15, 80―108)
WARNING
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
In Case of an Emergency
Flat Tire
7-13
Mazda MPV_8T50-EA-04G_Edition1 Page245
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G
