MAZDA MODEL MPV 2006 Owners Manual (in English)

Black plate (221,1)
qSeek Switch
When listening to the radio
Press the seek switch (
,), the radio
switches to the next/previous stored
station in the order that it was stored
(1―6).
Press the seek switch (
,) for about 2
seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.
When playing a cassette tape
Press the seek switch (
), release, and it
will advance to the next selection.
Press the seek switch (
), release, and it
will repeat the selection being played.
When playing a CD or MD
Press the seek switch (
) to skip to the
next track.
Press the seek switch (
) to repeat the
current track.
qMute Switch
Press the mute switch () once to mute
audio, press it again to resume audio
output.
Interior Comfort
Audio System
6-43
Mazda MPV_8U61-EA-05G_Edition1 Page221
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (222,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
6-44
Interior Comfort
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page222
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (223,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qSide Extention Sunvisors
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, reinsert the
visor extender, otherwise the visor
extender could hit the rearview mirror.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
Interior Comfort
Interior Equipment
6-45
Mazda MPV_8U61-EA-05G_Edition1 Page223
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (224,1)
Interior Lights
qIlluminated Entry Systemí
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position), the luggage
compartment light (switch is in the ON
position) and the courtesy lights turn on
for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition key is
removed.
lAbout 15 seconds after all doors are
closed.
lAbout 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes
out after about 5 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
qOverhead Lights
Front
Without moonroof (with overhead
console)
Without moonroof (without overhead
console)
6-46
Interior Comfort
íSome models.
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page224
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (225,1)
With moonroof
Switch
PositionFront Overhead Lights
Light off
lLight on when any door or the
liftgate is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
Rear
Switch
PositionRear Overhead Lights
Light off
lLight on when any door or the
liftgate is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
Light on
qMap Lights
The map lights are switched on or off by
pressing the switches.
Without moonroof (with overhead
console)
Map light
Without moonroof (without overhead
console)
Map light
Map light
Interior Comfort
Interior Equipment
6-47
Mazda MPV_8U61-EA-05G_Edition1 Page225
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (226,1)
With moonroof
Map light
Map light
qLuggage Compartment Light
Switch
PositionLuggage Compartment Light
Light off
lLight on when any door or the
liftgate is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy
Light
6-48
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page226
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (227,1)
Lighterí
The ignition switch must be in the ACC
or ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
CAUTION
lDon't touch the metal part of the
lighter, you may burn yourself.
lDon't hold the lighter in because it
will overheat.
lDon't use the lighter socket for plug-
in accessories such as shavers and
coffee pots. They may damage it or
cause electrical failure. Use only a
genuine Mazda lighter or the
equivalent.
lIf the lighter doesn't pop out within
30 seconds, remove it to prevent
overheating.
Ashtrayí
CAUTION
Don't use the ashtray for trash. You
might start a fire.
qFront
To open, pull the tray out and open the
cover.
To remove, open and pull up the ashtray.
Interior Comfort
Interior Equipment
6-49íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page227
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (228,1)

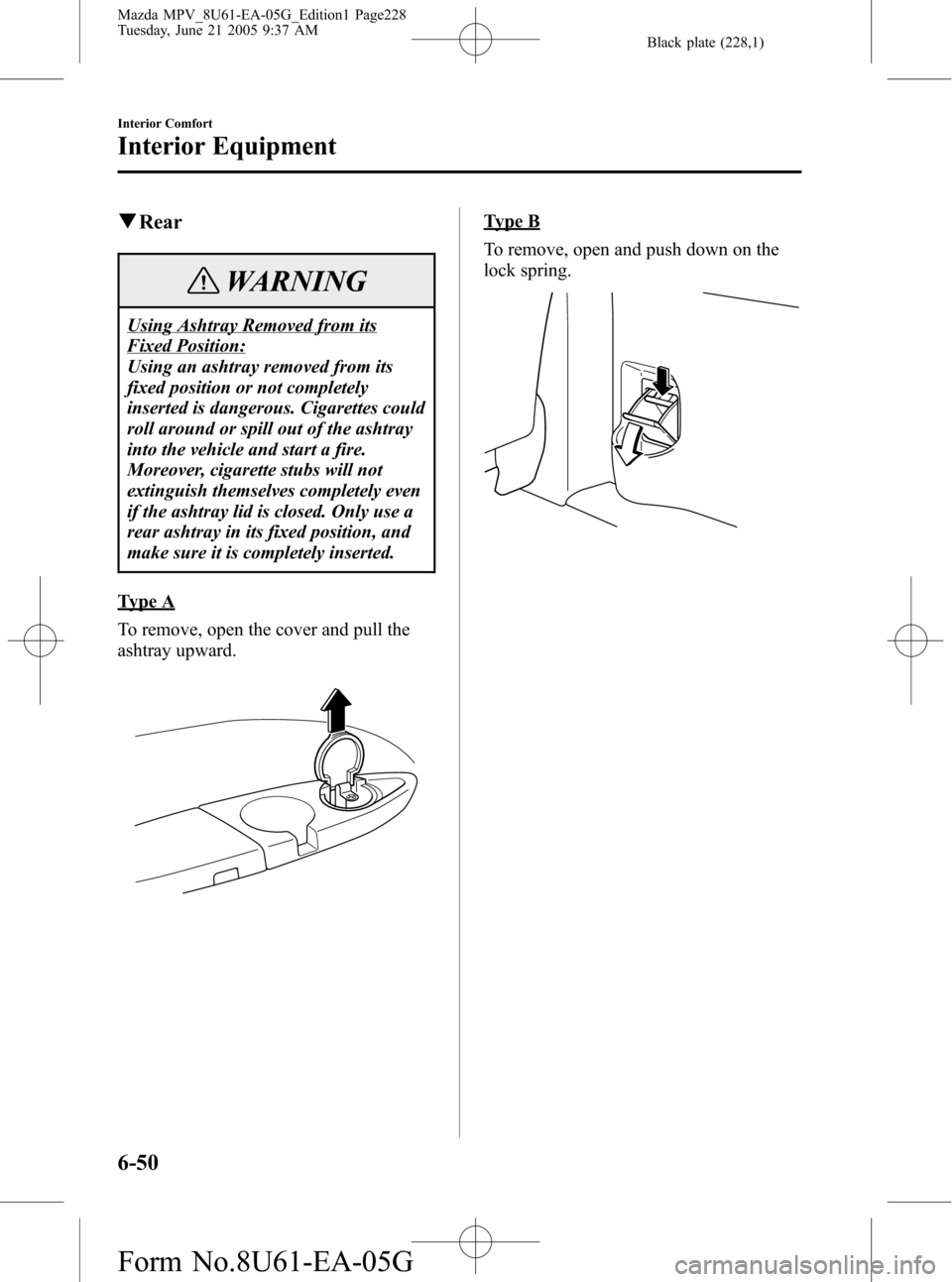

qRear
WARNING
Using Ashtray Removed from its
Fixed Position:
Using an ashtray removed from its
fixed position or not completely
inserted is dangerous. Cigarettes could
roll around or spill out of the ashtray
into the vehicle and start a fire.
Moreover, cigarette stubs will not
extinguish themselves completely even
if the ashtray lid is closed. Only use a
rear ashtray in its fixed position, and
make sure it is completely inserted.
Type A
To remove, open the cover and pull the
ashtray upward.
Type B
To remove, open and push down on the
lock spring.
6-50
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page228
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (229,1)
Cup Holder
WARNING
Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don't Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Using Cup Holder as Ashtray:
Using a cup holder as an ashtray is
dangerous because it could cause a
fire or damage the cup holder.
Be sure the removable ashtray is in
place before smoking and never use
the cup holder as an ashtray.
CAUTION
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
NOTE
Replacement ashtrays are available
from an Authorized Mazda Dealer if
they are missing.
qFront
To use, pull the tray out.
qRear
Second seat (Passenger seat only)
The cup holder is located on the outboard
side of the right second-row seats. To use
the cup holder, pull it out.
Interior Comfort
Interior Equipment
6-51
Mazda MPV_8U61-EA-05G_Edition1 Page229
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (230,1)
Seat side table
To use the cup holder
1. Raise the table (page 2-6)(page 2-11).
2. Pull the cup holder end to extend it
rearwards.
To collapse the table
1. Push the cup holder back into the table.
2. Pull the lever under the table, then
lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.
Third seat
If an ashtray is equipped, pull it out and
use the hole for an additional cup holder.
Ashtray
6-52
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page230
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G
