qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
qLow Fuel Warning Light
Low fuel
warning light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Refuel as soon as possible.
qSeat Belt Warning Light
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
qDoor-Ajar Warning Light
This warning light comes on when any
door or liftgate isn't securely closed.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-29
Mazda MPV_8U61-EA-05G_Edition1 Page169
Tuesday, June 21 2005 9:34 AM
Form No.8U61-EA-05G

Black plate (170,1)
qImmobilizer System Warning/
Security Indicator Lightí
Immobilizer system warning light
When the key is in the ignition switch,
this light serves as the immobilizer system
warning light.
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
Security indicator light
When there is no key in the ignition
switch, and the theft-deterrent system has
been armed, the light will flash once every
3 seconds. This indicates that the system
is working properly.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qO/D OFF Indicator Light
This light comes on when the overdrive
has been turned off.
CAUTION
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
5-30
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda MPV_8U61-EA-05G_Edition1 Page170
Tuesday, June 21 2005 9:34 AM
Form No.8U61-EA-05G

Black plate (192,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
CAUTION
To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do Not Adjust Audio While Driving
the Vehicle:
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a
serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the
vehicle.
NOTE
lDo not use the audio for long periods
of time while the engine is off.
Otherwise the battery could go dead.
lIf a digital cellular phone or CB
radio is used in or near the vehicle, it
could cause noise to occur from the
audio system, however, this does not
indicate that the system has been
damaged.
6-14
Interior Comfort
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page192
Tuesday, June 21 2005 9:35 AM
Form No.8U61-EA-05G

Black plate (234,1)
qCargo Securing Loops
WARNING
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Floor
Rear side trim
qShopping Bag Hooks
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Shopping bag hook
(tensile strength:3 kg
(6.6 lb))
6-56
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page234
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (239,1)

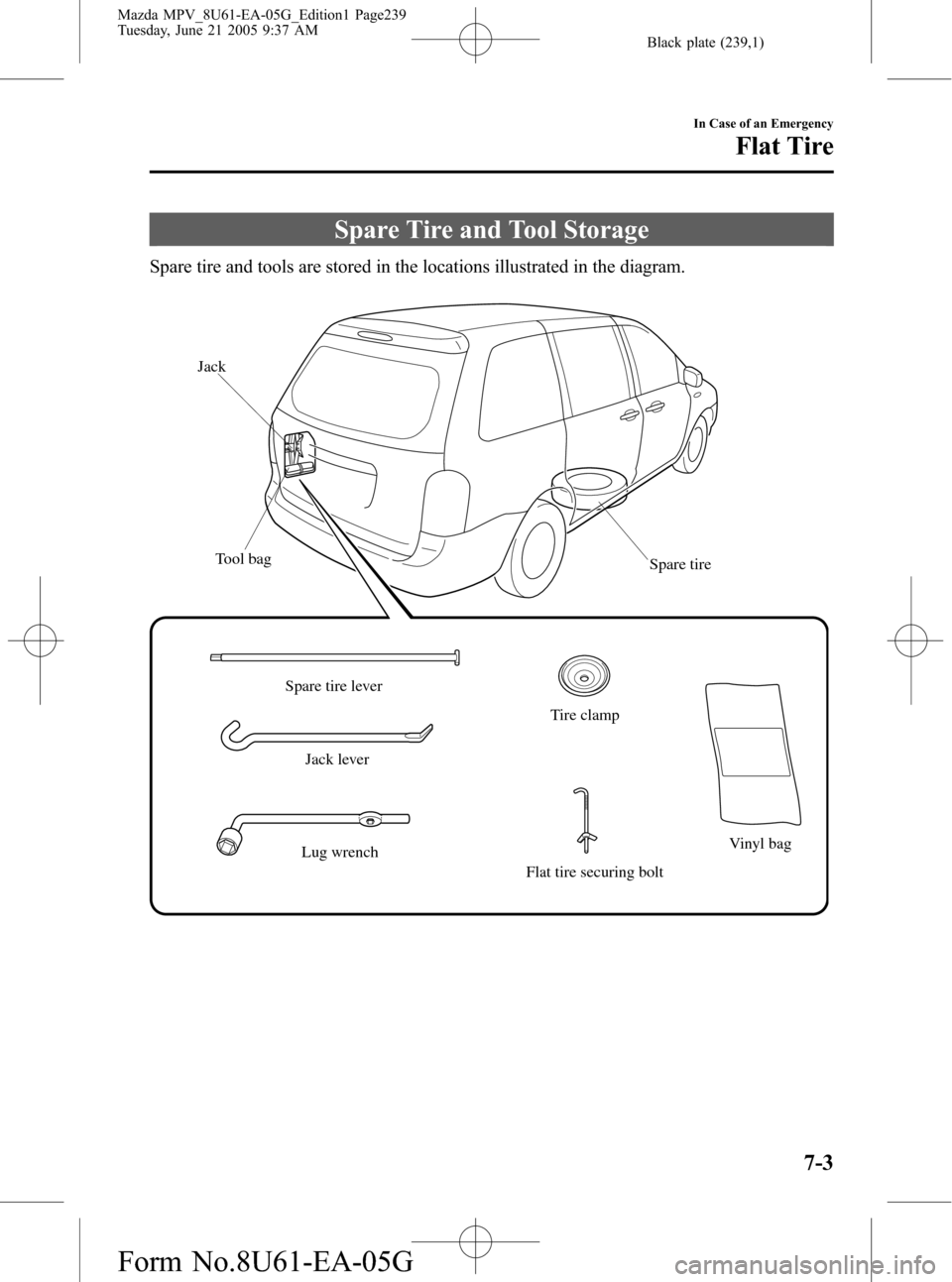

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare tire Tool bag Jack
Spare tire lever
Lug wrenchJack leverTire clamp
Flat tire securing boltVinyl bag
In Case of an Emergency
Flat Tire
7-3
Mazda MPV_8U61-EA-05G_Edition1 Page239
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (240,1)
qJack
To remove the jack
1. Remove the cover.
2. Remove the tool bag.
3. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
WARNING
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
7-4
In Case of an Emergency
Flat Tire
Mazda MPV_8U61-EA-05G_Edition1 Page240
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (241,1)
CAUTION
lWhen using the temporary spare tire,
driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
lTo avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
lDon't exceed 80 km/h (50 mph).lAvoid driving over obstacles.
Also, don't drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the ground
clearance is reduced about 25 mm
(1 in).
lDon't use a tire chain on this tire
because it won't fit properly.
lDon't use your temporary spare
on any other vehicle; it has been
designed only for your Mazda.
lDo not tow a trailer while using
this tire.
lUse only one temporary spare tire
on your vehicle at the same time.
To remove the spare tire
1. Have everyone get out of the vehicle
and away from the vehicle and traffic.2. For side-spoiler equipped vehicles,
remove the fasteners on both sides of
the spoiler cap by turning them
counterclockwise.
Pull the spoiler cap out.
NOTE
After installing the side spoiler cap,
make sure it is securely attached.
In Case of an Emergency
Flat Tire
7-5
Mazda MPV_8U61-EA-05G_Edition1 Page241
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (243,1)
8. Rotate the small lever on top of the
retaining plate and pull the retaining
plate out from the center hole of the
tire.
NOTE
A flat tire which has been removed
from the vehicle for repair cannot be
carried in the spare tire carrier. Secure
the flat tire with the tire clamp and wing
nut in the luggage compartment (page
7-12).
To secure the spare tire
1. Place the tire with the outer side facing
upward, rotate the small lever on top of
the retaining plate and slide the
retaining plate through the center hole
of the tire.
Rotate the small lever into place.
Lever
Spare tire
2. Raise the spare tire slowly in reverse
order of removal.
WARNING
Carrier Placement for the Specialized
Temporary Spare Tire:
Placing the specialized temporary
spare tire in the spare tire carrier
wrong side up or using any tire other
than the small temporary spare tire
designed for use with this vehicle is
dangerous. It will result in poor
attachment and insufficient ground
clearance in the spare tire carrier and
the danger of the tire falling off. This
could result in someone being badly
injured or even killed.
Place the specialized temporary spare
tire in the spare tire carrier correctly.
In Case of an Emergency
Flat Tire
7-7
Mazda MPV_8U61-EA-05G_Edition1 Page243
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (250,1)
WARNING
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident. Be sure to
reinstall the same nuts you removed or
replace them with metric nuts of the
same configuration.
5. If your vehicle is equipped with a
center cap, pry off the center cap with
the beveled end of the jack lever.
6. Put the flat tire in the special vinyl bag
and tie it at the top.7. With the tire facing outward, punch a
hole through the vinyl bag and the
center hole, using the flat tire securing
bolt.
8. Lift the anchor clip on the back of
third-row seat.
7-14
In Case of an Emergency
Flat Tire
Mazda MPV_8U61-EA-05G_Edition1 Page250
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (251,1)
9. Install the flat tire with the tire securing
bolt hooked in the anchor clip as
shown below.
10. Secure the flat tire with the tire clamp
and wing nut as shown below.
11. Check the inflation pressure. Refer to
the specification charts on page 10-6.
12. Have the flat tire repaired or replaced
as soon as possible.
WARNING
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don't drive with any tires that have
incorrect air pressure. When you
check the regular tires' air pressure,
check the spare tire, too.
NOTE
lIf the tire rattles even through the
wing nut is tightened, reverse the tire
clamp and retighten the wing nut.
lTo prevent the jack and tool from
rattling, store them properly.
In Case of an Emergency
Flat Tire
7-15
Mazda MPV_8U61-EA-05G_Edition1 Page251
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G
