ECU MAZDA MODEL MPV 2006 Owners Manual (in English)

Black plate (15,1)
Front Seats (Manually
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Driver's Seat Adjustment:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver's seat only when the vehicle is
stopped.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Essential Safety Equipment
Seats
2-3
Mazda MPV_8U61-EA-05G_Edition1 Page15
Tuesday, June 21 2005 9:31 AM
Form No.8U61-EA-05G

Black plate (24,1)
qArmrest
The armrest can be used or placed upright.
WARNING
Positioning the Shoulder Belt Over the
Armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision and
could result in serious injuries. Never
position the shoulder portion of a
front seat belt over the armrest.
Second-Row Seats
WARNING
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatback is dangerous.
During a sudden stop or collision,
objects can fly around and become
projectiles that could hit and injure
passengers. Don't stack cargo higher
than the seatback.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
Securing Seats:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury. Make sure
the adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
Seat Adjustment:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden braking
or a collision could cause serious
injury. Adjust the seat only when the
vehicle is stopped.
2-12
Essential Safety Equipment
Seats
Mazda MPV_8U61-EA-05G_Edition1 Page24
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (31,1)
7. The seat is heavier than it looks,
carefully pull up and detach the seat.
Get assistance to lift it out of the
vehicle.
Loops Clamp
To install the seat
1. First identify which seat fits which
position by verifying that the seat belt
buckles are located nearest the center
of the vehicle.
2. Align the clamps on the front underside
of the seat with the forward loop
anchors on the floor and support the
seat so that it doesn't fall (the rear
portion of the seat cannot be mounted
first). The clamps on the front of the
seat automatically lock into the floor
loop anchors after lowering the seat.
LoopsClamp
Forward
3. Supporting the seat with your hands,
slowly lower the seat rearwards to lock
it in place.
Forward
4. Raise the reclining lever and lift the
seatback upright. Attempt to move the
seatback forward and backward to
make sure it is locked.
5. Insert the head restraint.
6. Buckle the seat belts once just to
confirm the seat belt buckles are
inboard which means each seat is on
the correct side of the vehicle.
WARNING
Unsecured Seat:
Driving with the seat unsecured is
dangerous. The seat may become
detached while the vehicle is moving
causing serious injury. After installing
the seat, push it forward and
backward to make sure it is securely
locked.
Essential Safety Equipment
Seats
2-19
Mazda MPV_8U61-EA-05G_Edition1 Page31
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (32,1)
CAUTION
Do not move the side seat-slide lever
with the seat removed. The lever could
be damaged resulting in loss of
functionality.
Third-Row Seat
WARNING
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatback is dangerous.
During a sudden stop or collision,
objects can fly around and become
projectiles that could hit and injure
passengers. Don't stack cargo higher
than the seatback.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
Securing Seats:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury. Make sure
the adjustable components of the seat
are locked in place by attempting to
rock the seatback.
Seat Adjustment:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden braking
or a collision could cause serious
injury. Adjust the seat only when the
vehicle is stopped.
2-20
Essential Safety Equipment
Seats
Mazda MPV_8U61-EA-05G_Edition1 Page32
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

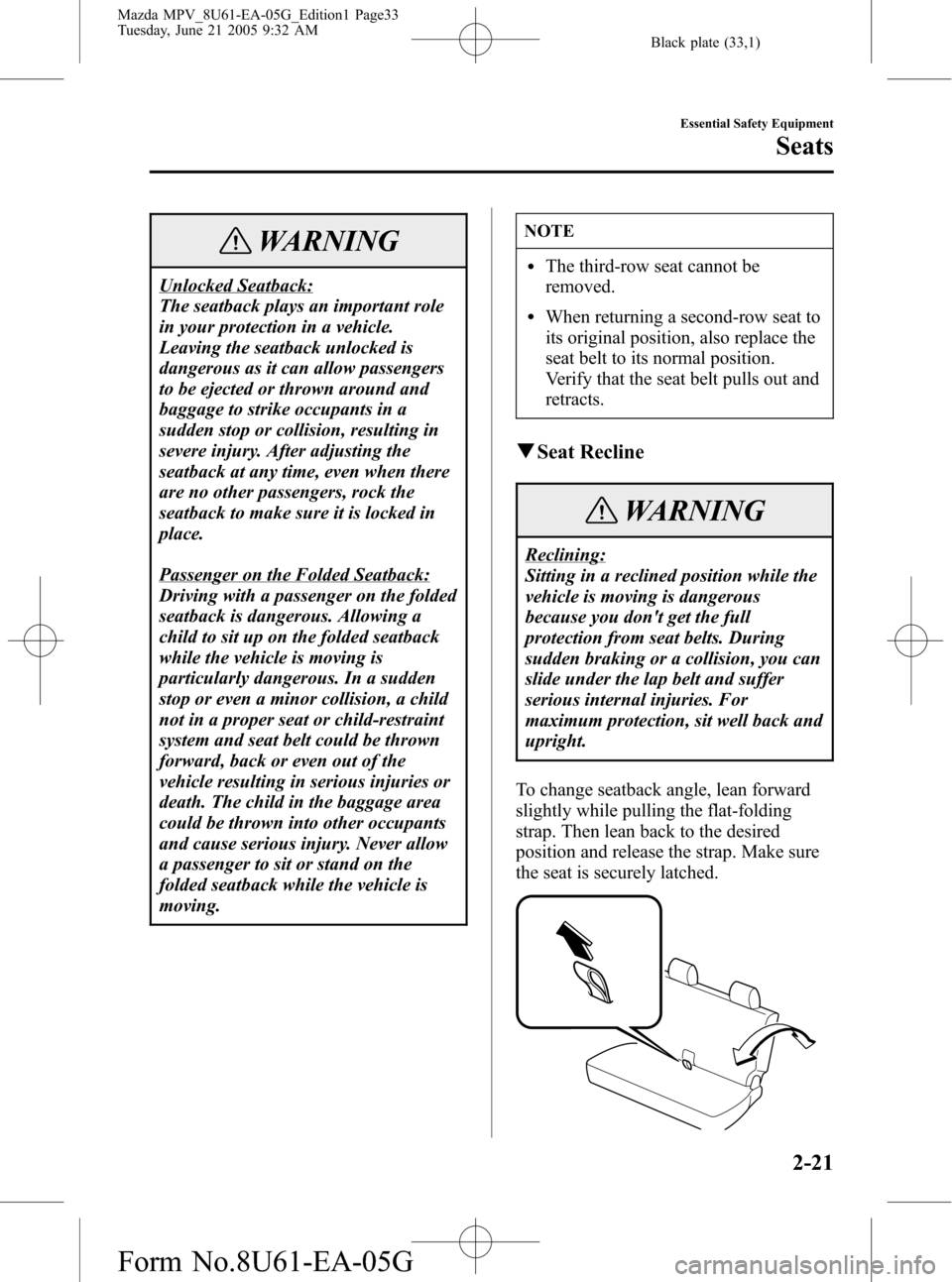

Black plate (33,1)
WARNING
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Passenger on the Folded Seatback:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury. Never allow
a passenger to sit or stand on the
folded seatback while the vehicle is
moving.
NOTE
lThe third-row seat cannot be
removed.
lWhen returning a second-row seat to
its original position, also replace the
seat belt to its normal position.
Verify that the seat belt pulls out and
retracts.
qSeat Recline
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
To change seatback angle, lean forward
slightly while pulling the flat-folding
strap. Then lean back to the desired
position and release the strap. Make sure
the seat is securely latched.
Essential Safety Equipment
Seats
2-21
Mazda MPV_8U61-EA-05G_Edition1 Page33
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (34,1)
qHead Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.
qFolding the Third-Row Seat
WARNING
Riding on Folded Flat Third-Row
Seat:
Riding on the third-row seat when it's
folded is dangerous. During sudden
braking or a collision, passenger's
could be thrown around inside the
vehicle and seriously injured. Always
ride with the third-row seat in the
forward-facing, upright position and
seat belt securely fastened.
2-22
Essential Safety Equipment
Seats
Mazda MPV_8U61-EA-05G_Edition1 Page34
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (38,1)
qThird-Row Seat and Open
Liftgate Position
WARNING
Rear Facing Third-Row Seat and a
Moving Vehicle:
Driving with the third-row seat facing
rearward is dangerous because the
liftgate cannot be securely closed.
During sudden braking or a collision,
passengers could be thrown out of the
vehicle resulting in serious injury or
death. Passengers seated facing
rearward may suffer leg and foot
injury even down a driveway or with a
minor dip in the road. Place the third-
row seat in the forward-facing position
with the seatback upright before
driving the vehicle.
Support Bar:
Sitting in the rear-facing, third-row
seat position without installing the
support bar is dangerous. Without the
support of the bar, the seatback could
collapse resulting in injury.
Always install the support bar before
sitting in the rear-facing, third-row
seat position.
Third-Row Seat and the Flat-Folding
Strap:
Pulling the flat-folding strap with the
third-row seat facing rearward is
dangerous. The seatback will collapse
into the seat bottom and could result
in injury. Do not pull the flat-folding
strap with the third-row seat facing
rearward.
NOTE
lRemove cargo from the seat well
area before placing the third-row seat
in the rear-facing position to avoid
damaging the back of the seatback
when it is folded down.
lAdjust the seatback to the upright
position when the third-row seat is
facing rearward.
To put the third-row seat in the rear
facing position:
1. Open the liftgate.
2. Clean the rear bumper so that dirt does
not soil the seat.
3. Clear away all cargo from the seat well.
4. Remove the head restraints.
5. Pull strap B while supporting the
seatback with the other hand and
carefully ease the seatback rearward
onto the rear bumper.
Strap B
6. Go inside the vehicle and to the rear.
2-26
Essential Safety Equipment
Seats
Mazda MPV_8U61-EA-05G_Edition1 Page38
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (39,1)
7. Remove the support bar from the
pocket.
8. Set the hook on the support bar in the
rear of the seatback.
9. Pull the seatback towards the front of
the vehicle until the opposite end of the
support bar hooks onto the anchor loop
in the side trim. Attempt to push the
seatback towards the rear (liftgate) to
make sure the support bar is securely
latched.
To return the third-row seat to the road
position (forward facing)
1. Make sure to stow the shoulder belts
away from the seat bottom as it is
lowered.
2. Detach the support bar by following
the reverse procedure for installation.
Essential Safety Equipment
Seats
2-27
Mazda MPV_8U61-EA-05G_Edition1 Page39
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (40,1)
3. From inside the vehicle, carefully
lower the seat towards the front until it
locks in place. Attempt to move the
seat forward and backward to make
sure it's securely locked in place.
4. Reinsert the head restraints.
5. Place the seat belt buckles face up.
6. Fasten the shoulder belts and check
that they are routed properly for
passenger use.
Flat Folding
All seats can be folded down for use as
beds when the vehicle is safely parked.
WARNING
Folded-Flat Seats:
Sitting or lying on seats folded flat is a
dangerous way to ride. During sudden
braking or a collision you could be
thrown around inside the vehicle and
seriously injured. Don't ride on
seatbacks folded flat.
CAUTION
Do not move around in the vehicle
while the seats are folded down. A foot
could be injured if it becomes pinched
between the seat bottom and seatback.
If you have to move around the folded
down seats, step on the center of the
seats and move carefully.
2-28
Essential Safety Equipment
Seats
Mazda MPV_8U61-EA-05G_Edition1 Page40
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (42,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the outboard seat belt retractors are designed to keep the lap/shoulder belts out of the
way when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear outboard lap/shoulder belt retractors
operate in two modes: emergency locking mode, and for child-restraint systems, automatic
locking mode. While we recommend you put all children in the rear seats, if you must use
the front passenger seat for a child, slide the front passenger seat as far back as possible and
make sure any child-restraint system is secured properly.
The third-row center seat positions have a lap belt with manual adjustment.
WARNING
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer. Always wear your seat belt and
make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Front air bags and pretensioners work together, but whether a front seat was
occupied or not, if any air bag deployed and whether a seat belt pretensioner deployed
or not, all front seat belts and air bags must be inspected and replaced if necessary.
Have an Authorized Mazda Dealer inspect all seat belt systems in use during an
accident before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn't available
to absorb the impact. This puts more force on the bones beneath the belt, which could
cause serious injury or death. Don't wear twisted seat belts.
2-30
Essential Safety Equipment
Seat Belt Systems
Mazda MPV_8U61-EA-05G_Edition1 Page42
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G
