keyless MAZDA MODEL MPV 2006 Owners Manual (in English)

Black plate (87,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-8
Liftgate .................................................................................... 3-18
Power Windows
í................................................................... 3-19
Rear Quarter Windows ............................................................ 3-22
Fuel-Filler Lid and Cap ........................................................... 3-23
Hood ....................................................................................... 3-24
Moonroof
í............................................................................. 3-25
Security System ........................................................................... 3-28
Immobilizer System
í............................................................. 3-28
Theft-Deterrent Systemí........................................................ 3-30
Steering Wheel and Mirrors ...................................................... 3-32
Steering Wheel ........................................................................ 3-32
Mirrors .................................................................................... 3-32
3-1íSome models.
Mazda MPV_8U61-EA-05G_Edition1 Page87
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (88,1)
Keys
WARNING
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move. Don't leave the keys in your
vehicle with children and keep them in
a place where your children will not
find or play with them.
NOTE
l(With immobilizer system)
Refer to Immobilizer System (page
3-28) for information regarding keys
and engine starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System
(page 3-30) for information
regarding keys and the prevention of
vehicle and vehicle contents theft.
The keys operate all locks.With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep
it in a separate safe and convenient
place, but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer and have
your code number ready.
3-2
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page88
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (89,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, press the release button
and rotate the key into the holder.
Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Opening and closing of the power sliding
doors with the keyless entry system
transmitter is also possible on power
sliding door-equipped vehicles.
Press the button slowly and carefully.
CAUTION
To avoid damage to the transmitter, do
not:
lDrop it.
lGet it wet.
lDisassemble it.
lExpose it to heat or sunlight.
Knowing Your Mazda
Doors and Locks
3-3íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page89
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (90,1)
NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary due to local
conditions.
lThe system doesn't operate when the
ignition switch is in the ON position.
lIf the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
lAdditional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be reset.
qTransmitter
With power sliding doors
Lock button
Unlock button
Right sliding door button Left sliding
door button
Panic button
Operation
indicator light
Without power sliding doors
Lock button
Unlock button
Panic button
Operation
indicator light
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
3-4
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page90
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (92,1)
WARNING
Operating Power Sliding Doors with
Transmitter:
Opening or closing the power sliding
doors with the keyless entry system
transmitter while not watching the
doors move is dangerous. People or
animals could be injured when the
doors open along the rear sides and
back to the rear fender, or in closing.
Allowing children to use the
transmitter could result in serious
injuries despite the jam-safe feature.
Always be sure that the doorway and
rear fender area are clear before
activating the power sliding doors and
be particularly careful when using the
keyless entry system transmitter. Be
sure to view the doors opening or
closing and do not operate a door on
either side if you can't fully see it.
Always make sure that you watch the
power sliding doors close completely
and be sure your children do not have
access to the transmitter.
When a power sliding door is completely
closed/opened and a power sliding door
open/close transmitter button is pressed,
the door opens/closes after the beep
sounds.
NOTE
lWhen a power sliding door is not
completely closed, pressing the
power sliding door open/close
transmitter button will open the door
completely.
lPress the button to stop the power
sliding doors while they are opening/
closing.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether
any door or the liftgate is open or
closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
3-6
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page92
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (94,1)
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
Door Locks
WARNING
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident. So keep all doors locked
when driving.
3-8
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page94
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (95,1)
WARNING
Vehicles Left Unlocked:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders. Always close
all the windows, lock the doors and
take the key with you when leaving
your vehicle unattended.
qLocking, Unlocking with Key
Either front door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with
Transmitterí
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Knob
Front doors
To lock either front door from the inside,
push the door-lock knob.
To unlock, pull it out.
Lock
Unlock
To lock either front door with the door-
lock knob from the outside, push the
door-lock knob to the lock position and
close the door.
NOTE
When locking the doors this way, be
careful not to leave the key inside the
vehicle.
Knowing Your Mazda
Doors and Locks
3-9íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page95
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (98,1)
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
sliding doors. Use them both whenever a
child rides in the vehicle.
To lock the sliding doors, slide the child
safety locks to the lock position before
closing the doors.
Unlock
Lock
With power sliding doors
The doors cannot be opened using the
interior door handles or the power sliding
door switches in the rear.
To open a door, pull the door-lock knob
and do any one of the following:
lPull the exterior door handle.
lPush the power sliding door button on
the transmitter.
lPush the power sliding door switch
located at the driver's seat (page 3-12).
Without power sliding doors
The doors cannot be opened from the
inside whether the door-lock knobs are in
the lock position or the unlock position.
To open a door, pull the door-lock knob
and pull the exterior handle.
qEasy Closure (With Power
Sliding Doors)
The Easy Closure system automatically
closes the doors completely from the near-
shut position.
This system also operates when the doors
are closed manually.
WARNING
Hands and Fingers Pinched in
Closing Sliding Doors:
Placing hands or fingers around a
sliding door is dangerous because the
door closes automatically from the
near-shut position, hands and fingers
could get pinched and injured. When
closing a sliding door, always keep
hands and fingers away from the door.
NOTE
If a door handle is pulled while the easy
closure function is operating, the easy
closure function can be stopped.
qPower Sliding Doorsí
The power sliding doors open/close
electrically by operating switches in the
vehicle or on the keyless entry system
transmitter.
To operate the power sliding doors with
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
3-12
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page98
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (99,1)
Electric power to the power sliding doors
can be switched on and off with the power
sliding doors main switch.
Power sliding
doors main switch
Switch position Operation
ONSwitches on electric power
to the power sliding doors.
OFFSwitches off electric power
to the power sliding doors.
WARNING
Operating Power Sliding Doors:
Opening or closing the power sliding
doors while not watching the doors
move is dangerous. People or animals
could be injured when the doors open
along the rear sides and back to the
rear fender, or in closing. Because of
unseen obstacles and the jam-safe
feature a door may not close
completely and, if left unnoticed, could
result in serious injury or death if an
occupant were to fall out of the
vehicle.
Always be sure that the doorway and
rear fender area is clear before
activating the power sliding doors. Be
sure to view the power sliding doors
opening or closing and make sure that
you watch them close completely.
WARNING
Moving the Vehicle while Closing
Power Sliding Doors:
Shifting out of Park (P) while the
doors are moving is dangerous. The
doors will not close completely and
this could result in serious injury or
death if an occupant were to fall out of
the vehicle. Occupants in the vehicle
will also not have full protection in a
collision. Always be sure the doors
completely close before you shift into
gear and move the vehicle.
Children and the Power Sliding Door
Switches:
Allowing children to operate the
power sliding door switches and the
keyless entry system is dangerous.
Children are not aware of the dangers
of people getting fingers and hands
caught in moving doors. Never allow
children to operate the power sliding
door system.
Open Windows and Power Sliding
Doors:
It is dangerous to stick your head or
hands out the power sliding door
windows while the doors are opening/
closing. A head or hands could be
caught resulting in serious injury.
Never stick your head or hands out the
power sliding door windows.
Knowing Your Mazda
Doors and Locks
3-13
Mazda MPV_8U61-EA-05G_Edition1 Page99
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (105,1)

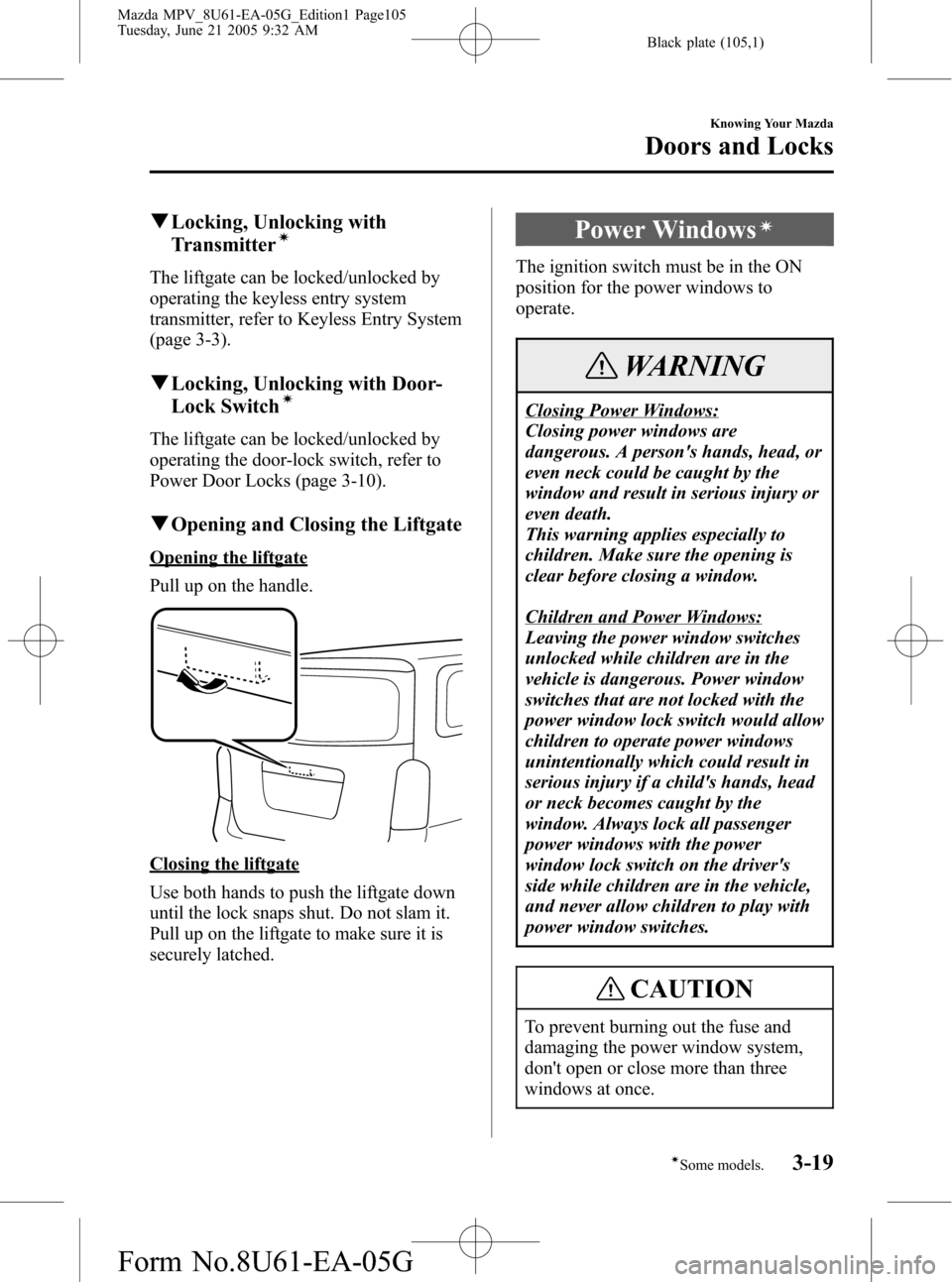

qLocking, Unlocking with
Transmitterí
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switchí
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-10).
qOpening and Closing the Liftgate
Opening the liftgate
Pull up on the handle.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
Power Windowsí
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window. Always lock all passenger
power windows with the power
window lock switch on the driver's
side while children are in the vehicle,
and never allow children to play with
power window switches.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
don't open or close more than three
windows at once.
Knowing Your Mazda
Doors and Locks
3-19íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page105
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G
