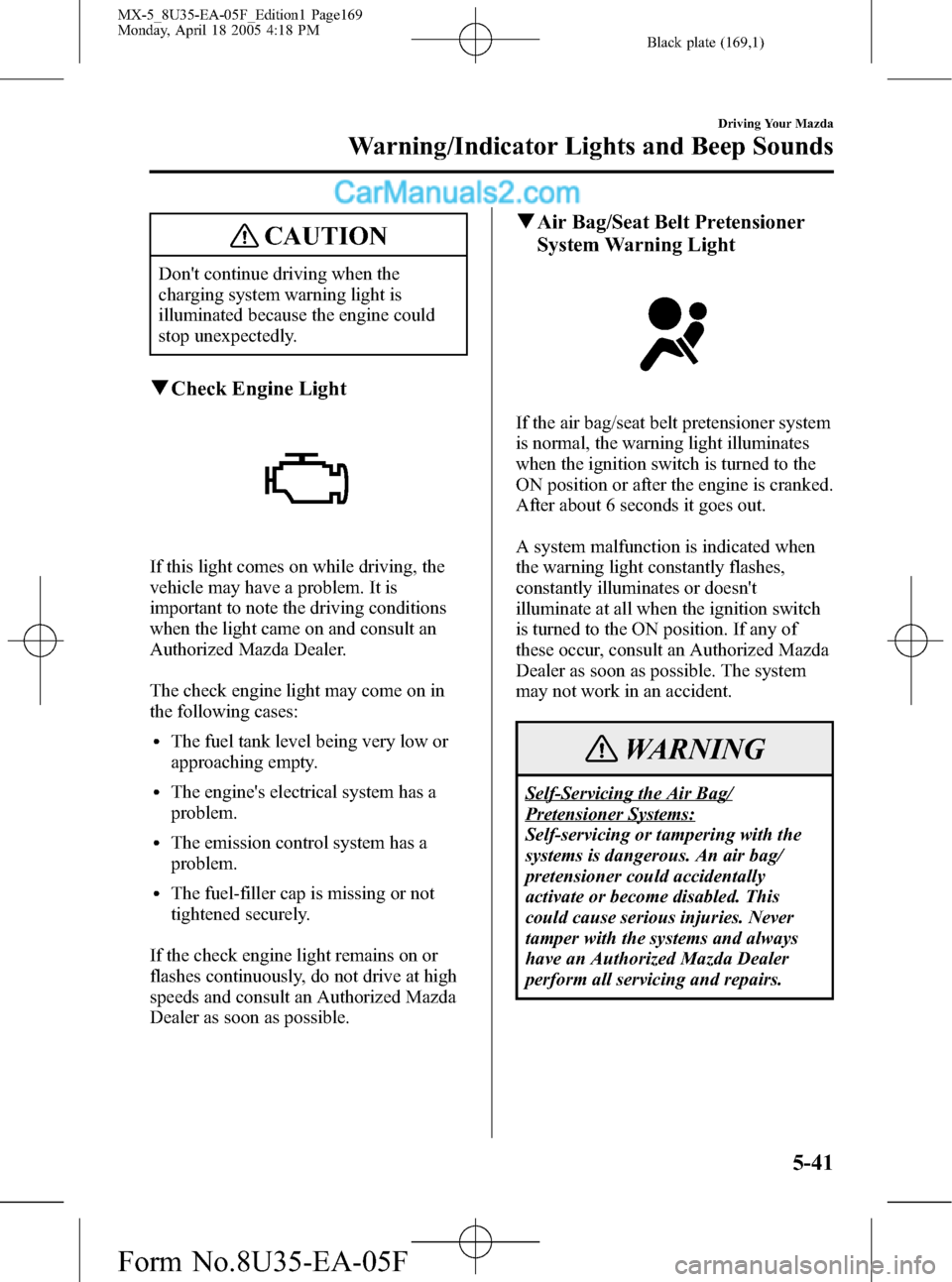

Black plate (169,1)
CAUTION
Don't continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qCheck Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qAir Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is normal, the warning light illuminates
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41
MX-5_8U35-EA-05F_Edition1 Page169
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (186,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along
with the heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
6-2
Interior Comfort
Climate Control System
MX-5_8U35-EA-05F_Edition1 Page186
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (366,1)
T
Tiedown
Hook .......................................... 7-28
Tire Information ................................ 9-18
Tire Pressure Monitoring System ...... 5-27
System error activation .............. 5-29
Tire pressure monitoring system
warning light .............................. 5-28
Tires and wheels ......................... 5-30
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-29
Replacement ............................... 8-31
Rotation ...................................... 8-30
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-5
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-5
Towing
Description ................................. 7-27
Emergency towing ..................... 7-27
Hook .......................................... 7-28
Recreational towing ................... 7-30
Traction Control System (TCS) ........ 5-23
TCS/DSC indicator light ............ 5-23
Trip Meter ......................................... 5-33
Trunk Lid .......................................... 3-31
Trunk Light ....................................... 6-39
Turn and Lane-Change Signals ......... 5-53
V
Vanity Mirrors ................................... 6-39
Vehicle Information Labels ............... 10-2
W
Warning Light
KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-46
Warning Lights ................................. 5-37
ABS ............................................ 5-39
Air bag system ........................... 5-41
Automatic transmission .............. 5-44
Brake system .............................. 5-39
Charging system ......................... 5-40
Check engine .............................. 5-41
Door-ajar .................................... 5-43
Flat tire ....................................... 5-45
Low fuel ..................................... 5-42
seat belt ...................................... 5-42
Seat belt pretensioner system ..... 5-41
Tire pressure monitoring
system ........................................ 5-44
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-22
Weights ............................................. 10-5
Wheel Replacement .......................... 8-32
Windblocker ...................................... 6-43
Windows
Power windows .......................... 3-35
Windshield Washer ........................... 5-55
Windshield Wipers ............................ 5-54
Blades replacement .................... 8-25
Winter Driving .................................... 4-9
11-6
Index
MX-5_8U35-EA-05F_Edition1 Page366
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F
