lMP3 files not conforming to the MP3
format containing both header frames
and data frames will be skipped and
not played.
lThis unit will play MP3 files that have
up to eight levels. However, the more
levels a disc has, the longer it will take
to initially start playing. It is
recommended to record discs with two
levels or less.
lA single disc with up to 999 files can
be played and a single folder with up to
255 files can be played.
lWhen naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.
lThe maximum number of characters
that can be used for file names is as
follows. However, this unit will only
display up to 30 characters, including
the file extension (.mp3).
Maximum number of
characters in a file name
(including a separator“.”
and the three letters of the
file extension)
ISO9660 level 1 12
*
ISO9660 level 2 31*
Joliet extended
format64
Romeo extended
format128
* English one-byte characters (capitalized only) and
underbar“_”are available.
CAUTION
This unit can only play MP3 files that
have an MP3 file extension (.mp3)
attached. Do not attach an MP3 file
extension to any other type file as it
could cause noise to be emitted or a
malfunction in the unit.
About ID3 Tag display
lThis unit can only display ID3 Tag
album, track and artist names that have
been input using Ver1.0/1.1/2.2/2.3
formats. Any other data that may have
been input cannot be displayed.
lThis unit can only display English
(including numerals) one-byte
characters. Use only English (including
numerals) one-byte characters when
inputting ID3 tags. Two-byte characters
and some special symbols cannot be
displayed.
Specialized glossary
MP3
Abbreviation for“MPEG Audio Layer 3”.
A technical standard for audio
compression as decided by an ISO
(International Organization for
Standardization) MPEG working group.
Use of MP3 allows for audio data to be
compressed to approximately a tenth of
the source data size.
ISO 9660
An international standard for logical
formatting of CD-ROM files and folders.
It is divided into three separate levels
based on differences in file naming
procedures, data configuration and other
characteristics.
Interior Comfort
Audio System
6-17
MX-5_8U35-EA-05F_Edition1 Page201
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (202,1)

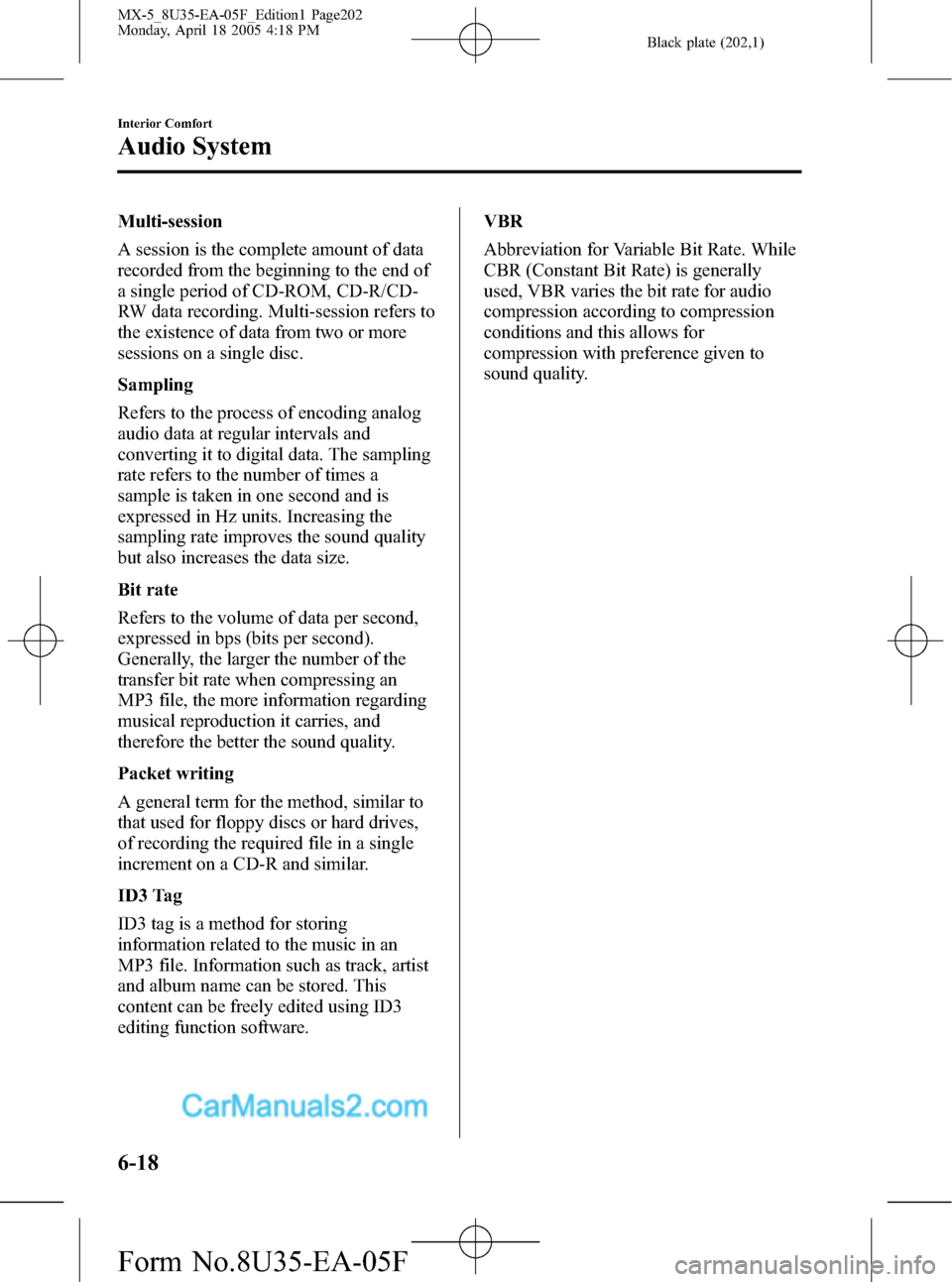

Multi-session
A session is the complete amount of data
recorded from the beginning to the end of
a single period of CD-ROM, CD-R/CD-
RW data recording. Multi-session refers to
the existence of data from two or more
sessions on a single disc.
Sampling
Refers to the process of encoding analog
audio data at regular intervals and
converting it to digital data. The sampling
rate refers to the number of times a
sample is taken in one second and is
expressed in Hz units. Increasing the
sampling rate improves the sound quality
but also increases the data size.
Bit rate
Refers to the volume of data per second,
expressed in bps (bits per second).
Generally, the larger the number of the
transfer bit rate when compressing an
MP3 file, the more information regarding
musical reproduction it carries, and
therefore the better the sound quality.
Packet writing
A general term for the method, similar to
that used for floppy discs or hard drives,
of recording the required file in a single
increment on a CD-R and similar.
ID3 Tag
ID3 tag is a method for storing
information related to the music in an
MP3 file. Information such as track, artist
and album name can be stored. This
content can be freely edited using ID3
editing function software.VBR
Abbreviation for Variable Bit Rate. While
CBR (Constant Bit Rate) is generally
used, VBR varies the bit rate for audio
compression according to compression
conditions and this allows for
compression with preference given to
sound quality.
6-18
Interior Comfort
Audio System
MX-5_8U35-EA-05F_Edition1 Page202
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (203,1)
Audio Set
CD Player
In-Dash CD Changer
Illustration is of a representative audio unit.
Power/Volume/Sound Controls .............................................................................. page 6-20
Clock ...................................................................................................................... page6-24
Operating the Radio ............................................................................................... page 6-26
Operating the Compact Disc (CD) Player .............................................................. page 6-28
Operating the In-Dash CD Changer ....................................................................... page 6-30
Error Indications ..................................................................................................... page 6-35
Interior Comfort
Audio System
6-19
MX-5_8U35-EA-05F_Edition1 Page203
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (204,1)
qPower/Volume/Sound Controls
Power/Volume dialAudio control dial
Power ON/OFF
Turn the ignition switch to the ACC or
ON position.
Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.
NOTE
To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time
when the engine is not running.
Volume adjustment
To adjust the volume, turn the power/
volume dial.Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
Audio sound adjustment
1. Press the audio control dial to select the
function. The selected function will be
indicated.
*
* Standard audio-
equipped model
6-20
Interior Comfort
Audio System
MX-5_8U35-EA-05F_Edition1 Page204
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (205,1)
*
* BOSE Sound
System-
equipped model
* Depending on the mode selected, the
indication changes.
2. Turn the audio control dial to adjust the
selected functions as follows:
Standard audio-equipped model
Indication Turn Left Turn Right
Select mode
Decrease
bassIncrease
bass
Decrease
trebleIncrease
treble
Shift the
sound to the
frontShift the
sound to the
rear
Shift the
sound to the
leftShift the
sound to the
right
OFF ON
BOSE Sound System-equipped model
Indication Turn Left Turn Right
OFF ON
Decrease
bassIncrease
bass
Decrease
trebleIncrease
treble
Shift the
sound to the
frontShift the
sound to the
rear
Shift the
sound to the
leftShift the
sound to the
right
OFF ON
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
treble, fade, and balance, press the
audio control dial for 2 seconds. The
unit will beep and“CLEAR”will be
displayed.
Automatic Level Control (ALC)
(Standard audio-equipped model)
The automatic level control is a feature
that automatically adjusts audio volume
and sound quality according to the vehicle
speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.
Interior Comfort
Audio System
6-21
MX-5_8U35-EA-05F_Edition1 Page205
Monday, April 18 2005 4:18 PM
Form No.8U35-EA-05F

Black plate (206,1)
The following seven modes are available.
Select the desired mode according to use.
Mode UseVolume
change
ALC does
not operate.No change
Use when
the
convertible
top is
closed.
Three levels
are
available.Minimum
Medium
Maximum
Use when
the
convertible
top is open.
Three levels
are
available.Minimum
Medium
Maximum
Turn the audio control dial to select the
desired mode. The selected mode will be
indicated.
*AudioPilot (BOSE Sound System-
equipped model)
AudioPilot automatically adjusts audio
volume and sound quality in accordance
with the level of noise entering the vehicle
interior while driving. When AudioPilot is
turned ON, the system automatically
calculates the conditions for optimum
hearing of sound which may be difficult
to hear depending on exterior noise.
* AudioPilot is a registered trademark of
BOSE Corporation.
BEEP setting
The beep-sound when operating the audio
system can be set on or off.
6-22
Interior Comfort
Audio System
MX-5_8U35-EA-05F_Edition1 Page206
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (207,1)
MEMO
6-23
MX-5_8U35-EA-05F_Edition1 Page207
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (208,1)
qClock
Display
Hour/Minute set switch
Clock/Display switch12/24-hour clock time switch
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, pull up the clock/
display switch for about 2 seconds until
a beep is heard.
The clock's current time will flash.
NOTE
To select 12-hour clock time, pull up
the 12/24-hour clock time switch while
the clock display is flashing. To select
24-hour clock time, press down the
12/24-hour clock time switch while the
clock display is flashing. After selecting
the desired display, press the audio
control dial to return to the flashing
clock display.2. To advance the hours, pull up the hour/
minute set switch. To advance the
minutes, press down the hour/minute
set switch while the time is flashing.
3. Pull up the clock/display switch again
to start the clock.
Exact hour adjustment
1. To set the exact hour, pull up the clock/
display switch for about 2 seconds until
a beep is heard.
The clock's current time will flash.
2. Pull up the clock/display switch again
and the time will be adjusted as
follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
6-24
Interior Comfort
Audio System
MX-5_8U35-EA-05F_Edition1 Page208
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (209,1)
NOTE
lWhen the clock/display switch is
released, the seconds are reset to
“00”.
lIf the power supply to the unit is
interrupted (if the fuse blows or the
vehicle's battery is disconnected), the
clock will need to be reset.
Interior Comfort
Audio System
6-25
MX-5_8U35-EA-05F_Edition1 Page209
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F

Black plate (210,1)
qOperating the Radio
Band selector buttonDisplay
Manual tuning dial
Channel preset switches
Satellite button*
Electric serial number switch*
Scan/Auto memory switch Seek tuning/APC switch
*For reception of optional SIRIUS digital satellite radio.
Used on vehicles equipped with the separately sold SIRIUS digital satellite radio unit.
For information on use, read the manual accompanying the SIRIUS unit.
Subscri
ption of SIRIUS digital satellite radio service is available in the U.S. (Except Alaska and Hawaii).
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM.
The selected mode will be indicated. If
FM stereo is being received,“ST”will be
displayed.
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the“ST”indicator will go
out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
6-26
Interior Comfort
Audio System
MX-5_8U35-EA-05F_Edition1 Page210
Monday, April 18 2005 4:19 PM
Form No.8U35-EA-05F
