Black plate (184,1)
qEngine Oil Pressure Gauge
Normal range
Engine oil pressure is normal when the
engine oil pressure gauge needle points
within the normal range.
If the needle on the gauge doesn't move
after starting the engine, follow steps 1
through 3.
If the engine oil pressure gauge moves to
L (low) while you are driving, drive to the
side of the road and park off the right-of-
way. Set the parking brake. Then follow
steps 1 through 3.
1. Turn off the engine and inspect the
engine oil level (page 8-21). If it's low,
add oil.
2. Start the engine.
3. If the needle still doesn't move, have your vehicle checked at an Authorized
Mazda Dealer.
CAUTION
Don't run the engine if the oil
pressure is low. It could result in
extensive engine damage.
qDashboard Illumination
When the exterior lights are on, rotate the
knob to adjust the brightness of the
dashboard illumination.
Dim
Bright
NOTE
This symbol () indicates the knob to adjust
the brightness of the dashboard illumination.
5-40
Driving Your Mazda
Instrument Cluster and Indicators
MX-5_8EN7-EA-14E_Edition1 Page184
Friday, March 28 2014 3:39 PM
Form No.8EN7-EA-14E

Black plate (185,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
SignalWarning/Indicator Lights Page
Brake System Warning Light 5-43
Malfunction Warning Light5-43
Charging System Warning Light5-45
Check Engine Light5-45
ABS Warning Light5-44
Air Bag/Front Seat Belt Pretensioner System Warning Light5-45
Low Fuel Warning Light5-46
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41
MX-5_8EN7-EA-14E_Edition1 Page185
Friday, March 28 2014 3:39 PM
Form No.8EN7-EA-14E

Black plate (187,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning/Warning light
inspection
The light illuminates when the parking
brake is applied with the ignition switched
to START or ON. It turns off when the
parking brake is fully released.
Low brake fluid level warning
If the brake warning light remains
illuminated even though the parking brake
is released, the brake fluid may be low or
there could be a problem with the brake
system. Park the vehicle in a safe place
immediately and contact an Authorized
Mazda Dealer.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qMalfunction Warning Light
When the ignition is switched ON, the
malfunction warning light illuminates and
then turns off after a few seconds.
The light stays on if the brake switch has
a malfunction. Consult an Authorized
Mazda Dealer.
WARNING
Do not drive the vehicle with the
malfunction warning light illuminated.
Driving with the malfunction
warning light illuminated is
dangerous because the brake lights
and engine control system may not
operate normally due to a brake
switch malfunction which could lead
to an accident. Have your vehicle
inspected by an Authorized Mazda
Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43
MX-5_8EN7-EA-14E_Edition1 Page187
Friday, March 28 2014 3:39 PM
Form No.8EN7-EA-14E

Black plate (189,1)
qCharging System Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qCheck Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer. The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
q Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is working properly, the warning light
illuminates when the ignition is switched
ON or after the engine is cranked. The
warning light turns off after a specified
period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-45
MX-5_8EN7-EA-14E_Edition1 Page189
Friday, March 28 2014 3:39 PM
Form No.8EN7-EA-14E

Black plate (214,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
6-2
Interior Comfort
Climate Control System
MX-5_8EN7-EA-14E_Edition1 Page214
Friday, March 28 2014 3:39 PM
Form No.8EN7-EA-14E

Black plate (316,1)
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan: Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove the cooling
system cap when the engine and
radiator are hot: When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine: Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and park off the right-of-way. 2. Put a vehicle with an automatic
transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant reservoir level.
If it's low, look for coolant leaks from
the radiator and hoses.
7-18
In Case of an Emergency
Overheating
MX-5_8EN7-EA-14E_Edition1 Page316
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (344,1)
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or
the proper tools and equipment to do the work. Have maintenance work done by a
qualified technician:Performing maintenance work on a vehicle is dangerous if not done properly. You
can be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly: Working under the hood with the engine running is dangerous. It becomes even
more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Switch the ignition to off and make sure the fan is not running before attempting to
work near the cooling fan: Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment: After you have finished checking or doing servicing in the engine compartment, do
not forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a
fire leading to an unexpected accident.
8-18
Maintenance and Care
Owner Maintenance
MX-5_8EN7-EA-14E_Edition1 Page344
Friday, March 28 2014 3:41 PM
Form No.8EN7-EA-14E

Black plate (437,1)

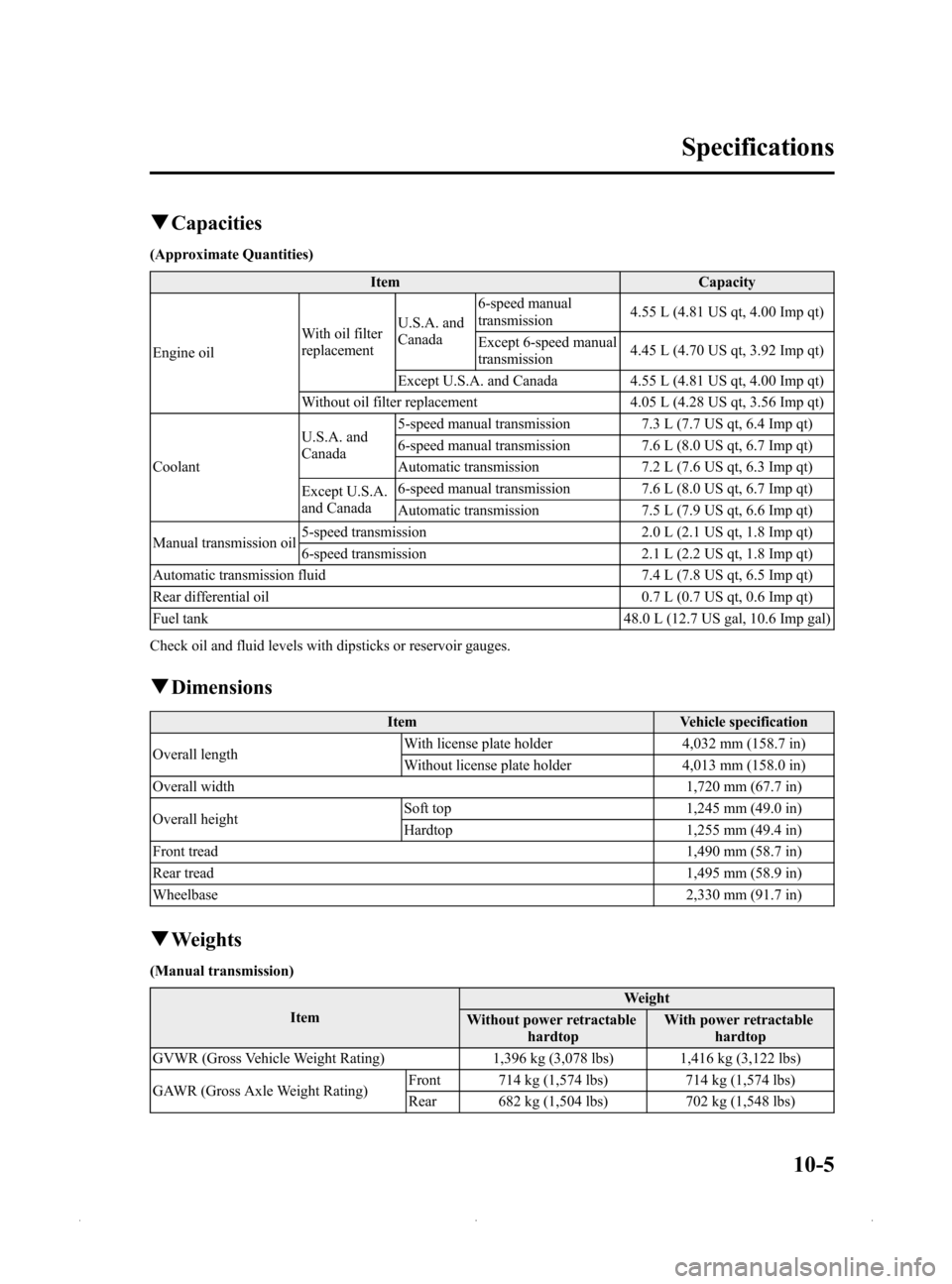

qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter
replacementU.S.A. and
Canada6-speed manual
transmission
4.55 L (4.81 US qt, 4.00 Imp qt)
Except 6-speed manual
transmission 4.45 L (4.70 US qt, 3.92 Imp qt)
Except U.S.A. and Canada 4.55 L (4.81 US qt, 4.00 Imp qt)
Without oil filter replacement 4.05 L (4.28 US qt, 3.56 Imp qt)
Coolant U.S.A. and
Canada5-speed manual transmission 7.3 L (7.7 US qt, 6.4 Imp qt)
6-speed manual transmission 7.6 L (8.0 US qt, 6.7 Imp qt)
Automatic transmission
7.2 L (7.6 US qt, 6.3 Imp qt)
Except U.S.A.
and Canada 6-speed manual transmission 7.6 L (8.0 US qt, 6.7 Imp qt)
Automatic transmission
7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transmission oil 5-speed transmission
2.0 L (2.1 US qt, 1.8 Imp qt)
6-speed transmission 2.1 L (2.2 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.4 L (7.8 US qt, 6.5 Imp qt)
Rear differential oil 0.7 L (0.7 US qt, 0.6 Imp qt)
Fuel tank 48.0 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length With license plate holder
4,032 mm (158.7 in)
Without license plate holder 4,013 mm (158.0 in)
Overall width 1,720 mm (67.7 in)
Overall height Soft top
1,245 mm (49.0 in)
Hardtop 1,255 mm (49.4 in)
Front tread 1,490 mm (58.7 in)
Rear tread 1,495 mm (58.9 in)
Wheelbase 2,330 mm (91.7 in)
qWeights
(Manual transmission)
Item Weight
Without power retractable hardtop With power retractable
hardtop
GVWR (Gross Vehicle Weight Rating) 1,396 kg (3,078 lbs) 1,416 kg (3,122 lbs)
GAWR (Gross Axle Weight Rating) Front 714 kg (1,574 lbs) 714 kg (1,574 lbs)
Rear 682 kg (1,504 lbs) 702 kg (1,548 lbs)
Specifications
10-5
MX-5_8EN7-EA-14E_Edition1 Page437
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E

Black plate (446,1)
S
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-73Horn ........................................... 5-59
Storage Compartments ...................... 6-83 Back trim storage box ................ 6-84
Glove Compartment ................... 6-83
Mesh pocket ............................... 6-84
Seat side box .............................. 6-83
Sunvisors .......................................... 6-81
T
Tachometer ........................................ 5-38
Theft-Deterrent System ..................... 3-71
Tiedown Hook .......................................... 7-26
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-30
System error activation .............. 5-34
Tire pressure monitoring system
warning light .............................. 5-32
Tires and wheels ......................... 5-34
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-32
Replacement ............................... 8-34
Rotation ...................................... 8-33
Snow tires .................................... 4-9
Specifications ............................. 10-7
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Tool Storage ........................................ 7-3
T
Towing
Description ................................. 7-25
Emergency towing ..................... 7-25
Hook .......................................... 7-26
Recreational towing ................... 7-28
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-26
TCS/DSC indicator light ............ 5-26
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-37
Trunk Lid .......................................... 3-33 Inside trunk release lever ............ 3-35
Trunk Light ....................................... 6-81
Turn and Lane-Change Signals ......... 5-56
V
Vanity Mirrors ................................... 6-81
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-41 ABS ............................................ 5-44
Air bag system ........................... 5-45
Automatic transmission .............. 5-46
Brake system .............................. 5-43
Charging system ......................... 5-45
Check engine .............................. 5-45
Door-ajar .................................... 5-46
KEY ............................................ 5-49
Low fuel ..................................... 5-46
Malfunction ................................ 5-43
Seat belt ...................................... 5-46
Seat belt pretensioner system ..... 5-45
Tire pressure monitoring
system ........................................ 5-47
Warranty ............................................ 9-14
11-6
Index
MX-5_8EN7-EA-14E_Edition1 Page446
Friday, March 28 2014 3:42 PM
Form No.8EN7-EA-14E
