When Driving
Transmission
5. Take the vehicle to an Authorized
Mazda Dealer to have the system
checked.
Manual Shift Mode
The manual shift mode gives you the feel
of driving a manual transmission vehicle
by allowing you to operate the selector
lever manually. This allows you to control
engine rpm and torque to the drive wheels
much like a manual transmission when
more control is desired.
To change to manual shift mode, shift the
lever from D to M.
NOTE
Changing to manual shift mode while
driving will not damage the transmission.
To return to automatic shift mode, shift the
lever from M to D.
NOTE
 If you change to manual shift mode
when the vehicle is stopped, the gear
will shift to M1. If you change to manual shift mode
without depressing the accelerator
pedal when driving in D range, 5th
gear/6th gear, the gear will shift to M4/
M5.
Indicators
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
Gear position indication
The numeral for the selected gear
illuminates.
Manual shift mode indication
Gear position indication
NOTE
If the gears cannot be shifted down when
driving at higher speeds, the gear position
indication will flash twice to signal that
the gears cannot be shifted down (to
protect the transmission).
MX-5_8EU4-EA-15D_Edition1.indb 272015/03/10 9:55:05

4–28
When Driving
Transmission
*Some models.
Manually shifting up
You can shift gears up by operating the
shift lever or the steering shift switches*.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a higher gear, tap the shift
lever back once.
Using steering shift switch*
To shift up to a higher gear with the
steering shift switches, pull the UP switch
() toward you once with your
fingers.
UP switch (+/OFF)
WARNING
Keep your hands on the steering wheel
rim when using fingers on the steering
shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver's air bag were to deploy
in a collision, your hands could be
impacted causing injury.
NOTE
 When driving slowly, the gears may not
shift up. In manual shift mode, do not run the
engine with the tachometer needle in
the RED ZONE. When the engine rpm is
high, a gear may shift up automatically
to protect the engine. When depressing the accelerator fully,
the transmission will shift to a lower
gear, depending on vehicle speed. The steering shift switch can be used
temporarily even if the selector lever is
in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch () is
pulled rearward for a sufficient amount
of time.
MX-5_8EU4-EA-15D_Edition1.indb 282015/03/10 9:55:05

4–29
When Driving
Transmission
*Some models.
Manually shifting down
You can shift gears down by operating the
shift lever or the steering shift switches*.
M6 → M5 → M4 → M3 → M2→ M1
Using selector lever
To shift down to a lower gear, tap the
selector lever forward once.
Using steering shift switch*
To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch toward you once with your
fingers.
DOWN switch (-)
WARNING
Do not use engine braking on slippery
road surfaces or at high speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tire speed could
cause the tires to skid. This could
lead to loss of vehicle control and an
accident.
Keep your hands on the steering wheel
rim when using fingers on the steering
shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous.
If the driver's air bag were to deploy
in a collision, your hands could be
impacted causing injury.
NOTE
 When driving at high speeds, the gear
may not shift down. During deceleration, the gear may
automatically shift down depending on
vehicle speed. When depressing the accelerator fully,
the transmission will shift to a lower
gear, depending on vehicle speed.
MX-5_8EU4-EA-15D_Edition1.indb 292015/03/10 9:55:06

4–30
When Driving
Transmission
Second gear fixed mode
When the selector lever is moved back
while the vehicle speed is about 10 km/h
(6.2 mph) or less, the transmission is set in
the second gear fixed mode. The gear is
fixed in second while in this mode for
easier acceleration from a stop and driving
on slippery roads such as snow-covered
roads.
If the selector lever is moved back or
forward while in the second gear fixed
mode, the mode will be canceled.
MX-5_8EU4-EA-15D_Edition1.indb 302015/03/10 9:55:06

4–31
When Driving
Transmission

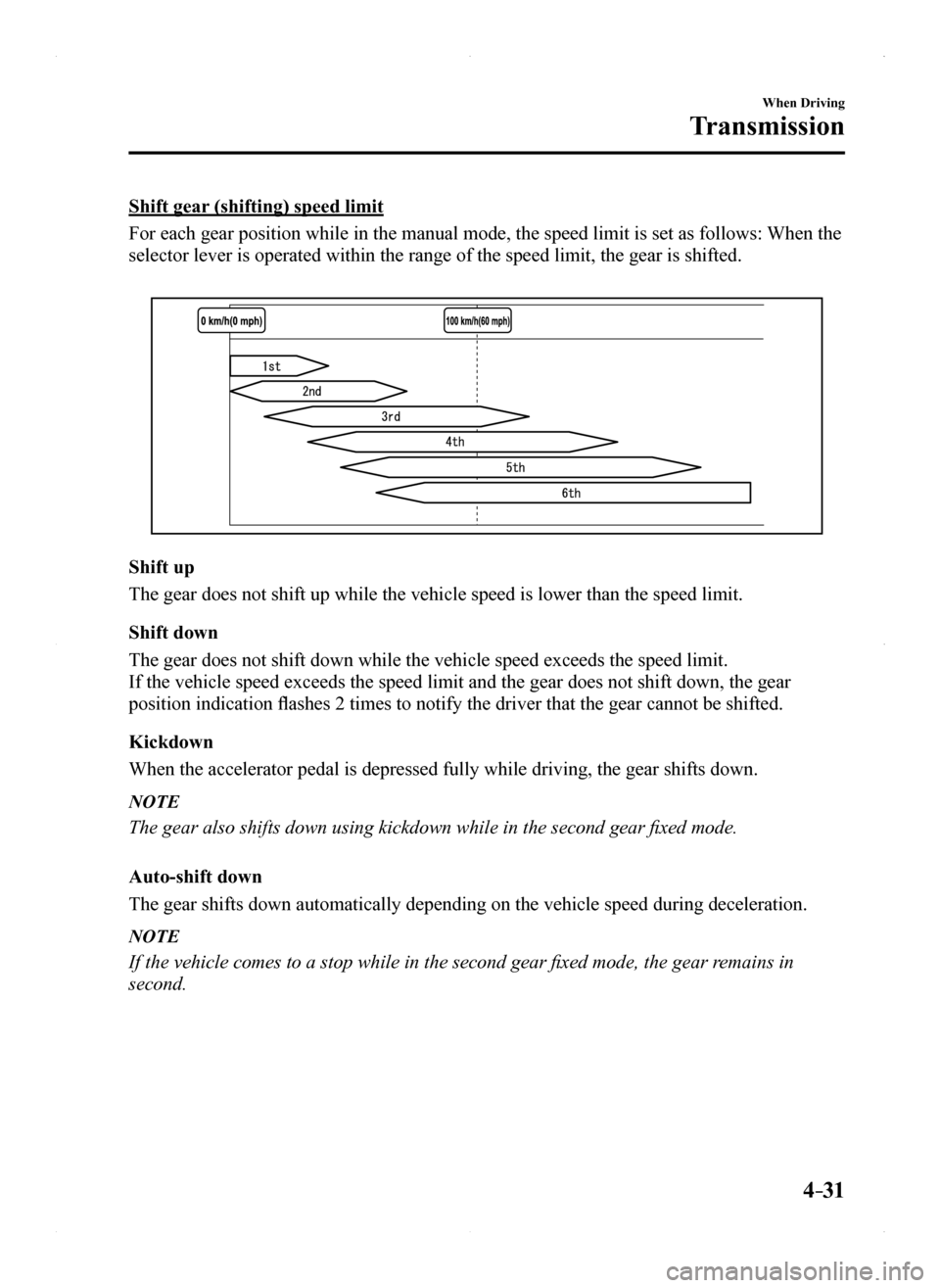

Shift gear (shifting) speed limit
For each gear position while in the manual mode, the speed limit is set \
as follows: When the
selector lever is operated within the range of the speed limit, the gear\
is shifted.
Shift up
The gear does not shift up while the vehicle speed is lower than the spe\
ed limit.
Shift down
The gear does not shift down while the vehicle speed exceeds the speed l\
imit.
If the vehicle speed exceeds the speed limit and the gear does not shift\
down, the gear
position indication flashes 2 times to notify the driver that the gear cannot be shifted.
Kickdown
When the accelerator pedal is depressed fully while driving, the gear sh\
ifts down.
NOTE
The gear also shifts down using kickdown while in the second gear fixed mode.
Auto-shift down
The gear shifts down automatically depending on the vehicle speed during\
deceleration.
NOTE
If the vehicle comes to a stop while in the second gear fixed mode, the gear remains in
second.
MX-5_8EU4-EA-15D_Edition1.indb 312015/03/10 9:55:06

4–32
When Driving
Transmission
Recommendations for shifting
Upshifting
For normal acceleration and cruising, Mazda recommends these shift point\
s:
GearVehicle speed*1
M1 to M224 km/h (15 mph)
M2 to M340 km/h (25 mph)
M3 to M465 km/h (40 mph)
M4 to M573 km/h (45 mph)
M5 to M681 km/h (50 mph)
*1 Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steep upgrade, downshift before the
engine starts to overwork. This gives better acceleration when you need more speed.
On a steep downgrade, downshifting helps maintain safe speed and prolong\
s brake life.
MX-5_8EU4-EA-15D_Edition1.indb 322015/03/10 9:55:06

4–33
When Driving
Transmission
*Some models.
Direct Mode*
Direct mode can be used for temporarily
switching gears by operating the steering
shift switch while the vehicle is being
driven with the selector lever in the D
range.
While in direct mode, the D and M
indication illuminate and the gear position
in use is illuminated.
Direct mode is canceled (released) under
the following conditions.
 The UP switch () is pulled
rearward for a certain amount of time or
longer. The vehicle is driven for a certain
amount of time or longer (time differs
depending on the driving conditions
while operating). The vehicle is stopped or moving at a
slow speed.
Gear position indication
Direct mode indication
NOTE
Shifting up and down while in direct mode
may not be possible depending on the
vehicle speed. In addition, because direct
mode is canceled (released) depending
on the rate of acceleration or if the
accelerator is fully depressed, use of the
manual shift mode is recommended if you
need to drive the vehicle in a particular
gear for long periods.
Driving Tips
WARNING
Do not let the vehicle move in a
direction opposite to the direction
selected by the selector lever:
Do not let the vehicle move backward
with the selector lever in a forward
position, or do not let the vehicle
move forward with the selector lever
in the reverse position. Otherwise, the
engine may stop, causing the loss of
the power brake and power steering
functions, and make it difficult to
control the vehicle which could result
in an accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transmission will
shift to a lower gear, depending on vehicle
speed.
MX-5_8EU4-EA-15D_Edition1.indb 332015/03/10 9:55:06

4–34
When Driving
Transmission
NOTE
The accelerator pedal may initially feel
heavy as it is being depressed, then feel
lighter as it is depressed further. This
change in pedal force aids the engine
control system in determining how much
the accelerator pedal has been depressed
for performing kickdown, and functions to
control whether or not kickdown should be
performed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
load weight and grade steepness.
3. Release the brake pedal while gradually
accelerating.
Descending steep grades
When descending a steep grade, shift to
lower gears, depending on load weight and
grade steepness. Descend slowly, using the
brakes only occasionally to prevent them
from overheating.
MX-5_8EU4-EA-15D_Edition1.indb 342015/03/10 9:55:06

4–35
When Driving
Switches and Controls
Lighting Control
Headlights
Turn the headlight switch to turn the headlights, other exterior lights a\
nd dashboard
illumination on or off.
When the lights are turned on, the lights-on indicator light in the inst\
rument cluster turns on.
NOTE
 If the light switch is left on, the lights will automatically switch off\
approximately 30
seconds after switching the ignition off.
The time setting can be changed.
Refer to Personalization Features on page 9-9. To prevent discharging the battery, do not leave the lights on while the engine is off unless
safety requires them.
Without auto-light control
Switch Position
Ignition PositionONACC or OFFONACC or OFFONACC or OFF
HeadlightsOffOffOffOffOnOn
Daytime running lightsOn*1OffOn*1OffOffOff
TaillightsParking lightsLicense lightsSide-marker lightsDashboard illumination
OffOffOnOnOnOn
*1 It turns on while driving the vehicle.
