5–2
Interior Features
Climate Control System
Operating Tips
 Operate the climate control system with
the engine running. To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running. Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency. Use the climate control system to defog
the windows and dehumidify the air. The recirculate mode should be used
when driving through tunnels or while in
a traffic jam, or when you would like to
shut off outside air for quick cooling of
the interior. Use the outside air position for
ventilation or windshield defrosting. If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. Check
the label before refilling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
For details, consult an Authorized
Mazda Dealer.
Label
MX-5_8EU4-EA-15D_Edition1.indb 22015/03/10 9:55:20

5–6
Interior Features
Climate Control System
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
NOTE
(Type A)
When the mode is set to, or a position
in between them with the fan control dial
in a position other than 0 and the
temperature control dial in the maximum
cold position, the air intake selector
switches to the recirculated air position
and the A/C turns on automatically.
If A/C is not desired, press the A/C switch
to turn it off.
Fan control dial
The fan has seven speeds.
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 5-4).
NOTE
 The mode selector dial can be set at the
intermediate positions () between
each mode. Set the dial to an
intermediate position if you want to split
the airflow between the two modes. For example, when the mode selector
dial is at the position between the
and positions, airflow from the floor
vent is less than that of the position.
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.
Press the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).
Air intake selector
Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.
Recirculated air position (indicator light
illuminated)
Outside air is shut off. Use this position
when going through tunnels, driving in
congested traffic (high engine exhaust
areas) or when quick cooling is desired.
Outside air position (indicator light
turned off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
WARNING
Do not use the position in cold or
rainy weather:
Using the position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
MX-5_8EU4-EA-15D_Edition1.indb 62015/03/10 9:55:22

5–7
Interior Features
Climate Control System
Heating
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside
air position.
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidified heating is desired, turn
on the air conditioner.
NOTE
 If the windshield fogs up easily, set the
mode selector dial to the position. If cooler air is desired at face level, set
the mode selector dial at the position
and adjust the temperature control dial
to maintain maximum comfort. The air to the floor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).
Cooling (With air conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. After cooling begins, adjust the fan
control dial and temperature control
dial as needed to maintain maximum
comfort.
CAUTION
If the air conditioner is used while
driving up long hills or in heavy
traffic, monitor the engine coolant
temperature warning light to see if it is
illuminated or flashing (page 4-16).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or flashing, turn the air
conditioning off (page 7-27).
NOTE
 When maximum cooling is desired,
set the temperature control dial to the
extreme cold position and set the air
intake selector to the recirculated air
position, then turn the fan control dial
fully clockwise. If warmer air is desired at floor level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort. The air to the floor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).
Ventilation
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside
air position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.
MX-5_8EU4-EA-15D_Edition1.indb 72015/03/10 9:55:22

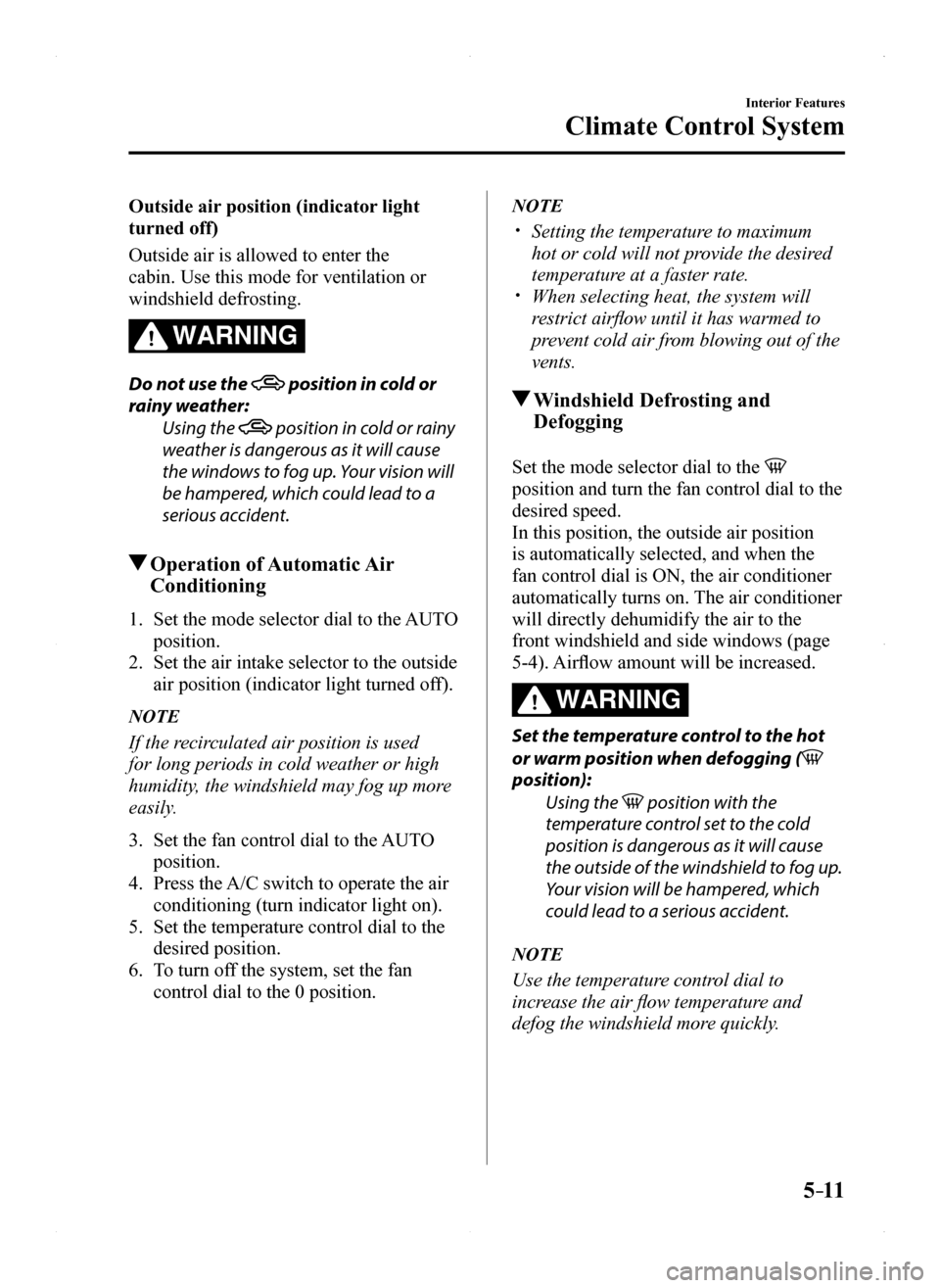

5–11
Interior Features
Climate Control System
Outside air position (indicator light
turned off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
WARNING
Do not use the position in cold or
rainy weather:
Using the position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
Operation of Automatic Air
Conditioning
1. Set the mode selector dial to the AUTO
position.
2. Set the air intake selector to the outside
air position (indicator light turned off).
NOTE
If the recirculated air position is used
for long periods in cold weather or high
humidity, the windshield may fog up more
easily.
3. Set the fan control dial to the AUTO
position.
4. Press the A/C switch to operate the air
conditioning (turn indicator light on).
5. Set the temperature control dial to the
desired position.
6. To turn off the system, set the fan
control dial to the 0 position.
NOTE
 Setting the temperature to maximum
hot or cold will not provide the desired
temperature at a faster rate. When selecting heat, the system will
restrict airflow until it has warmed to
prevent cold air from blowing out of the
vents.
Windshield Defrosting and
Defogging
Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windshield and side windows (page
5-4). Airflow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):
Using the position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
MX-5_8EU4-EA-15D_Edition1.indb 112015/03/10 9:55:23

5–17
Interior Features
Audio System
 If the memory portion of the CD is
transparent or translucent, do not use the
disc.
T ransparent
 A new CD may have rough edges on its
inner and outer perimeters. If a disc with
rough edges is used, proper setting will
not be possible and the CD player will
not play the CD. In addition, the disc
may not eject resulting in a malfunction.
Remove the rough edges in advance
by using a ball-point pen or pencil as
shown below. To remove the rough
edges, rub the side of the pen or pencil
against the inner and outer perimeter of
the CD.
 When driving over uneven surfaces, the
sound may jump.
 CDs bearing the logo shown in the
illustration can be played. No other discs
can be played.
 Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system may
not operate properly. Be sure never to touch the signal surface
when handling the CDs. Pick up a CD
by grasping the outer edge or the edge of
the hole and the outer edge.
 Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction. Dust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should become
soiled, gently wipe it with a soft cloth
from the center of the CD to the edge. Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
MX-5_8EU4-EA-15D_Edition1.indb 172015/03/10 9:55:26

6–55
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
18A/C MAG7.5 AAir conditioner
19AT PUMP20 ATransmission control system*
20AT15 ATransmission control system*
21D LOCK25 APower door locks
22H/L RH20 AHeadlight (RH)
23ENGB27.5 AEngine control system
24TAIL20 ATaillights, License plate lights, Parking lights
25DRL15 A—
26ROOM25 AOverhead light
27FOG15 A—
28H/CLEAN20 A—
29STOP10 ABrake lights
30HORN15 AHorn
31H/L LH20 AHeadlight (LH)
32ABS/DSC S30 AABS, Dynamic stability control system
33HAZARD15 AHazard warning flashers, Turn signal lights
34FUEL PUMP15 AFuel system
35ENGB35 A—
36WIPER20 AWindshield wipers
37CABINB50 AFor protection of various circuits
38———
39———
40ABS/DSC M50 AABS, Dynamic stability control system
41EVVTA/R PUMP20 AEngine control system
42EVPS30 ABrake control system
43FAN130 ACooling fan
44FAN240 A—
45ENG.MAIN40 AEngine control system
46EPS60 APower steering system
47DEFOG30 ARear window defogger
48IG230 AFor protection of various circuits
49INJECTOR30 AEngine control system
50HEATER40 AAir conditioner
51———
52———
MX-5_8EU4-EA-15D_Edition1.indb 552015/03/10 9:56:17

7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
(Illuminate)Lane Departure Warning System (LDWS) Warning Light*
The warning light remains turned on if there is a problem with the syste\
m. Have your vehicle inspected at an Authorized Mazda Dealer.The LDWS does not operate when the warning light illuminates.
CAUTION
A problem in the system may be indicated under the following conditions. Have your vehicle inspected at an Authorized Mazda Dealer.
When the light remains turned on while driving the vehicle.When the system is canceled automatically, the light turns on. Normally, the system restores automatically and the light turns off, however, if the light remains turned on, there may be a problem with the system.The light does not illuminate when the ignition is switched ON.Always use tires for all wheels that are of the specified size, and the same manufacture, brand, and tread pattern. In addition, do not use tires with significantly different wear patterns on the same vehicle. If such improper tires are used, the LDWS may not operate normally.When an emergency spare tire is used, the system may not operate normally.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or obstructed, the light turns on temporarily. If the light remains turned on, there may be a problem with the system.
(Amber)High Beam Control System (HBC) Warning Light*
The light remains turned on if there is a problem with the system. Have \
your vehicle inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or obstructed, the light turns on temporarily. If the light remains turned on, there may be a problem with the system.
LED Headlight Warning Light
This light illuminates if there is a malfunction in the LED headlight. Have your vehicle inspected by an Authorized Mazda Dealer.
Blind Spot Monitoring (BSM) OFF Indicator Light*
A problem in the system may be indicated under the following conditions.Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not turn on when the ignition is switched ON.The light remains turned on even if the Blind Spot Monitoring (BSM) switch is operated.It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF\
indicator light in the instrument cluster illuminates). However, it does not indicate a malfunction.
MX-5_8EU4-EA-15D_Edition1.indb 382015/03/10 9:56:32

10–3
Index
Coming Home Light System ..............4-38
Console Box ......................................5-137
Convertible Top (Soft Top) .................3-34
Cruise Control .....................................4-89
Cruise control switch.....................4-89
Cruise main indicator light (amber)/
cruise set indicator light (green) ....4-90
Cruise Control Set Vehicle Speed
Display ................................................4-14
Cup Holder ........................................5-134
Customer Assistance .............................8-2
D
Dashboard Illumination ......................4-13
Daytime Running Lights .....................4-39
Defogger
Mirror ............................................4-45
Rear window .................................4-45
Dimensions ...........................................9-5
Door Locks ..........................................3-10
Drive Selection ....................................4-61
Driving In Flooded Area .....................3-47
Driving Tips
Automatic transmission .................4-33
Break-in period..............................3-43
Driving in flooded area..................3-47
Driving on uneven road .................3-48
Floor mat .......................................3-44
Hazardous driving .........................3-44
Overloading ...................................3-47
Rocking the vehicle .......................3-45
Saving fuel and protection of the
environment...................................3-43
Winter driving ...............................3-45
Driving on Uneven Road ....................3-48
Dynamic Stability Control (DSC) .......4-57
DSC OFF indicator light ...............4-58
DSC OFF switch ...........................4-58
TCS/DSC indicator light ...............4-57
E
Emergency Starting
Push-starting ..................................7-26
Starting a flooded engine ...............7-26
Emergency Towing
Tiedown hooks ..............................7-31
Towing description ........................7-30
Emission Control System ....................3-23
Ending Screen Display ........................4-60
Engine
Coolant ..........................................6-29
Engine compartment overview .....6-26
Exhaust gas....................................3-24
Hood release ..................................6-24
Oil ..................................................6-27
Starting ............................................4-3
Engine Coolant Temperature Gauge ...4-11
Essential Information ............................6-2
Event Data Recorder ...........................8-20
Exhaust Gas ........................................3-24
Exterior Care .......................................6-57
Aluminum wheel maintenance ......6-62
Bright-metal maintenance .............6-61
Convertible top maintenance.........6-62
Maintaining the finish ...................6-59
Plastic part maintenance ................6-64
F
Flasher
Hazard warning .............................4-46
Headlights .....................................4-35
Flat Tire .................................................7-3
Mounting the tire ...........................7-20
Removing a tire .............................7-16
Floor Mat ............................................3-44
Fluid
Brake/Clutch .................................6-31
Washer ...........................................6-31
Fluids
Classification ...................................9-4
Foot Brake ...........................................4-51
MX-5_8EU4-EA-15D_Edition1.indb 32015/03/10 9:56:47

10–5
Index
J
Jack .......................................................7-4
Jump-Starting ......................................7-23
K
Key Left-in-trunk Warning Beep (With the
advanced keyless function) .................7-47
Key Left-in-vehicle Warning Beep (With
the advanced keyless function) ...........7-47
Key Removed from Vehicle Warning
Beep ....................................................7-46
Key Suspend Function ..........................3-7
Keyless Entry System ...........................3-3
Keys ......................................................3-2
Key suspend function ......................3-7
Transmitter ......................................3-4
L
Label Information .................................9-2
Lane-Change Signals ..........................4-40
Lane Departure Warning System
(LDWS) ...............................................4-69
LDWS switch ................................4-72
Lane Departure Warning System (LDWS)
Warning Sound ....................................7-47
Leaving Home Light System ..............4-39
Light Bulbs
Replacement ..................................6-45
Specifications ..................................9-7
Lighting Control..................................4-35
Lights-on Reminder ............................7-45
Lubricant Quality ..................................9-4
M
Maintenance
Information ......................................6-2
Scheduled ........................................6-4
Maintenance Monitor ..........................6-20
Manual Transmission Operation .........4-21
Recommendations for shifting ......4-22
Message Indicated on Display ............7-43
Meters and Gauges ................................4-9
Mirror Defogger ..................................4-45
Mirrors
Outside mirrors..............................3-28
Rearview mirror ............................3-29
O
Odometer and Trip Meter ....................4-10
Outside Mirrors ...................................3-28
Outside Temperature Display ..............4-13
Overhead Light .................................5-131
Overheating .........................................7-27
Overloading .........................................3-47
Owner Maintenance
Closing the hood ...........................6-25
Engine compartment overview .....6-26
Key battery replacement ...............6-38
Opening the hood ..........................6-24
Owner maintenance precautions ...6-22
P
Parking Brake ......................................4-52
Personalization Features .......................9-9
Power Steering ....................................4-63
Power Windows ..................................3-31
R
Radar Sensors (Rear) ..........................4-87
Rear Cross Traffic Alert (RCTA) ........4-81
Rear Window Defogger ......................4-45
Rearview Mirror ..................................3-29
Recommended Oil ..............................6-27
Recording of Vehicle Data ..................8-21
Recreational Towing ...........................3-49
Registering Your Vehicle in A Foreign
Country ...............................................8-17
MX-5_8EU4-EA-15D_Edition1.indb 52015/03/10 9:56:47
