audio MAZDA MODEL MX-5 2016 Owners Manual (in English)

Table ofContents
PictorialIndex
Interio r,exterio rviews andpart identification ofyour Mazda.1
EssentialSafety Equipment
Importan tinformatio nabout safety equipment, includingseats,seatbelt
system, child-restrain tsystemsa ndSRSa irbags.2
BeforeD riving
Use ofvarious features, including keys,doors,m irrorsandwindows.3
WhenDriving
Informatio nconcerning safedriving andstopping.4
InteriorFeatures
Use ofvarious featuresfor ridec omfort,i ncluding air-conditioning andaudio
system.5
MaintenanceandC are
Howtokeep your Mazda intop condition.6
IfTrouble Arises
Helpful informatio nonw hatt odoifa problem ariseswiththevehicle.7
CustomerInformation andReporting SafetyDefects
Importan tconsumer informatio nincluding warranties andadd-on equipment .8
Specifications
Technica linformatio nabout your Mazda.9
Index10
MX-5_8EU4-EA-15D_Edition1.indb 52015/03/10 9:54:24

1–3
Pictorial Index
Interior Overview
Audio control switches........................................................................\
..................page 5-55
Dashboard illumination knob ........................................................................\
........page 4-13
Instrument cluster ........................................................................\
............................page 4-9
Cruise control switches ........................................................................\
.................page 4-89
Push button start ........................................................................\
..............................page 4-2
Hazard warning flasher switch ........................................................................\
......page 4-46
Seat warmer switches ........................................................................\
......................page 2-5
Steering shift switches ........................................................................\
..................page 4-27
Lock release lever ........................................................................\
.........................page 3-27
Hood release handle ........................................................................\
......................page 6-24
The equipment and installation position varies by vehicle
MX-5_8EU4-EA-15D_Edition1.indb 32015/03/10 9:54:27

1–4
Pictorial Index
Interior Overview
Interior Equipment (View B)
SRS air bags ........................................................................\
..................................page 2-24
Climate control system........................................................................\
....................page 5-2
Rear window defogger switch........................................................................\
.......page 4-45
Audio system........................................................................\
.................................page 5-13
Accessory socket ........................................................................\
.........................page 5-133
External input terminal........................................................................\
..................page 5-57
Drive selection switch ........................................................................\
...................page 4-62
Commander switch ........................................................................\
.......................page 5-34
Shift lever/Selector lever ........................................................................\
......page 4-21, 4-24
Fuse block (Left side) ........................................................................\
...................page 6-52
The equipment and installation position varies by vehicle
MX-5_8EU4-EA-15D_Edition1.indb 42015/03/10 9:54:27

4–11
When Driving
Instrument Cluster and Display
NOTE
 (Vehicles with type B audio)
If the fuel economy data is reset using
the fuel economy monitor, or trip A
is reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
Refer to Fuel Economy Monitor on page
4-59. Only the trip meters record tenths of
kilometers (miles). The trip record will be erased when:
 The power supply is interrupted
(blown fuse or the battery is
disconnected). The vehicle is driven over 9999.9 km
(mile).
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Striped zone
Red zone
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
Engine Coolant Temperature
Gauge
Indicates engine coolant temperature.
CAUTION
If the high engine coolant temperature
warning light (red) turns on, there is
a possibility of overheating. Park the
vehicle in a safe place immediately
and take appropriate measures. If the
vehicle continues to be driven, it could
cause damage to the engine.
Refer to Overheating on page 7-27.
NOTE
The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with
the temperature unit of the outside
temperature display.
Refer to Personalization Features on page
9-9.
MX-5_8EU4-EA-15D_Edition1.indb 112015/03/10 9:54:51

4–14
When Driving
Instrument Cluster and Display
*Some models.
Changing the Temperature Unit of the
Outside Temperature Display
The outside temperature unit can be
switched between Celsius and Fahrenheit
using the following procedure.
(Vehicles with Type B Audio)
Settings can be changed by operating the
center display screen.
Refer to Personalization Features on page
9-9.
(Vehicles without Type B Audio)
1. Press the INFO switch with the ignition
switched off and continue pressing the
INFO switch for 5 seconds or longer
while switching the ignition ON. The
outside temperature display flashes.
2. Press the INFO switch to change the
outside temperature unit.
3. Press and hold the INFO switch for
3 seconds or longer while the outside
temperature display is flashing. The
outside temperature display illuminates.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
Cruise Control Set Vehicle Speed
Display*
The vehicle speed preset using the cruise
control is displayed.
Trip Computer and INFO Switch
The following information can be selected
by pressing the INFO switch with the
ignition switched ON.
 Approximate distance you can travel on
the available fuel Average fuel economy Current fuel economy Average vehicle speed
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
MX-5_8EU4-EA-15D_Edition1.indb 142015/03/10 9:54:52

4–59
When Driving
Fuel Economy Monitor
*Some models.
Fuel Economy Monitor*
For vehicles with type B audio, the Fuel Consumption information is displayed by operating
each icon in the display.
In addition, after completing a trip, the total energy efficiency to date is displayed in the
ending display when the ending display is turned on.
1. Select the icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Operate the commander switch or touch the screen and display the menu.
NOTE
When the menu is displayed by touching the screen, the display is hidden automatically after
6 seconds.
4. Select the icon in the menu and perform the operation. Each icon operates as follows:
Indication on displayControl status
Hides the menu display.
Displays the application screen.
Resets the fuel economy data.
Displays the following setting screen.Ending display on/off switching On/off switching for function which synchronizes reset fuel economy data to trip meter (Trip A)
MX-5_8EU4-EA-15D_Edition1.indb 592015/03/10 9:55:13

5–1*Some models.
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.
Climate Control System.....................................................................5-2
Operating Tips ........................................................................\
.......5-2
Vent Operation ........................................................................\
......5-3
Manual Type ........................................................................\
.........5-5
Fully Automatic Type ....................................................................5-9
Audio System ........................................................................\
............5-13
Antenna ........................................................................\
...............5-13
Operating Tips for Audio System ...............................................5-14
Audio Set (Type A) .....................................................................5-22
Audio Set (Type B) .....................................................................5-34
Audio Control Switch Operation* ...............................................5-55
AUX/USB/iPod mode .................................................................5-57
Bluetooth® ........................................................................\
.................5-74
Bluetooth®* ........................................................................\
..........5-74
Bluetooth® Hands-Free (Type A)* ...............................................5-96
Bluetooth® Hands-Free (Type B)* .............................................5-102
Bluetooth® Audio (Type A)* ......................................................5-112
Bluetooth® Audio (Type B)* ......................................................5-114
Troubleshooting* .......................................................................5-128
Interior Equipment ........................................................................\
5-131
Sunvisors ........................................................................\
...........5-131
Interior Lights ........................................................................\
...5-131
Accessory Sockets ....................................................................5-133
Cup Holder ........................................................................\
........5-134
Storage Compartments ..............................................................5-137
Windblocker ........................................................................\
......5-138
MX-5_8EU4-EA-15D_Edition1.indb 12015/03/10 9:55:20

5–13
Interior Features
Audio System
*Some models.
Antenna
AM/FM Radio Antenna
The AM/FM radio antenna receives both
AM and FM signals.
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
Install
Remove
CAUTION
To prevent damage to the antenna,
remove it before passing beneath a
low overhead clearance.
NOTE
When leaving your vehicle unattended, we
recommend that you remove the antenna
and store it inside the vehicle.
Satellite Radio Antenna*
The satellite radio antenna receives
SiriusXM signals.
Satellite radio antenna
MX-5_8EU4-EA-15D_Edition1.indb 132015/03/10 9:55:24

5–14
Interior Features
Audio System
Operating Tips for Audio
System
WARNING
Always adjust the audio while the
vehicle is stopped:
Do not adjust the audio control
switches while driving the vehicle.
Adjusting the audio while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a
serious accident.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving,
adjust the audio volume to a level that
allows you to hear sounds outside of
the vehicle including car horns and
particularly emergency vehicle sirens.
NOTE
 To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time
when the engine is not running. If a cellular phone or CB radio is used
in or near the vehicle, it could cause
noise to occur from the audio system,
however, this does not indicate that the
system has been damaged.
Do not spill any liquid on the audio
system.
Do not insert any objects, other than CDs,
into the slot.
Radio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere.
Therefore, they can reach longer distances
than FM signals.
Because of this, two stations may
sometimes be picked up on the same
frequency at the same time.
Station 2
Station 1 Ionosphere
MX-5_8EU4-EA-15D_Edition1.indb 142015/03/10 9:55:24

5–15
Interior Features
Audio System

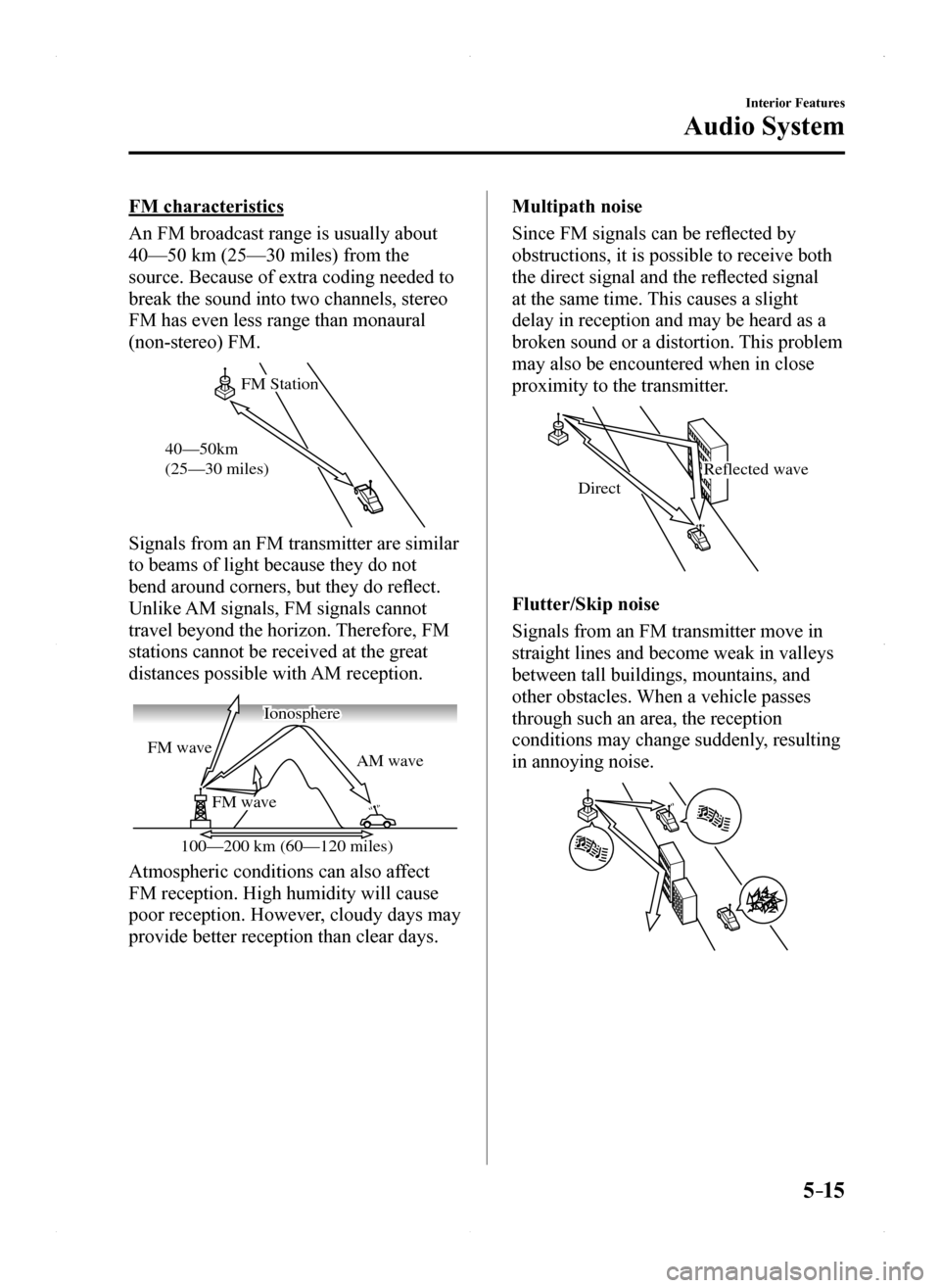

FM characteristics
An FM broadcast range is usually about
40—50 km (25—30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
FM Station
40—50km
(25—30 miles)
Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.
AM wave
FM wa
ve
FM wa ve
100—200 km (60—120 miles) Ionosphere
Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days may
provide better reception than clear days.
Multipath noise
Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal
at the same time. This causes a slight
delay in reception and may be heard as a
broken sound or a distortion. This problem
may also be encountered when in close
proximity to the transmitter.
Reflected waveDirect
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
MX-5_8EU4-EA-15D_Edition1.indb 152015/03/10 9:55:25
