When Driving
Tire Pressure Monitoring System
*Some models.
Tire Pressure Monitoring System*
The Tire Pressure Monitoring System (TPMS) monitors the air pressure of all\
four tires. If
the air pressure of one or more tires is too low, the system warns the driver by indicating the
tire pressure monitoring system warning light in the instrument cluster \
and operating a beep
sound. The system monitors the tire pressures indirectly using the data sent from the ABS
wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the specified
tire pressure (value on the tire pressure label). Follow the procedure\
and perform the
initialization.
Refer to Tire Pressure Monitoring System Initialization on page 4-96.
The warning light flashes when the system has a malfunction.
Refer to Warning Lights on page 4-16.
ABS wheel speed sensor
MX-5_8EU4-EA-15D_Edition1.indb 932015/03/10 9:55:20

5–12
Interior Features
Climate Control System

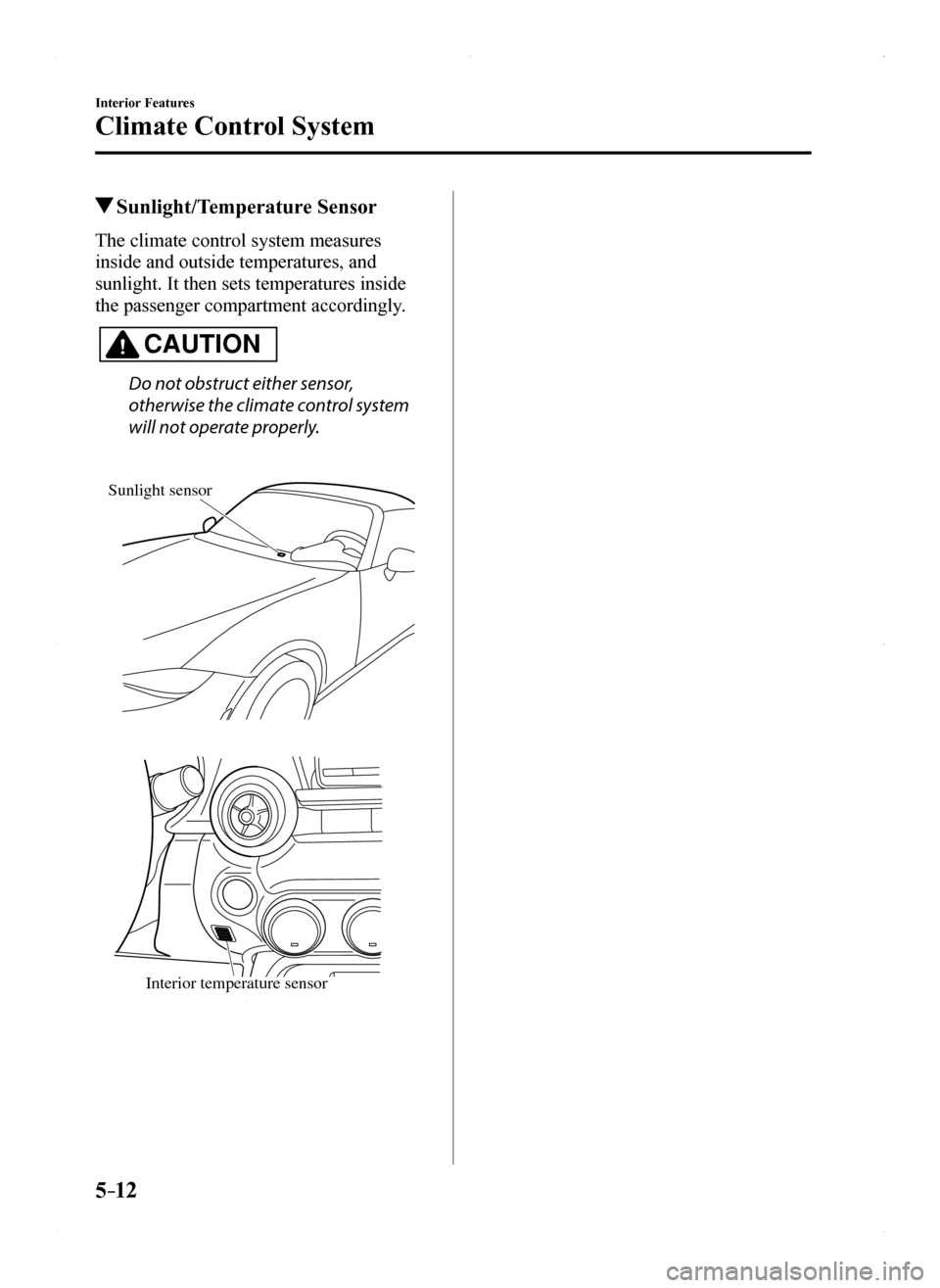

Sunlight/Temperature Sensor
The climate control system measures
inside and outside temperatures, and
sunlight. It then sets temperatures inside
the passenger compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the climate control system
will not operate properly.
Sunlight sensor
Interior temperature sensor
MX-5_8EU4-EA-15D_Edition1.indb 122015/03/10 9:55:24

6–33
Maintenance and Care
Owner Maintenance
Wiper Blades
CAUTION
 Hot waxes applied by automatic car
washers have been known to affect the
wiper's ability to clean windows. To prevent damage to the wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them. When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched. If the windshield above the rain
sensor is wiped with a cloth. If the windshield is struck with a hand
or other object. If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.
NOTE
When raising both windshield wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.
(Type A)
1. Raise the wiper arm.
2. Open the clip and slide the blade
assembly in the direction of the arrow.
MX-5_8EU4-EA-15D_Edition1.indb 332015/03/10 9:56:08

6–59
Maintenance and Care
Appearance Care
Maintaining the Finish
Washing
CAUTION
 When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windshield above the rain
sensor is touched or wiped with a
cloth. If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
 Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts. When washing and waxing the vehicle,
be careful not to apply excessive force
to any single area of the vehicle hood.
Otherwise, you could dent the vehicle.
 Do not use automatic car washing
machines and car washing devices using
high water pressure. Make sure that the fuel lid is closed
and lock the doors. Otherwise, the fuel
lid may be forcefully opened by water
pressure causing damage to the vehicle
or fuel lid.
To help protect the finish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:
 The vehicle is washed without first
rinsing off dirt and other foreign matter. The vehicle is washed with a rough, dry,
or dirty cloth. The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff. Cleansers or wax containing abrasives
are used.
NOTE
 Mazda is not responsible for scratches
caused by automatic car washes or
improper washing. Scratches are more noticeable on
vehicles with darker paint finishes.
MX-5_8EU4-EA-15D_Edition1.indb 592015/03/10 9:56:17

7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
(Illuminate)Lane Departure Warning System (LDWS) Warning Light*
The warning light remains turned on if there is a problem with the syste\
m. Have your vehicle inspected at an Authorized Mazda Dealer.The LDWS does not operate when the warning light illuminates.
CAUTION
A problem in the system may be indicated under the following conditions. Have your vehicle inspected at an Authorized Mazda Dealer.
When the light remains turned on while driving the vehicle.When the system is canceled automatically, the light turns on. Normally, the system restores automatically and the light turns off, however, if the light remains turned on, there may be a problem with the system.The light does not illuminate when the ignition is switched ON.Always use tires for all wheels that are of the specified size, and the same manufacture, brand, and tread pattern. In addition, do not use tires with significantly different wear patterns on the same vehicle. If such improper tires are used, the LDWS may not operate normally.When an emergency spare tire is used, the system may not operate normally.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or obstructed, the light turns on temporarily. If the light remains turned on, there may be a problem with the system.
(Amber)High Beam Control System (HBC) Warning Light*
The light remains turned on if there is a problem with the system. Have \
your vehicle inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or obstructed, the light turns on temporarily. If the light remains turned on, there may be a problem with the system.
LED Headlight Warning Light
This light illuminates if there is a malfunction in the LED headlight. Have your vehicle inspected by an Authorized Mazda Dealer.
Blind Spot Monitoring (BSM) OFF Indicator Light*
A problem in the system may be indicated under the following conditions.Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not turn on when the ignition is switched ON.The light remains turned on even if the Blind Spot Monitoring (BSM) switch is operated.It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF\
indicator light in the instrument cluster illuminates). However, it does not indicate a malfunction.
MX-5_8EU4-EA-15D_Edition1.indb 382015/03/10 9:56:32

7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
SignalWarningAction to be taken
Seat Belt Warning Light
Except Mexico
The seat belt warning light turns on if the driver or passenger's seat is occupied and the seat belt is not fastened with the ignition switched ON.If the driver or passenger's seat belt is unfastened (only when the passenger's seat is occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light flashes. After a short time, the warning light stops flashing, but remains illuminated.
NOTE
The warning light flashes for about 6 seconds if the driver's seat belt is not fastened when the ignition is switched ON.To allow the passenger occupant classification sensor to function properly, do not place and sit on an additional seat cushion on the passenger's seat. The sensor may not function properly because the additional seat cushion could cause sensor interference.If a small child is seated on the passenger's seat, the warning light may not operate.
Mexico
The seat belt warning light turns on if the driver or passenger's seat is occupied and the seat belt is not fastened with the ignition switched ON.If the driver or passenger's seat belt is unfastened (only when the passenger's seat is occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light flashes. After a short time, the warning light stops flashing, but remains illuminated. If a seat belt remains unfastened, the warning light flashes again for a given period of time.
NOTE
Placing heavy items on the passenger's seat may cause the passenger's seat belt warning function to operate depending on the weight of the item.To allow the passenger seat weight sensor to function properly, do not place and sit on an additional seat cushion on the passenger's seat. The sensor may not function properly because the additional seat cushion could cause sensor interference.If a small child is seated on the passenger's seat, the warning light may not operate.
Fasten the seat belts.
MX-5_8EU4-EA-15D_Edition1.indb 402015/03/10 9:56:32

7–46
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Except Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the passenger's seat belt is
not fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 To allow the passenger occupant
classification sensor to function
properly, do not place and sit on
an additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference. If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20 km/h
(12 mph) with the driver or passenger's
seat belt unfastened, a warning beep
sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item. To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference. If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened while
the ignition is switched to ACC, a
continuous beep sound will be heard to
notify the driver that the ignition has not
been switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
Key Removed from Vehicle
Warning Beep
A beep sound will be heard 6 times and
the KEY warning light (red) will flash
continuously if the ignition has not been
switched off, all the doors are closed, and
the key is removed from the vehicle. This
is to notify the driver that the key has been
removed from the vehicle and the ignition
has not been switched off.
MX-5_8EU4-EA-15D_Edition1.indb 462015/03/10 9:56:34

10–4
Index
Forward Sensing Camera (FSC) .........4-84
Fuel
Filler lid and cap............................3-25
Gauge ............................................4-12
Requirements.................................3-22
Tank capacity ..................................9-5
Fuel Consumption Display .................4-60
Fuel Economy Monitor .......................4-59
Ending screen display ...................4-60
Fuel consumption display .............4-60
Fuel-Filler Lid
When fuel-filler lid cannot be
opened ...........................................7-29
Fuses ...................................................6-52
Panel description ...........................6-54
Replacement ..................................6-52
G
Gauges ...................................................4-9
H
Hazard Warning Flasher ......................4-46
Hazardous Driving ..............................3-44
Head Restraint .......................................2-6
Headlights
Coming home light system............4-38
Control...........................................4-35
Flashing .........................................4-38
High-low beam ..............................4-38
Leaving home light system ...........4-39
Leveling.........................................4-39
High Beam Control System (HBC) ....4-66
High Beam Control System (HBC)
indicator light (green) ....................4-68
Hill Launch Assist (HLA) ...................4-53
HomeLink Wireless Control System ...4-47
Hood Release ......................................6-24
Horn ....................................................4-46
I
i-ACTIVSENSE ..................................4-64
Adaptive Front Lighting System
(AFS) .............................................4-65
Blind Spot Monitoring (BSM) ......4-74
Camera and sensors .......................4-64
Forward Sensing Camera (FSC) ...4-84
High Beam Control System
(HBC) ............................................4-66
Lane Departure Warning System
(LDWS) .........................................4-69
Radar sensors (rear).......................4-87
Rear Cross Traffic Alert (RCTA) ...4-81
If a Warning Light Turns On or
Flashes.................................................7-33
Ignition
Switch ..............................................4-2
Ignition Not Switched Off (STOP)
Warning Beep ......................................7-46
Illuminated Entry System .................5-132
Immobilizer System ............................3-39
Indicator Lights ...................................4-18
Low engine coolant temperature ...4-20
Wrench ..........................................4-20
Inside Trunk Release Lever ................3-20
Inspecting Brake/Clutch Fluid Level ...6-31
Inspecting Coolant Level ....................6-29
Inspecting Engine Oil Level ...............6-28
Inspecting Washer Fluid Level............6-31
Instrument Cluster .................................4-9
Interior Care ........................................6-64
Cleaning the lap/shoulder belt
webbing .........................................6-66
Cleaning the upholstery and interior
trim ................................................6-65
Cleaning the window interiors ......6-66
Dashboard precautions ..................6-64
Interior Lights
Overhead light .............................5-131
MX-5_8EU4-EA-15D_Edition1.indb 42015/03/10 9:56:47

10–5
Index
J
Jack .......................................................7-4
Jump-Starting ......................................7-23
K
Key Left-in-trunk Warning Beep (With the
advanced keyless function) .................7-47
Key Left-in-vehicle Warning Beep (With
the advanced keyless function) ...........7-47
Key Removed from Vehicle Warning
Beep ....................................................7-46
Key Suspend Function ..........................3-7
Keyless Entry System ...........................3-3
Keys ......................................................3-2
Key suspend function ......................3-7
Transmitter ......................................3-4
L
Label Information .................................9-2
Lane-Change Signals ..........................4-40
Lane Departure Warning System
(LDWS) ...............................................4-69
LDWS switch ................................4-72
Lane Departure Warning System (LDWS)
Warning Sound ....................................7-47
Leaving Home Light System ..............4-39
Light Bulbs
Replacement ..................................6-45
Specifications ..................................9-7
Lighting Control..................................4-35
Lights-on Reminder ............................7-45
Lubricant Quality ..................................9-4
M
Maintenance
Information ......................................6-2
Scheduled ........................................6-4
Maintenance Monitor ..........................6-20
Manual Transmission Operation .........4-21
Recommendations for shifting ......4-22
Message Indicated on Display ............7-43
Meters and Gauges ................................4-9
Mirror Defogger ..................................4-45
Mirrors
Outside mirrors..............................3-28
Rearview mirror ............................3-29
O
Odometer and Trip Meter ....................4-10
Outside Mirrors ...................................3-28
Outside Temperature Display ..............4-13
Overhead Light .................................5-131
Overheating .........................................7-27
Overloading .........................................3-47
Owner Maintenance
Closing the hood ...........................6-25
Engine compartment overview .....6-26
Key battery replacement ...............6-38
Opening the hood ..........................6-24
Owner maintenance precautions ...6-22
P
Parking Brake ......................................4-52
Personalization Features .......................9-9
Power Steering ....................................4-63
Power Windows ..................................3-31
R
Radar Sensors (Rear) ..........................4-87
Rear Cross Traffic Alert (RCTA) ........4-81
Rear Window Defogger ......................4-45
Rearview Mirror ..................................3-29
Recommended Oil ..............................6-27
Recording of Vehicle Data ..................8-21
Recreational Towing ...........................3-49
Registering Your Vehicle in A Foreign
Country ...............................................8-17
MX-5_8EU4-EA-15D_Edition1.indb 52015/03/10 9:56:47
