When Driving
Start/Stop Engine

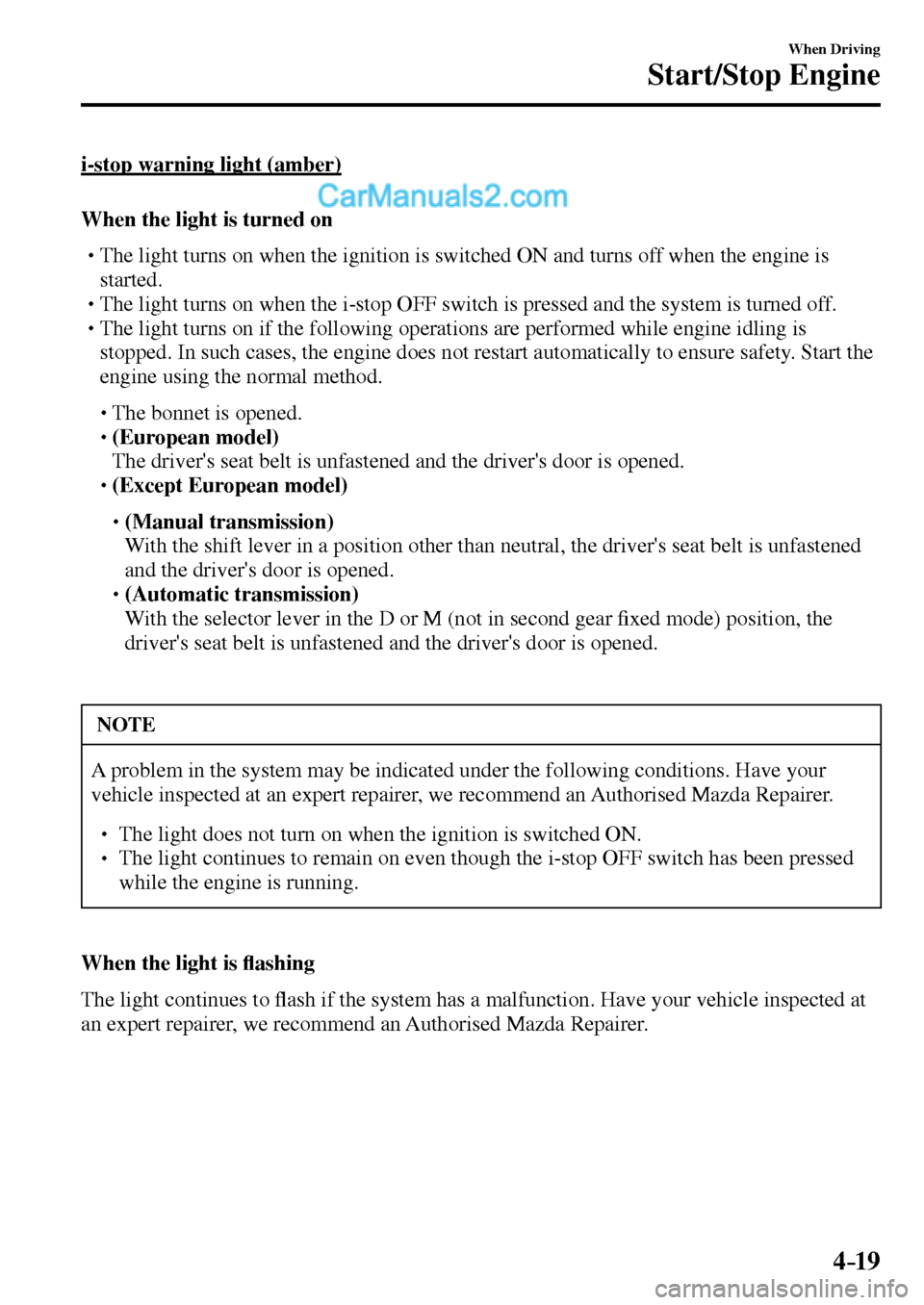

i-stop warning light (amber)
When the light is turned on
The light turns on when the ignition is switched ON and turns off when the engine is
started.
The light turns on when the i-stop OFF switch is pressed and the system is turned off.
The light turns on if the following operations are performed while engine idling is
stopped. In such cases, the engine does not restart automatically to ensure safety. Start the
engine using the normal method.
The bonnet is opened.
(European model)
The driver's seat belt is unfastened and the driver's door is opened.
(Except European model)
(Manual transmission)
With the shift lever in a position other than neutral, the driver's seat belt is unfastened
and the driver's door is opened.
(Automatic transmission)
With the selector lever in the D or M (not in second gear ¿ xed mode) position, the
driver's seat belt is unfastened and the driver's door is opened.
NOTE
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
The light does not turn on when the ignition is switched ON.
The light continues to remain on even though the i-stop OFF switch has been pressed
while the engine is running.
When the light is À ashing
The light continues to À ash if the system has a malfunction. Have your vehicle inspected at
an expert repairer, we recommend an Authorised Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 162 of 609
4–20
When Driving
Start/Stop Engine

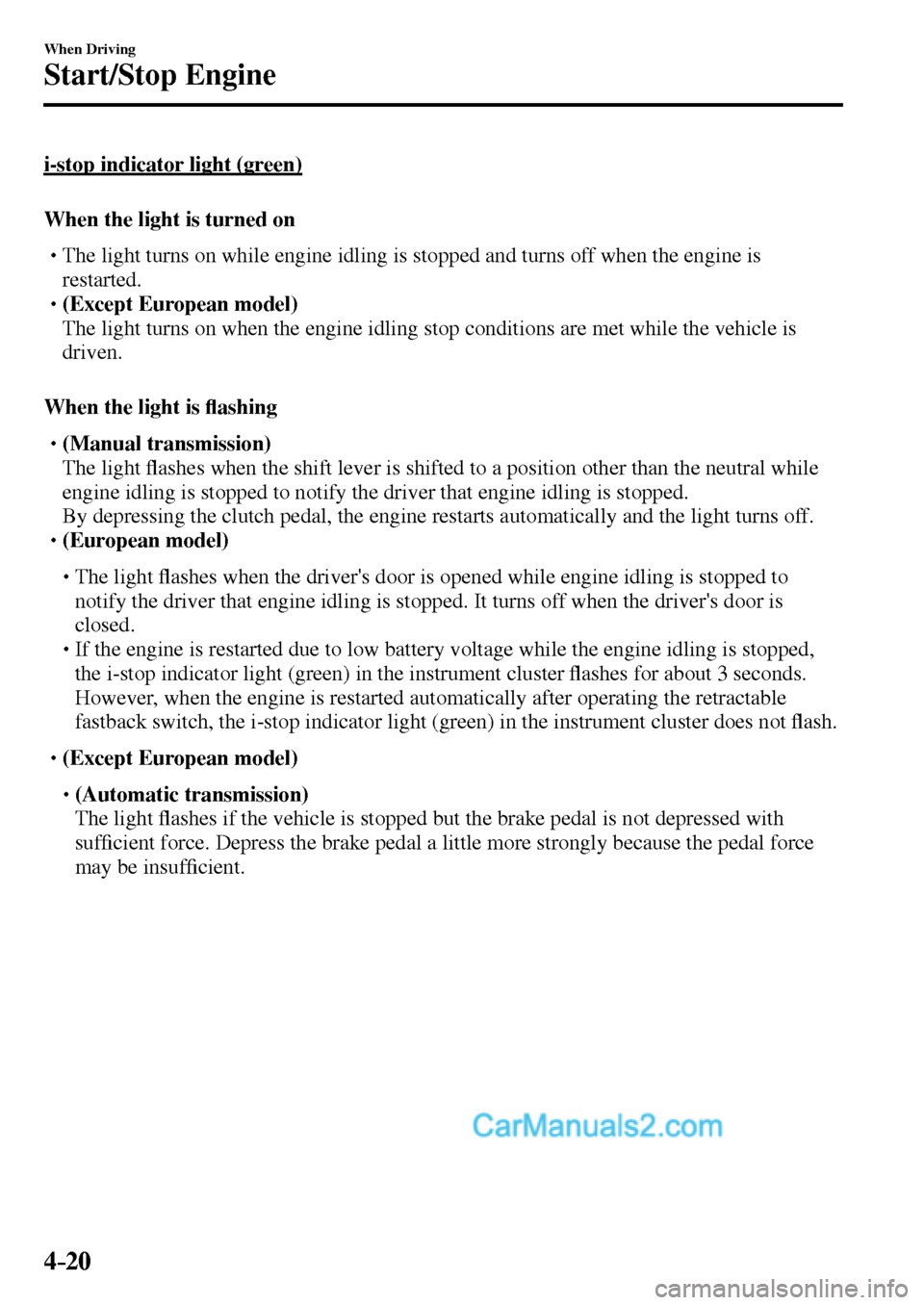

i-stop indicator light (green)
When the light is turned on
The light turns on while engine idling is stopped and turns off when the engine is
restarted.
(Except European model)
The light turns on when the engine idling stop conditions are met while the vehicle is
driven.
When the light is À ashing
(Manual transmission)
The light À ashes when the shift lever is shifted to a position other than the neutral while
engine idling is stopped to notify the driver that engine idling is stopped.
By depressing the clutch pedal, the engine restarts automatically and the light turns off.
(European model)
The light À ashes when the driver's door is opened while engine idling is stopped to
notify the driver that engine idling is stopped. It turns off when the driver's door is
closed.
If the engine is restarted due to low battery voltage while the engine idling is stopped,
the i-stop indicator light (green) in the instrument cluster À ashes for about 3 seconds.
However, when the engine is restarted automatically after operating the retractable
fastback switch, the i-stop indicator light (green) in the instrument cluster does not À ash.
(Except European model)
(Automatic transmission)
The light À ashes if the vehicle is stopped but the brake pedal is not depressed with
suf ¿ cient force. Depress the brake pedal a little more strongly because the pedal force
may be insuf ¿ cient.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 163 of 609
4–21
When Driving
Start/Stop Engine

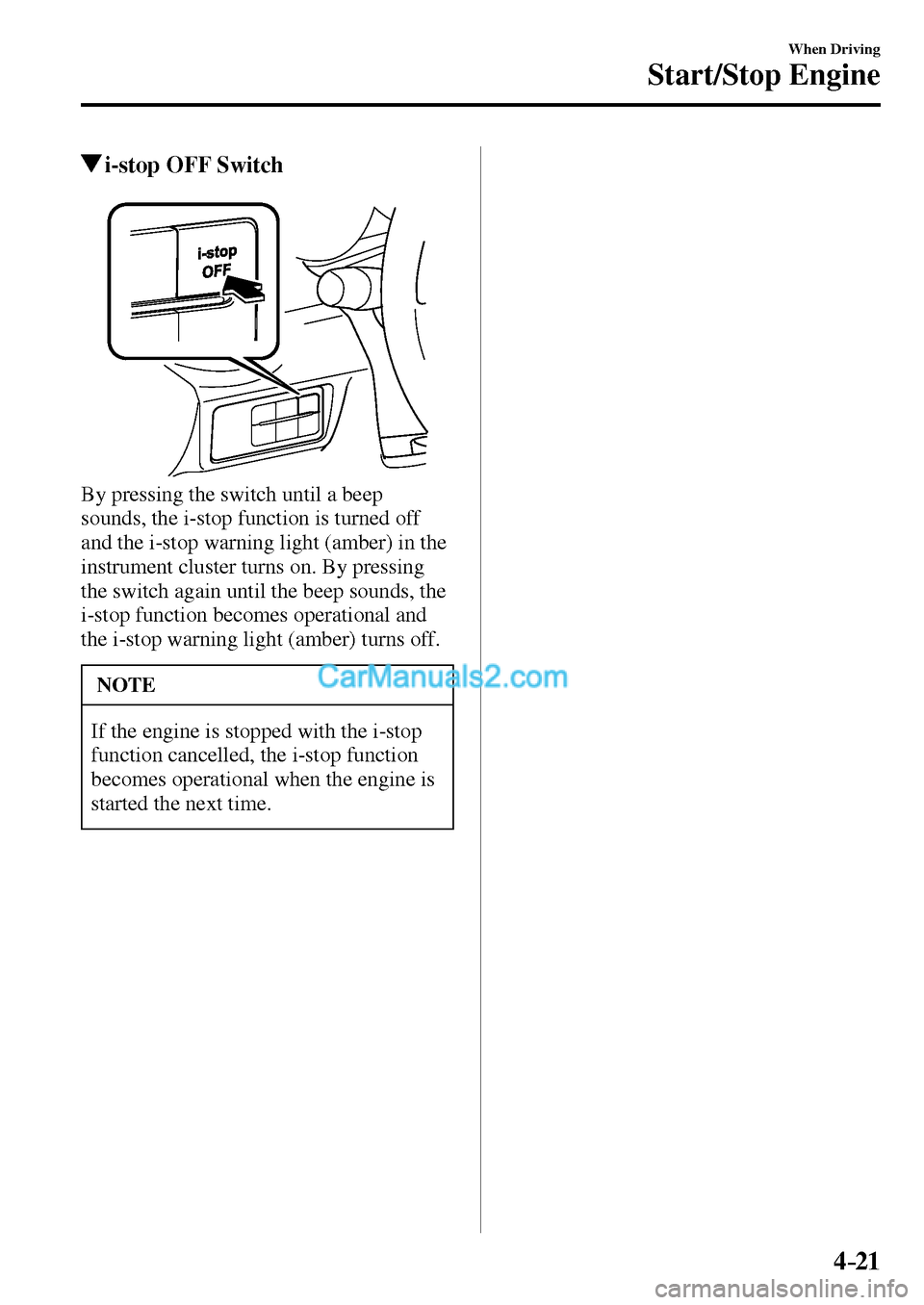

i-stop OFF Switch
By pressing the switch until a beep
sounds, the i-stop function is turned off
and the i-stop warning light (amber) in the
instrument cluster turns on. By pressing
the switch again until the beep sounds, the
i-stop function becomes operational and
the i-stop warning light (amber) turns off.
NOTE
If the engine is stopped with the i-stop
function cancelled, the i-stop function
becomes operational when the engine is
started the next time.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 164 of 609
4–22
When Driving
Start/Stop Engine

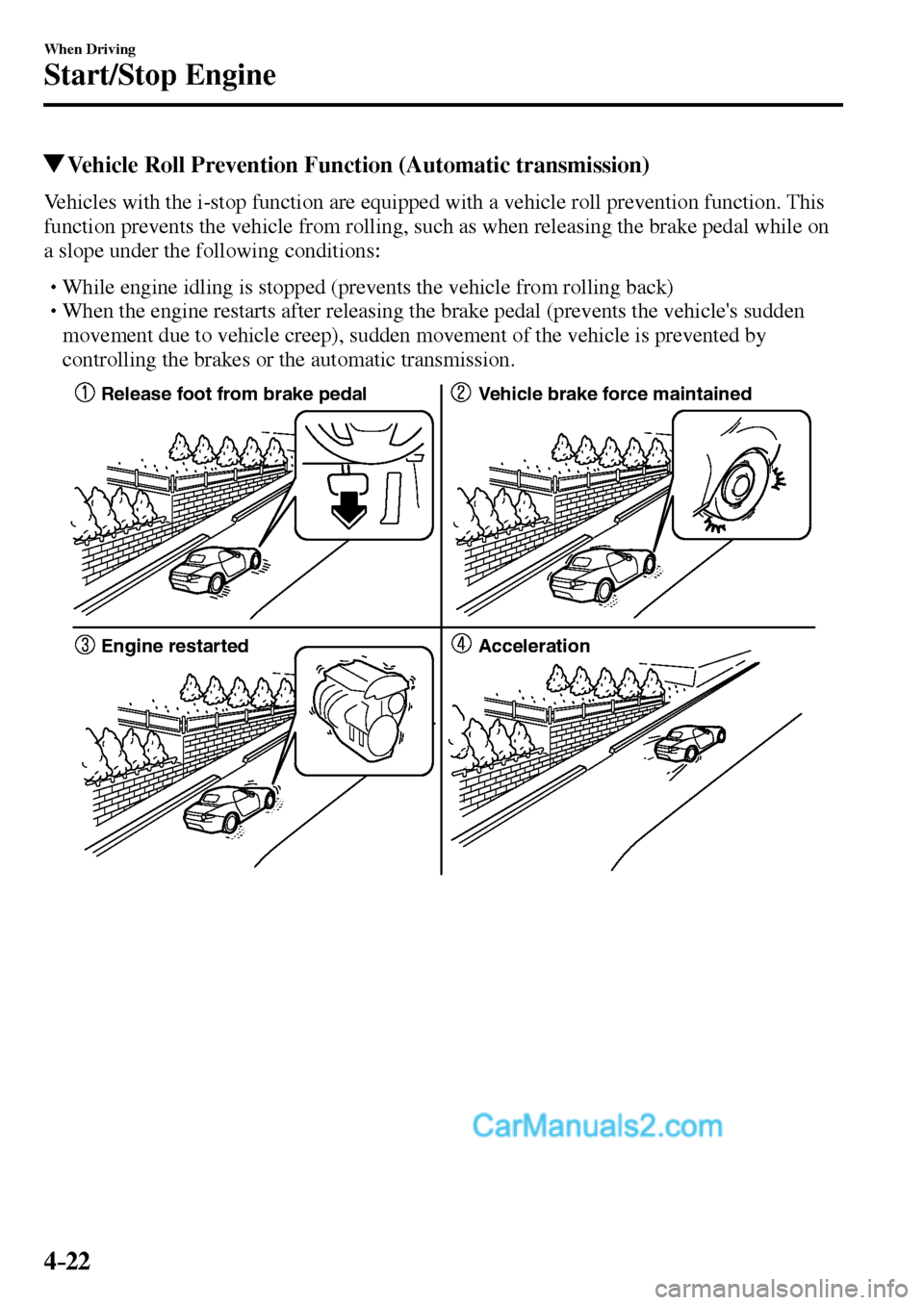

Vehicle Roll Prevention Function (Automatic transmission)
Vehicles with the i-stop function are equipped with a vehicle roll prevention function. This
function prevents the vehicle from rolling, such as when releasing the brake pedal while on
a slope under the following conditions:
While engine idling is stopped (prevents the vehicle from rolling back)
When the engine restarts after releasing the brake pedal (prevents the vehicle's sudden
movement due to vehicle creep), sudden movement of the vehicle is prevented by
controlling the brakes or the automatic transmission.
Release foot from brake pedal Vehicle brake force maintained
Engine restarted Acceleration
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 165 of 609
4–23
When Driving
Start/Stop Engine

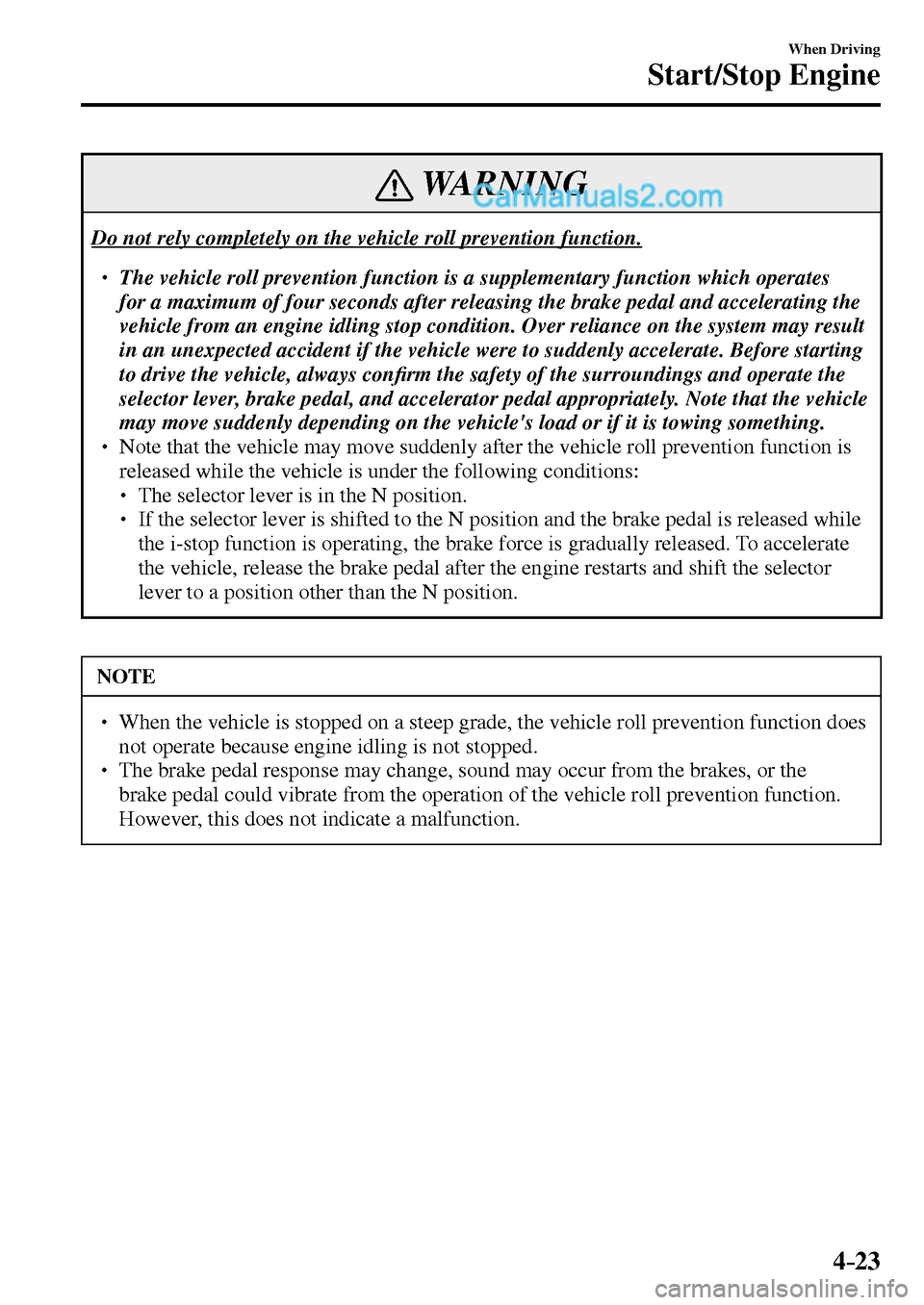

WARNING
Do not rely completely on the vehicle roll prevention function.
The vehicle roll prevention function is a supplementary function which operates
for a maximum of four seconds after releasing the brake pedal and accelerating the
vehicle from an engine idling stop condition. Over reliance on the system may result
in an unexpected accident if the vehicle were to suddenly accelerate. Before starting
to drive the vehicle, always con ¿ rm the safety of the surroundings and operate the
selector lever, brake pedal, and accelerator pedal appropriately. Note that the vehicle
may move suddenly depending on the vehicle's load or if it is towing something.
Note that the vehicle may move suddenly after the vehicle roll prevention function is
released while the vehicle is under the following conditions:
The selector lever is in the N position.
If the selector lever is shifted to the N position and the brake pedal is released while
the i-stop function is operating, the brake force is gradually released. To accelerate
the vehicle, release the brake pedal after the engine restarts and shift the selector
lever to a position other than the N position.
NOTE
When the vehicle is stopped on a steep grade, the vehicle roll prevention function does
not operate because engine idling is not stopped.
The brake pedal response may change, sound may occur from the brakes, or the
brake pedal could vibrate from the operation of the vehicle roll prevention function.
However, this does not indicate a malfunction.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 166 of 609
4–24
When Driving
Instrument Cluster and Display
M e t e r s a n d G a u g e s
Type A
Type B
Steering Switch (With Multi-information Display)
(Without Multi-information Display) Instrument Cluster
Speedometer .......................................................................................................... page 4-25
Odometer, Trip Meter and Trip Meter Selector .................................................... page 4-25
Tachometer ............................................................................................................ page 4-26
Engine Coolant Temperature Gauge ..................................................................... page 4-27
Fuel Gauge ............................................................................................................ page 4-27
Instrument Panel Illumination ............................................................................... page 4-28
Outside Temperature Display ................................................................................ page 4-29
Adjustable Speed Limiter Display ........................................................................ page 4-30
Cruise Control Set Vehicle Speed Display ............................................................ page 4-30
Trip Computer and INFO Switch .......................................................................... page 4-30
Multi-information Display and INFO Switch ....................................................... page 4-33
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 167 of 609
4–25
When Driving
Instrument Cluster and Display

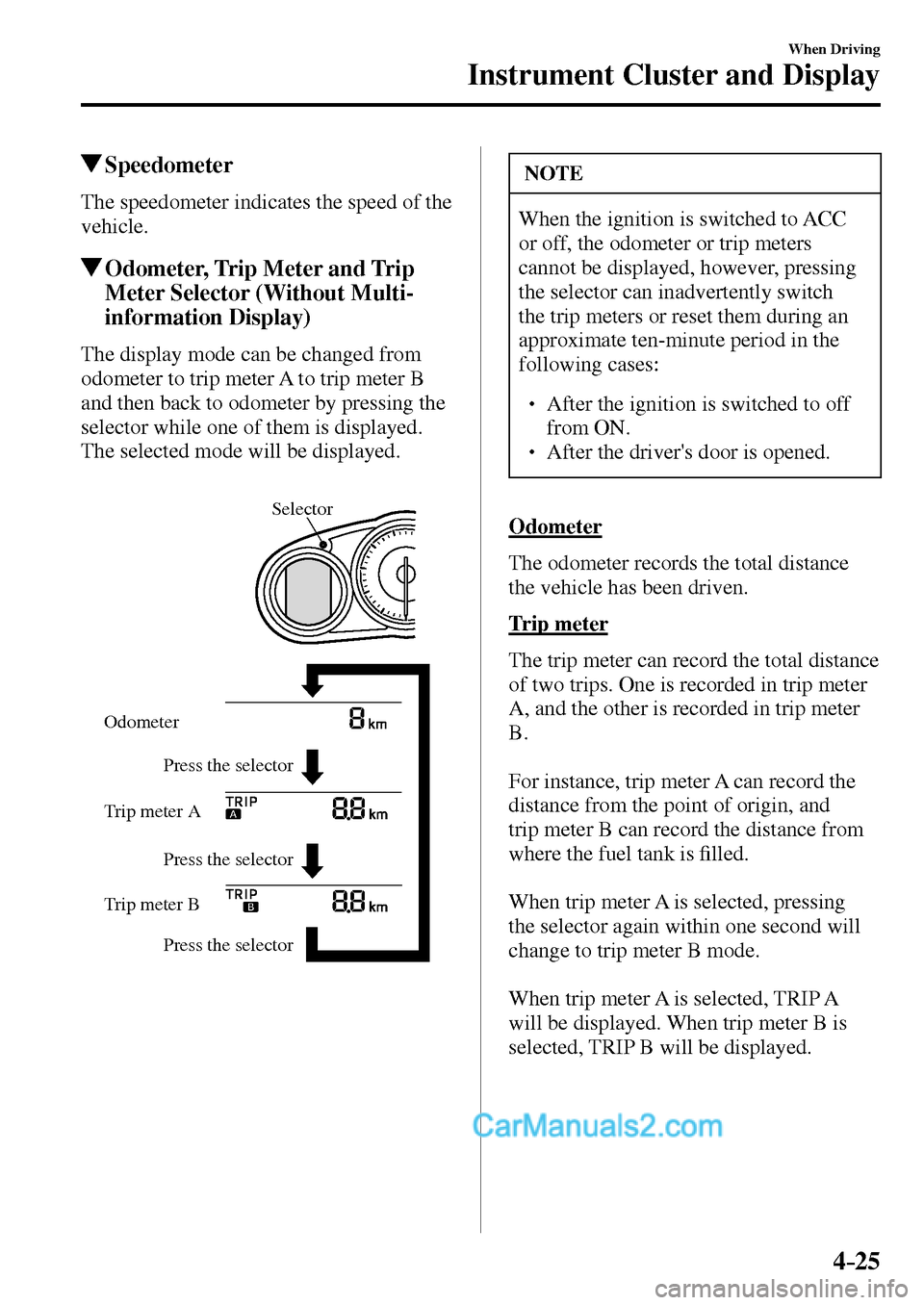

Speedometer
The speedometer indicates the speed of the
vehicle.
Odometer, Trip Meter and Trip
Meter Selector (Without Multi-
information Display)
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.
Press the selector Press the selector
Press the selector Odometer
Trip meter A
Trip meter B
Selector
NOTE
When the ignition is switched to ACC
or off, the odometer or trip meters
cannot be displayed, however, pressing
the selector can inadvertently switch
the trip meters or reset them during an
approximate ten-minute period in the
following cases:
After the ignition is switched to off
from ON.
After the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.
For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is ¿ lled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 168 of 609
4–26
When Driving
Instrument Cluster and Display
The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption.
NOTE
(Vehicles with type B/type C audio) If the fuel economy data is reset
using the fuel economy monitor,
or trip A is reset using the trip
meter when the function which
synchronizes the fuel economy
monitor and the trip meter is on, the
fuel economy data and trip A are
reset simultaneously.
Refer to Fuel Economy Monitor on
page 4-93 .
Only the trip meters record tenths of
kilometres (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9
km (mile).
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
*1The range varies depending on the type
of gauge. *
1Striped zone
*
1Red zone
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 169 of 609
4–27
When Driving
Instrument Cluster and Display

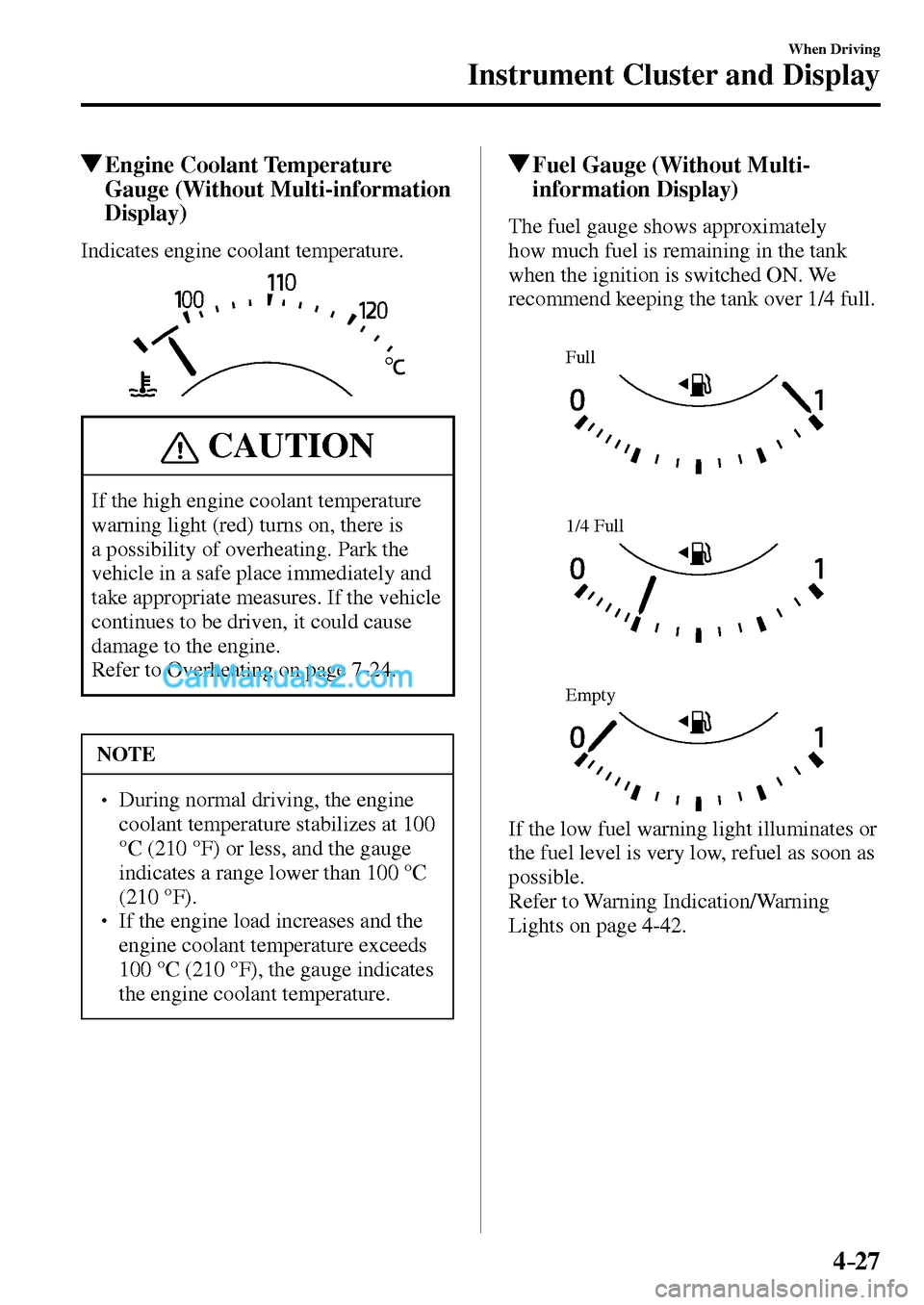

Engine Coolant Temperature
Gauge (Without Multi-information
Display)
Indicates engine coolant temperature.
CAUTION
If the high engine coolant temperature
warning light (red) turns on, there is
a possibility of overheating. Park the
vehicle in a safe place immediately and
take appropriate measures. If the vehicle
continues to be driven, it could cause
damage to the engine.
Refer to Overheating on page 7-24 .
NOTE
During normal driving, the engine
coolant temperature stabilizes at 100
°C (210 °F) or less, and the gauge
indicates a range lower than 100 °C
(210 °F).
If the engine load increases and the
engine coolant temperature exceeds
100 °C (210 °F), the gauge indicates
the engine coolant temperature.
Fuel Gauge (Without Multi-
information Display)
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Full
1/4 Full
Empty
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning Indication/Warning
Lights on page 4-42 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 170 of 609

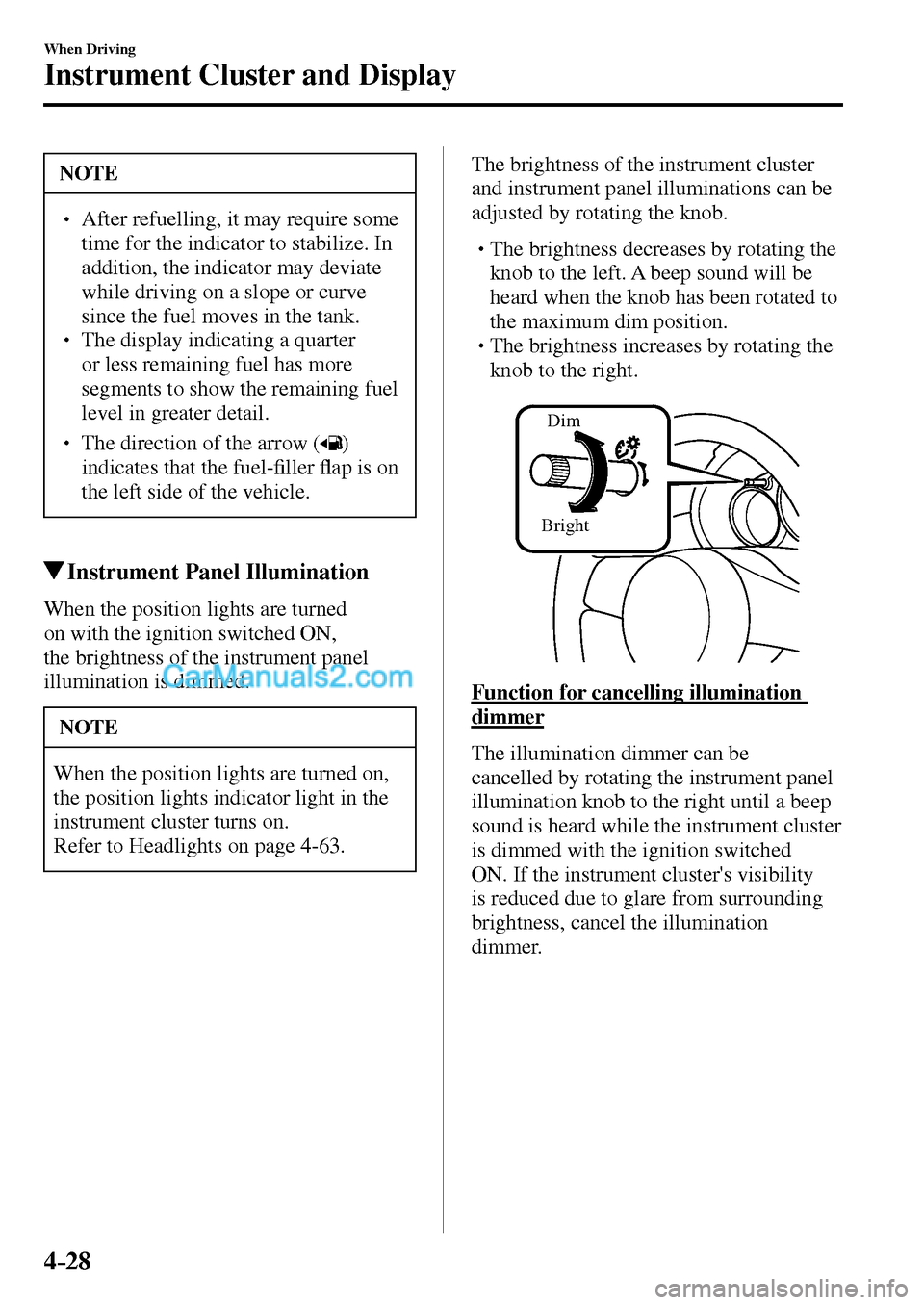

4–28
When Driving
Instrument Cluster and Display
NOTE
After refuelling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.
The display indicating a quarter
or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.
The direction of the arrow ( )
indicates that the fuel- ¿ ller À ap is on
the left side of the vehicle.
Instrument Panel Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
NOTE
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-63 .
The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.
The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.
The brightness increases by rotating the
knob to the right.
Dim
Bright
Function for cancelling illumination
dimmer
The illumination dimmer can be
cancelled by rotating the instrument panel
illumination knob to the right until a beep
sound is heard while the instrument cluster
is dimmed with the ignition switched
ON. If the instrument cluster's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
