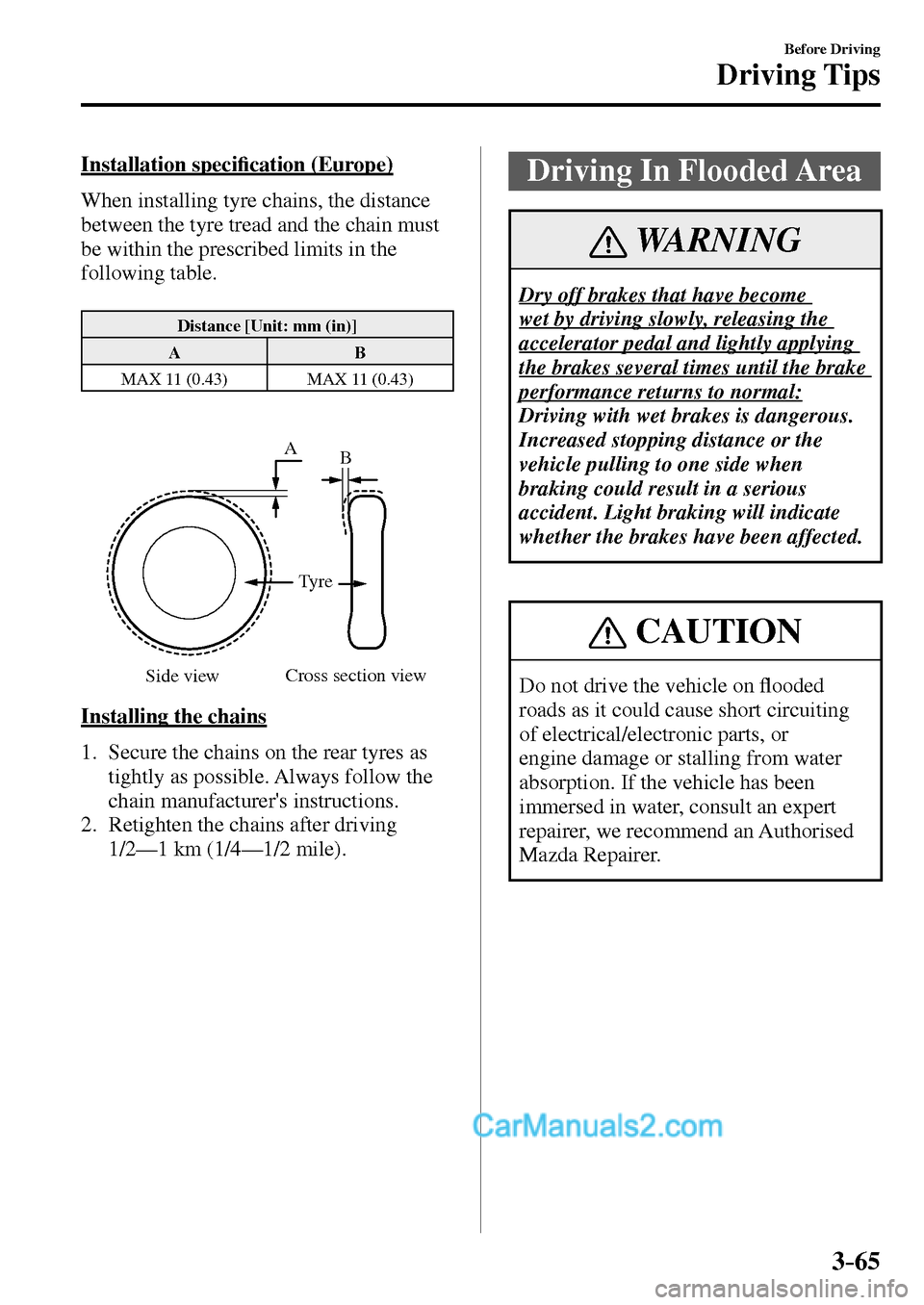

Page 141 of 609
3–65
Before Driving
Driving Tips
Installation speci ¿ cation (Europe)
When installing tyre chains, the distance
between the tyre tread and the chain must
be within the prescribed limits in the
following table.
Distance [Unit: mm (in)]
A B
MAX 11 (0.43) MAX 11 (0.43)
Side viewCross section viewTyre A
B
Installing the chains
1. Secure the chains on the rear tyres as
tightly as possible. Always follow the
chain manufacturer's instructions.
2. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile).
Driving In Flooded Area
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
CAUTION
Do not drive the vehicle on À ooded
roads as it could cause short circuiting
of electrical/electronic parts, or
engine damage or stalling from water
absorption. If the vehicle has been
immersed in water, consult an expert
repairer, we recommend an Authorised
Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D

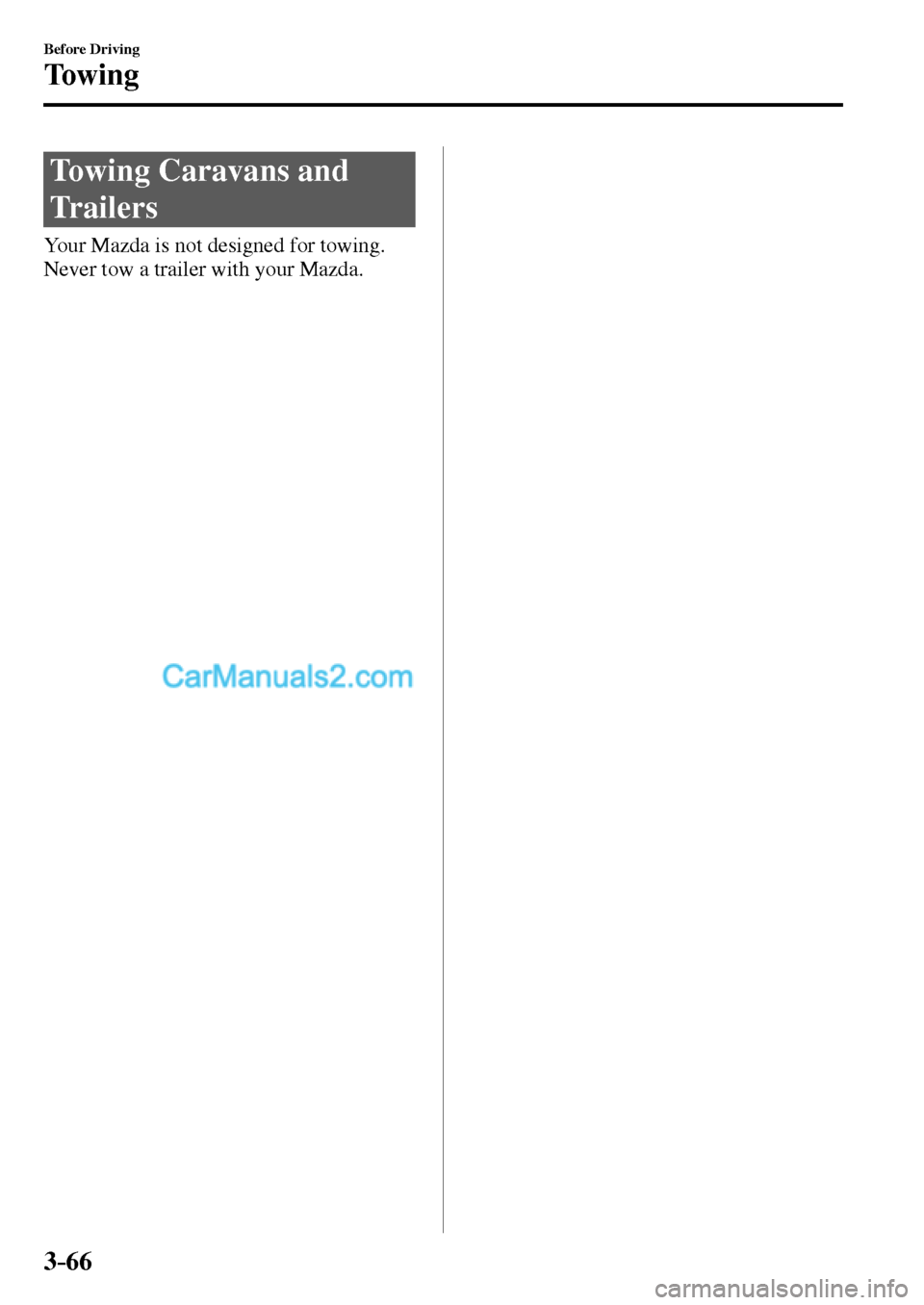

Page 142 of 609
3–66
Before Driving
Towing
Towing Caravans and
Trailers
Your Mazda is not designed for towing.
Never tow a trailer with your Mazda.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 143 of 609
4–1*Some models.4–1
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine ................................ 4-4
Ignition Switch ............................... 4-4
Starting the Engine ......................... 4-5
Turning the Engine Off ................ 4-11
i-stop
* ........................................... 4-13
Instrument Cluster and Display ...... 4-24
Meters and Gauges ....................... 4-24
Multi-information Display and INFO
Switch
* ......................................... 4-33
Warning/Indicator Lights ............. 4-42
Transmission ...................................... 4-48
Manual Transmission
Operation ...................................... 4-48
Automatic Transmission
Controls ........................................ 4-51
Switches and Controls ...................... 4-63
Lighting Control ........................... 4-63
Rear Fog Light
* ............................ 4-70
Turn and Lane-change Signals ..... 4-71
Windscreen Wipers and
Washer .......................................... 4-72
Headlight Washer
* ........................ 4-77
Rear Window Defogger ............... 4-77
Horn ............................................. 4-79
Hazard Warning Flasher ............... 4-79
Brake .................................................. 4-81
Brake System ............................... 4-81
Emergency Stop Signal System ... 4-84
Hill Launch Assist (HLA) ............ 4-84 ABS/TCS/DSC ................................... 4-86
Antilock Brake System (ABS) ..... 4-86
Traction Control System (TCS) ... 4-87
Dynamic Stability Control
(DSC) ........................................... 4-88
i-ELOOP ............................................ 4-90
i-ELOOP
* ..................................... 4-90
Fuel Economy Monitor ..................... 4-93
Fuel Economy Monitor
* ............... 4-93
Drive Selection ................................... 4-97
Drive Selection
* ........................... 4-97
Power Steering................................... 4-99
Power Steering ............................. 4-99
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 144 of 609
4–2*Some models.
i-ACTIVSENSE............................... 4-100
i-ACTIVSENSE *........................ 4-100
Adaptive Front Lighting System
(AFS)
* ........................................ 4-102
High Beam Control System
(HBC)
*........................................ 4-103
Lane Departure Warning System
(LDWS)
* .................................... 4-106
Blind Spot Monitoring (BSM)
System
* ....................................... 4-112
Rear Cross Traf ¿ c Alert
(RCTA)
* ..................................... 4-119
Adjustable Speed Limiter * ......... 4-122
Forward Sensing Camera
(FSC)
* ......................................... 4-129
Radar Sensors (Rear) * ................ 4-132
Cruise Control ................................. 4-134
Cruise Control
* ........................... 4-134
Tyre Pressure Monitoring
System .............................................. 4-140
Tyre Pressure Monitoring System
(Vehicle with Conventional
Tyres)
* ........................................ 4-140
Tyre Pressure Monitoring System
(Vehicle with Run- À at Tyres)
* .... 4-144
Parking Sensor System ................... 4-148
Parking Sensor System
* ............. 4-148
/ : A ( . ' ' , A ' F K V K Q P K P F D

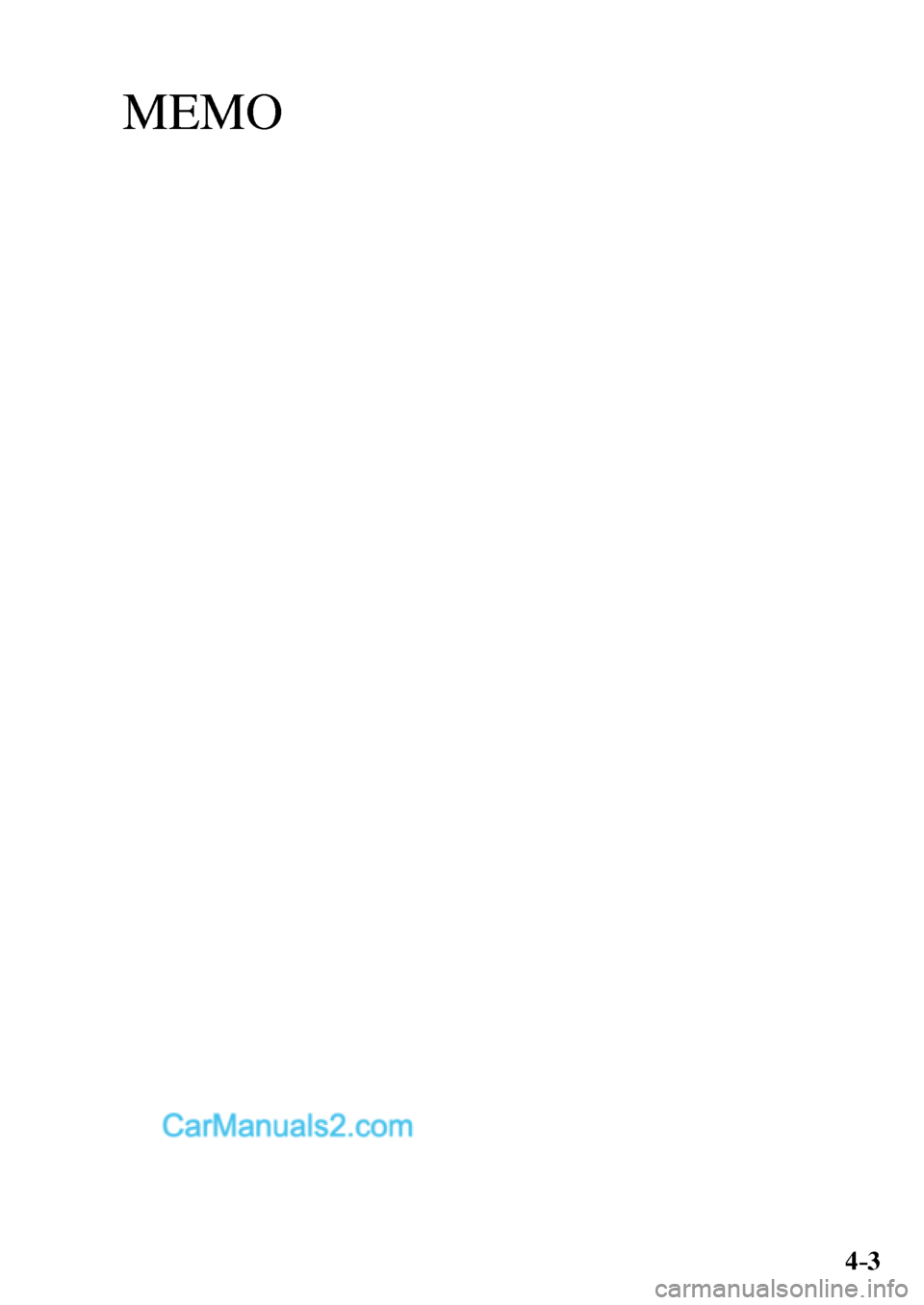

Page 145 of 609
MEMO
4–3
/ : A ( . ' ' , A ' F K V K Q P K P F D

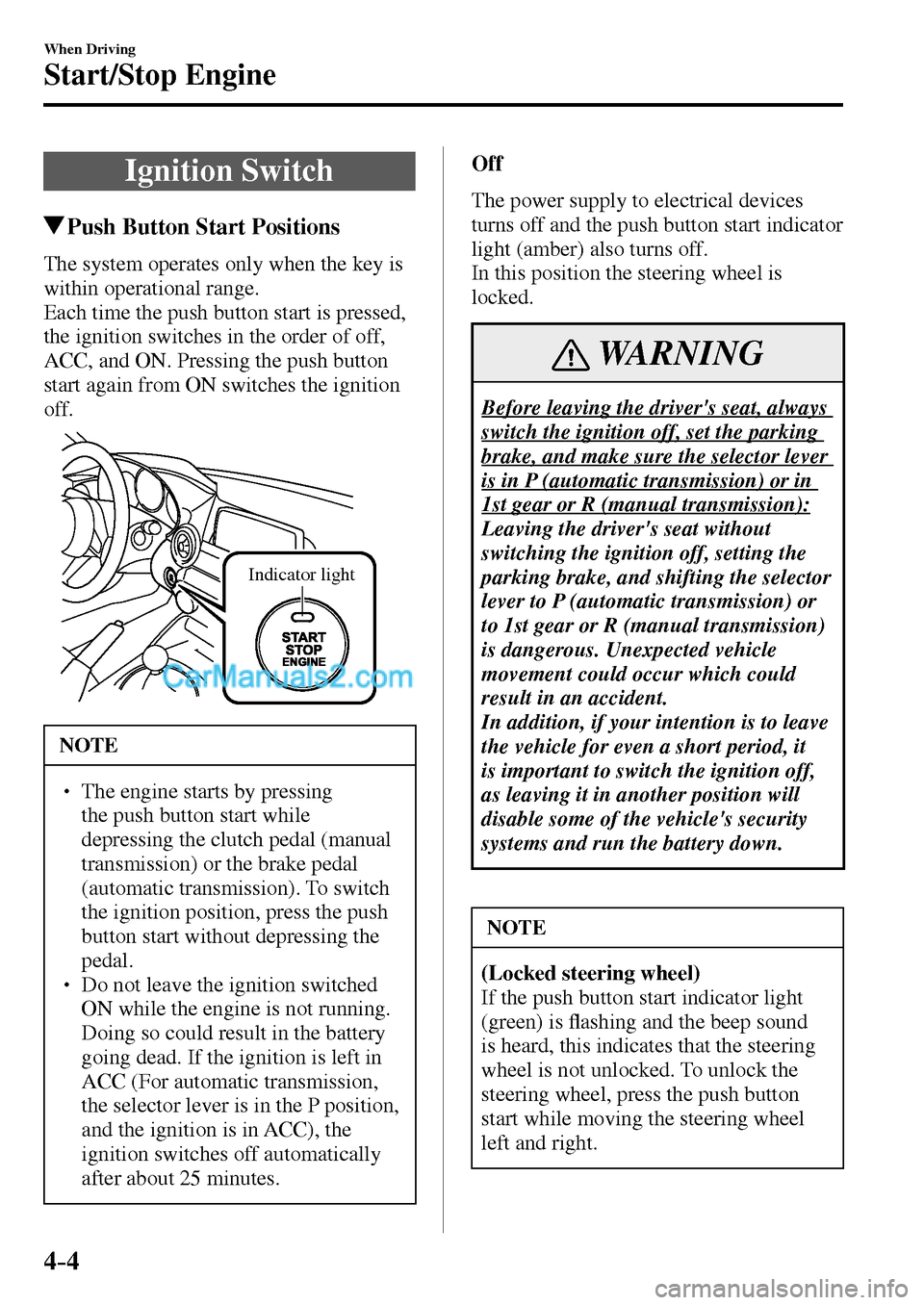

Page 146 of 609
4–4
When Driving
Start/Stop Engine
Ignition Switch
Push Button Start Positions
The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
NOTE
The engine starts by pressing
the push button start while
depressing the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission). To switch
the ignition position, press the push
button start without depressing the
pedal.
Do not leave the ignition switched
ON while the engine is not running.
Doing so could result in the battery
going dead. If the ignition is left in
ACC (For automatic transmission,
the selector lever is in the P position,
and the ignition is in ACC), the
ignition switches off automatically
after about 25 minutes. O f f
The power supply to electrical devices
turns off and the push button start indicator
light (amber) also turns off.
In this position the steering wheel is
locked.
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever
is in P (automatic transmission) or in
1st gear or R (manual transmission):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the selector
lever to P (automatic transmission) or
to 1st gear or R (manual transmission)
is dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to leave
the vehicle for even a short period, it
is important to switch the ignition off,
as leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.
NOTE
(Locked steering wheel)
If the push button start indicator light
(green) is À ashing and the beep sound
is heard, this indicates that the steering
wheel is not unlocked. To unlock the
steering wheel, press the push button
start while moving the steering wheel
left and right.
/ : A ( . ' ' , A ' F K V K Q P K P F D

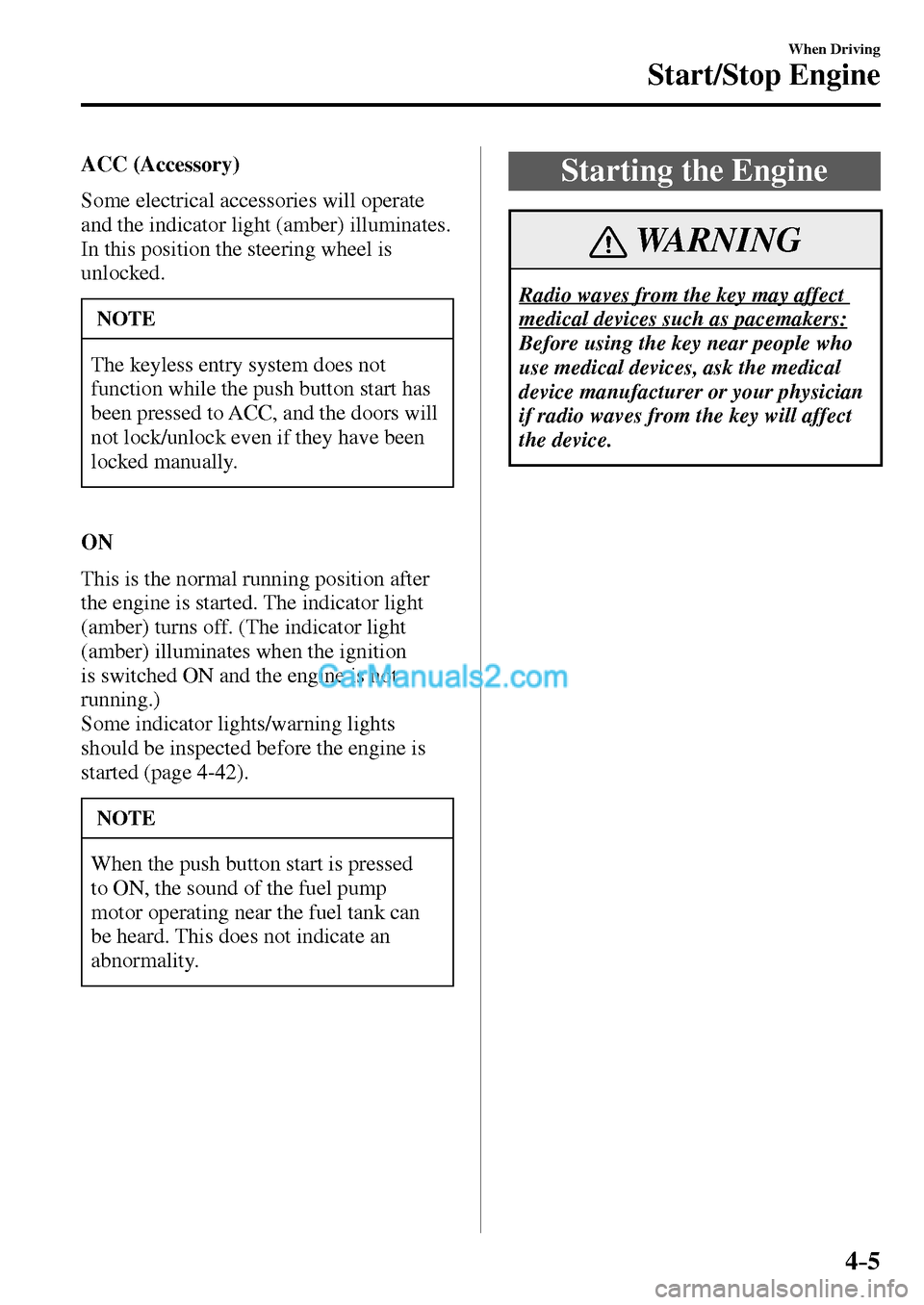

Page 147 of 609
4–5
When Driving
Start/Stop Engine
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
In this position the steering wheel is
unlocked.
NOTE
The keyless entry system does not
function while the push button start has
been pressed to ACC, and the doors will
not lock/unlock even if they have been
locked manually.
O N
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition
is switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-42 ).
NOTE
When the push button start is pressed
to ON, the sound of the fuel pump
motor operating near the fuel tank can
be heard. This does not indicate an
abnormality.
Starting the Engine
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 148 of 609
4–6
When Driving
Start/Stop Engine
NOTE
The key must be carried because the
key carries an immobilizer chip that
must communicate with the engine
controls at short range.
The engine can be started when the
push button start is pressed from off,
ACC, or ON.
The push button start system
functions (function which can start
the engine by only carrying the
key) can be deactivated to prevent
any possible adverse effect on a
user wearing a pacemaker or other
medical device. If the system is
deactivated, you will be unable
to start the engine by carrying the
key. Consult an expert repairer, we
recommend an Authorised Mazda
Repairer for details. If the push
button start system functions have
been deactivated, you can start the
engine by following the procedure
indicated when the key battery goes
dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-9 .
After starting a cold engine, the
engine speed increases and a whining
sound from the engine compartment
can be heard.
This is for improved exhaust gas
puri ¿ cation and does not indicate any
parts defect. 1. Make sure you are carrying the key.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal
¿ rmly until the engine has completely
started.
5. (Manual transmission)
Continue to press the clutch pedal
¿ rmly until the engine has completely
started.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch
pedal is not depressed suf ¿ ciently.
(Automatic transmission)
The starter will not operate if the
selector lever is not in P or N and the
brake pedal is not depressed suf ¿ ciently.
/ : A ( . ' ' , A ' F K V K Q P K P F D

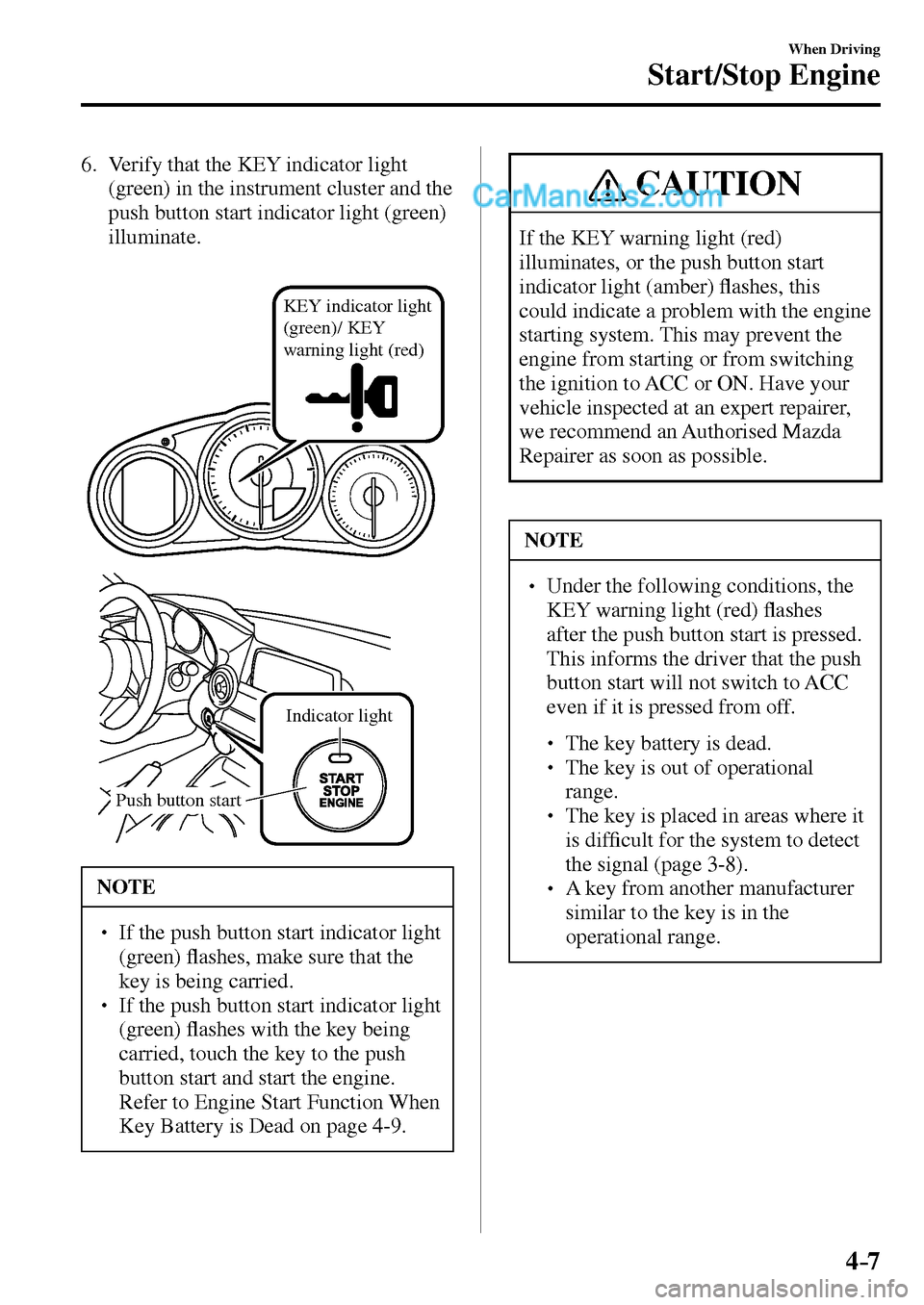

Page 149 of 609
4–7
When Driving
Start/Stop Engine
6. Verify that the KEY indicator light
(green) in the instrument cluster and the
push button start indicator light (green)
illuminate.
KEY indicator light
(green)/ KEY
warning light (red)
Indicator light
Push button start
NOTE
If the push button start indicator light
(green) À ashes, make sure that the
key is being carried.
If the push button start indicator light
(green) À ashes with the key being
carried, touch the key to the push
button start and start the engine.
Refer to Engine Start Function When
Key Battery is Dead on page 4-9 .
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) À ashes, this
could indicate a problem with the engine
starting system. This may prevent the
engine from starting or from switching
the ignition to ACC or ON. Have your
vehicle inspected at an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.
NOTE
Under the following conditions, the
KEY warning light (red) À ashes
after the push button start is pressed.
This informs the driver that the push
button start will not switch to ACC
even if it is pressed from off.
The key battery is dead.
The key is out of operational
range.
The key is placed in areas where it
is dif ¿ cult for the system to detect
the signal (page 3-8 ).
A key from another manufacturer
similar to the key is in the
operational range.
/ : A ( . ' ' , A ' F K V K Q P K P F D

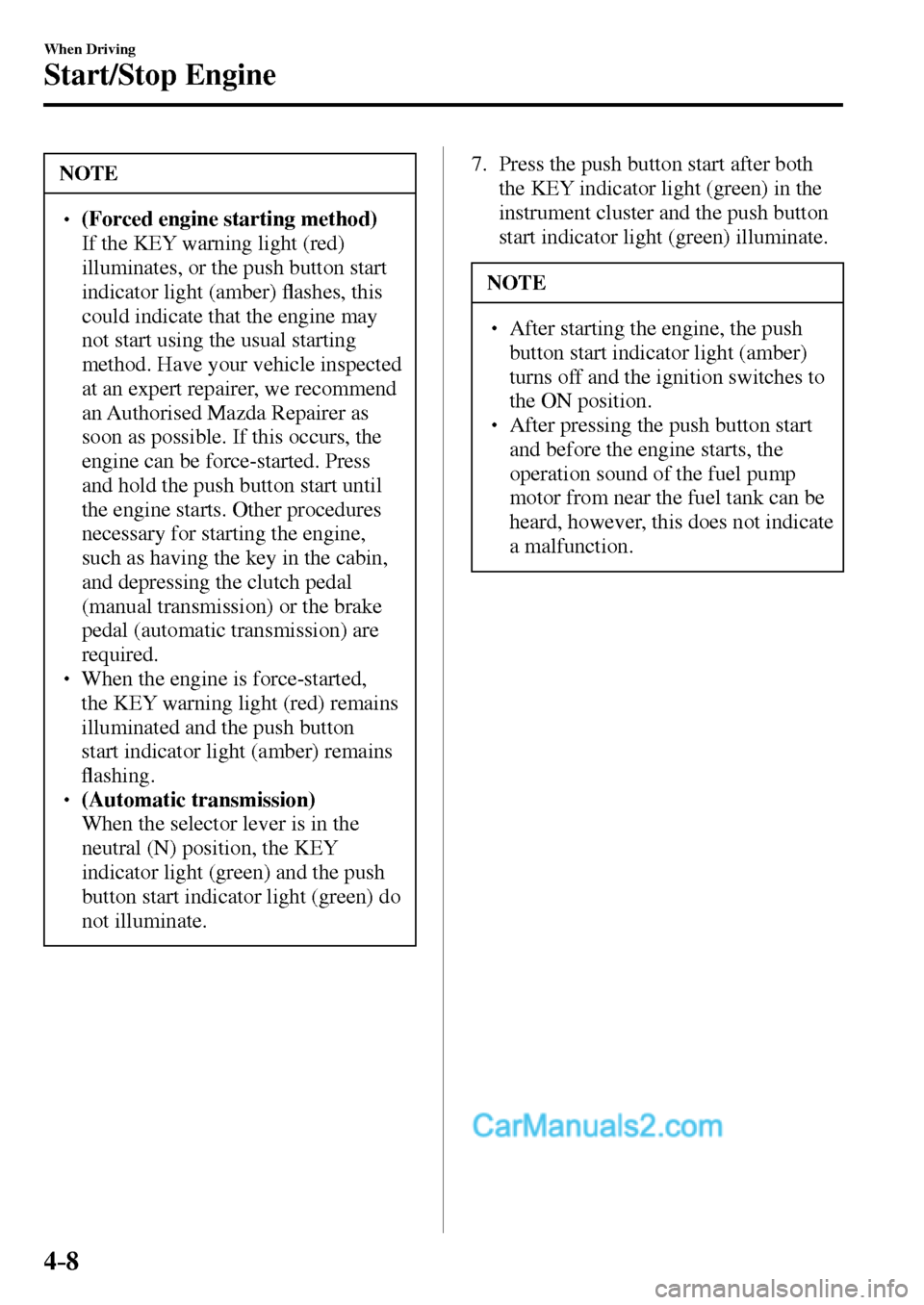

Page 150 of 609
4–8
When Driving
Start/Stop Engine
NOTE
(Forced engine starting method) If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) À ashes, this
could indicate that the engine may
not start using the usual starting
method. Have your vehicle inspected
at an expert repairer, we recommend
an Authorised Mazda Repairer as
soon as possible. If this occurs, the
engine can be force-started. Press
and hold the push button start until
the engine starts. Other procedures
necessary for starting the engine,
such as having the key in the cabin,
and depressing the clutch pedal
(manual transmission) or the brake
pedal (automatic transmission) are
required.
When the engine is force-started,
the KEY warning light (red) remains
illuminated and the push button
start indicator light (amber) remains
À ashing.
(Automatic transmission) When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) and the push
button start indicator light (green) do
not illuminate. 7. Press the push button start after both
the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.
NOTE
After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to
the ON position.
After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not indicate
a malfunction.
/ : A ( . ' ' , A ' F K V K Q P K P F D
