When Driving
Parking Sensor System

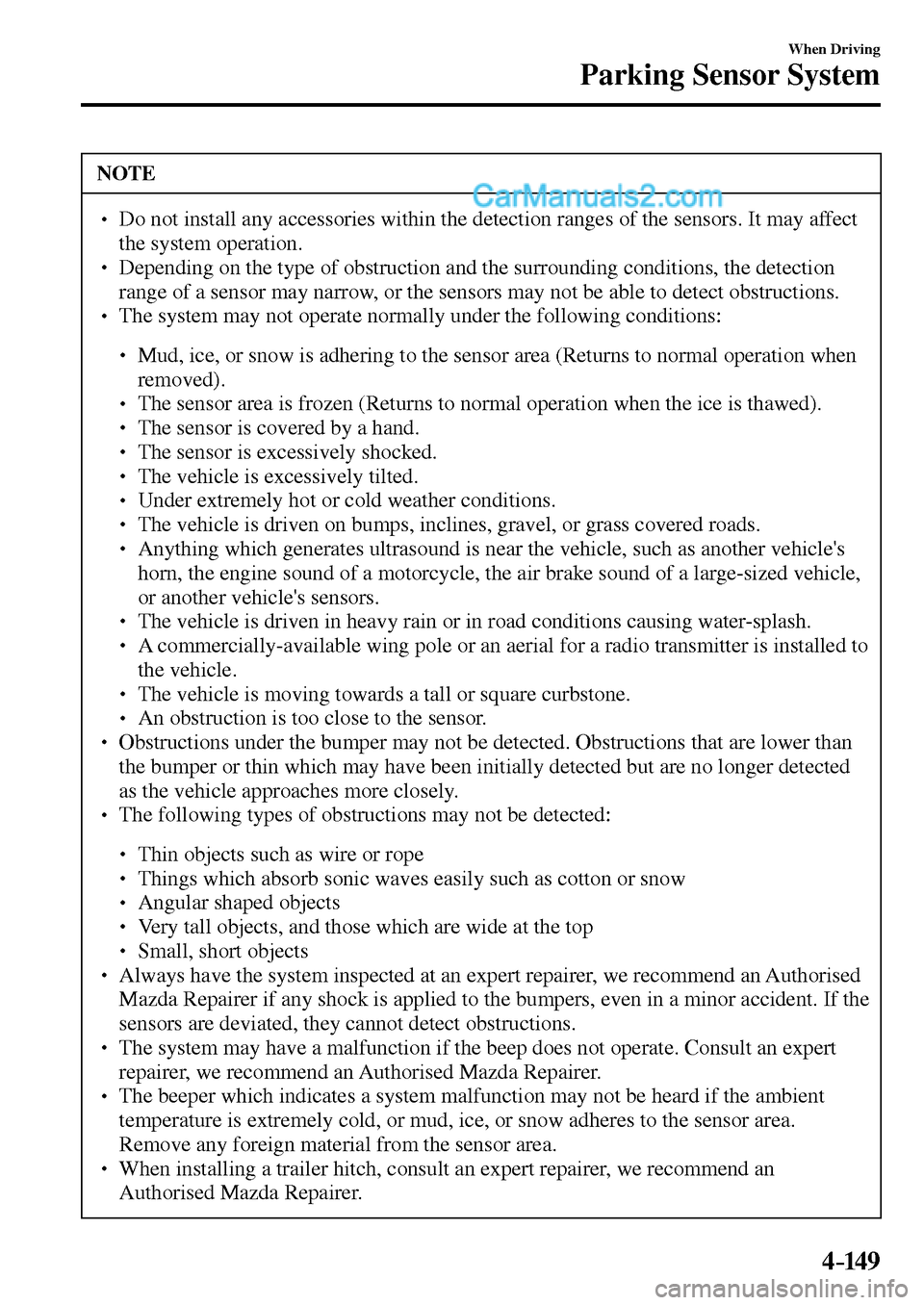

NOTE
  Do not install any accessories within the detection ranges of the sensors. It may affect
the system operation.
  Depending on the type of obstruction and the surrounding conditions, the detection
range of a sensor may narrow, or the sensors may not be able to detect obstructions.
  The system may not operate normally under the following conditions:




 Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).



 The sensor area is frozen (Returns to normal operation when the ice is thawed).



 The sensor is covered by a hand.



 The sensor is excessively shocked.



 The vehicle is excessively tilted.



 Under extremely hot or cold weather conditions.



 The vehicle is driven on bumps, inclines, gravel, or grass covered roads.



 Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle,
or another vehicle's sensors.



 The vehicle is driven in heavy rain or in road conditions causing water-splash.



 A commercially-available wing pole or an aerial for a radio transmitter is installed to
the vehicle.



 The vehicle is moving towards a tall or square curbstone.



 An obstruction is too close to the sensor.

 Obstructions under the bumper may not be detected. Obstructions that are lower than
the bumper or thin which may have been initially detected but are no longer detected
as the vehicle approaches more closely.
  The following types of obstructions may not be detected:




 Thin objects such as wire or rope



 Things which absorb sonic waves easily such as cotton or snow



 Angular shaped objects



 Very tall objects, and those which are wide at the top



 Small, short objects

 Always have the system inspected at an expert repairer, we recommend an Authorised
Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the
sensors are deviated, they cannot detect obstructions.
  The system may have a malfunction if the beep does not operate. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.
  The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area.
Remove any foreign material from the sensor area.
  When installing a trailer hitch, consult an expert repairer, we recommend an
Authorised Mazda Repairer.
/:A(.'',A'FKVKQPKPFD

4–150
When Driving
Parking Sensor System

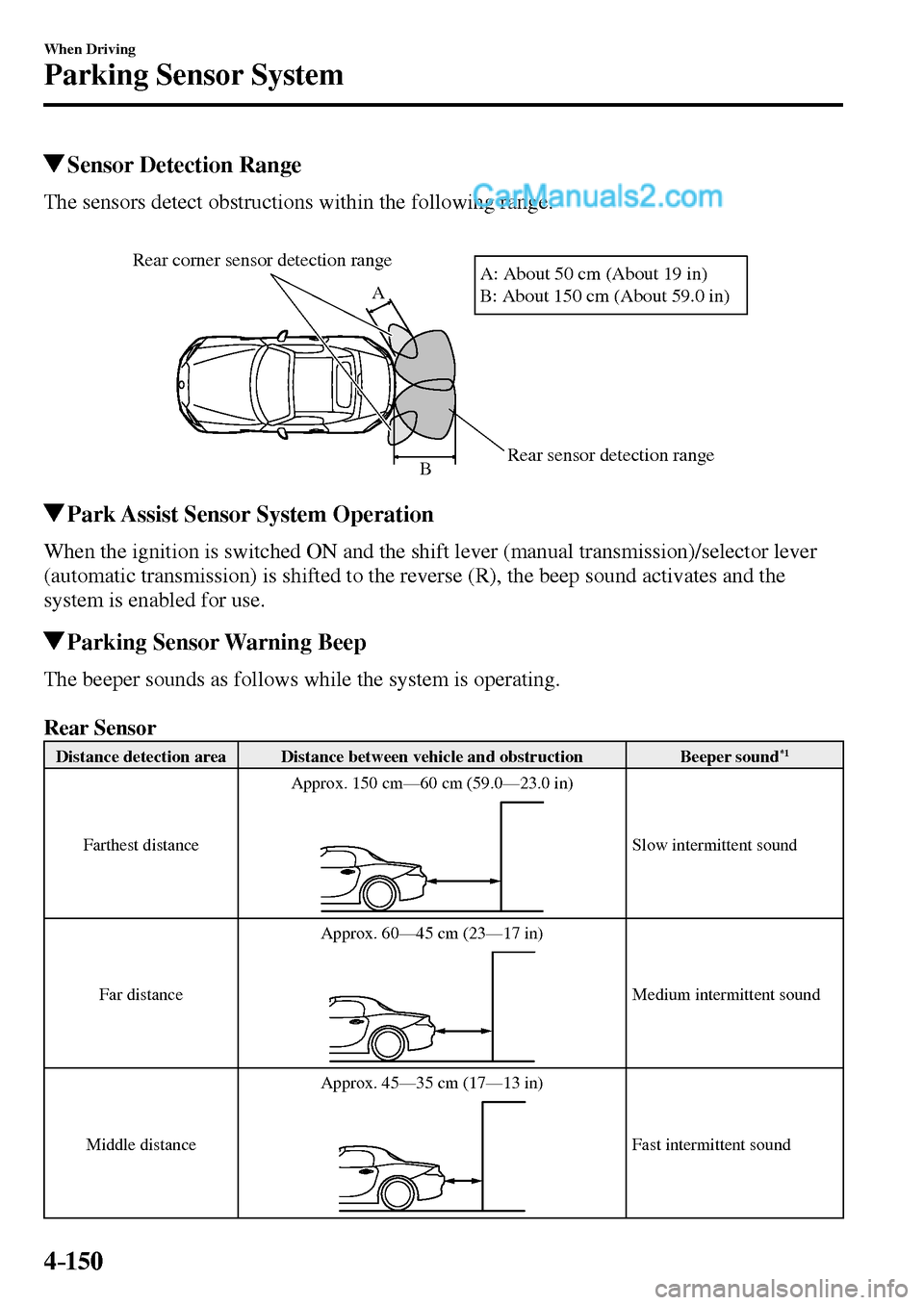

Sensor Detection Range
The sensors detect obstructions within the following range.
Rear sensor detection range Rear corner sensor detection rangeB AA: About 50 cm (About 19 in)
B: About 150 cm (About 59.0 in)
Park Assist Sensor System Operation
When the ignition is switched ON and the shift lever (manual transmission)/selector lever
(automatic transmission) is shifted to the reverse (R), the beep sound activates and the
system is enabled for use.
Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Rear Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Farthest distance Approx. 150 cm—60 cm (59.0—23.0 in) Slow intermittent sound
Far distance Approx. 60—45 cm (23—17 in)
Medium intermittent sound
Middle distance Approx. 45—35 cm (17—13 in)
Fast intermittent sound
/:A(.'',A'FKVKQPKPFD

4–151
When Driving
Parking Sensor System

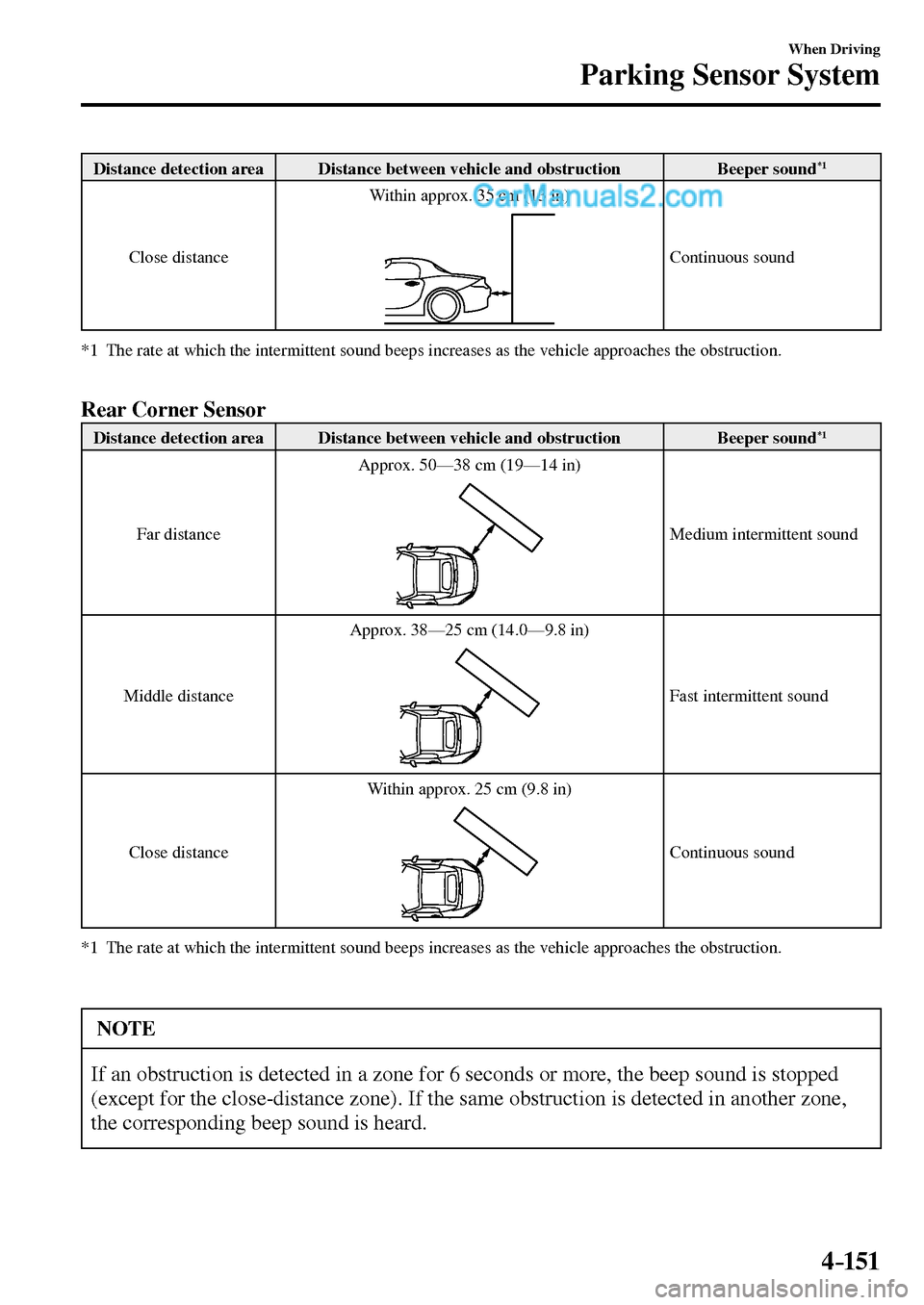

Distance detection area Distance between vehicle and obstruction Beeper sound *1
Close distance Within approx. 35 cm (13 in) Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 50—38 cm (19—14 in) Medium intermittent sound
Middle distance Approx. 38—25 cm (14.0—9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.
/:A(.'',A'FKVKQPKPFD

4–152
When Driving
Parking Sensor System

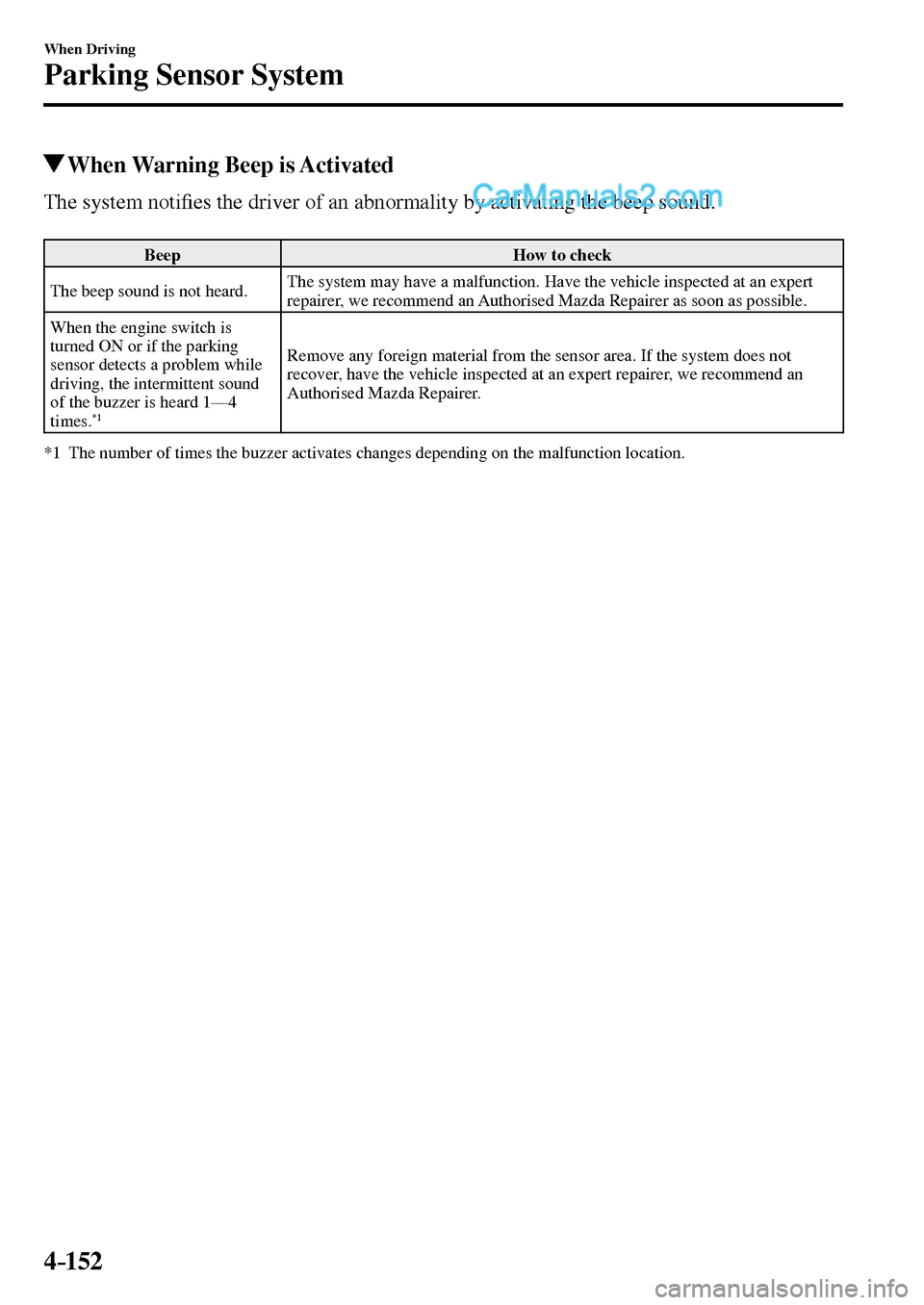

When Warning Beep is Activated
The system noti¿ es the driver of an abnormality by activating the beep sound.
Beep How to check
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an expert
repairer, we recommend an Authorised Mazda Repairer as soon as possible.
When the engine switch is
turned ON or if the parking
sensor detects a problem while
driving, the intermittent sound
of the buzzer is heard 1—4
times.
*1
Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.
*1 The number of times the buzzer activates changes depending on the malfunction location.
/:A(.'',A'FKVKQPKPFD

5–1*Some models.5–1

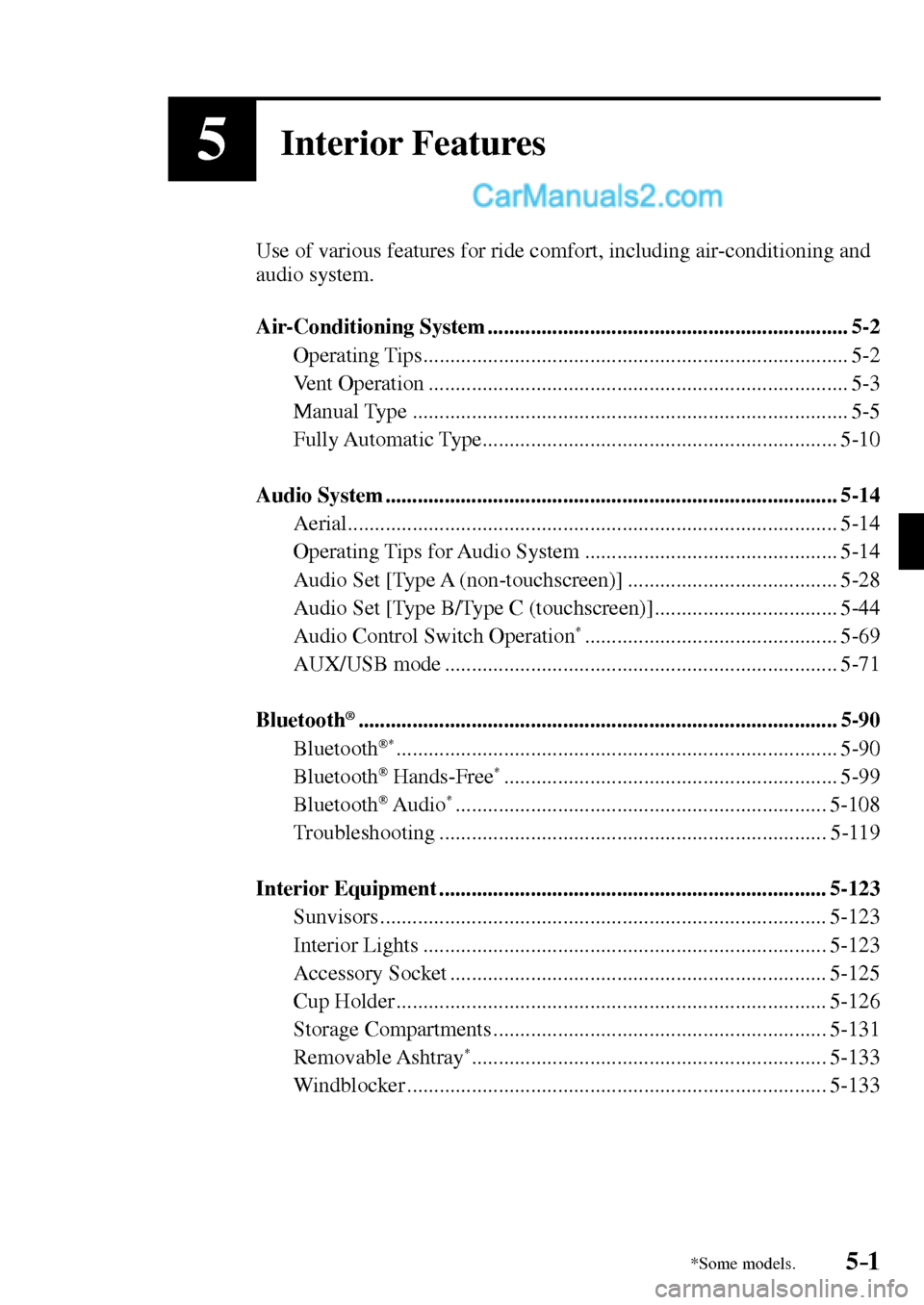

5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.
Air-Conditioning System ................................................................... 5-2
Operating Tips ............................................................................... 5-2
Vent Operation .............................................................................. 5-3
Manual Type ................................................................................. 5-5
Fully Automatic Type .................................................................. 5-10
Audio System .................................................................................... 5-14
Aerial ........................................................................................... 5-14
Operating Tips for Audio System ............................................... 5-14
Audio Set [Type A (non-touchscreen)] ....................................... 5-28
Audio Set [Type B/Type C (touchscreen)] .................................. 5-44
Audio Control Switch Operation
* ............................................... 5-69
AUX/USB mode ......................................................................... 5-71
Bluetooth
® ......................................................................................... 5-90
Bluetooth®* .................................................................................. 5-90
Bluetooth® Hands-Free * .............................................................. 5-99
Bluetooth® Audio * ..................................................................... 5-108
Troubleshooting ........................................................................ 5-119
Interior Equipment ........................................................................ 5-123
Sunvisors ................................................................................... 5-123
Interior Lights ........................................................................... 5-123
Accessory Socket ...................................................................... 5-125
Cup Holder ................................................................................ 5-126
Storage Compartments .............................................................. 5-131
Removable Ashtray
* .................................................................. 5-133
Windblocker .............................................................................. 5-133
/:A(.'',A'FKVKQPKPFD

5–2
Interior Features

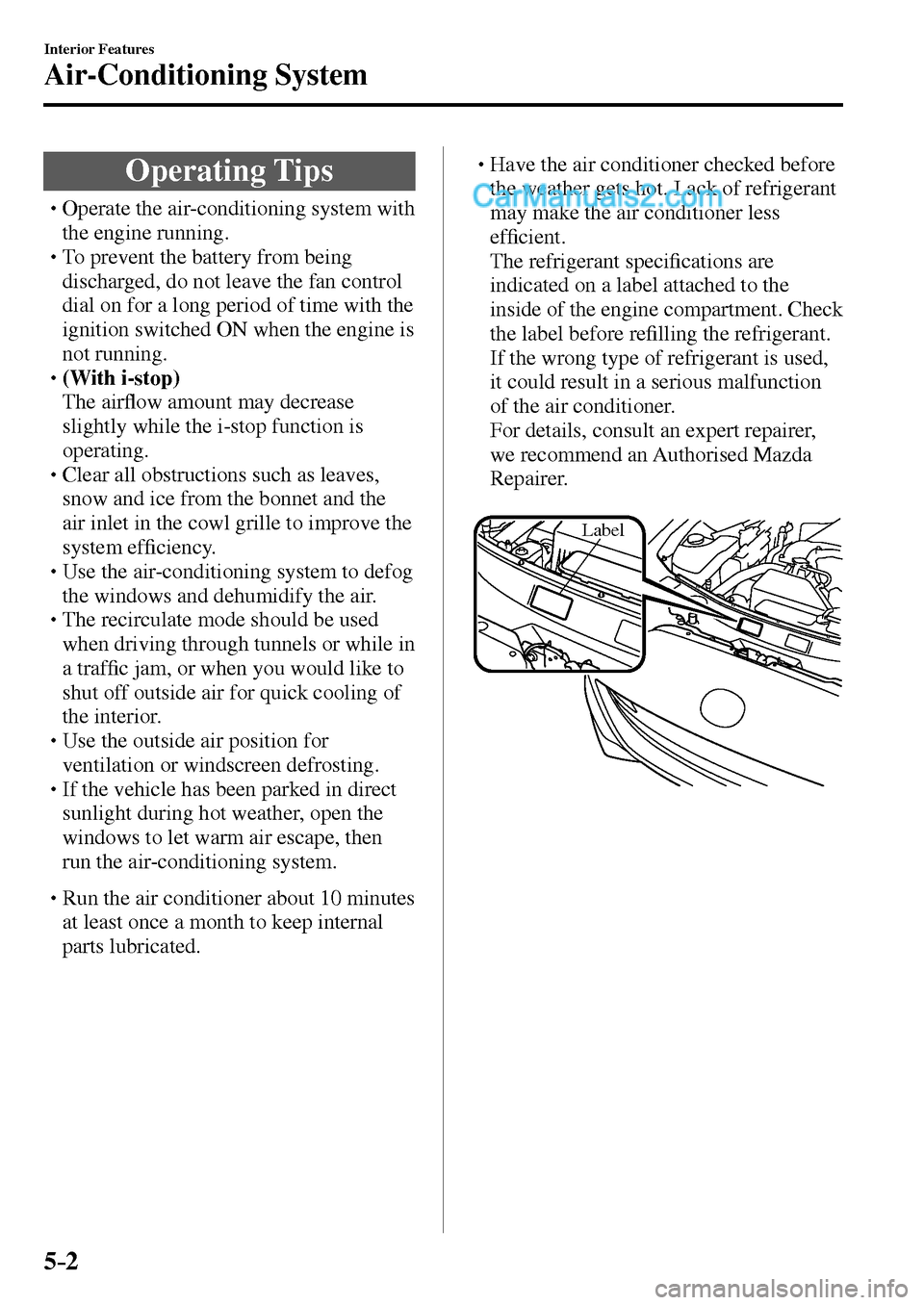

Air-Conditioning System
O p e r a t i n g T i p s













 Operate the air-conditioning system with
the engine running.



 To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



(With i-stop)
 The airÀ ow amount may decrease
slightly while the i-stop function is
operating.



 Clear all obstructions such as leaves,
snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef¿ ciency.




 Use the air-conditioning system to defog
the windows and dehumidify the air.



 The recirculate mode should be used
when driving through tunnels or while in
a traf¿ c jam, or when you would like to
shut off outside air for quick cooling of
the interior.



 Use the outside air position for
ventilation or windscreen defrosting.



 If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.



 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.



 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef¿ cient.

 The refrigerant speci¿ cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before re¿ lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
  For details, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Label
/:A(.'',A'FKVKQPKPFD

5–3
Interior Features
Air-Conditioning System

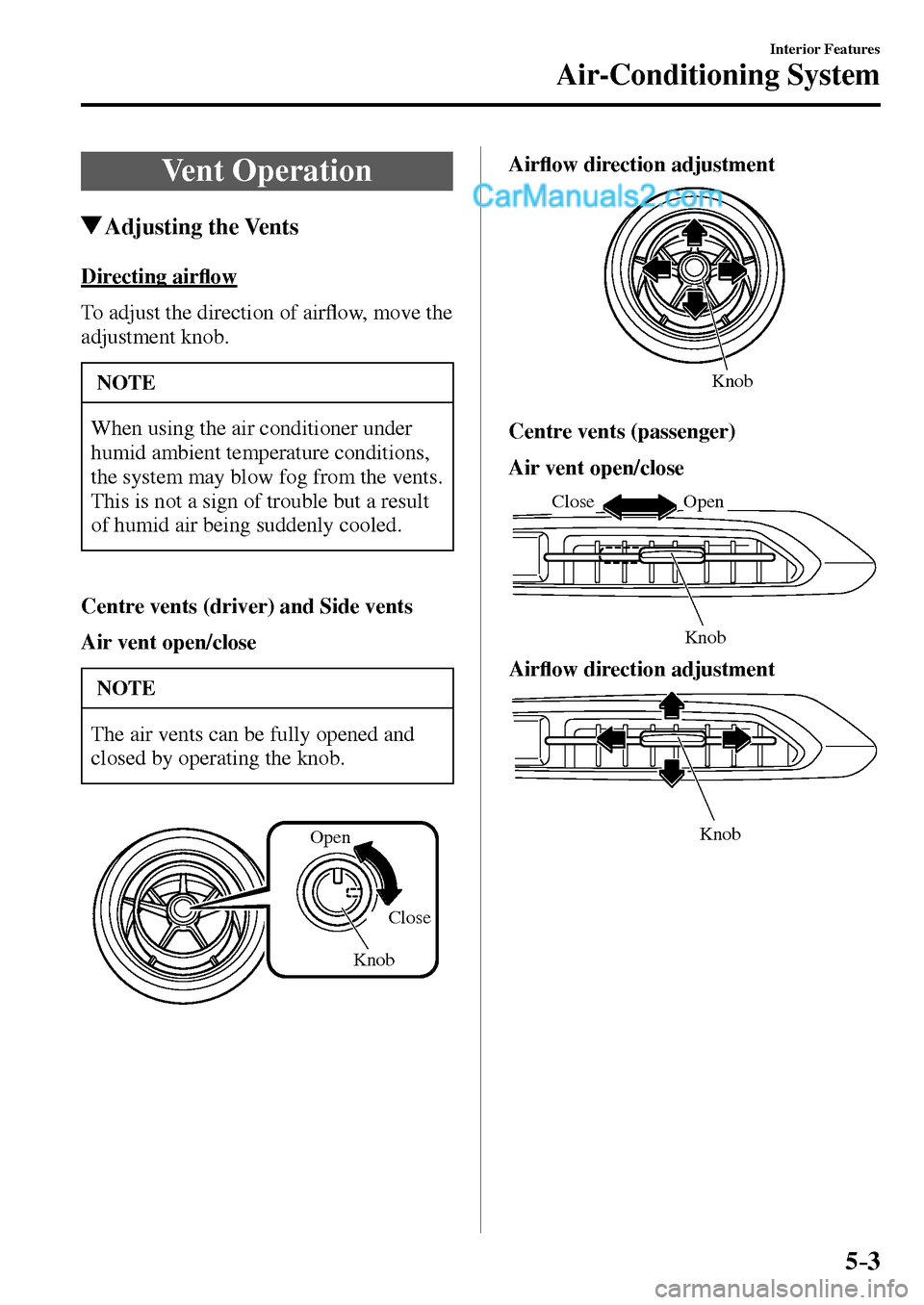

Vent Operation
Adjusting the Vents
Directing airÀ ow
To adjust the direction of airÀ ow, move the
adjustment knob.
NOTE
When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.
Centre vents (driver) and Side vents
Air vent open/close
NOTE
The air vents can be fully opened and
closed by operating the knob.
Open
Close
Knob
AirÀ ow direction adjustment
Knob
Centre vents (passenger)
Air vent open/close
OpenClose
Knob
AirÀ ow direction adjustment
Knob
/:A(.'',A'FKVKQPKPFD

5–4
Interior Features
Air-Conditioning System

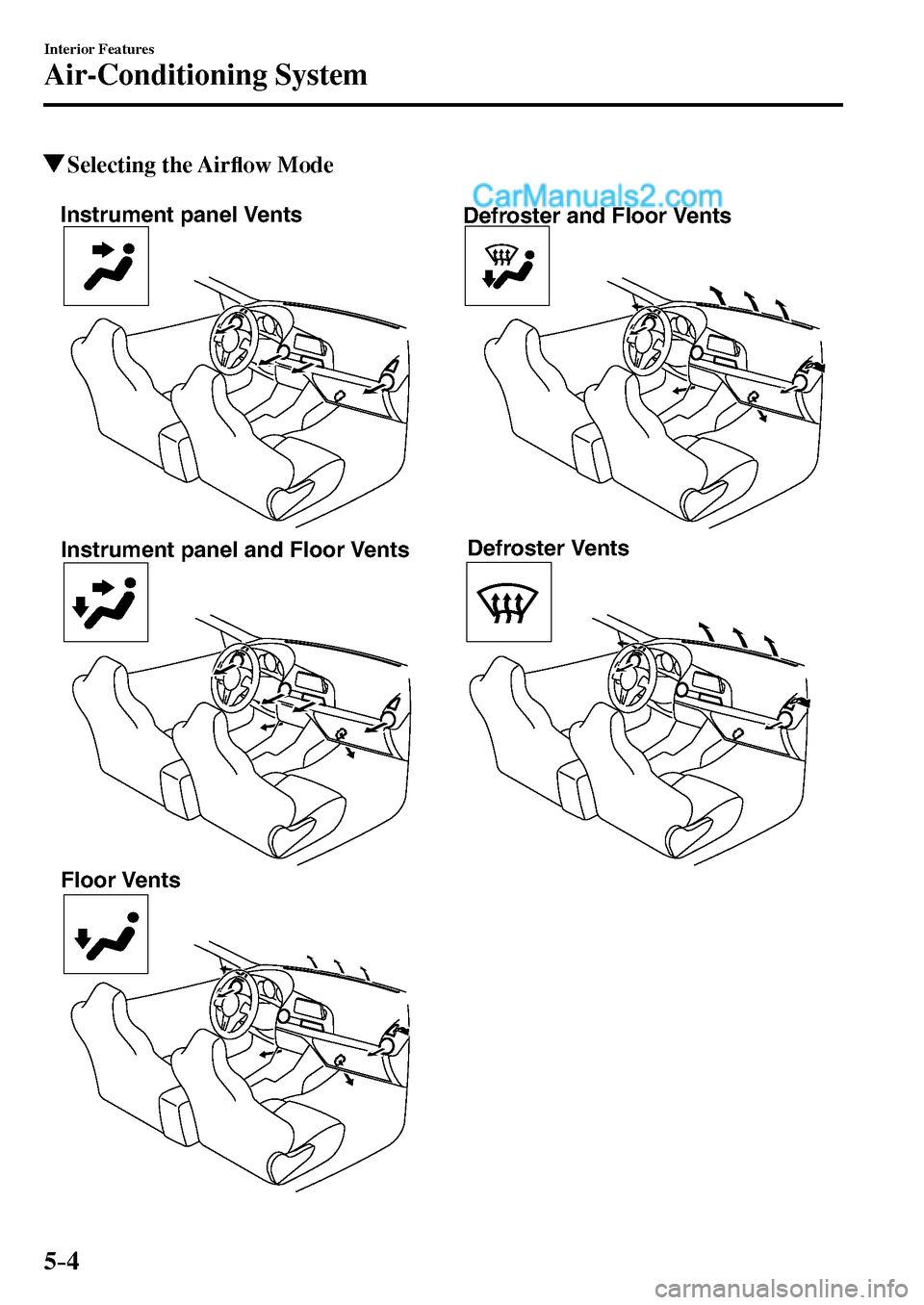

Selecting the AirÀ ow Mode
Instrument panel Vents
Instrument panel and Floor Vents
Floor VentsDefroster and Floor Vents
Defroster Vents
/:A(.'',A'FKVKQPKPFD

5–5
Interior Features
Air-Conditioning System

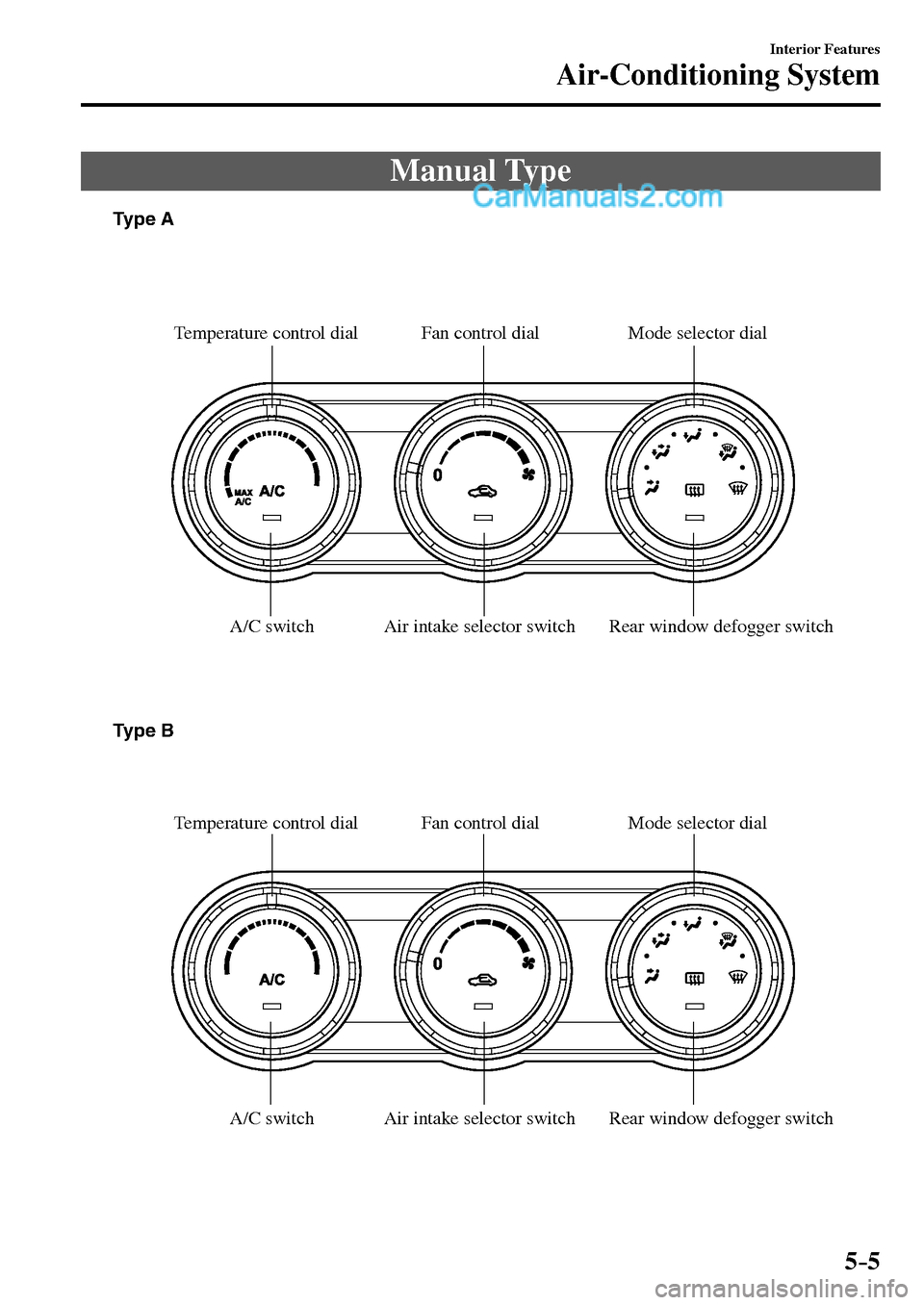

Manual Type
Rear window defogger switch Air intake selector switchFan control dial Temperature control dial
A/C switch
Rear window defogger switch Air intake selector switch A/C switchMode selector dial
Fan control dial Temperature control dial Mode selector dial Type A
Type B
/:A(.'',A'FKVKQPKPFD

5–6
Interior Features
Air-Conditioning System

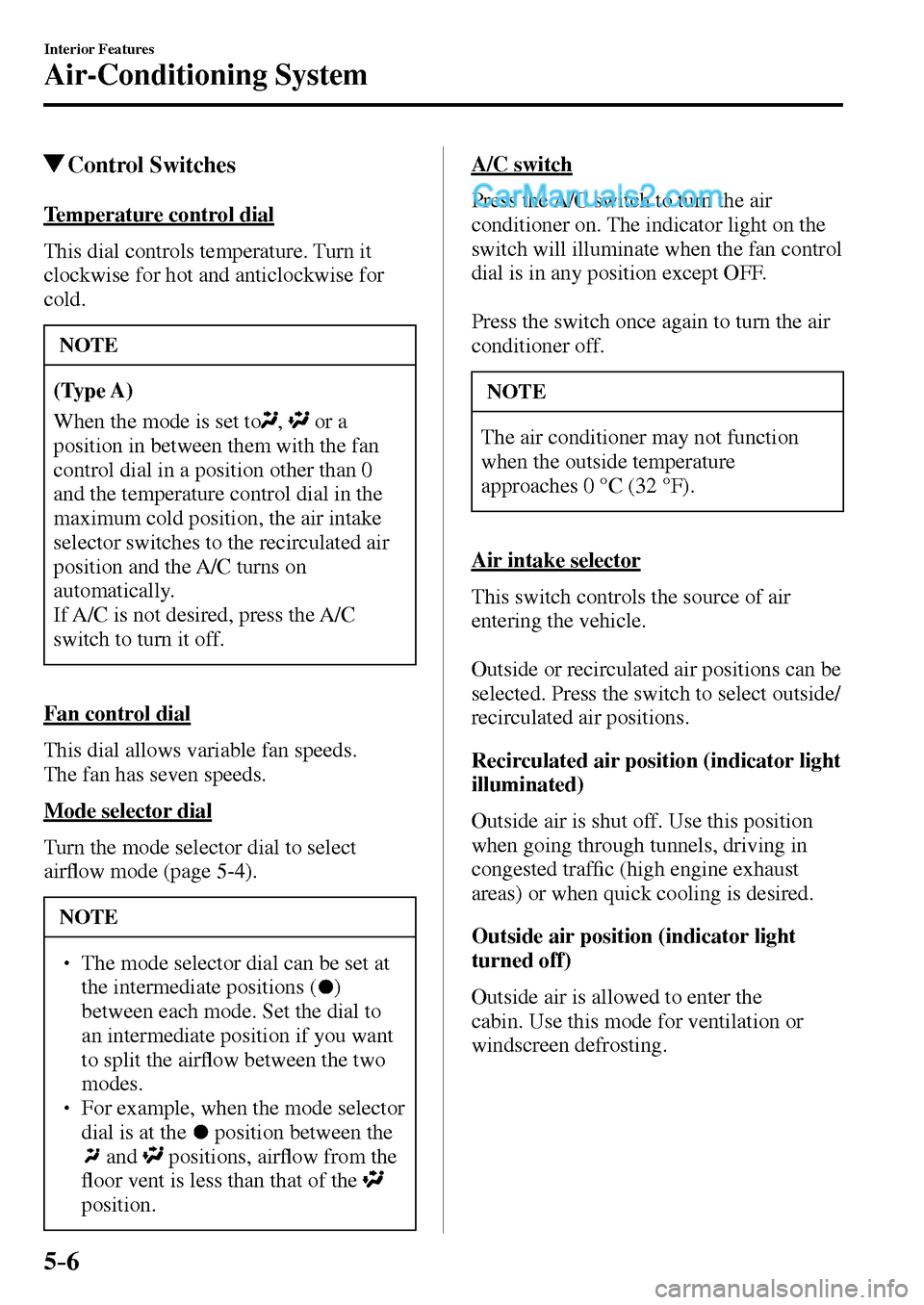

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
NOTE
(Type A)
When the mode is set to
, or a
position in between them with the fan
control dial in a position other than 0
and the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C
switch to turn it off.
Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
Mode selector dial
Turn the mode selector dial to select
airÀ ow mode (page 5-4 ).
NOTE

 The mode selector dial can be set at
the intermediate positions (
)
between each mode. Set the dial to
an intermediate position if you want
to split the airÀ ow between the two
modes.
  For example, when the mode selector
dial is at the
position between the
and positions, airÀ ow from the
À oor vent is less than that of the
position.
A/C switch
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.
Press the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).
Air intake selector
This switch controls the source of air
entering the vehicle.
Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.
Recirculated air position (indicator light
illuminated)
Outside air is shut off. Use this position
when going through tunnels, driving in
congested traf¿ c (high engine exhaust
areas) or when quick cooling is desired.
Outside air position (indicator light
turned off)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.
/:A(.'',A'FKVKQPKPFD
