Audio System
Audio Set [Type A (non-touchscreen)]



Power/Volume/Sound Controls ............................................................................. page 5-30



Clock ..................................................................................................................... page 5-32



Operating the Radio .............................................................................................. page 5-34



Operating the Compact Disc (CD) Player............................................................. page 5-38



How to use Auxiliary jack/USB port .................................................................... page 5-41



Error Indications ................................................................................................... page 5-42
/:A(.'',A'FKVKQPKPFD

MEMO
5–29
/:A(.'',A'FKVKQPKPFD

5–30
Interior Features
Audio System

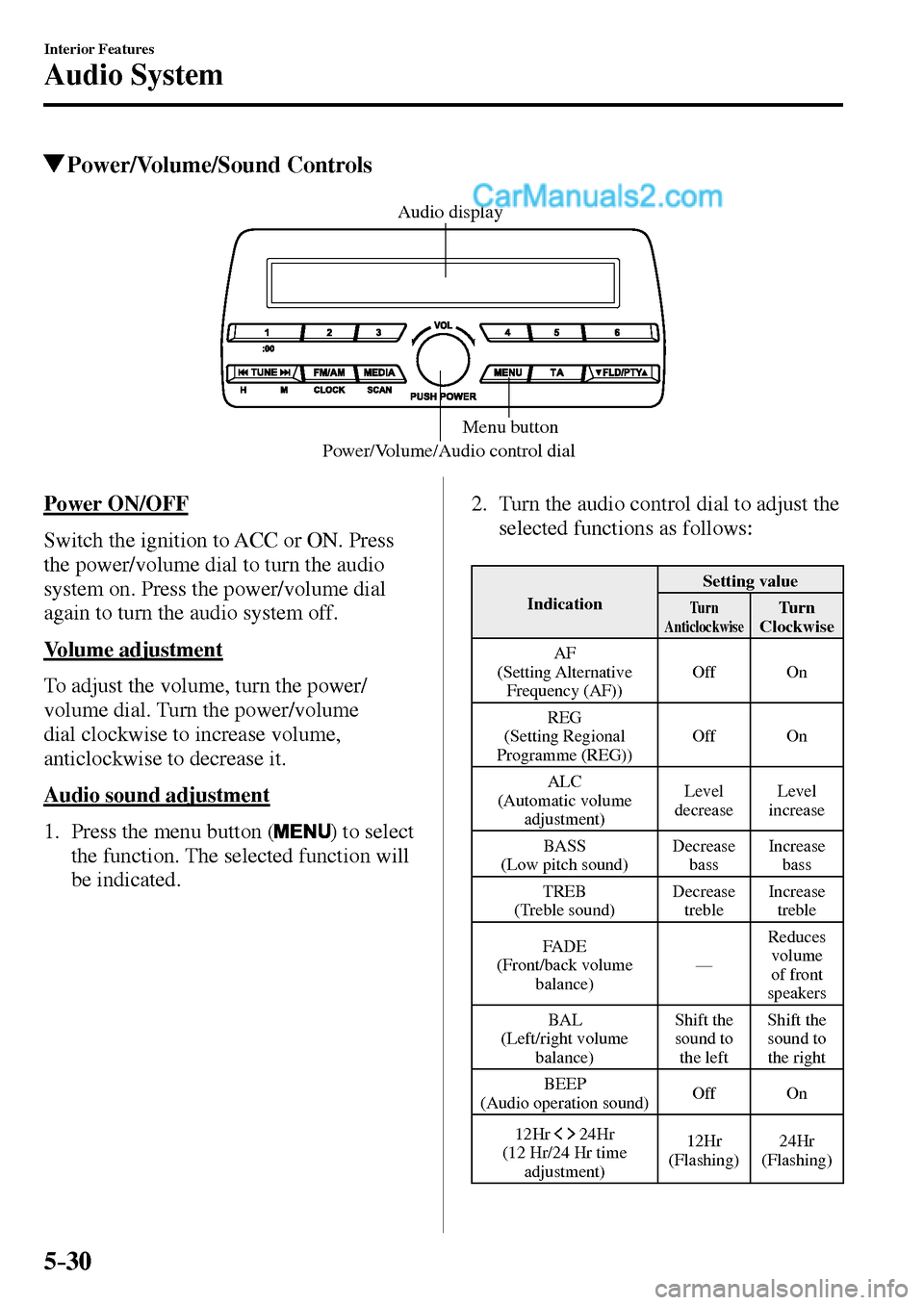

Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.
Audio sound adjustment
1. Press the menu button (
) to select
the function. The selected function will
be indicated. 2. Turn the audio control dial to adjust the
selected functions as follows:
Indication Setting value Tu r n
Anticlockwise Tu r n
Clockwise
AF
(Setting Alternative
Frequency (AF)) Off On
R E G
(Setting Regional
Programme (REG)) Off On
A L C
(Automatic volume
adjustment) Level
decrease Level
increase
BASS
(Low pitch sound) Decrease
bass Increase
bass
TREB

(Treble sound) Decrease
treble Increase
treble
FADE
(Front/back volume
balance) — Reduces
volume
of front
speakers
B A L
(Left/right volume
balance) Shift the
sound to
the left Shift the
sound to
the right
BEEP

(Audio operation sound) Off On
12Hr
24Hr
(12 Hr/24 Hr time
adjustment) 12Hr
(Flashing) 24Hr
(Flashing)
/:A(.'',A'FKVKQPKPFD

5–31
Interior Features
Audio System

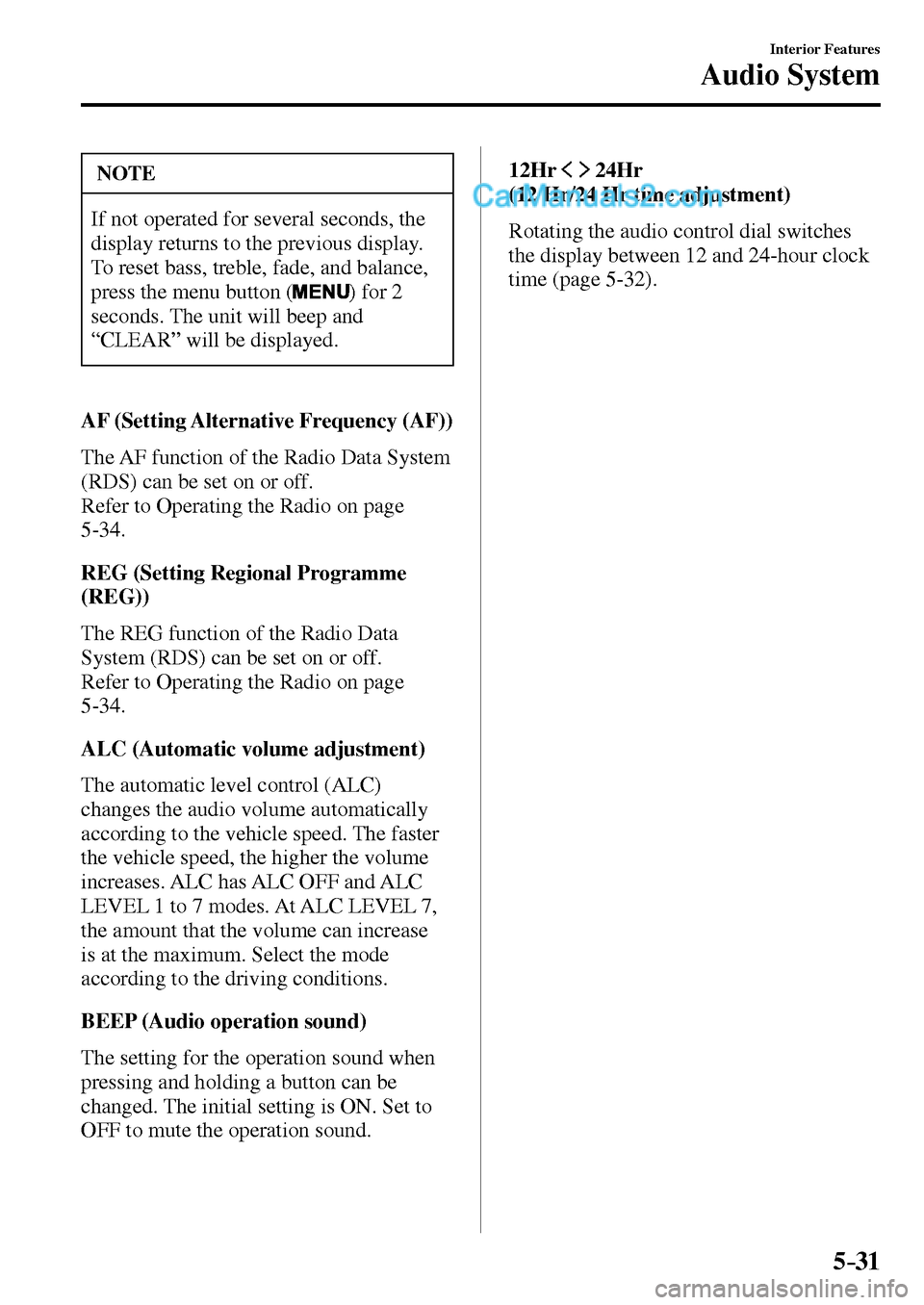

NOTE
If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (
) for 2
seconds. The unit will beep and
“ CLEAR ” will be displayed.
AF (Setting Alternative Frequency (AF))
The AF function of the Radio Data System
(RDS) can be set on or off.
Refer to Operating the Radio on page
5-34 .
REG (Setting Regional Programme
(REG))
The REG function of the Radio Data
System (RDS) can be set on or off.
Refer to Operating the Radio on page
5-34 .
ALC (Automatic volume adjustment)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BEEP (Audio operation sound)
The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound. 1 2 H r
24Hr
(12 Hr/24 Hr time adjustment)
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-32 ).
/:A(.'',A'FKVKQPKPFD

5–32
Interior Features
Audio System

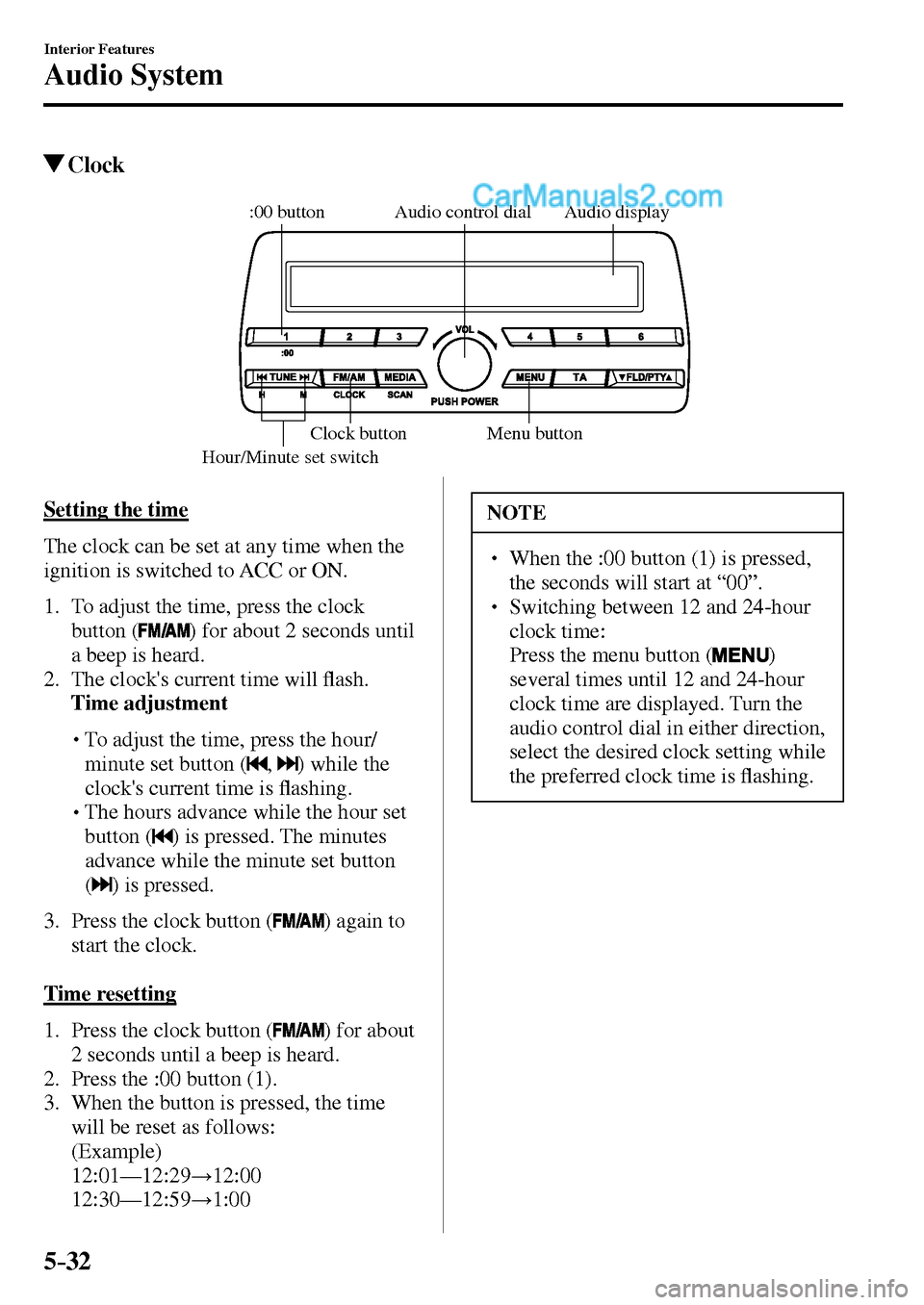

Clock
Audio display Audio control dial
Hour/Minute set switch:00 button
Menu button Clock button
Setting the time
The clock can be set at any time when the
ignition is switched to ACC or ON.
1. To adjust the time, press the clock
button (
) for about 2 seconds until
a beep is heard.
2. The clock's current time will À ash.
Time adjustment




 To adjust the time, press the hour/
minute set button (
, ) while the
clock's current time is À ashing.




 The hours advance while the hour set
button (
) is pressed. The minutes
advance while the minute set button
(
) is pressed.
3. Press the clock button (
) again to
start the clock.
Time resetting
1. Press the clock button (
) for about
2 seconds until a beep is heard.
2. Press the :00 button ( 1 ).
3. When the button is pressed, the time
will be reset as follows:
(Example)

12:01—12:29
:12:00
12:30—12:59
:1:00
NOTE

 When the :00 button ( 1 ) is pressed,
the seconds will start at “ 00 ”.

 Switching between 12 and 24-hour
clock time:
 Press the menu button ( )
several times until 12 and 24-hour
clock time are displayed. Turn the
audio control dial in either direction,
select the desired clock setting while
the preferred clock time is À ashing.
/:A(.'',A'FKVKQPKPFD

MEMO
5–33
/:A(.'',A'FKVKQPKPFD

5–34
Interior Features
Audio System

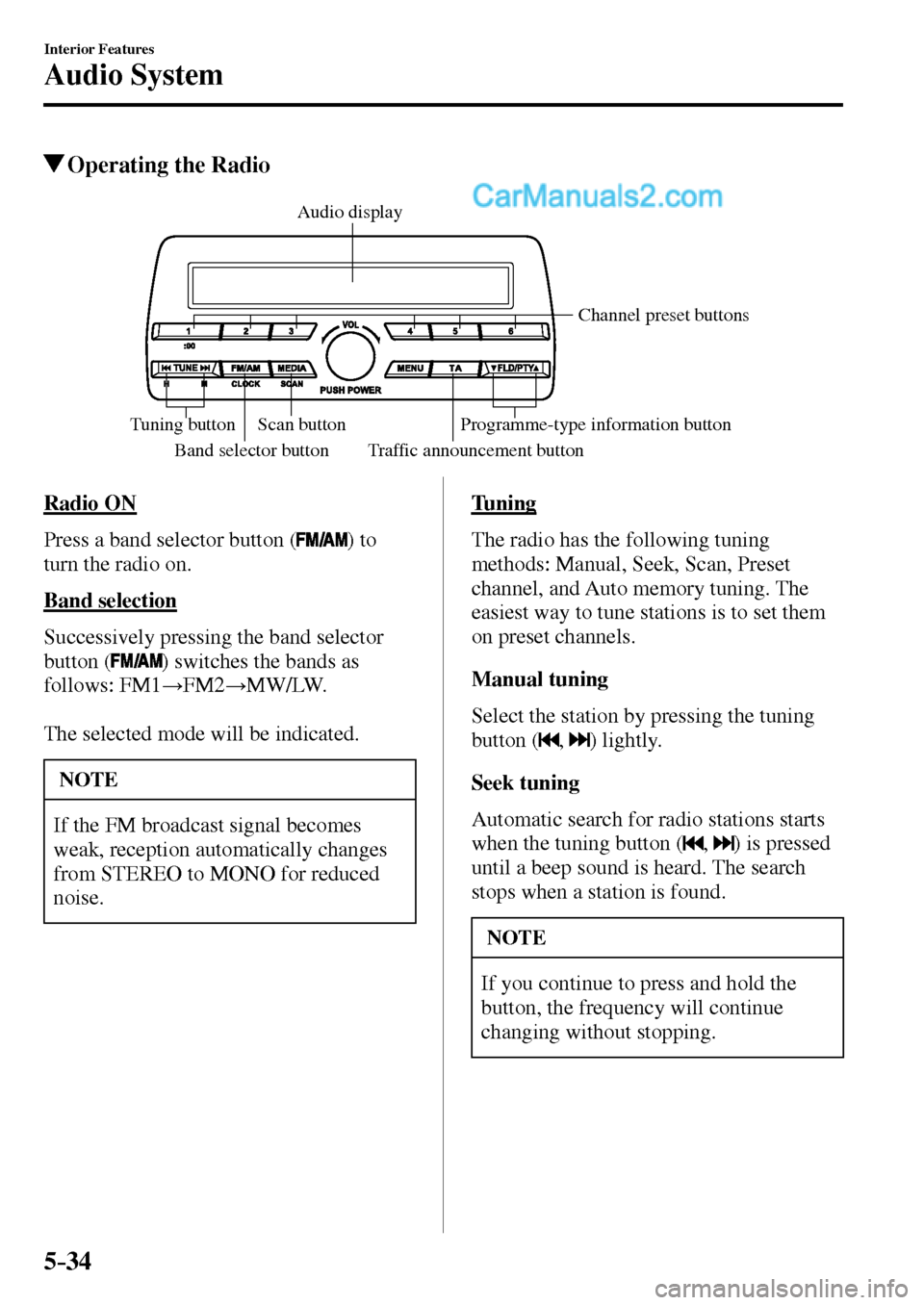

Operating the Radio
Band selector button Traffic announcement buttonChannel preset buttons
Scan button
Tuning button Programme-type information buttonAudio display
R a d i o O N
Press a band selector button (
) to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1
:FM2
:MW/LW.
The selected mode will be indicated.
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise.
T u n i n g
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
, ) lightly.
Seek tuning
Automatic search for radio stations starts
when the tuning button (
, ) is pressed
until a beep sound is heard. The search
stops when a station is found.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
/:A(.'',A'FKVKQPKPFD

5–35
Interior Features
Audio System

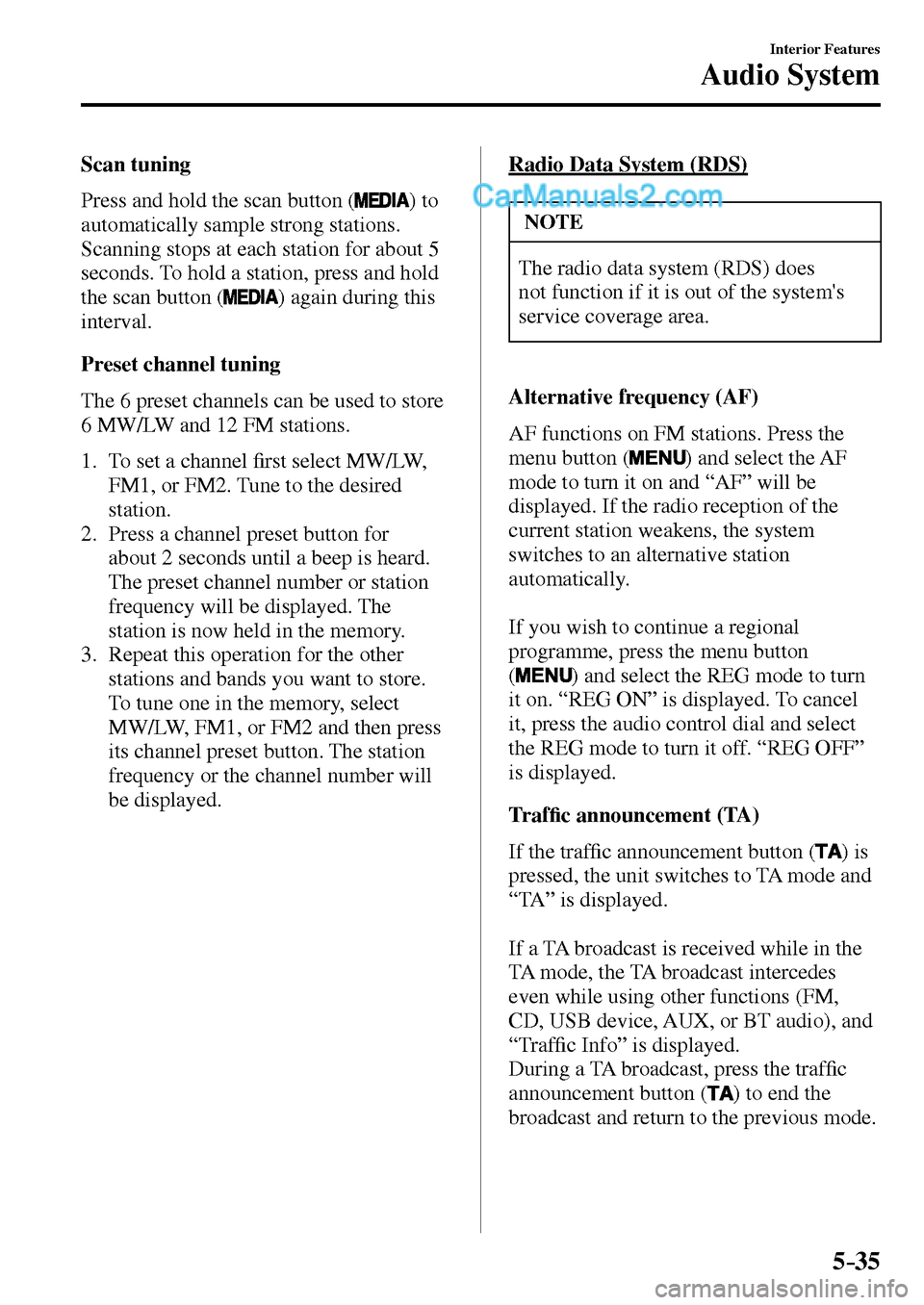

Scan tuning
Press and hold the scan button (
) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press and hold
the scan button (
) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 MW/LW and 12 FM stations.
1. To set a channel ¿ rst select MW/LW,
FM1, or FM2. Tune to the desired
station.
2. Press a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number or station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select
MW/LW, FM1, or FM2 and then press
its channel preset button. The station
frequency or the channel number will
be displayed.
Radio Data System (RDS)
NOTE
The radio data system (RDS) does
not function if it is out of the system's
service coverage area.
Alternative frequency (AF)
AF functions on FM stations. Press the
menu button (
) and select the AF
mode to turn it on and “ AF ” will be
displayed. If the radio reception of the
current station weakens, the system
switches to an alternative station
automatically.
If you wish to continue a regional
programme, press the menu button
(
) and select the REG mode to turn
it on. “ REG ON ” is displayed. To cancel
it, press the audio control dial and select
the REG mode to turn it off. “ REG OFF ”
is displayed.
T r a f¿ c announcement (TA)
If the traf¿ c announcement button (
) is
pressed, the unit switches to TA mode and
“ TA ” is displayed.
If a TA broadcast is received while in the
TA mode, the TA broadcast intercedes
even while using other functions (FM,
CD, USB device, AUX, or BT audio), and
“ Traf¿ c Info ” is displayed.
During a TA broadcast, press the traf¿ c
announcement button (
) to end the
broadcast and return to the previous mode.
/:A(.'',A'FKVKQPKPFD

5–36
Interior Features
Audio System

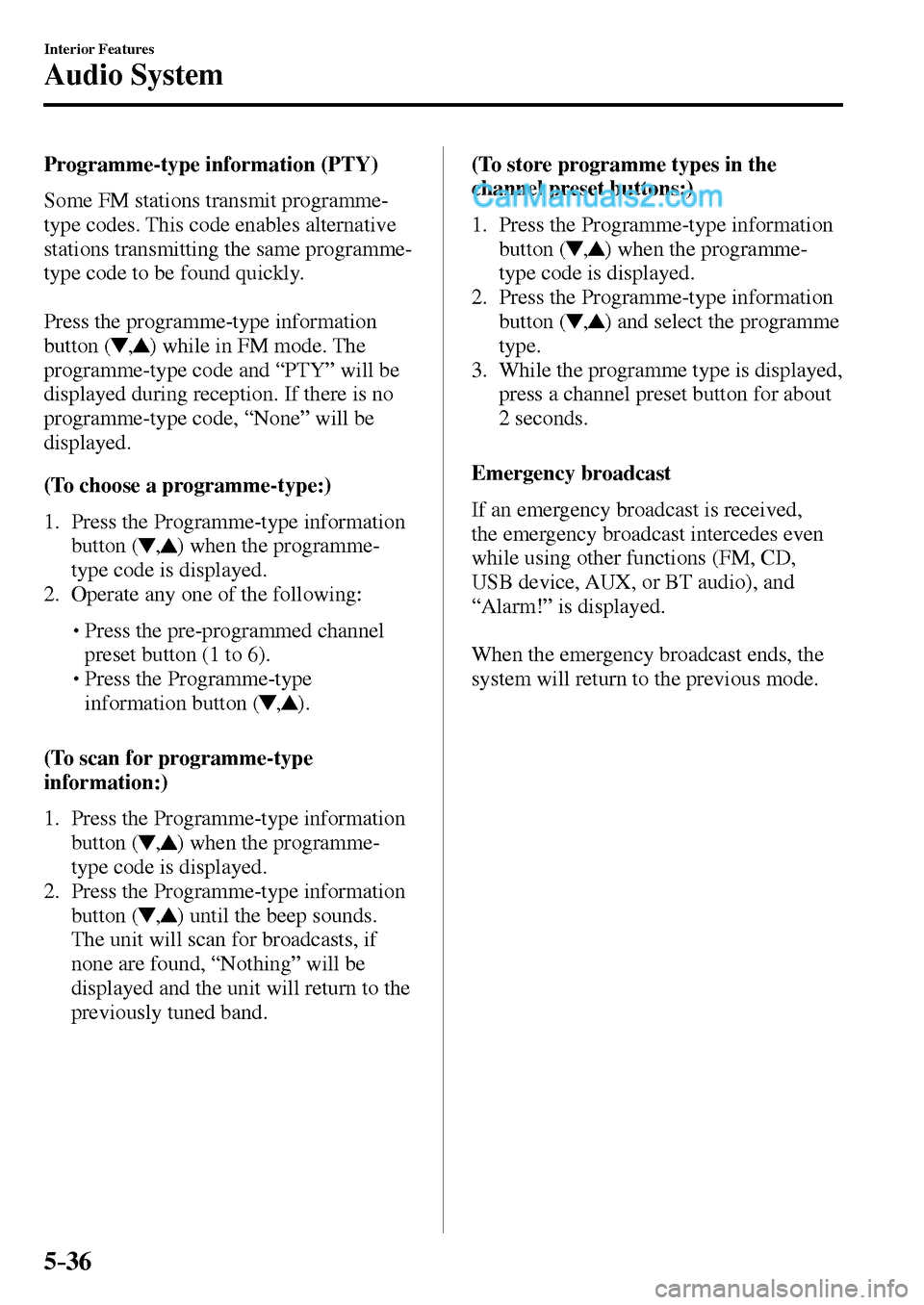

Programme-type information (PTY)
Some FM stations transmit programme-
type codes. This code enables alternative
stations transmitting the same programme-
type code to be found quickly.
Press the programme-type information
button (
, ) while in FM mode. The
programme-type code and “ PTY ” will be
displayed during reception. If there is no
programme-type code, “ None ” will be
displayed.
(To choose a programme-type:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Operate any one of the following:



 Press the pre-programmed channel
preset button ( 1 to 6 ).



 Press the Programme-type
information button (
, ).
(To scan for programme-type
information:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Press the Programme-type information
button (
, ) until the beep sounds.
The unit will scan for broadcasts, if
none are found, “ Nothing ” will be
displayed and the unit will return to the
previously tuned band. (To store programme types in the
channel preset buttons:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Press the Programme-type information
button (
, ) and select the programme
type.
3. While the programme type is displayed,
press a channel preset button for about
2 seconds.
Emergency broadcast
If an emergency broadcast is received,
the emergency broadcast intercedes even
while using other functions (FM, CD,
USB device, AUX, or BT audio), and
“ Alarm! ” is displayed.
When the emergency broadcast ends, the
system will return to the previous mode.
