MAZDA MODEL MX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)
Manufacturer: MAZDA, Model Year: 2017, Model line: MODEL MX-5, Model: MAZDA MODEL MX-5 2017Pages: 609, PDF Size: 7.5 MB
Page 411 of 609
5–117
Interior Features
Bluetooth®

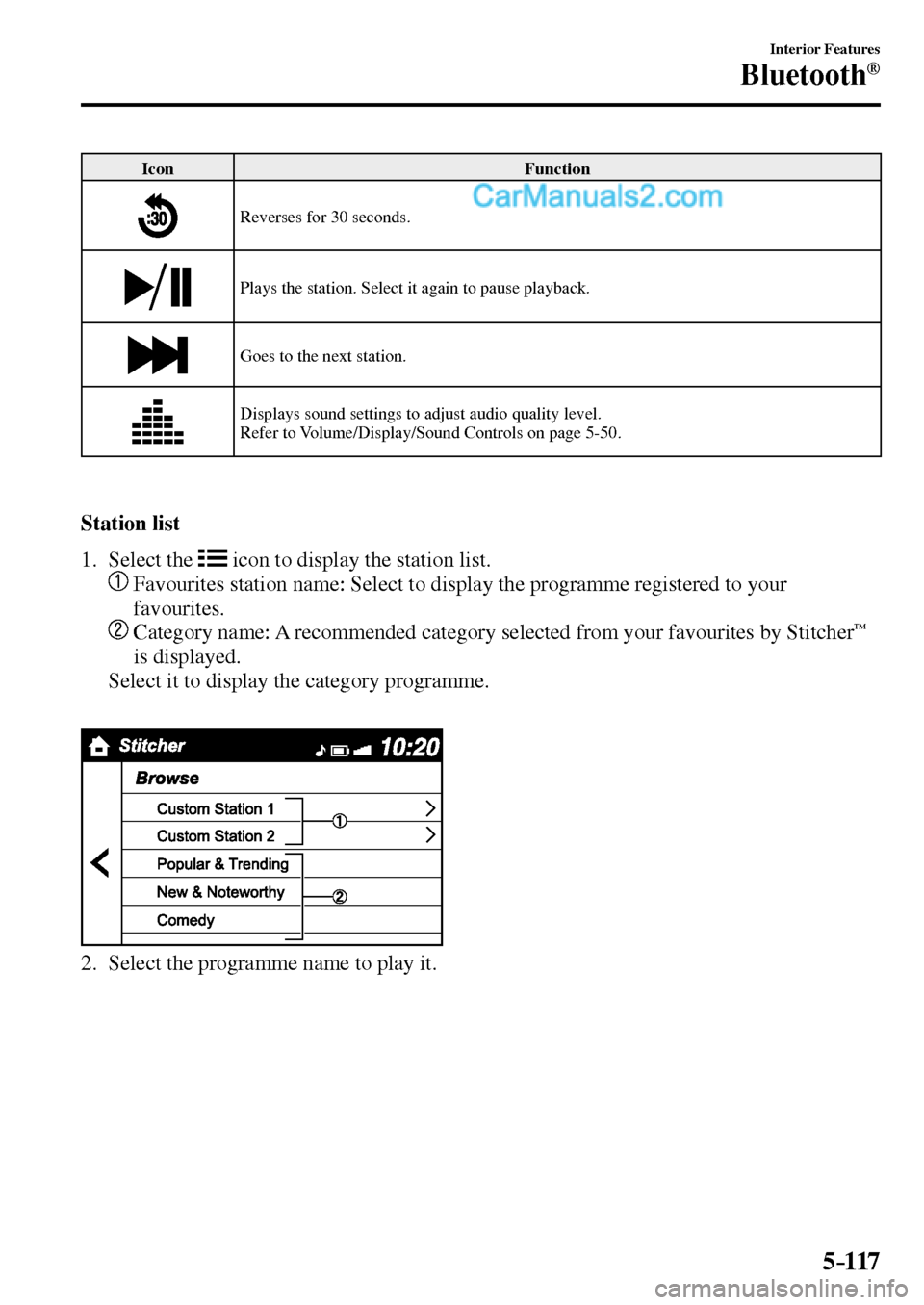

Icon Function
Reverses for 30 seconds.
Plays the station. Select it again to pause playback.
Goes to the next station.
Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-50 .
Station list
1. Select the
icon to display the station list.
Favourites station name: Select to display the programme registered to your
favourites.
Category name: A recommended category selected from your favourites by Stitcher™
is displayed.
Select it to display the category programme.
2. Select the programme name to play it.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 412 of 609
5–118
Interior Features
Bluetooth®

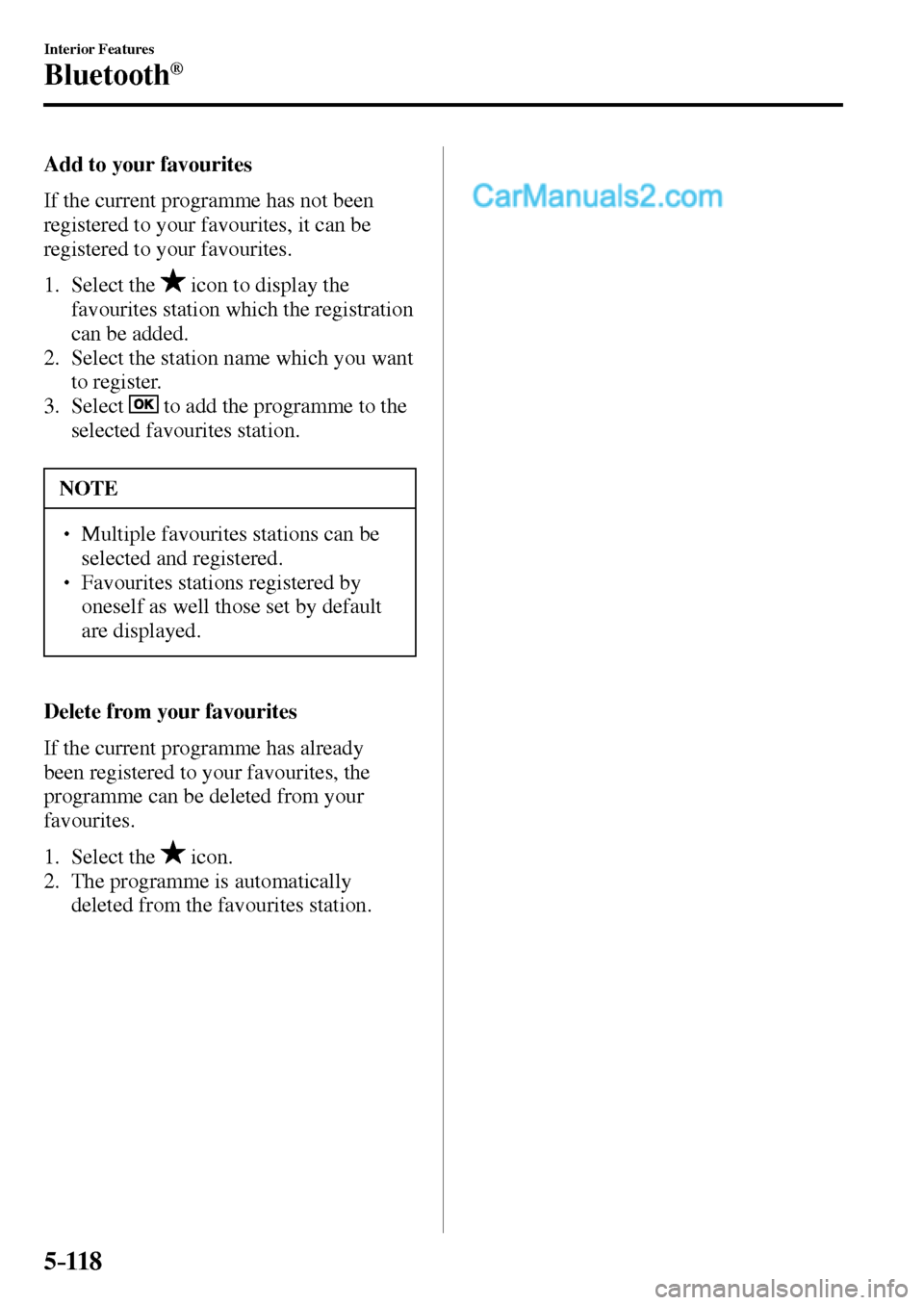

Add to your favourites
If the current programme has not been
registered to your favourites, it can be
registered to your favourites.
1. Select the
icon to display the
favourites station which the registration
can be added.
2. Select the station name which you want
to register.
3. Select
to add the programme to the
selected favourites station.
NOTE
Multiple favourites stations can be
selected and registered.
Favourites stations registered by
oneself as well those set by default
are displayed.
Delete from your favourites
If the current programme has already
been registered to your favourites, the
programme can be deleted from your
favourites.
1. Select the
icon.
2. The programme is automatically
deleted from the favourites station.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 413 of 609
5–119
Interior Features
Bluetooth®

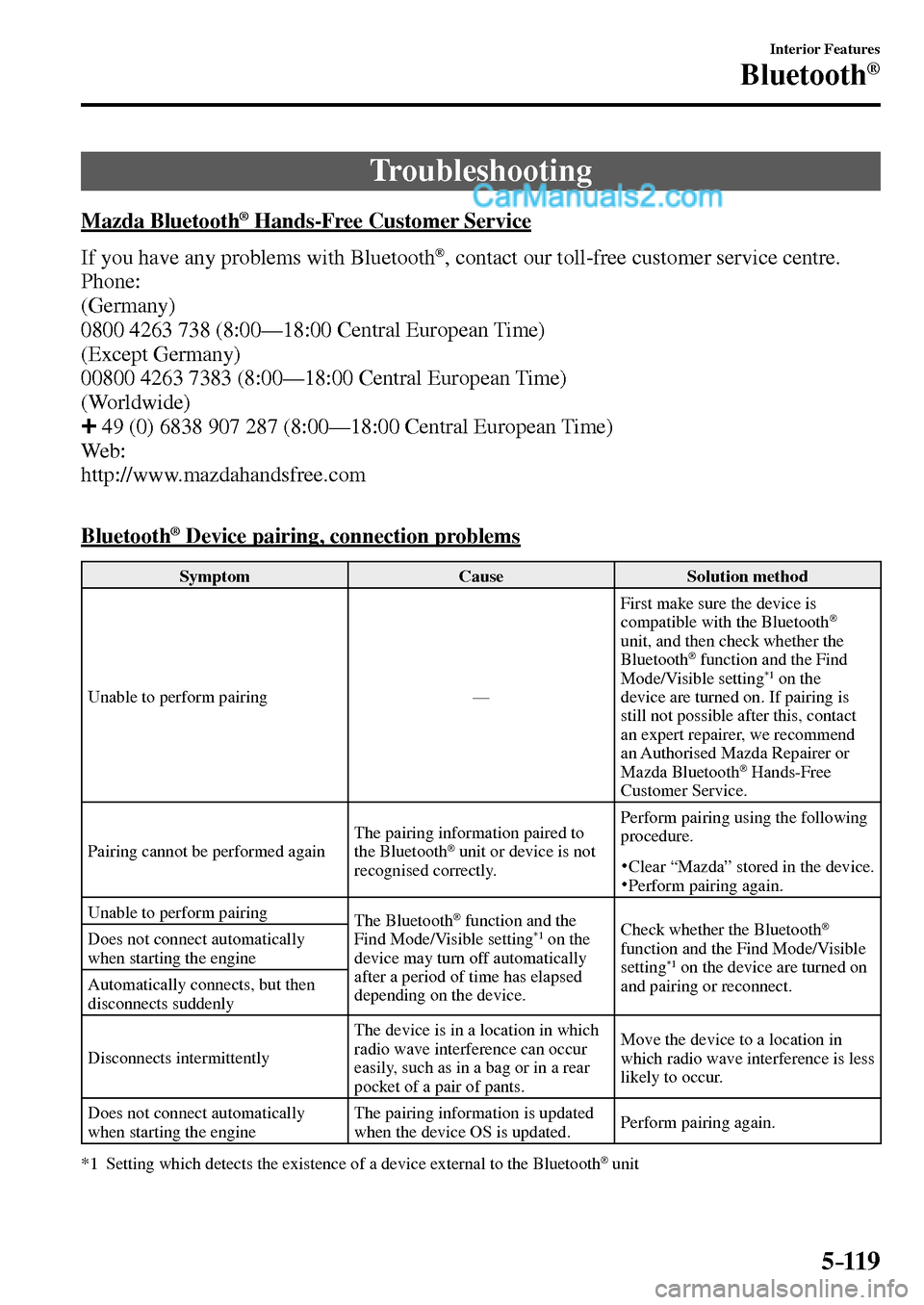

Troubleshooting
Mazda Bluetooth ® Hands-Free Customer Service
If you have any problems with Bluetooth
® , contact our toll-free customer service centre.
Phone:
(Germany)
0800 4263 738 (8:00—18:00 Central European Time)
(Except Germany)
00800 4263 7383 (8:00—18:00 Central European Time)
(Worldwide)
49 (0) 6838 907 287 (8:00—18:00 Central European Time)
W e b :
http://www.mazdahandsfree.com
Bluetooth
® Device pairing, connection problems
Symptom Cause Solution method
Unable to perform pairing — First make sure the device is
compatible with the Bluetooth
®
unit, and then check whether the
Bluetooth® function and the Find
Mode/Visible setting *1 on the
device are turned on. If pairing is
still not possible after this, contact
an expert repairer, we recommend
an Authorised Mazda Repairer or
Mazda Bluetooth
® Hands-Free
Customer Service.
Pairing cannot be performed again The pairing information paired to
the Bluetooth
® unit or device is not
recognised correctly. Perform pairing using the following
procedure. Clear “Mazda” stored in the device. Perform pairing again.
Unable to perform pairing
The Bluetooth
® function and the
Find Mode/Visible setting *1 on the
device may turn off automatically
after a period of time has elapsed
depending on the device. Check whether the Bluetooth ®
function and the Find Mode/Visible
setting*1 on the device are turned on
and pairing or reconnect. Does not connect automatically
when starting the engine
Automatically connects, but then
disconnects suddenly
Disconnects intermittently The device is in a location in which
radio wave interference can occur
easily, such as in a bag or in a rear
pocket of a pair of pants. Move the device to a location in
which radio wave interference is less
likely to occur.
Does not connect automatically
when starting the engine The pairing information is updated
when the device OS is updated. Perform pairing again.
*1 Setting which detects the existence of a device external to the Bluetooth
® unit
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 414 of 609
5–120
Interior Features
Bluetooth®

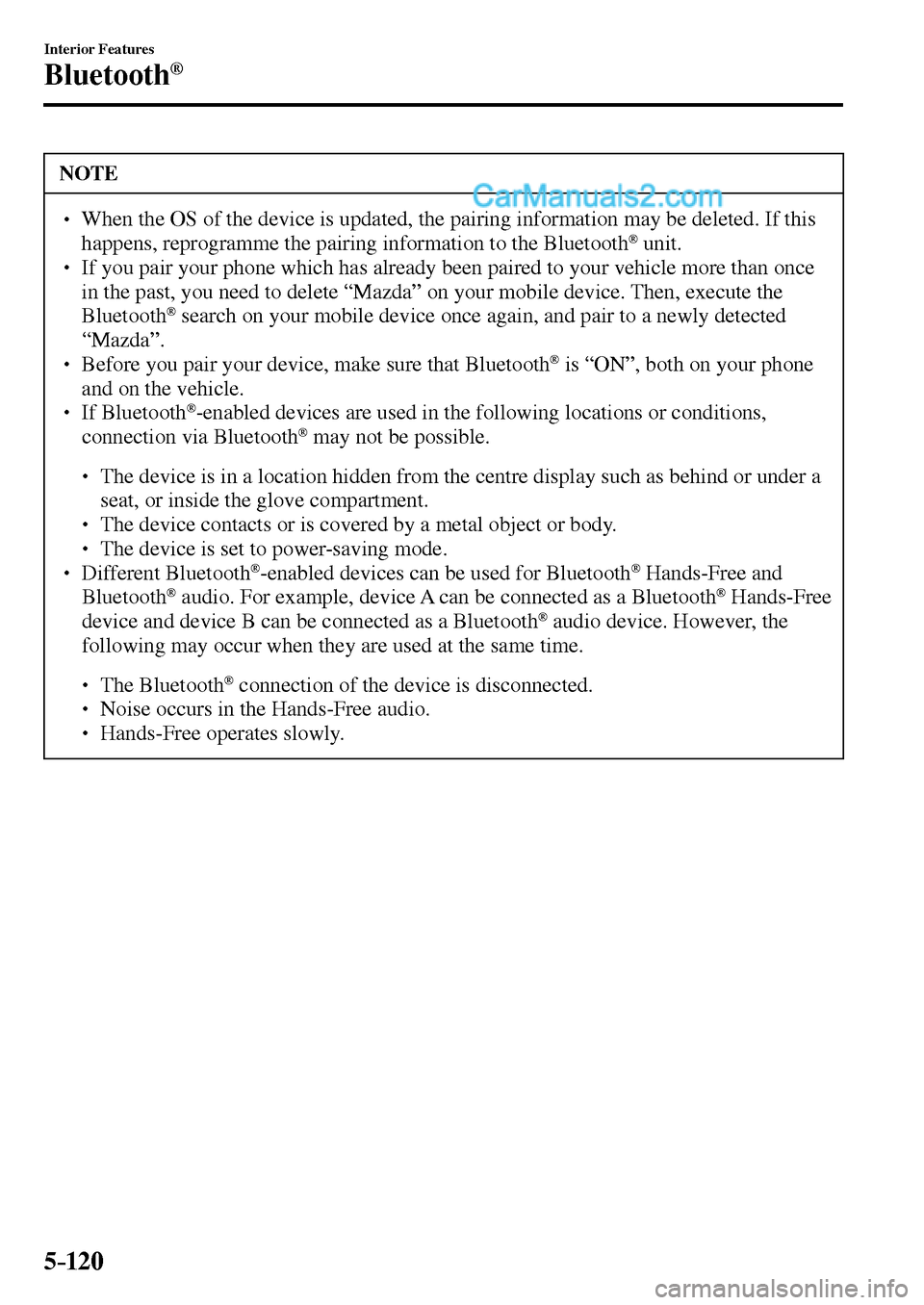

NOTE
When the OS of the device is updated, the pairing information may be deleted. If this
happens, reprogramme the pairing information to the Bluetooth ® unit. If you pair your phone which has already been paired to your vehicle more than once
in the past, you need to delete “Mazda” on your mobile device. Then, execute the
Bluetooth
® search on your mobile device once again, and pair to a newly detected
“Mazda”.
Before you pair your device, make sure that Bluetooth ® is “ON”, both on your phone
and on the vehicle.
If Bluetooth ® -enabled devices are used in the following locations or conditions,
connection via Bluetooth ® may not be possible.
The device is in a location hidden from the centre display such as behind or under a
seat, or inside the glove compartment.
The device contacts or is covered by a metal object or body.
The device is set to power-saving mode.
Different Bluetooth ® -enabled devices can be used for Bluetooth ® Hands-Free and
Bluetooth® audio. For example, device A can be connected as a Bluetooth ® Hands-Free
device and device B can be connected as a Bluetooth ® audio device. However, the
following may occur when they are used at the same time.
The Bluetooth ® connection of the device is disconnected.
Noise occurs in the Hands-Free audio.
Hands-Free operates slowly.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 415 of 609
5–121
Interior Features
Bluetooth®

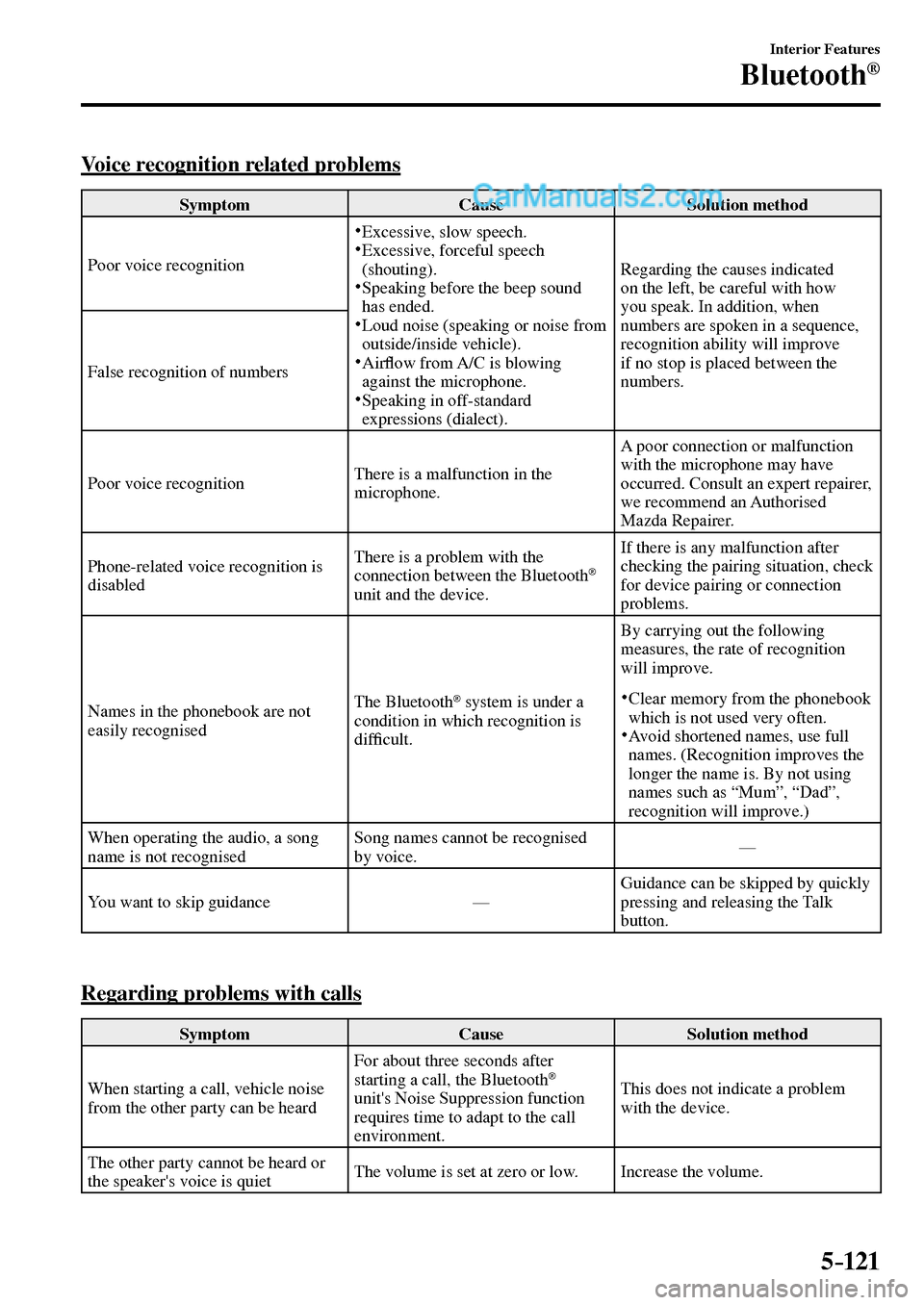

Voice recognition related problems
Symptom Cause Solution method
Poor voice recognition
Excessive, slow speech. Excessive, forceful speech
(shouting).
Speaking before the beep sound
has ended.
Loud noise (speaking or noise from
outside/inside vehicle).
A i r À ow from A/C is blowing
against the microphone.
Speaking in off-standard
expressions (dialect). Regarding the causes indicated
on the left, be careful with how
you speak. In addition, when
numbers are spoken in a sequence,
recognition ability will improve
if no stop is placed between the
numbers. False recognition of numbers
Poor voice recognition There is a malfunction in the
microphone. A poor connection or malfunction
with the microphone may have
occurred. Consult an expert repairer,
we recommend an Authorised
Mazda Repairer.
Phone-related voice recognition is
disabled There is a problem with the
connection between the Bluetooth
®
unit and the device. If there is any malfunction after
checking the pairing situation, check
for device pairing or connection
problems.
Names in the phonebook are not
easily recognised The Bluetooth
® system is under a
condition in which recognition is
dif ¿ cult. By carrying out the following
measures, the rate of recognition
will improve. Clear memory from the phonebook
which is not used very often.
Avoid shortened names, use full
names. (Recognition improves the
longer the name is. By not using
names such as “Mum”, “Dad”,
recognition will improve.)
When operating the audio, a song
name is not recognised Song names cannot be recognised
by voice. —
You want to skip guidance — Guidance can be skipped by quickly
pressing and releasing the Talk
button.
Regarding problems with calls
Symptom Cause Solution method
When starting a call, vehicle noise
from the other party can be heard For about three seconds after
starting a call, the Bluetooth
®
unit's Noise Suppression function
requires time to adapt to the call
environment. This does not indicate a problem
with the device.
The other party cannot be heard or
the speaker's voice is quiet The volume is set at zero or low. Increase the volume.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 416 of 609
5–122
Interior Features
Bluetooth®

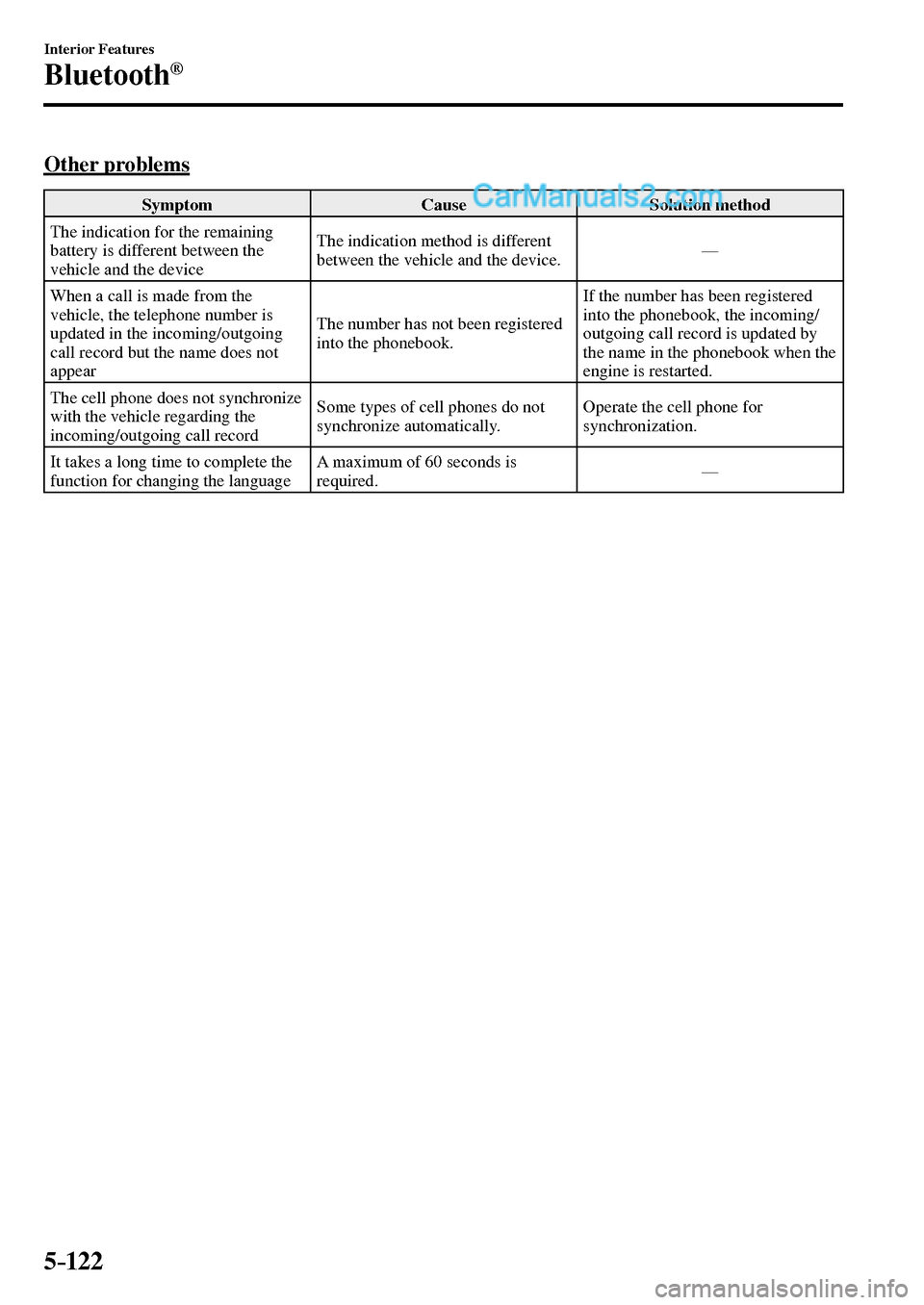

Other problems
Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the device The indication method is different
between the vehicle and the device. —
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appear The number has not been registered
into the phonebook. If the number has been registered
into the phonebook, the incoming/
outgoing call record is updated by
the name in the phonebook when the
engine is restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call record Some types of cell phones do not
synchronize automatically. Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is
required. —
/ : A ( . ' ' , A ' F K V K Q P K P F D

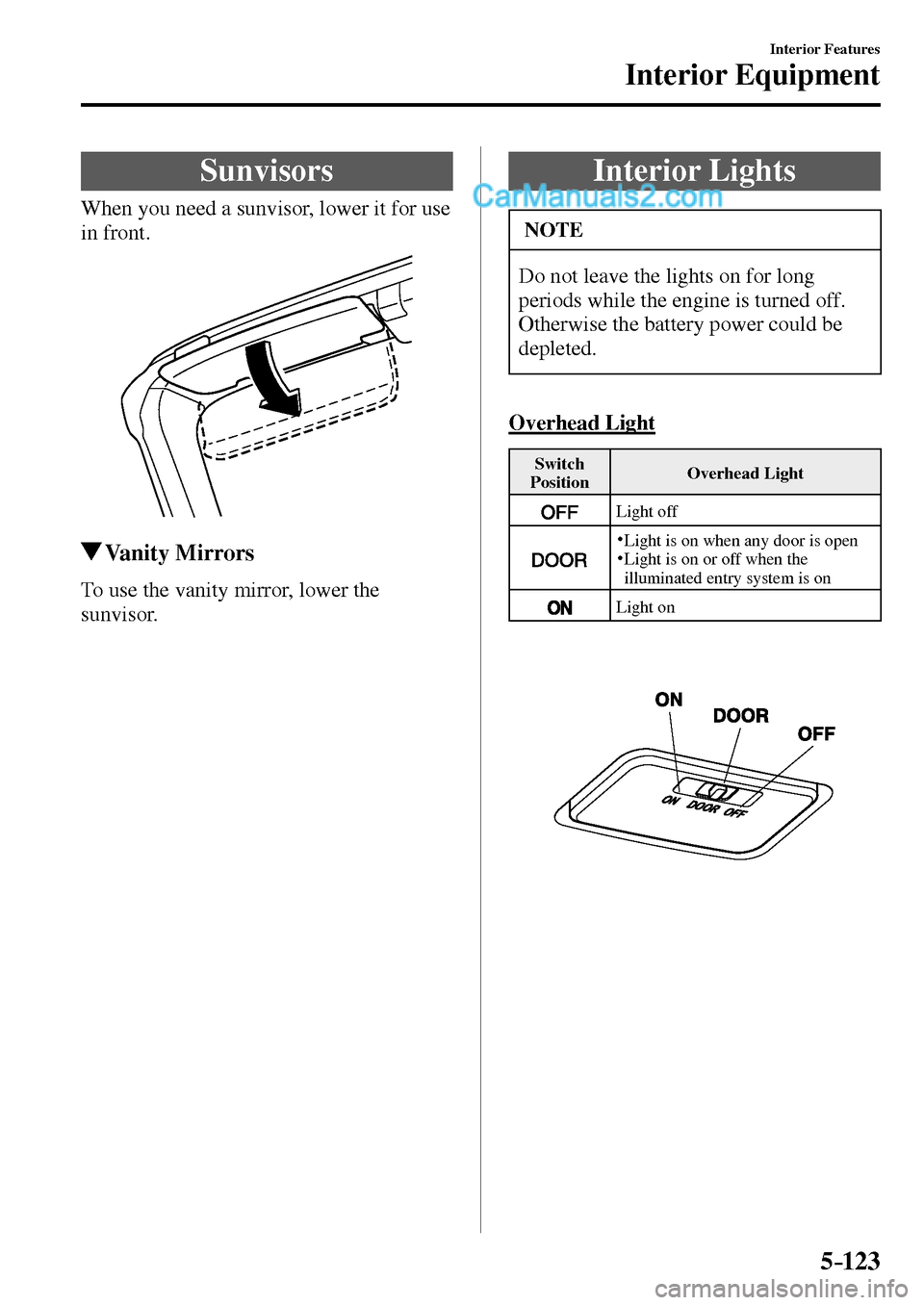

Page 417 of 609
5–123
Interior Features
Interior Equipment
Sunvisors
When you need a sunvisor, lower it for use
in front.
Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
NOTE
Do not leave the lights on for long
periods while the engine is turned off.
Otherwise the battery power could be
depleted.
Overhead Light
Switch
Position Overhead Light
Light off
Light is on when any door is open Light is on or off when the
illuminated entry system is on
Light on
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 418 of 609
5–124
Interior Features
Interior Equipment

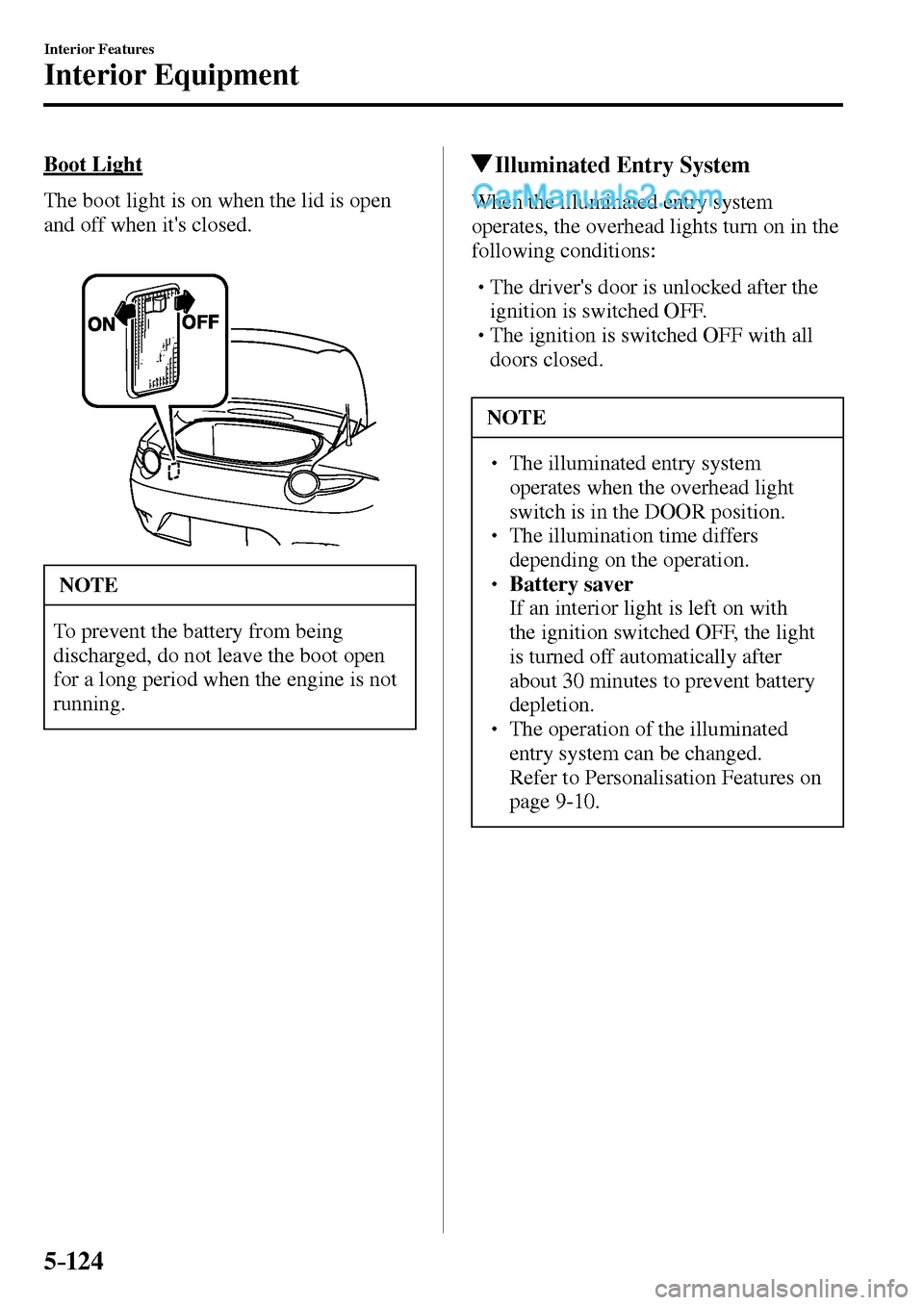

Boot Light
The boot light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the boot open
for a long period when the engine is not
running.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights turn on in the
following conditions:
The driver's door is unlocked after the
ignition is switched OFF.
The ignition is switched OFF with all
doors closed.
NOTE
The illuminated entry system
operates when the overhead light
switch is in the DOOR position.
The illumination time differs
depending on the operation.
Battery saver If an interior light is left on with
the ignition switched OFF, the light
is turned off automatically after
about 30 minutes to prevent battery
depletion.
The operation of the illuminated
entry system can be changed.
Refer to Personalisation Features on
page 9-10 .
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 419 of 609
5–125
Interior Features
Interior Equipment

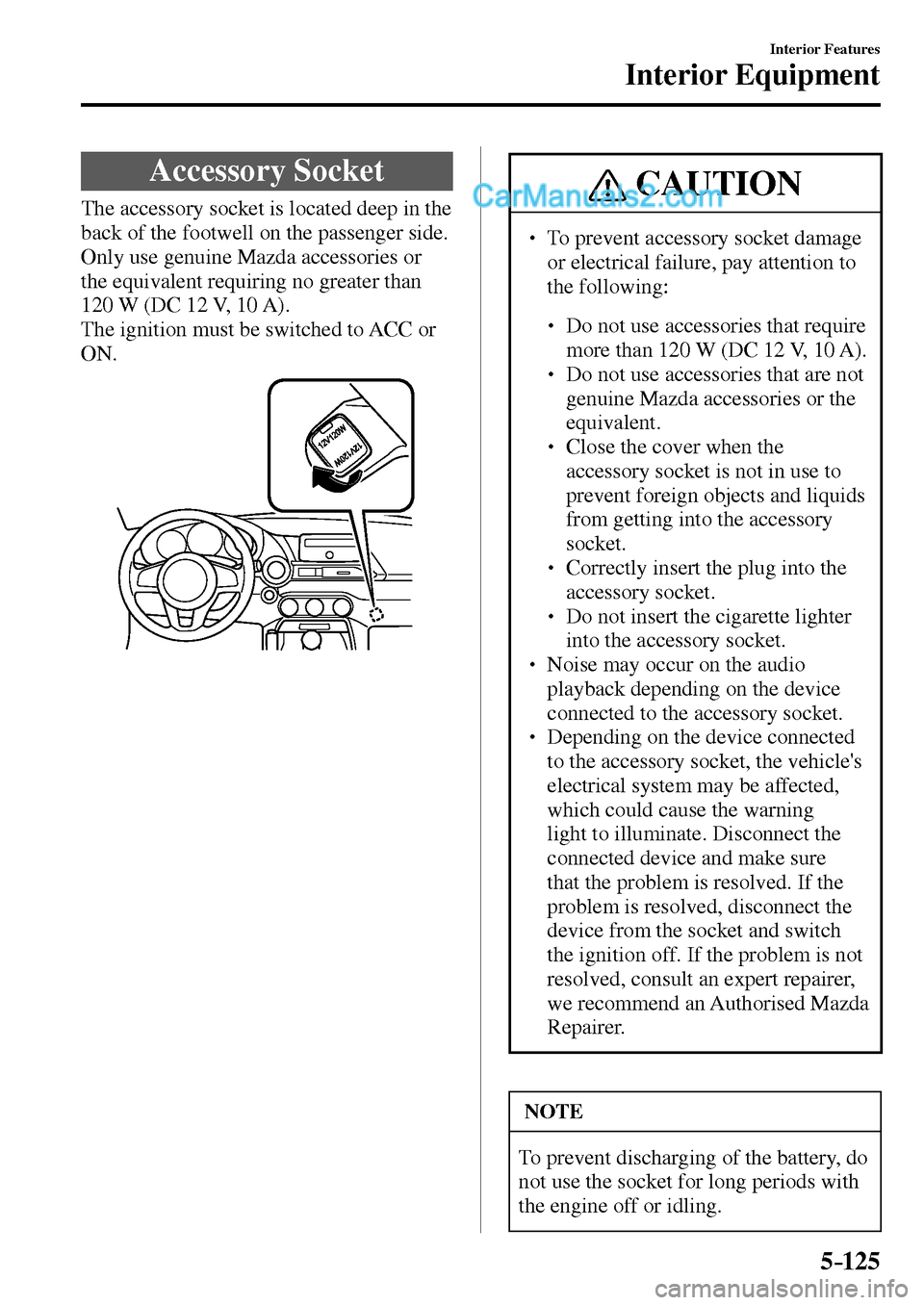

Accessory Socket
The accessory socket is located deep in the
back of the footwell on the passenger side.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON. CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
Do not use accessories that require
more than 120 W (DC 12 V, 10 A).
Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
Close the cover when the
accessory socket is not in use to
prevent foreign objects and liquids
from getting into the accessory
socket.
Correctly insert the plug into the
accessory socket.
Do not insert the cigarette lighter
into the accessory socket.
Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning
light to illuminate. Disconnect the
connected device and make sure
that the problem is resolved. If the
problem is resolved, disconnect the
device from the socket and switch
the ignition off. If the problem is not
resolved, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with
the engine off or idling.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 420 of 609

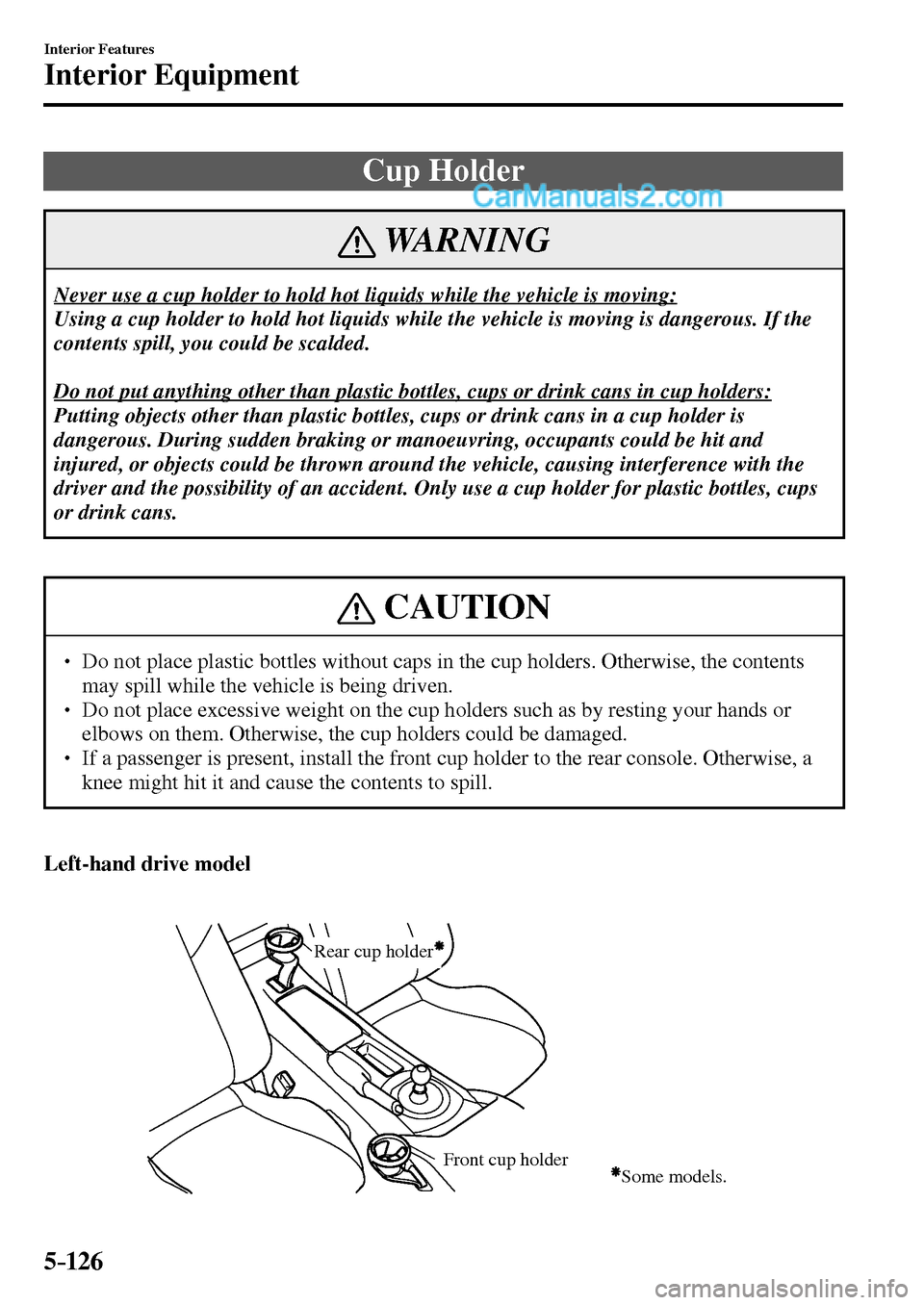

5–126
Interior Features
Interior Equipment
Cup Holder
WARNING
Never use a cup holder to hold hot liquids while the vehicle is moving:
Using a cup holder to hold hot liquids while the vehicle is moving is dangerous. If the
contents spill, you could be scalded.
Do not put anything other than plastic bottles, cups or drink cans in cup holders:
Putting objects other than plastic bottles, cups or drink cans in a cup holder is
dangerous. During sudden braking or manoeuvring, occupants could be hit and
injured, or objects could be thrown around the vehicle, causing interference with the
driver and the possibility of an accident. Only use a cup holder for plastic bottles, cups
or drink cans.
CAUTION
Do not place plastic bottles without caps in the cup holders. Otherwise, the contents
may spill while the vehicle is being driven.
Do not place excessive weight on the cup holders such as by resting your hands or
elbows on them. Otherwise, the cup holders could be damaged.
If a passenger is present, install the front cup holder to the rear console. Otherwise, a
knee might hit it and cause the contents to spill.
Left-hand drive model
Front cup holder Rear cup holderSome models.
/ : A ( . ' ' , A ' F K V K Q P K P F D
