MAZDA MODEL MX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

8–17
Customer Information
Declaration of Conformity
/:A(.'',A'FKVKQPKPFD

8–18
Customer Information

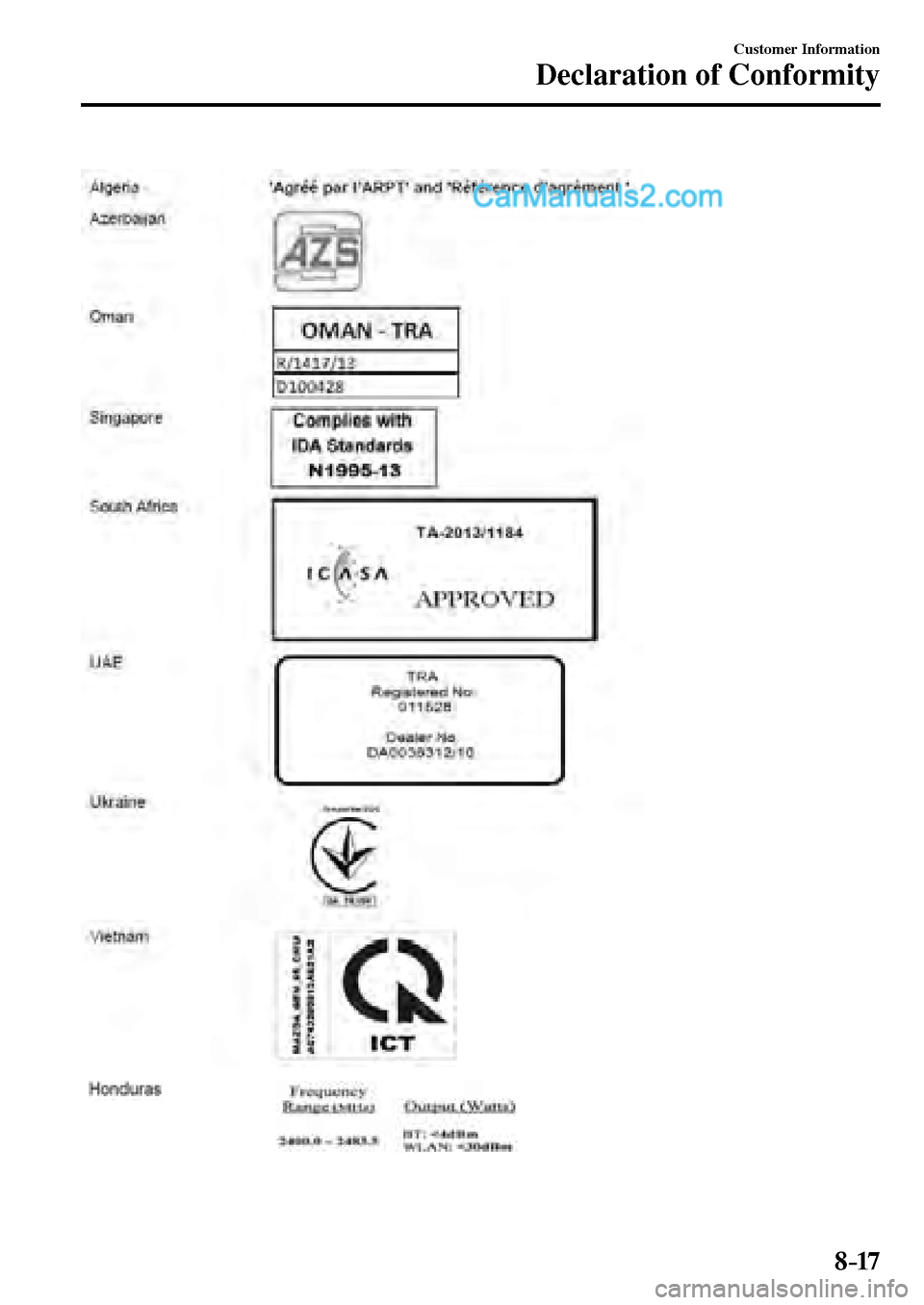

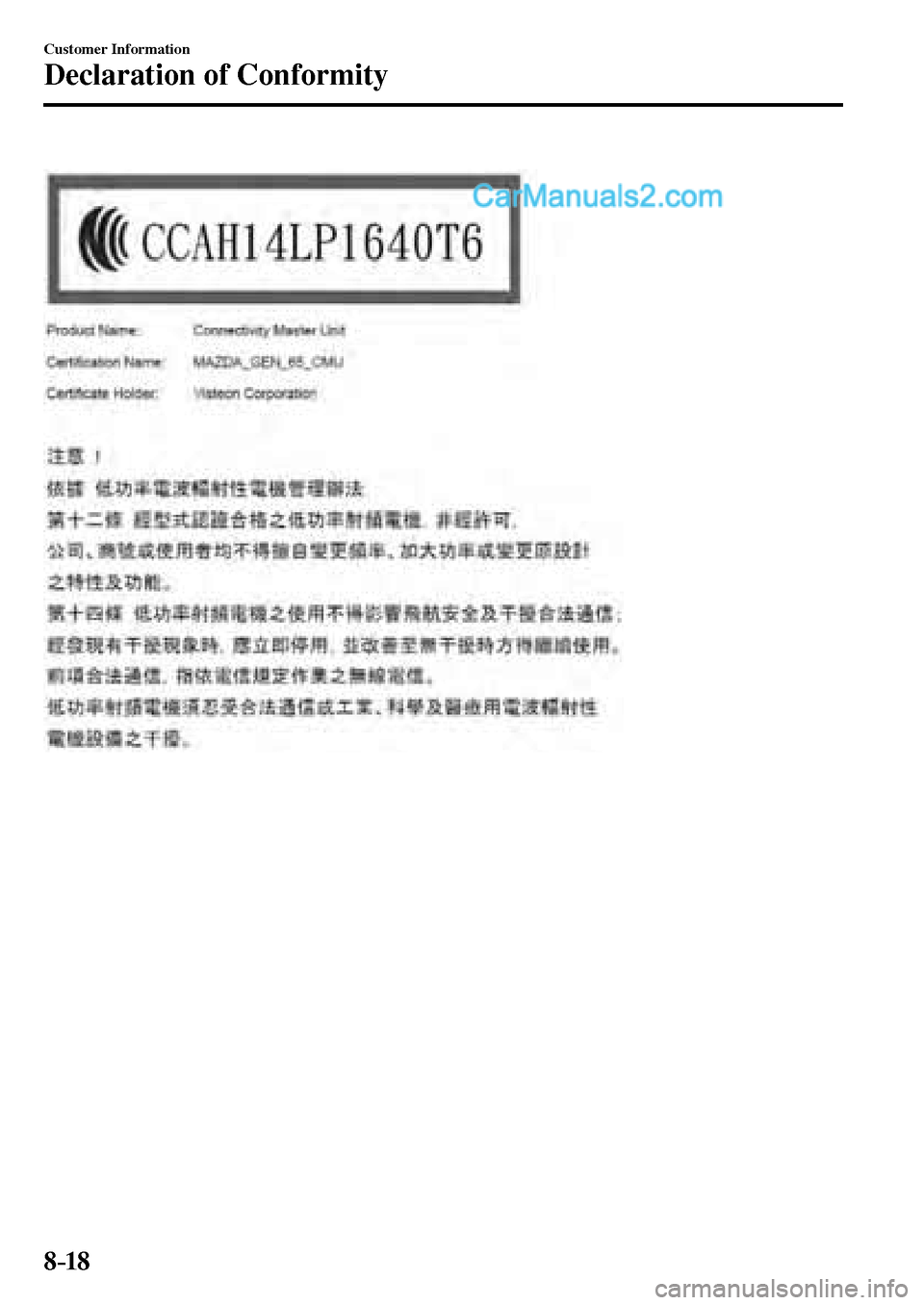

Declaration of Conformity
/:A(.'',A'FKVKQPKPFD

8–19
Customer Information

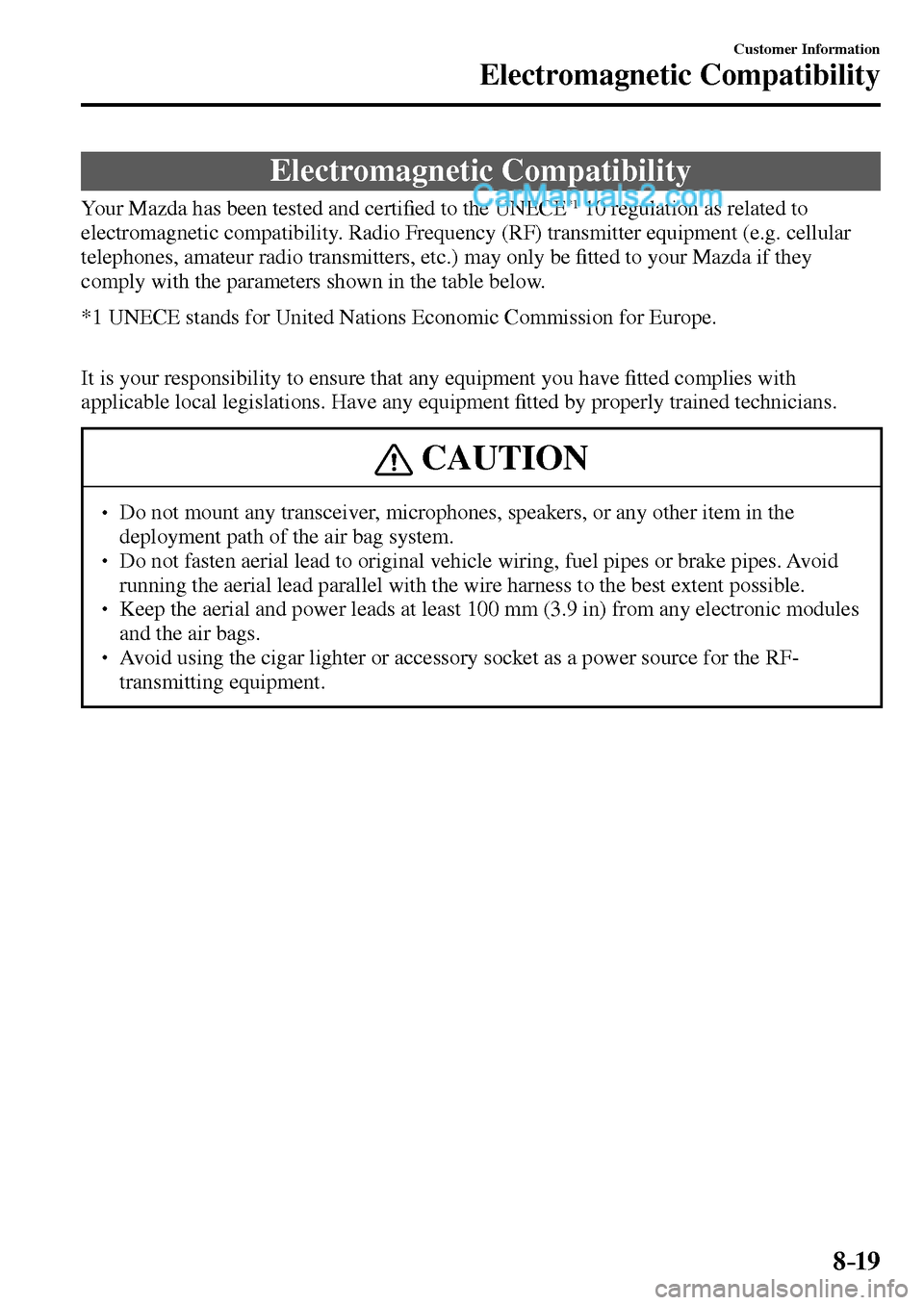

Electromagnetic Compatibility
Electromagnetic Compatibility
Your Mazda has been tested and certi¿ ed to the UNECE *1 10 regulation as related to
electromagnetic compatibility. Radio Frequency (RF) transmitter equipment (e.g. cellular
telephones, amateur radio transmitters, etc.) may only be ¿ tted to your Mazda if they
comply with the parameters shown in the table below.
*1 UNECE stands for United Nations Economic Commission for Europe.
It is your responsibility to ensure that any equipment you have ¿ tted complies with
applicable local legislations. Have any equipment ¿ tted by properly trained technicians.
CAUTION

 Do not mount any transceiver, microphones, speakers, or any other item in the
deployment path of the air bag system.
  Do not fasten aerial lead to original vehicle wiring, fuel pipes or brake pipes. Avoid
running the aerial lead parallel with the wire harness to the best extent possible.
  Keep the aerial and power leads at least 100 mm (3.9 in) from any electronic modules
and the air bags.
  Avoid using the cigar lighter or accessory socket as a power source for the RF-
transmitting equipment.
/:A(.'',A'FKVKQPKPFD

8–20
Customer Information
Electromagnetic Compatibility

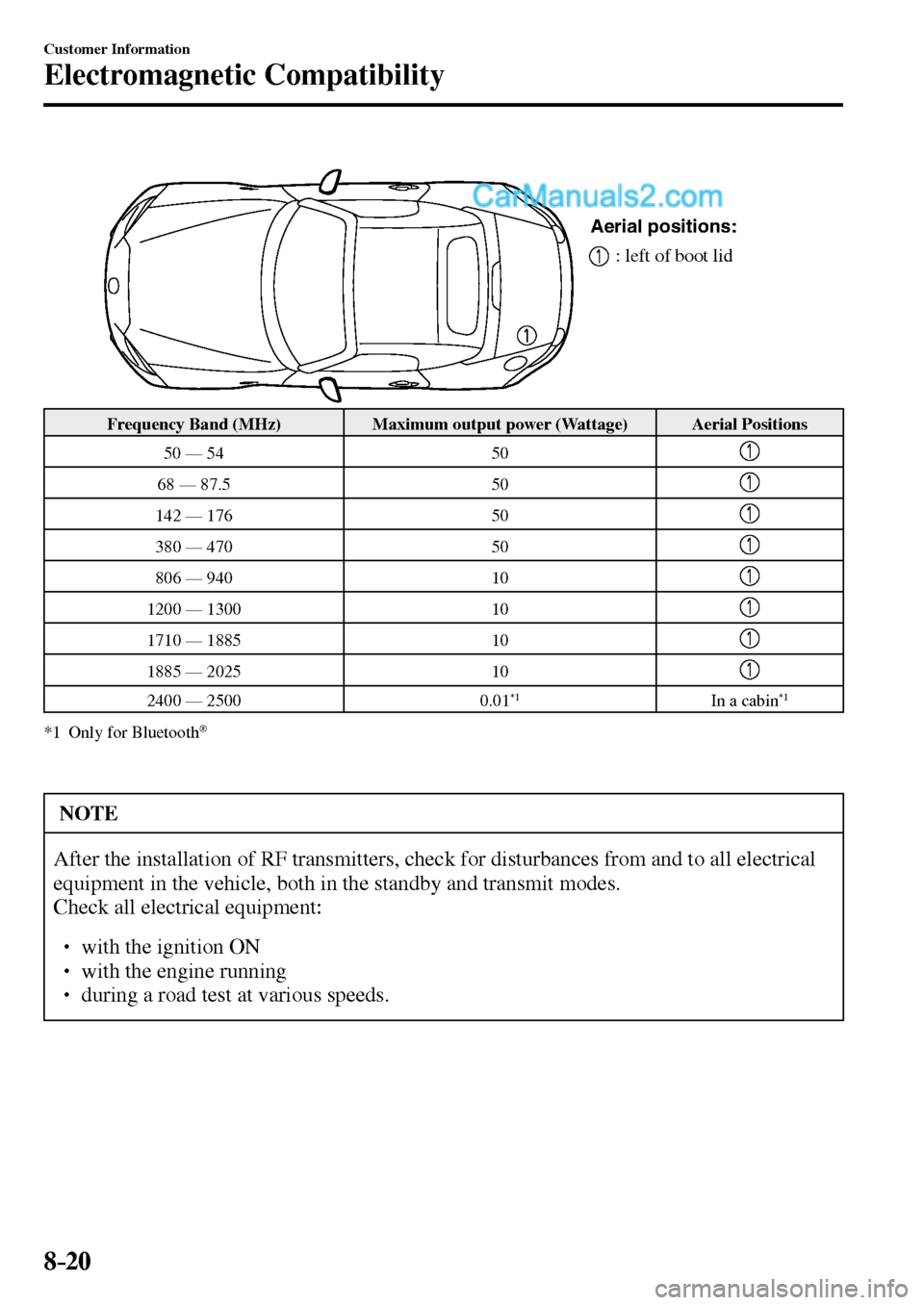

Aerial positions:
: left of boot lid
Frequency Band (MHz) Maximum output power (Wattage) Aerial Positions
50 — 54 50
68 — 87.5 50
142 — 176 50
380 — 470 50
806 — 940 10
1200 — 1300 10
1710 — 1885 10
1885 — 2025 10
2400 — 2500 0.01 *1 In a cabin *1
*1 Only for Bluetooth ®
NOTE
After the installation of RF transmitters, check for disturbances from and to all electrical
equipment in the vehicle, both in the standby and transmit modes.
Check all electrical equipment:

 with the ignition ON
 with the engine running
 during a road test at various speeds.
/:A(.'',A'FKVKQPKPFD

8–21
Customer Information
Collection/Disposal of Old Equipment/Used Battery

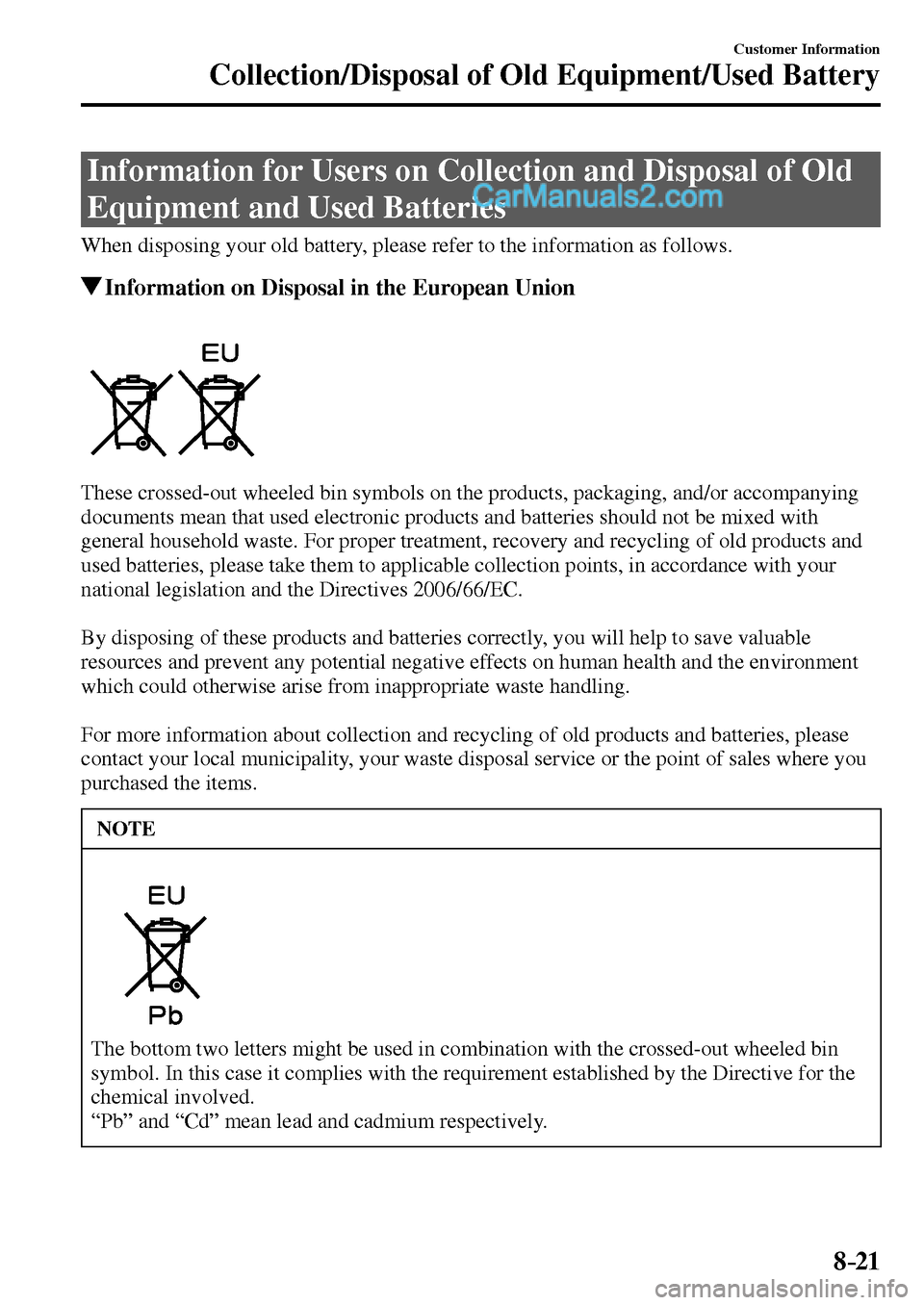

Information for Users on Collection and Disposal of Old
Equipment and Used Batteries
When disposing your old battery, please refer to the information as follows.
Information on Disposal in the European Union
These crossed-out wheeled bin symbols on the products, packaging, and/or accompanying
documents mean that used electronic products and batteries should not be mixed with
general household waste. For proper treatment, recovery and recycling of old products and
used batteries, please take them to applicable collection points, in accordance with your
national legislation and the Directives 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the environment
which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please
contact your local municipality, your waste disposal service or the point of sales where you
purchased the items.
NOTE
The bottom two letters might be used in combination with the crossed-out wheeled bin
symbol. In this case it complies with the requirement established by the Directive for the
chemical involved.
“Pb” and “Cd” mean lead and cadmium respectively.
/:A(.'',A'FKVKQPKPFD

8–22
Customer Information
Collection/Disposal of Old Equipment/Used Battery

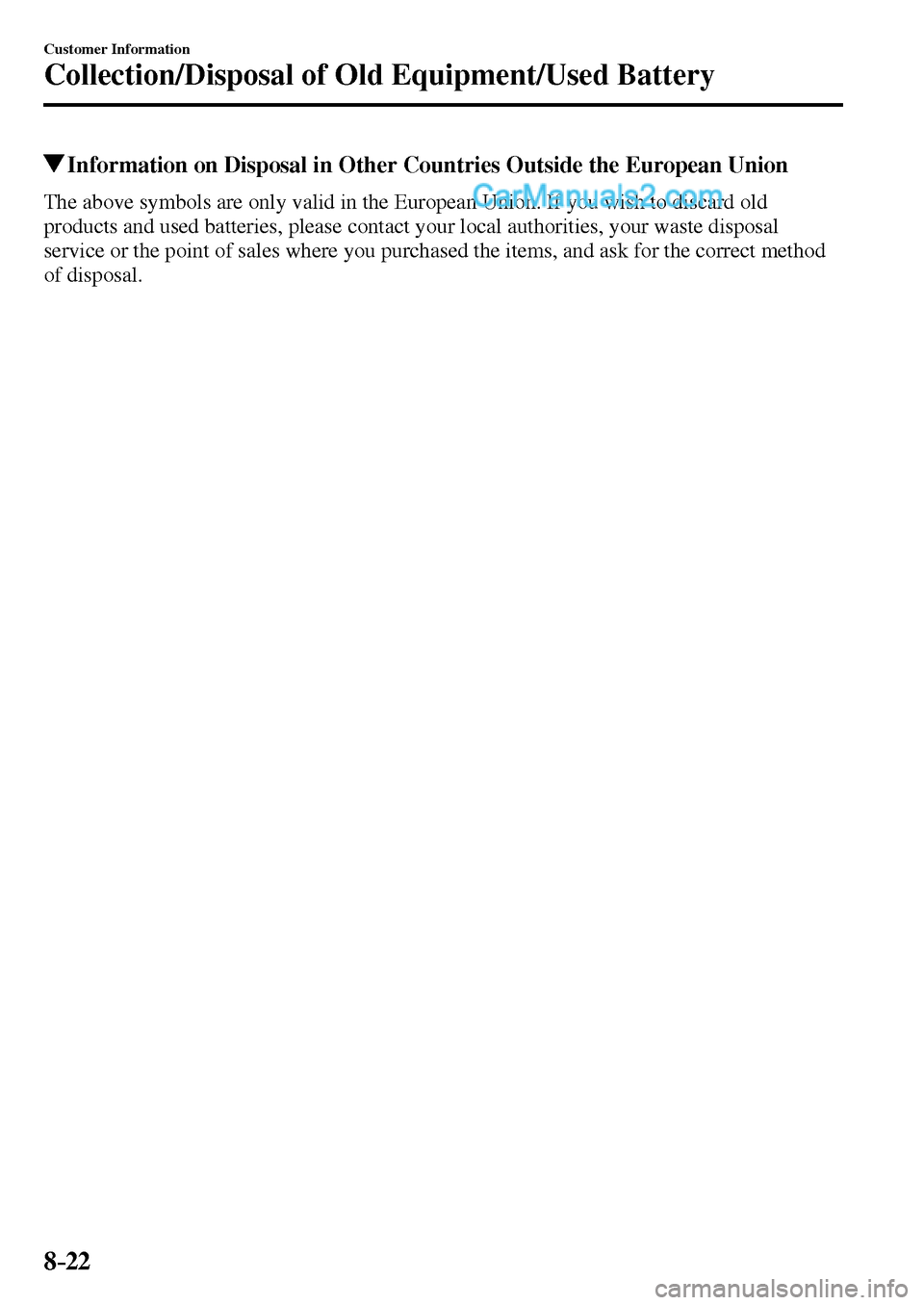

Information on Disposal in Other Countries Outside the European Union
The above symbols are only valid in the European Union. If you wish to discard old
products and used batteries, please contact your local authorities, your waste disposal
service or the point of sales where you purchased the items, and ask for the correct method
of disposal.
/:A(.'',A'FKVKQPKPFD

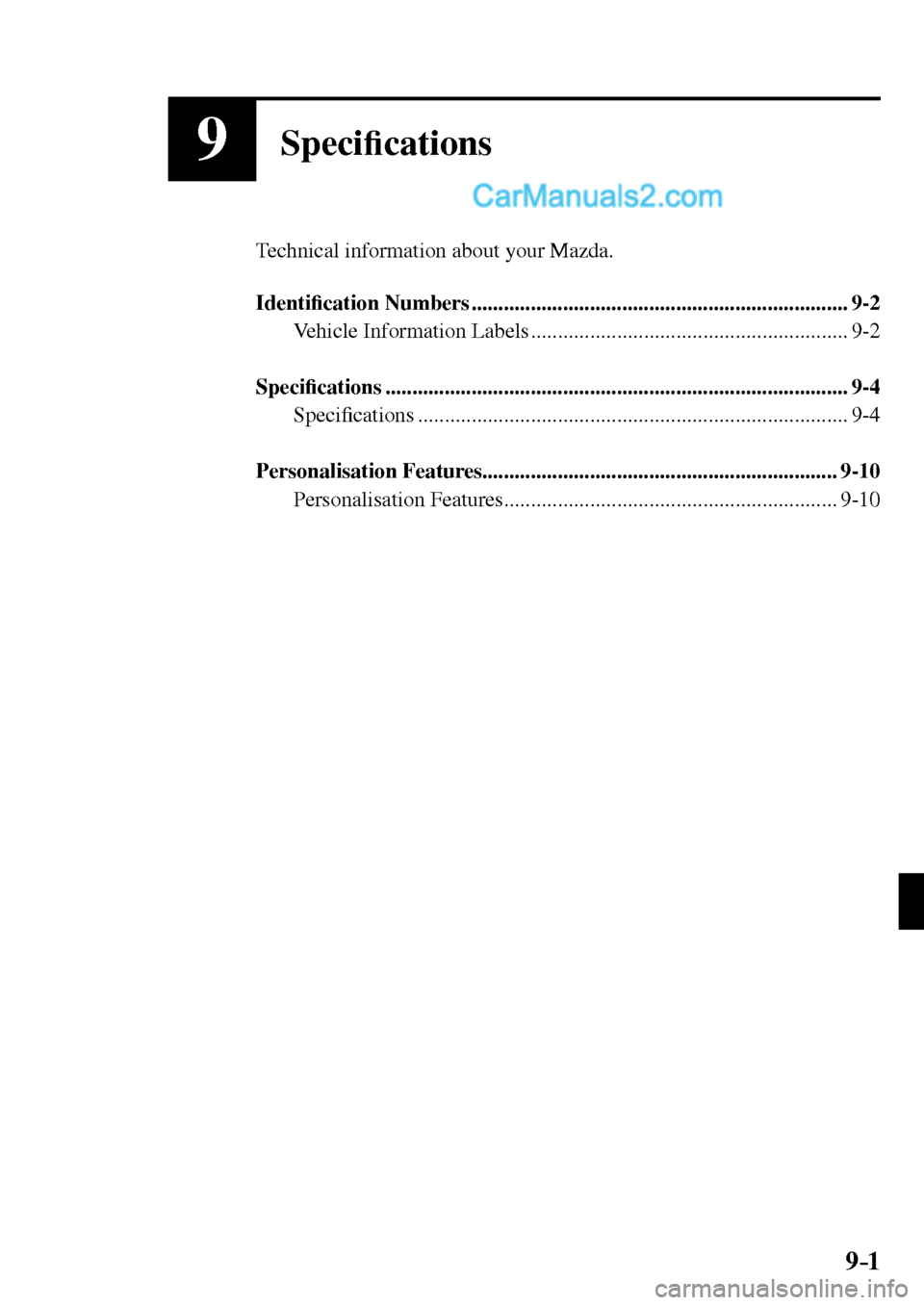

9–1 9–1
9Speci¿ cations
Technical information about your Mazda.
Identi¿ cation Numbers ...................................................................... 9-2
Vehicle Information Labels ........................................................... 9-2
Speci¿ cations ...................................................................................... 9-4
Speci¿ cations ................................................................................ 9-4
Personalisation Features.................................................................. 9-10
Personalisation Features .............................................................. 9-10
/:A(.'',A'FKVKQPKPFD

9–2
Speci¿ cations
Identi¿ cation Numbers

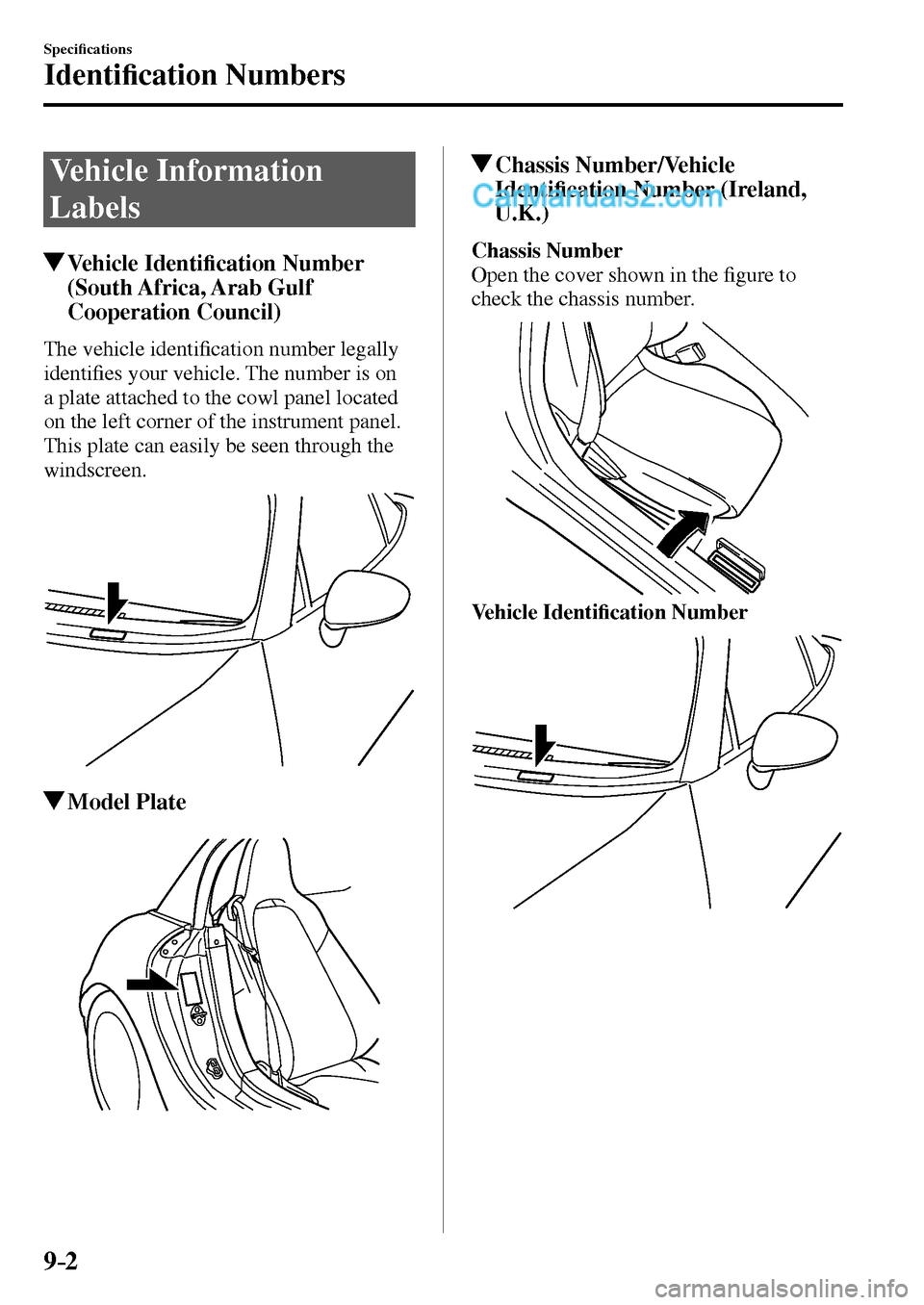

Vehicle Information
Labels
Vehicle Identi¿ cation Number
(South Africa, Arab Gulf
Cooperation Council)
The vehicle identi¿ cation number legally
identi¿ es your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the instrument panel.
This plate can easily be seen through the
windscreen.
Model Plate
Chassis Number/Vehicle
Identi¿ cation Number (Ireland,
U.K.)
Chassis Number
Open the cover shown in the ¿ gure to
check the chassis number.
Vehicle Identi¿ cation Number
/:A(.'',A'FKVKQPKPFD

9–3
Speci¿ cations
Identi¿ cation Numbers

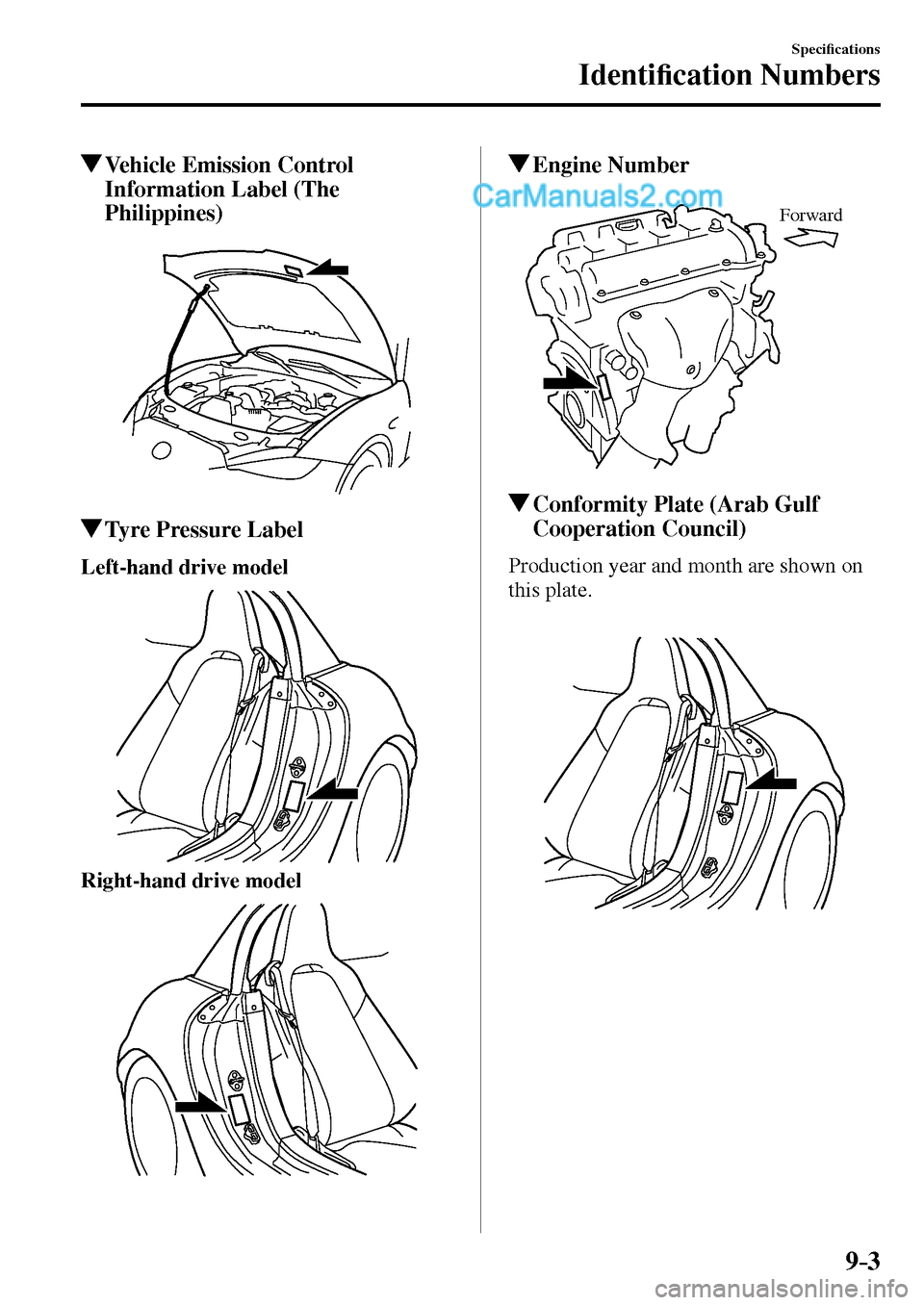

Vehicle Emission Control
Information Label (The
Philippines)
Tyre Pressure Label
Left-hand drive model
Right-hand drive model
Engine Number
Forward
Conformity Plate (Arab Gulf
Cooperation Council)
Production year and month are shown on
this plate.
/:A(.'',A'FKVKQPKPFD

9–4
Speci¿ cations
Speci¿ cations
S p e c i¿ cations
Engine
Item Speci¿ cation
SKYACTIV-G 1.5 SKYACTIV-G 2.0
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 74.5 × 85.8 mm (2.93 × 3.38 in) 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,496 ml (1,496 cc) 1,998 ml (1,998 cc)
Compression ratio 13.0
Arab Gulf Cooperation Council
Item Speci¿ cation
Soft top model Retractable fastback model
Maximum engine power/revolution 118 kW/6,000 rpm 118 kW/6,000 rpm
Maximum engine torque/revolution 200 N·m/4,600 rpm 200 N·m/4,600 rpm
Maximum speed 198 km/h (123 mph) 194 km/h (121 mph)
Electrical System
Item Classi¿ cation
Battery N-55 (S) *1
12V-45Ah/20HR *2
Spark-plug number Mazda Genuine spark plug *3 PE5R-18-110 or PE5S-18-110
*1 N-55 (S) is designed for i-stop system (FOR STOP & START)/i-ELOOP system. Only N-55 (S) should be
used to ensure correct operation of i-stop system (FOR STOP & START)/i-ELOOP system. Consult an expert
repairer, we recommend an Authorised Mazda Repairer for details.
*2 Not for i-stop system/i-ELOOP system.
*3 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer, we
recommend an Authorised Mazda Repairer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The ¿ ne particulate coating on
the iridium alloy and platinum tips could be damaged.
/:A(.'',A'FKVKQPKPFD
