Page 381 of 568
6–19
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes ¿ rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95
100 105 110 115 120
Wa s h e r À uid level I I I I I I
Emergency À at tire repair kit (if installed)
*5 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*3 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*4 If this component has been submerged in water, the oil should be replaced.
*5 Check the tire repair À uid expiration date every year when performing the periodic maintenance. Replace the
tire repair À uid bottle with new one before the expiration date.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 382 of 568
6–20
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
Maintenance Monitor (Type A audio)
“Oil Change” with a À exible setting *1 is available. Consult your Authorized Mazda Dealer
when you want to change the setting *2 . Once the system turns on, the wrench indicator light
in the instrument cluster will be illuminated when remaining oil life becomes less than
1,000 km (600 mile), or remaining days are less than 15 (whichever comes ¿ rst).
Reset method
Press and hold the selector with the ignition switched off, then switch it on. Keep pressing
the selector for more than 5 seconds. The master warning light will À ash for a few seconds
when the reset is completed.
Selector
*1 The À exible setting is available in the United States and Puerto Rico. Based on the
engine operating conditions, the onboard computer in your vehicle calculates the
remaining oil life. Mazda Genuine 0W-20 oil and Castrol
® 0W-20 oil are required to
achieve optimum calculation performance.
*2 Once the Flexible Oil Maintenance Setting is selected, the system must be reset
whenever replacing the engine oil.
Maintenance Monitor (Type B audio)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor”.
3. Select “Maintenance” to display the maintenance list screen.
4 . Switch the tab and select the setting item you want to change.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 383 of 568
6–21
Maintenance and Care
Scheduled Maintenance
You can customize settings in the setup display as follows:
Tab Item Explanation
Scheduled Setting Noti ¿ cation can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than
1,000 km or 600 mile, or the remaining number of days is less than
15 (whichever comes ¿ rst). Distance (km or mile)
Reset Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tire Rotation Setting Noti ¿ cation can be switched on/off.
Distance (km or mile) Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tires.
Oil Change Setting Interval Oil replacement period can be selected from the À exible setting or
¿ xed setting, or it can be set to non-display.
The À exible setting is available only in the United States and
Puerto Rico. Once engine oil À exible maintenance is selected,
the vehicle calculates the remaining oil life based on the engine
operating conditions. The vehicle lets you know when an oil
change is due by illuminating the wrench indicator light in the
instrument cluster. Mazda Genuine 0W-20 oil and Castrol
® 0W-20
oil are required to achieve optimum performance.
Distance (km or mile)
(Displays only in ¿ xed
setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Oil life (%)
(Displays only in À exible
setting) Displays the engine oil life until the oil replacement is due.
The wrench indication/indicator light in the instrument cluster
will be illuminated when the remaining oil life distance is less
than 1,000 km (600 mile), or remaining days are less than 15
(whichever comes ¿ rst).
Reset In À exible setting: Resets the remaining oil life to 100 %.
In ¿ xed setting: Resets the remaining distance to the initial value.
Once the Flexible Oil Maintenance Setting is selected, the system
must be reset whenever replacing the engine oil.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 384 of 568
6–22
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
T h e o w n e r o r a q u a l i ¿ ed service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or quali ¿ ed service
technician as soon as possible.
When Refueling
y Brake and clutch À uid level (page 6-31 )
y Engine coolant level (page 6-29 )
y Engine oil level (page 6-28 )
y Wa s h e r À uid level (page 6-31 )
At Least Monthly
T i r e i n À ation pressures (page 6-41 )
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.
y Engine coolant (page 6-29 )
y Engine oil (page 6-27 )
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2 ), several procedures can be done only by a
quali ¿ ed service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2 ) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and À uids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and À uid changes of your vehicle to an Authorized
Mazda Dealer.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 385 of 568
6–23
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suffi cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
qualifi ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you
remove all jewelry (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running indefi nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have fi nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fi re
leading to an unexpected accident.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 386 of 568
6–24
Maintenance and Care
Owner Maintenance
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could fl y open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the latch lever to the right, and lift
up the hood.
Lever
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Pad
Support rod
Clip
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 387 of 568
6–25
Maintenance and Care
Owner Maintenance
Closing the Hood
1. Check under the hood area to make
certain all ¿ ller caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
Clip Pad
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 388 of 568
6–26
Maintenance and Care
Owner Maintenance

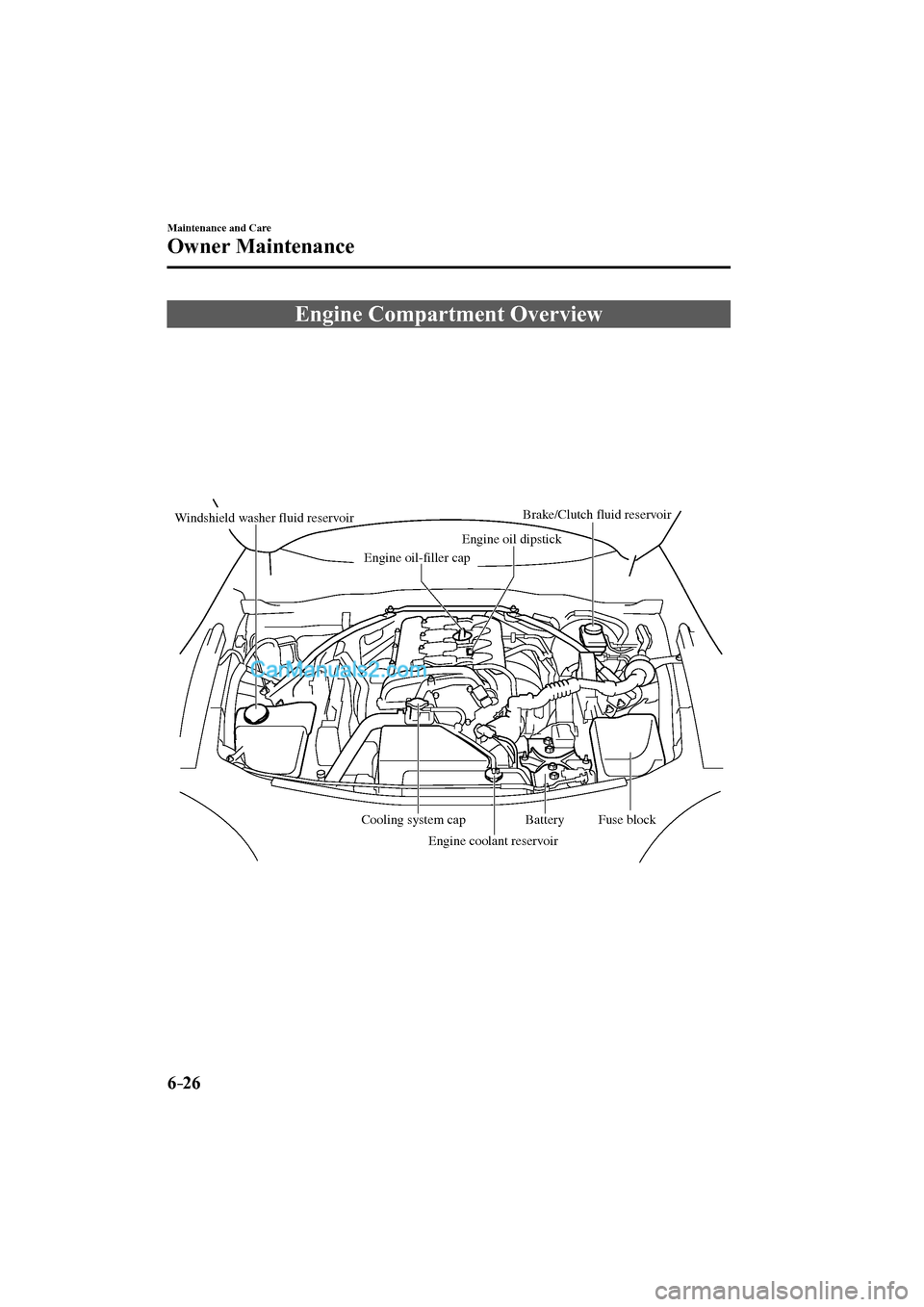

Engine Compartment Overview
Windshield washer fluid reservoirBrake/Clutch fluid reservoir
Engine oil dipstick
Battery
Fuse blockCooling system cap
Engine coolant reservoir Engine oil-filler cap
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 389 of 568
6–27
Maintenance and Care
Owner Maintenance
Engine Oil
N O T E
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2 ) for
owner's responsibility in protecting your
investment.
Recommended Oil
U.S.A., Canada, and Puerto Rico
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine 0W-20
Oil is required to achieve optimum fuel
economy.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (U.S.A. only).
(ILSAC)
Only use SAE 0W-20 oil “Certi ¿ ed For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricant
Standardization and Approval Committee
(ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 390 of 568
6–28
Maintenance and Care
Owner Maintenance
Except U.S.A., Canada, and Puerto Rico
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (Mexico only).
(ILSAC)
(Mexico)
Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 5W-20
engine oil.
The quality designation SM, or ILSAC
must be on the label.
80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40
Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
MIN MAX
OK
5. Pull it out again and examine the level.
The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.
CAUTION
Do not overfi ll the engine oil. This may
cause engine damage.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
