7–27
If Trouble Arises
Overheating
O v e r h e a t i n g
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before attempting
to work near the cooling fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.

Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the high engine coolant temperature
warning light turns on:


1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic
transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.


/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

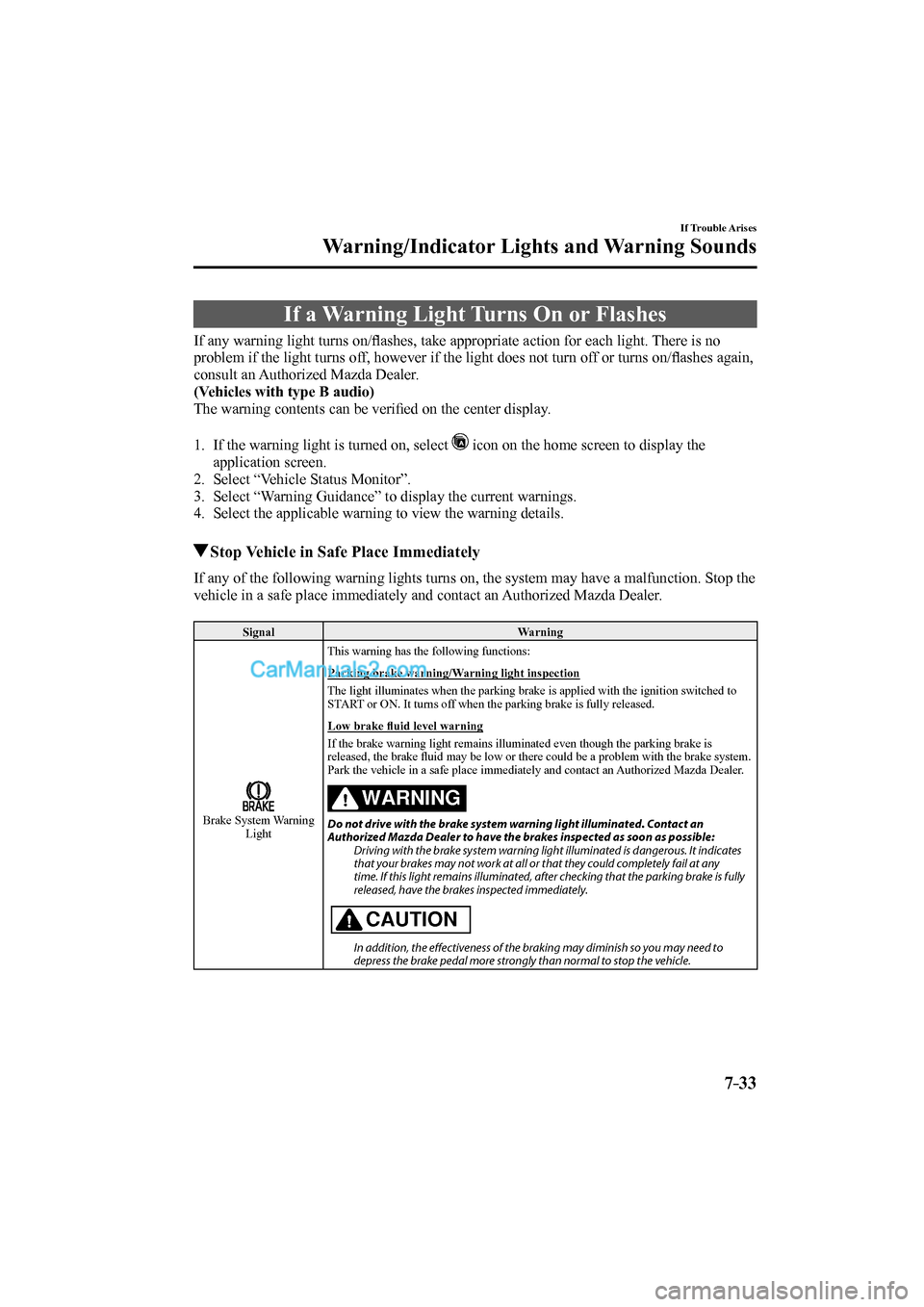

7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes
If any warning light turns on/À ashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not turn off or turns on/À ashes again,
consult an Authorized Mazda Dealer.
(Vehicles with type B audio)
The warning contents can be veri¿ ed on the center display.

1. If the warning light is turned on, select icon on the home screen to display the
application screen.
2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warning to view the warning details.

Stop Vehicle in Safe Place Immediately
If any of the following warning lights turns on, the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorized Mazda Dealer.

Signal Warning


Brake System Warning
Light
This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with the ignition switched to
START or ON. It turns off when the parking brake is fully released.
Low brake À uid level warning
If the brake warning light remains illuminated even though the parking brake is
released, the brake À uid may be low or there could be a problem with the brake system.
Park the vehicle in a safe place immediately and contact an Authorized Mazda Dealer.
WARNING
Do not drive with the brake system warning light illuminated. Contact an
Authorized Mazda Dealer to have the brakes inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It indicates
that your brakes may not work at all or that they could completely fail at any
time. If this light remains illuminated, after checking that the parking brake is fully
released, have the brakes inspected immediately.

CAUTION
In addition, the eff ectiveness of the braking may diminish so you may need to
depress the brake pedal more strongly than normal to stop the vehicle.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

7–34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning


Electronic Brake Force
Distribution System
Warning If the electronic brake force distribution control unit determines that some components
are operating incorrectly, the control unit may illuminate the brake system warning
light and the ABS warning light simultaneously. The problem is likely to be the
electronic brake force distribution system. WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes
inspected as soon as possible:
Driving when the brake system warning light and ABS warning light are
illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an
emergency stop than under normal circumstances.


Charging System
Warning Indication/
Warning Light If the warning light illuminates while driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated
because the engine could stop unexpectedly.


Engine Oil Warning
Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil pan.
3. Inspect the engine oil level 6-28 . If it's low, add the appropriate amount of engine
oil while being careful not to over¿ ll.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

7–53
If Trouble Arises
When Trunk Lid Cannot be Opened
6. Pull out the cap and open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.



CAUTION
Do not pull the screw when pulling the
cap. Otherwise, the screw may fall off
and become lost.

Retractable fastback model
CAUTION
Do not touch the linkage and gears. If
sharp edges and gears are touched, it
could cause injury.

Roof operates electrically
1. Remove the antenna if it is installed.
Refer to Antenna on page 5-13 .
2. Start the engine.
3. Continue pressing the retractable
fastback switch in the open direction
until the rear roof is completely open.
Refer to Opening the Roof on page
3-45 .

Multi-information
display indication

N O T E
Stop operating the switch before the front
roof opens. If the switch is continuously
pressed, the front roof opens and the
following procedures cannot be performed.

4. Switch the ignition OFF.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

7–54
If Trouble Arises
When Trunk Lid Cannot be Opened
5. Remove the fasteners on the right side
of the vehicle.



6. Push the stopper rubber through the
cover on the right side of the vehicle
while slightly lifting the cover up.


Cover
Stopper Rubber
7. Lift up the cover from the outside of
the vehicle.


8. Insert your hand beneath the lifted
cover and loosen the cap screws until
they spin freely.



N O T E
At this point, do not pull out the cap. If
the cap is pulled out, the trunk lock will
release but the rear roof will not operate
electrically.

9. Start the engine.
10. Continue pressing the retractable
fastback switch in the close direction
until the rear roof is completely closed.
Refer to Closing the Roof on page
3-45 .

Multi-information
display indication

11. Switch the ignition OFF.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

8–35
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
N O T E
Tires degrade over time, even when they are not being used on the road. It is recommended
that tires generally be replaced when they are 6 years or older. Heat caused by hot climates
or frequent high loading conditions can accelerate the aging process. The period in which
the tire was manufactured (both week and year) is indicated by a 4-digit number.
Refer to Tire Labeling on page 8-24 .

Safety Practices
The way you drive has a great deal to do with your tire mileage and safety. So cultivate good
driving habits for your own bene¿ t.




y Observe posted speed limits and drive at speeds that are safe for the existing weather
conditions



y Avoid fast starts, stops and turns



y Avoid potholes and objects on the road



y Do not run over curbs or hit the tire against the curb when parking
CAUTION
If you feel a sudden vibration or ride disturbance while driving or you suspect your tire
or vehicle has been damaged, immediately reduce your speed. Drive with caution until
you can safely pull off the road. Stop and inspect the tire for damage. If the tire is under-
infl ated or damaged, defl ate it, remove the tire and rim and replace it with your spare tire.
If you cannot detect a cause, have the vehicle towed to the nearest vehicle or tire dealer to
have the vehicle inspected.
