2. Shift the shift lever to the 1 or Reverse(R) position for a manual transmission,
and shift the selector lever to the P
position for an auto matic transmission.
3. Apply the parking brake with the brake
pedal depressed and turn off the
engine.
4. If necessary, flash t he hazard warning
lights and set up the roadside
emergency triangle.
5. Unload passengers and cargo and
remove the emergency flat tire repair
kit.
Hardtop modelSoft top model
6. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the injection
hose is screwed on, tire sealant could
spray out from the injection hose. Tire
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
NOTE
The sealant hardens easily and
injecting it will be difficult under cold
weather conditions (0 °C (32 °F) or
below). Warm the sealant inside the
vehicle to facilitate injection.
7. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.
Cap
Injection hose
Tire sealant
If Trouble Arises
Flat Tire
7-11
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 449 of 576

NOTE
Do not throw away the empty tire
sealant bottle after use. Return the
empty tire sealant bottle to an
Authorized Mazda Dealer when
replacing the tire. The empty tire
sealant bottle will need to be used to
extract and dispose of the used sealant
from the tire.

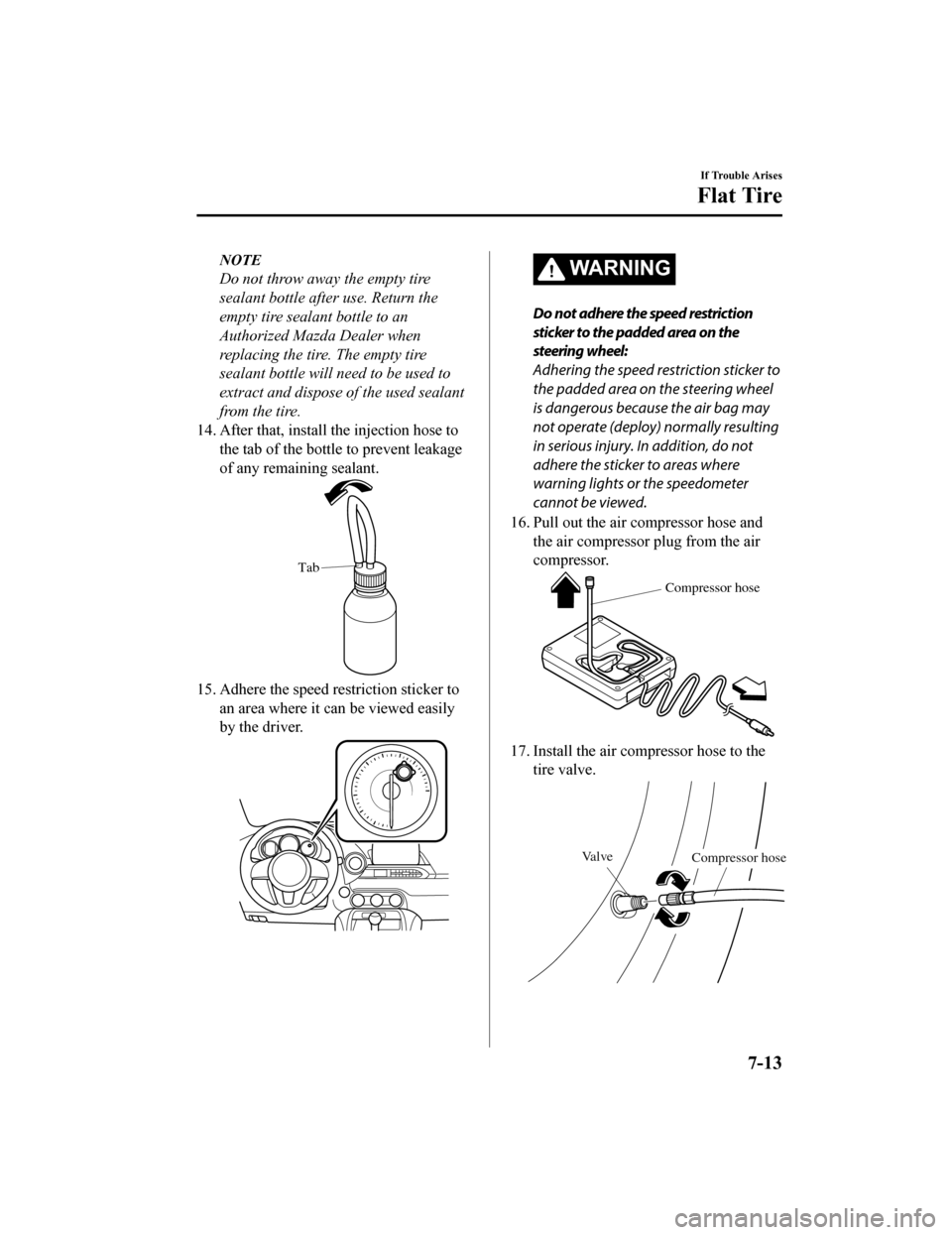

14. After that, install the injection hose to
the tab of the bottle to prevent leakage
of any remaining sealant.
Tab
15. Adhere the speed restriction sticker toan area where it can be viewed easily
by the driver.
WA R N I N G
Do not adhere the speed restriction
sticker to the padded area on the
steering wheel:
Adhering the speed restriction sticker to
the padded area on the steering wheel
is dangerous because the air bag may
not operate (deploy) normally resulting
in serious injury. In addition, do not
adhere the sticker to areas where
warning lights or the speedometer
cannot be viewed.
16. Pull out the air compressor hose and the air compressor plug from the air
compressor.
Compressor hose
17. Install the air compressor hose to the tire valve.
Valve Compressor hose
If Trouble Arises
Flat Tire
7-13
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 450 of 576

18. Insert the air compressor plug into theaccessory socket inside the vehicle and
switch the ignition to ACC.
Refer to Accessory Sockets on page
5-140.
Compressor
Compressor plug
CAUTION
When inserting the air compressor plug
into or removing it from the accessory
socket, make sure that the air
compressor switch is off. When turning
the air compressor on/off, use the air
compressor switch.
19. Turn the air compressor switch on and inflate the tire carefully to the correct
inflation pressure.
NOTE
Check the tire inflation pressure
label driver's door frame for the
correct tire inflation pressure.
Do not operate the air compressor
for a continuous 10 minutes or
longer because using it for long
periods could cause a malfunction.
If the tire inflation pressure does not
increase, repair of the tire is not
possible. If the tire does not reach
the specified tire inflation pressure
within 10 minute s, it may have
received extensive damage. In this
case, the repair using the emergency
flat tire repair kit was not successful.
Contact an Authorized Mazda
Dealer.
If the tire has been over-inflated,
loosen the screw cap on the air
compressor and bleed some of the
air out.
20. When the tire inflates to the specified tire inflation pressure, turn the air
compressor switch off, turn the sleeve
of the air compressor hose to the left,
and pull it out of the tire valve.
21. Install the tire valve cap.
22. Put the emergency flat tire repair kit into the trunk.
23. Start driving immediately to spread the sealant in the tire.
CAUTION
Carefully drive the vehicle at a speed of
80 km/h (50 mph) or less. If the vehicle
is driven at a speed of 80 km/h (50 mph)
or more, the vehicle may vibrate.
NOTE
If the tire is not properly inflated, the
tire pressure monitoring system
warning light will illuminate (page
4-26).
If Trouble Arises
Flat Tire
7-14
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 452 of 576

▼Inspecting the Em
ergency Flat Tire
Repair Kit
Inspect the emergency flat tire repair kit at
regular intervals.
Check the tire sealant period of effective
use.
Check the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tire
sealant replaced at an Authorized Mazda
Dealer before the period of effective use
has expired.
Changing a Tire
WA R N I N G
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should plac e any portion of their
body under a vehicle that is supported by a
jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the
right-of-way and firml y set the parking
brake.
2. Put a vehicle with an automatic
transmission in Pa rk (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack and tool (page 7-3).
If Trouble Arises
Flat Tire
7-16
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 454 of 576

4. Place the jack under the jack-upposition closest to the tire being
changed with the jack head squarely
under the jack-up point.
Jacking position
5. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.
Tire blocks
Jacking position
WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
If Trouble Arises
Flat Tire
7-18
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 463 of 576

Overheating
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WA R N I N G
Pull over to a safe location, then switch
the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the high engine c oolant temperature
warning light turns on:
1. Drive safely to the side of the road and park off the right-of-way.
2. Put a vehicle with an automatic transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine
compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine
until it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
6. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
If Trouble Arises
Overheating
7-27
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 469 of 576

If a Warning Light Turns On or Flashes
If any warning light turns on/flashes, take appropriate action for each light. There is no
problem if the light turns off, h owever if the light does not turn off or turns on/flashes again,
consult an Authorized Mazda Dealer.
(Vehicles with type B audio)
The details for some warnings can be viewed on the center display.
1. If the warning light is turned on, select
icon on the home screen to display the
application screen.
2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warni ng to view the warning details.
▼Stop Vehicle in Safe Place Immediately
If any of the following warning
lights turns on, the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorized M azda Dealer.
SignalWarning
Brake System Warning
Light This warning has the
following functions:
Parking brake warning/Warning light inspection
The light illuminates when the par king brake is applied with the ignition switched to
START or ON. It turns off when the parking brake is fully relea sed.
Low brake fluid level warning
If the brake warning light remains illuminated even though the parking brake is re-
leased, the brake fluid may be l ow or there could be a problem with the brake system.
Park the vehicle in a safe place immediately and contact an Aut horized Mazda Dealer.
WA R N I N G
Do not drive with the brake system warning light illuminated. Contact an Authorized
Mazda Dealer to have the brakes inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It indicates that
your brakes may not work at all or that they could completely fail at any time. If this
light remains illuminated, after checking that the parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the braking may diminish so you may need to depress
the brake pedal more st rongly than normal to stop the vehicle.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-33
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 470 of 576

SignalWarning
Electronic Brake Force
Distribution System Wa r n i n g If the electronic brake force di
stribution control unit determines that some compo-
nents are operating incorrectly , the control unit may illuminate the brake system
warning light and the ABS warni ng light simultaneously. The problem is likely to be
the electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as
soon as possible:
Driving when the brake system warning li ght and ABS warning light are illuminated
simultaneously is dangerous.
When both lights are illuminate d, the rear wheels could lock more quickly in an emer‐
gency stop than under normal circumstances.
Charging System Warn- ing Indication/Warning Light If the warning light illuminates while driving, it indicates a
malfunction of the alter-
nator or of the charging system.
Drive to the side of the road and park off the right-of-way. Co nsult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.
Engine Oil Warning Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is
low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the w arning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way o n level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain b ack into the oil pan.
3. Inspect the engine oil level (p age 6-24). If it's low, add the appropriate amount of
engine oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.
If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 471 of 576

SignalWarning
(Red)
High Engine Coolant
Temperature Warning
Indication/Warning
Light The light flashes when the engine coolant temperature is extrem
ely high, and illumi-
nates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine l oad until you can find a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place immedi-
ately and stop the engine.
Refer to Overheating on page 7-27.
CAUTION
Do not drive the vehicle with the high engi ne coolant temperature warning light illumi‐
nated. Otherwise, it could resu lt in damage to the engine.
Power Steering Mal-
function Indicator Light The light illuminates if the electric power steering has a malf
unction.
If the light illuminates, stop the vehicle in a safe place and do not operate the steering
wheel. There is no problem if the light turns off after a while . Contact an Authorized
Mazda Dealer if the light illuminates continuously.
NOTE
If the indicator light illuminates, the powe r steering will not operate normally. If this
happens, the steering wheel can still be op erated, however, the operation may feel
heavy compared to normal, or the steer ing wheel could vibrate when turning.
Repeatedly jerking the steering wheel left and ri ght while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem. If
this occurs, park the vehicle safely and wait several minu tes for the system to return
to normal.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-35
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
Page 472 of 576

▼Contact Authorized Mazda Deal
er and Have Vehicle Inspected
If any of the following warning lights o r the indicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.
SignalWarning
Master Warning In-
dication/Warning
Light
*
Type A instrument cluster
(Master warning indication)
Displays when notification of the system malfunctions is required.
Check the message indicated in th e display and consult an Authorized Mazda Dealer.
(Master warning light)
The master warning light display s when a warning message occurs.
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicato r lights, in the warning/indi-
cator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the “Warn-
ing” screen.
Refer to Message Indicated in Mu lti-information Display and INFO switch on page 4-18.
Type B instrument cluster
The light illuminates continuously if any one of the following occurs. Consult an Author-
ized Mazda Dealer.
There is a malfunction in the battery management system.There is a malfunction in the brake switch.
Electric Vacuum
Pump Warning Light The light turns on if the electric vacuum pump system has a pro
blem. Have your vehicle
inspected at an Authorized Mazda Dealer.
ABS Warning Light If the ABS warning light stays
on while you're driving, the ABS control unit has detected
a system malfunction. If this occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult an A uthorized Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate wh ile the ABS warning light is illuminated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-36*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
