light MAZDA MODEL MX-5 2018 Owners Manual (in English)

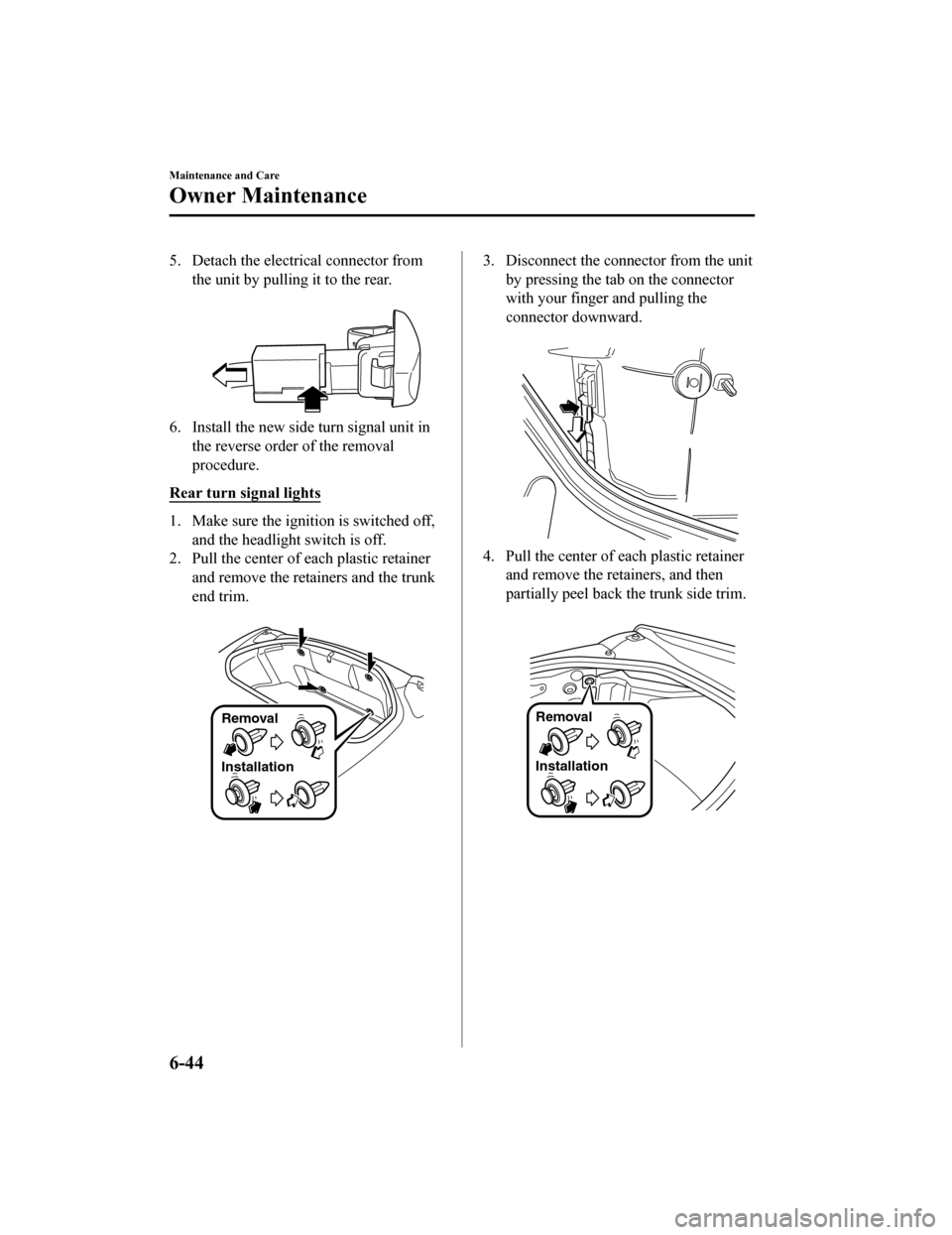

5. Detach the electrical connector fromthe unit by pulling it to the rear.

6. Install the new side turn signal unit inthe reverse order of the removal
procedure.
Rear turn signal lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.

Removal
Installation
3. Disconnect the connector from the unit by pressing the tab on the connector
with your finger and pulling the
connector downward.

4. Pull the center of each plastic retainerand remove the retainers, and then
partially peel back the trunk side trim.

Removal
Installation
Maintenance and Care
Owner Maintenance
6-44
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

8. To remove the rear combination lampunit, insert your finger from inside the
trunk and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
part) of the rear combination lamp with
your hand, press the rear combination
lamp unit until the hook detaches from
the clip.

Rear combination lamp unit
Hook
Grommet installation
hole
9. After the hook is detached, pull out the
rear combination lamp unit in the
direction of the arrow and remove it.

Grommet installation hole
Clip
Hook Rear combination
lamp unit
CAUTION
Carefully pull out the rear combination
lamp unit when removing it from the
body.
The wiring may become damaged if the
rear combination lamp unit is forcefully
pulled out.
10. Turn the socket and bulb assembly counterclockwise and remove it.
11. Disconnect the bulb from the socket.
12. Install the new bulb in the reverseorder of the removal procedure.
Rear side-marker lights
1. Make sure the ignition is switched off, and the headligh t switch is off.
2. Turn the socket and bulb assembly counterclockwise and remove it.
Maintenance and Care
Owner Maintenance
6-46
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverseorder of the removal procedure.
Reverse lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse
order of the removal procedure.
License plate lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Remove the unit by pressing the tab on
the unit with your finger and pulling
the unit downward.

3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverseorder of the removal procedure.
â–¼Replacing Interior Light Bulbs
Overhead light
1. Wrap a small flathead screwdriver with
a soft cloth to prev ent damage to the
lens, and then remove the lens by
carefully prying on t he edge of the lens
with the flathead screwdriver.
Maintenance and Care
Owner Maintenance
6-47
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverseorder of the removal procedure.
Trunk light
1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on th e edge of the lens
with the flathead screwdriver.

2. Disconnect the connector from the unit.
3. Disconnect the bulb by pulling it out.

4. Install the new bulb in the reverseorder of the removal procedure.
Maintenance and Care
Owner Maintenance
6-48
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
â–¼ Fuse Replacement
Replacing the fuses on
the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it isblown.
Normal Blown
5. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that it is securely installed.
Maintenance and Care
Owner Maintenance
6-49
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:

1. Make sure the ignition is switched off,and other switches are off.
2. Remove the fuse block cover.
NOTE
If the lock is forcefully opened, the fuse
block cover may come in contact with
the frame when it is removed and
become scratched.
When removing the cover, remove it
slowly according to the following
procedure.
1. Disengage the rear lock by pressing down on the front tab with
your fingers.
2. Remove the front tab while slightly
lifting the front of the cover.
3. Remove the cover while lifting itand sliding it to the rear.
3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
Maintenance and Care
Owner Maintenance
6-50
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

â–¼Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1ENG IG3 5 A ―
2ENG IG2 5 A ―
3 HORN2 7.5 A Horn
4 C/U IG1 15 A For protectio n of various circuits
5 ENG IG1 7.5 A Engine control system
6― ― ―
7 INTERIOR 15 A Overhead light
8 ENG
B 7.5 A Engine control system
9 AUDIO2 15 A Audio system
10 METER1 10 A Instrument cluster 11 SRS1 7.5 A Air bag
12 ― ― ―
13 RADIO 7.5 A Audio system
14 ENGINE3 20 A Engine control system
15 ENGINE1 10 A Engine control system
16 ENGINE2 15 A Engine control system
Maintenance and Care
Owner Maintenance
6-51
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 AUDIO1 25 A Audio system
18 A/C MAG 7.5 A Air conditioner
19 AT P U M P
H/L HI 20 A ―
20 AT 15 A Transmission control system
*
21 D LOCK25 A Power door locks
22 H/L RH 20 A Headlight (RH)
23 ENG
B2 7.5 A Engine control system
24 TAIL 20 A Taillights, License plate lights, Parking lights
25 DRL 15 A ―
26 ROOM 25 A Overhead light
27 FOG 15 A ―
28 H/CLEAN 20 A ―
29 STOP 10 A Brake lights
30 HORN 15 A Horn
31 H/L LH 20 A Headlight (LH)
32 ABS/DSC S 30 A ABS, Dynami c stability control system
33 HAZARD 15 A Hazard warning fl ashers, Turn signal lights
34 FUEL PUMP 15 A Fuel system
35 ENG
B3 5 A ―
36 WIPER 20 A Windshield wipers
37 CABIN
B 50 A
For protection of various circuits
38 ― ― ―
39 ― ― ―
40 ABS/DSC M 50 A ABS, Dynami c stability control system
41 EVVT
A/R PUMP 20 A Engine control system
42 EVPS 30 A Brake control system
43 FAN1 30 A Cooling fan
44 FAN2 40 A ―
45 ENG.MAIN 40 A Engine control system
46 EPS 60 A Power steering system
47 DEFOG 30 A Rear window defogger
48 IG2 30 A For protection of various circuits
49 INJECTOR 30 A Engine control system
50 HEATER 40 A Air conditioner
Maintenance and Care
Owner Maintenance
6-52*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

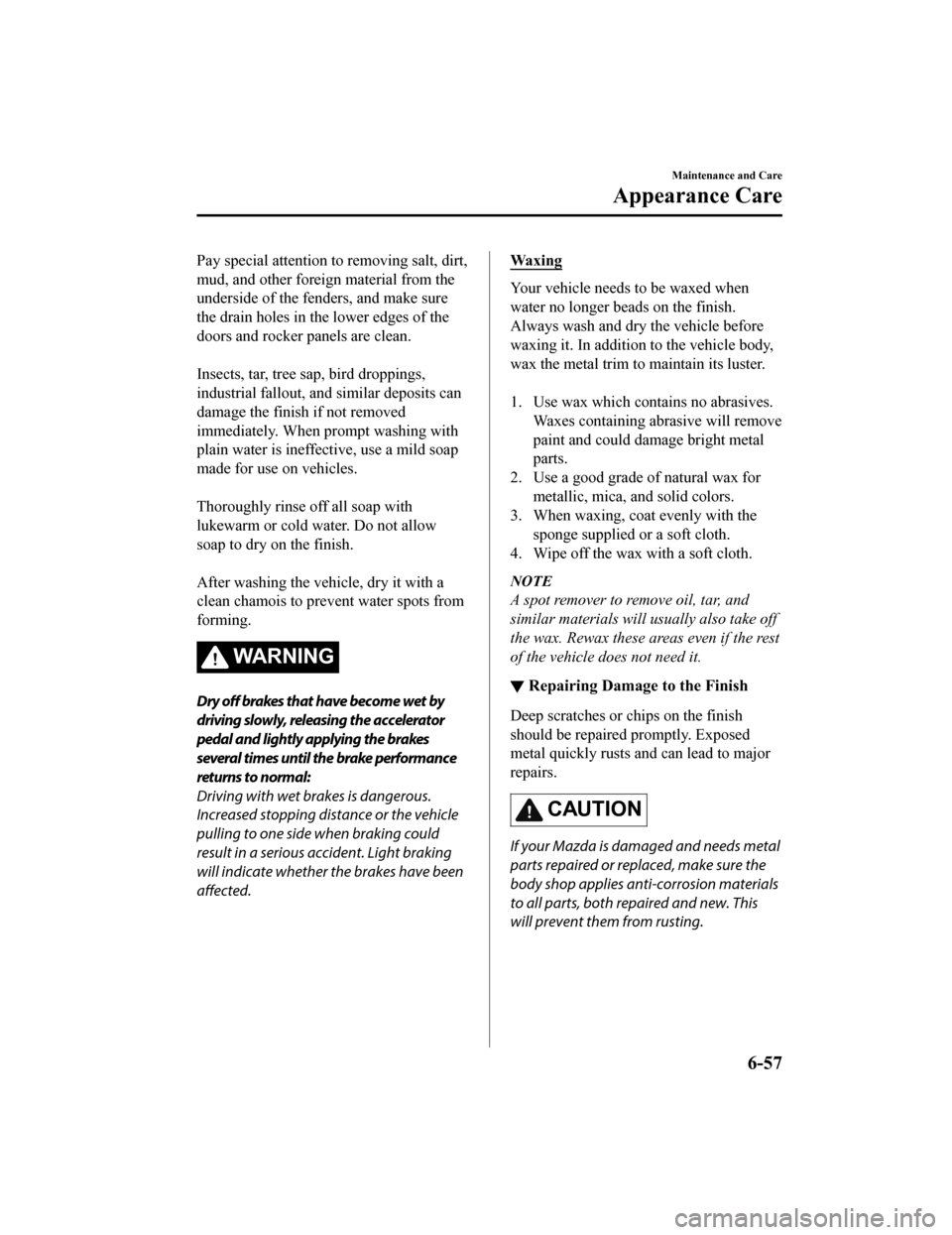

Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WA R N I N G
Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.

1. Use wax which contains no abrasives. Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas even if the rest
of the vehicle does not need it.
â–¼ Repairing Damage
to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs metal
parts repaired or replaced, make sure the
body shop applies anti-corrosion materials
to all parts, both repaired and new. This
will prevent them from rusting.
Maintenance and Care
Appearance Care
6-57
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

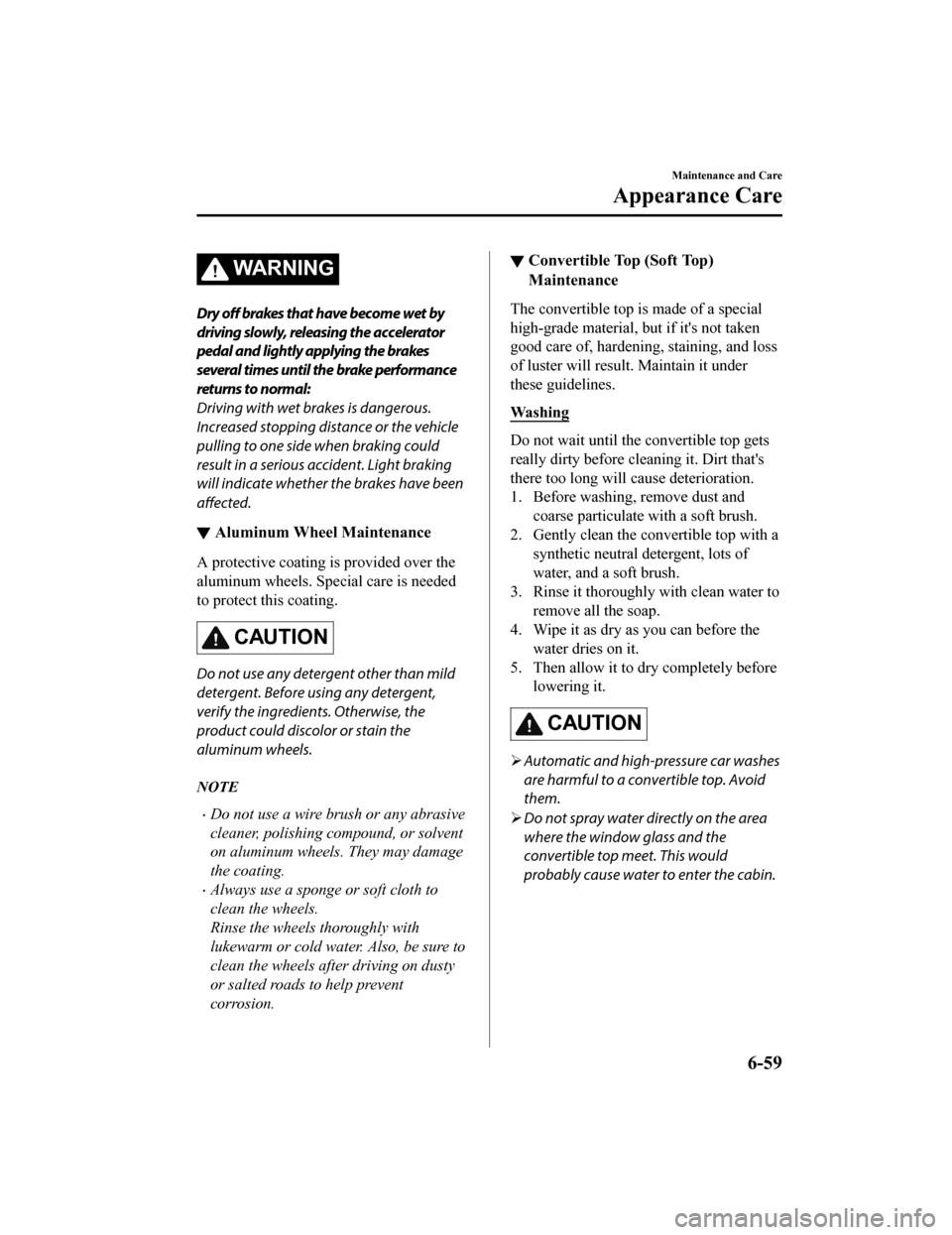

WA R N I N G
Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.
â–¼ Aluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than mild
detergent. Before using any detergent,
verify the ingredients. Otherwise, the
product could discolor or stain the
aluminum wheels.
NOTE
ï‚·Do not use a wire brush or any abrasive
cleaner, polishing compound, or solvent
on aluminum wheels. They may damage
the coating.
ï‚·Always use a sponge or soft cloth to
clean the wheels.
Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure to
clean the wheels after driving on dusty
or salted roads to help prevent
corrosion.
â–¼Convertible Top (Soft Top)
Maintenance
The convertible top is made of a special
high-grade material, but if it's not taken
good care of, hardening, staining, and loss
of luster will result. Maintain it under
these guidelines.
Wa s h i n g
Do not wait until the convertible top gets
really dirty before cleaning it. Dirt that's
there too long will cause deterioration.
1. Before washing, remove dust and
coarse particulate with a soft brush.
2. Gently clean the convertible top with a
synthetic neutral detergent, lots of
water, and a soft brush.
3. Rinse it thoroughly with clean water to
remove all the soap.
4. Wipe it as dry as you can before the
water dries on it.
5. Then allow it to dry completely before lowering it.
CAUTION
Automatic and high-pressure car washes
are harmful to a convertible top. Avoid
them.
 Do not spray water directly on the area
where the window glass and the
convertible top meet. This would
probably cause water to enter the cabin.
Maintenance and Care
Appearance Care
6-59
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
