Warning Sound isActivated
▼Lights-On Reminder
The lights-on reminder is operable when
the time setting
*1 of the auto headlight off
function is off.
If lights are on and the ignition is switched
to ACC or off, a continuous beep sound
will be heard when the driver's door is
opened.
*1 If the light switch is left on, the auto headlight off function automatically
turns off the lights about 30 seconds
after switching the ignition off. The
time setting can be changed.
Refer to Personalization Features on
page 9-9.
NOTE
When the ignition is switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-50) overrides
the lights-on reminder.
A personalized function is available to
change the sound volume for the
lights-on reminder.
Refer to Personalization Features on
page 9-9.
▼ Air Bag/Seat Belt Pretensioner
System Warning Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.

The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
WA R N I N G
Do not drive the vehicle with the air bag/
seat belt pretensioner system warning beep
sounding:
Driving the vehicle with the air bag/seat
belt pretensioner system warning beep
sounding is dangerous. In a collision, the
air bags and the seat belt pretensioner
system will not deploy and this could result
in death or serious injury. Contact an
Authorized Mazda Dealer to have the
vehicle inspected as soon as possible.
▼Seat Belt Warning Beep
Except Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the passenger's seat belt is not
fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-49
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

NOTE
To allow the passenger occupant
classification sensor to function
properly, do not place and sit on an
additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item.
To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
If a small child is seated on the
passenger's seat, the warning beep may
not operate.
▼ Retractable Hardtop Warning Beep*
When operating the retractable hardtop
switch, the warning beep is activated when
the retractable hardtop operation begins
and when it is completed.
If there is a problem with the retractable
hardtop, the warning beep is activated
continuously while operating the switch. If
the warning beep is activated continuously
while operating the switch, have the
vehicle inspected at an Authorized Mazda
Dealer.
▼Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door i
s opened with the
ignition switched to ACC, a beep will be
heard continuously in the cabin to notify
the driver that the ignition has not been
switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery volta ge will be depleted.
▼Key Removed from Vehicle Warning
Beep
Vehicles with advance
d keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside the
vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster flashes continuously to notify the
driver that the ig nition has not been
switched OFF.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-50*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key is
carried together with a metal object or it
is placed in a poor signal reception area.
▼ Request Switch Inoperable Warning
Beep (With the advanced keyless
function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried, a
beep will be heard outside for about 2
seconds to notify the driver that the door
or trunk lid cannot be locked.
▼Key Left-in-trunk Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the trunk with all the
doors locked and the trunk lid closed, a
beep will be heard outside for about 10
seconds to notify the driver that the key is
in the trunk. In this case, take out the key
by pressing the electric trunk lid opener
and opening the trunk lid. The key taken
out of the trunk may not operate because
its functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure (page
3-8).
▼Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and trunk are locked using
another key while the key is left in the
cabin, the beep which sounds outside of
the vehicle will be heard for about 10
seconds to notify the driver that the key is
in the cabin. In this case, take out the key
by opening the door. A key taken out of
the vehicle using this method may not
operate because its functions have been
temporarily stopped. To restore the key's
functions, perform the applicable
procedure (page 3-8).
▼Power Steering Warning Buzzer
If the power steering system has a
malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Indication/Warning
Lights on page 4-26.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-51
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

▼Tire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds if the tire pressures
decrease.
Refer to Tire Pressure Monitoring System
on page 4-103.
▼Blind Spot Monitoring (BSM)
Warning Beep*
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-9.
Reversing
The Blind Spot Monitoring (BSM)
warning sound is activated if there is a
possibility of collision with a vehicle
approaching from behind and from the
rear on the left and right sides of the
vehicle.
▼
Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
The volume of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9.
The type of the LDWS warning sound
can be changed.
Refer to Personalization Features on
page 9-9.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-52*Some models.
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

6. Push the stopper rubber through thecover on the right si de of the vehicle
while slightly lifting the cover up.

Cover
Stopper Rubber
7. Lift up the cover from the outside of
the vehicle.

8. Insert your hand beneath the liftedcover and loosen the cap screws until
they spin freely.

NOTE
At this point, do not pull out the cap. If
the cap is pulled out, the trunk lock
will release but the rear roof will not
operate electrically.
9. Start the engine.
10. Continue pressing the retractable hardtop switch in the close direction
until the rear roof is completely closed.
Refer to Closing the Roof on page
3-43.

Multi-information
display indication
11. Switch the ignition OFF.
12. Remove the windblocker.
Windblocker
If Trouble Arises
When Trunk Lid Cannot be Opened
7-55
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

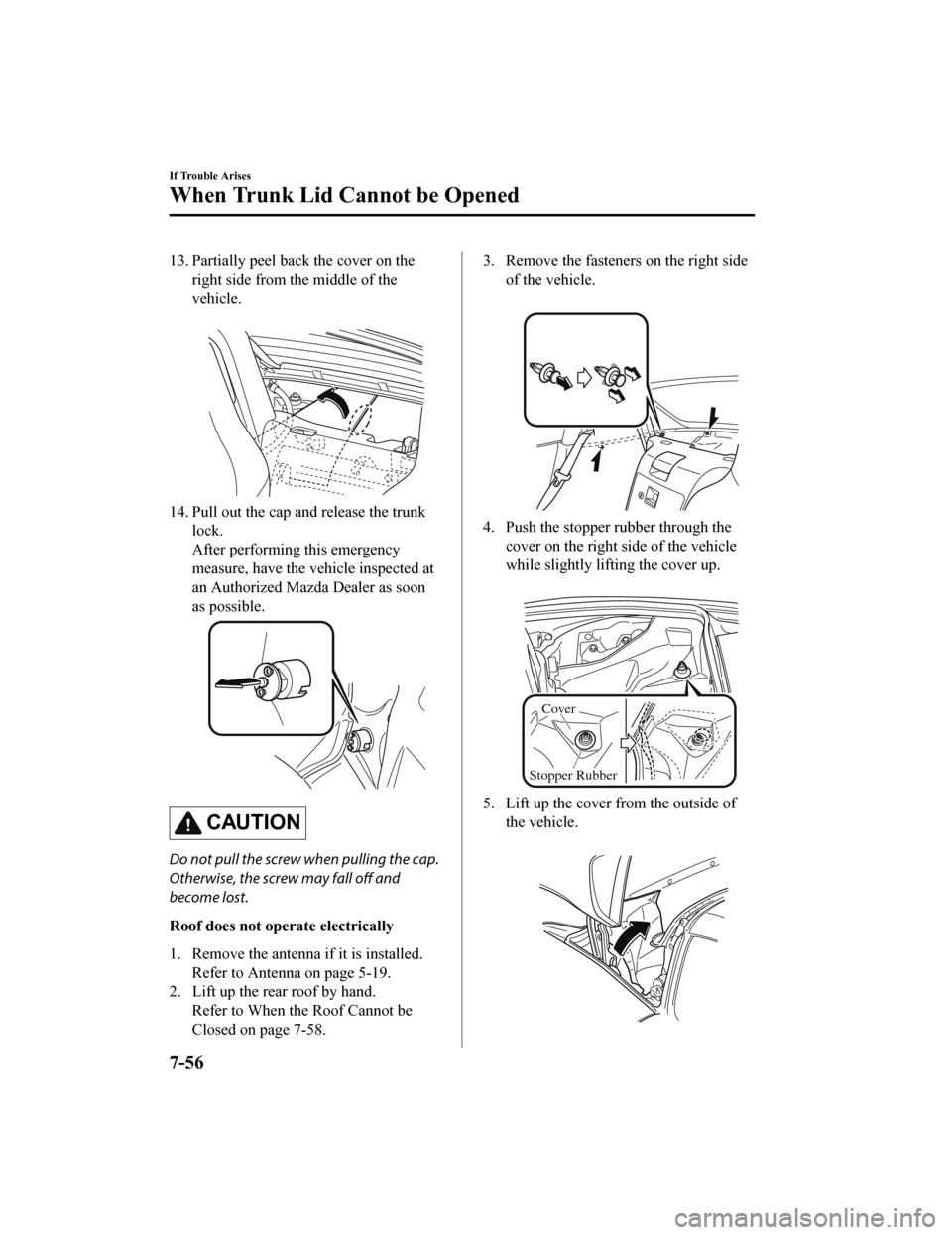

13. Partially peel back the cover on theright side from the middle of the
vehicle.

14. Pull out the cap and release the trunklock.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
CAUTION
Do not pull the screw when pulling the cap.
Otherwise, the screw may fall off and
become lost.
Roof does not operate electrically
1. Remove the antenna if it is installed. Refer to Antenna on page 5-19.
2. Lift up the rear roof by hand.
Refer to When the Roof Cannot be
Closed on page 7-58.
3. Remove the fasteners on the right sideof the vehicle.

4. Push the stopper rubber through thecover on the right side of the vehicle
while slightly lifting the cover up.

Cover
Stopper Rubber
5. Lift up the cover from the outside of
the vehicle.

If Trouble Arises
When Trunk Lid Cannot be Opened
7-56
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

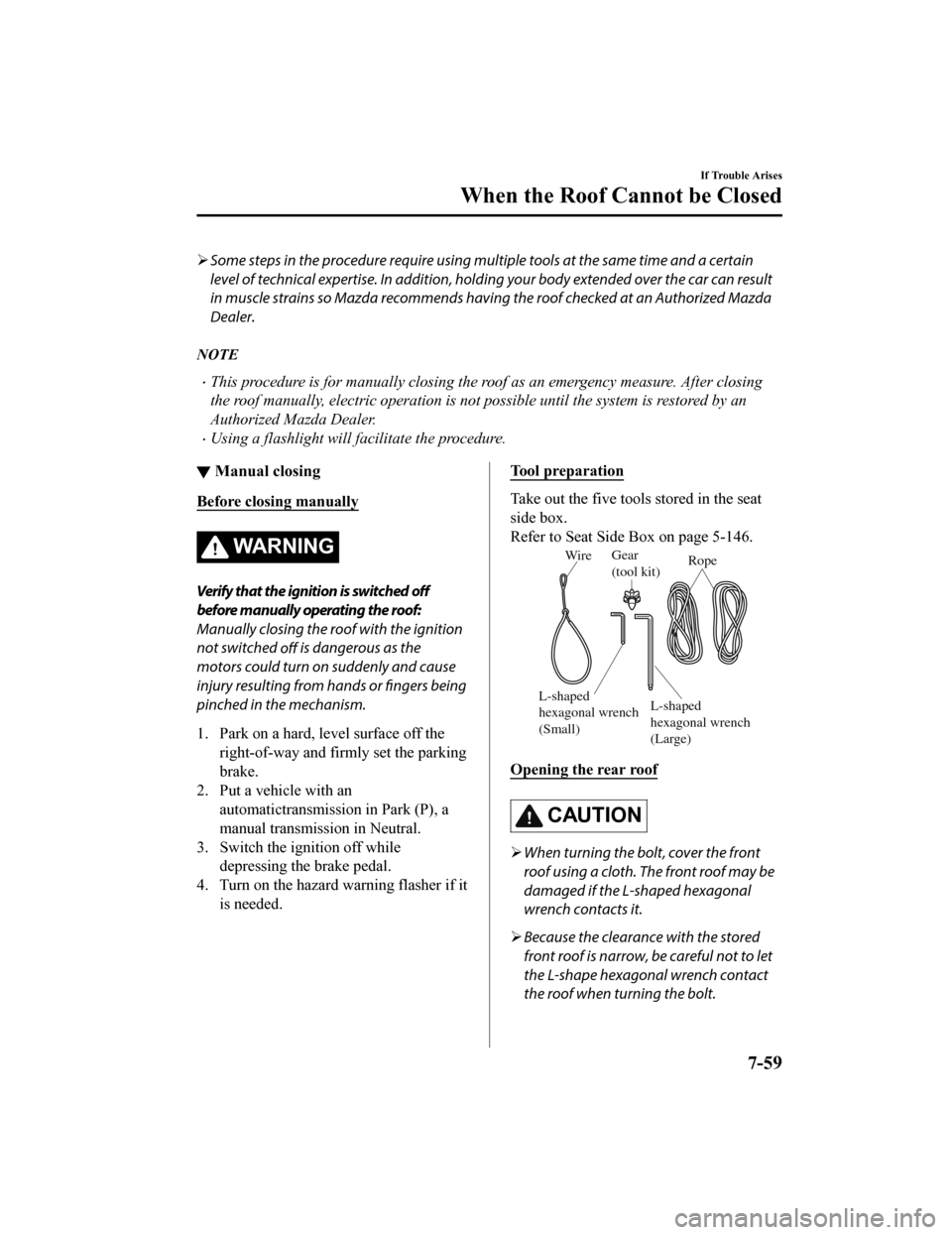

Some steps in the procedure require using mult iple tools at the same time and a certain
level of technical expertise. In addition, hold ing your body extended over the car can result
in muscle strains so Mazda recommends having the roof checked at an Authorized Mazda
Dealer.
NOTE
This procedure is for manually closing the roof as an emergency measure. After closing
the roof manually, electric operation is not possible until the system is restored by an
Authorized Mazda Dealer.
Using a flashlight will facilitate the procedure.
▼ Manual closing
Before closing manually
WA R N I N G
Verify that the ignition is switched off
before manually operating the roof:
Manually closing the roof with the ignition
not switched
off is dangerous as the
motors could turn on suddenly and cause
injury resulting from hands or fingers being
pinched in the mechanism.
1. Park on a hard, le vel surface off the
right-of-way and firm ly set the parking
brake.
2. Put a vehicle with an automatictransmission in Park (P), a
manual transmiss ion in Neutral.
3. Switch the ignition off while depressing the brake pedal.
4. Turn on the hazard w arning flasher if it
is needed.
Tool preparation
Take out the five tools stored in the seat
side box.
Refer to Seat Side B ox on page 5-146.
WireGear
(tool kit) Rope
L-shaped
hexagonal wrench
(Small) L-shaped
hexagonal wrench
(Lar
ge)
Opening the rear roof
CAUTION
When turning the bolt, cover the front
roof using a cloth. The front roof may be
damaged if the L-shaped hexagonal
wrench contacts it.
 Because the clearance with the stored
front roof is narrow, be careful not to let
the L-shape hexagonal wrench contact
the roof when turning the bolt.
If Trouble Arises
When the Roof Cannot be Closed
7-59
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

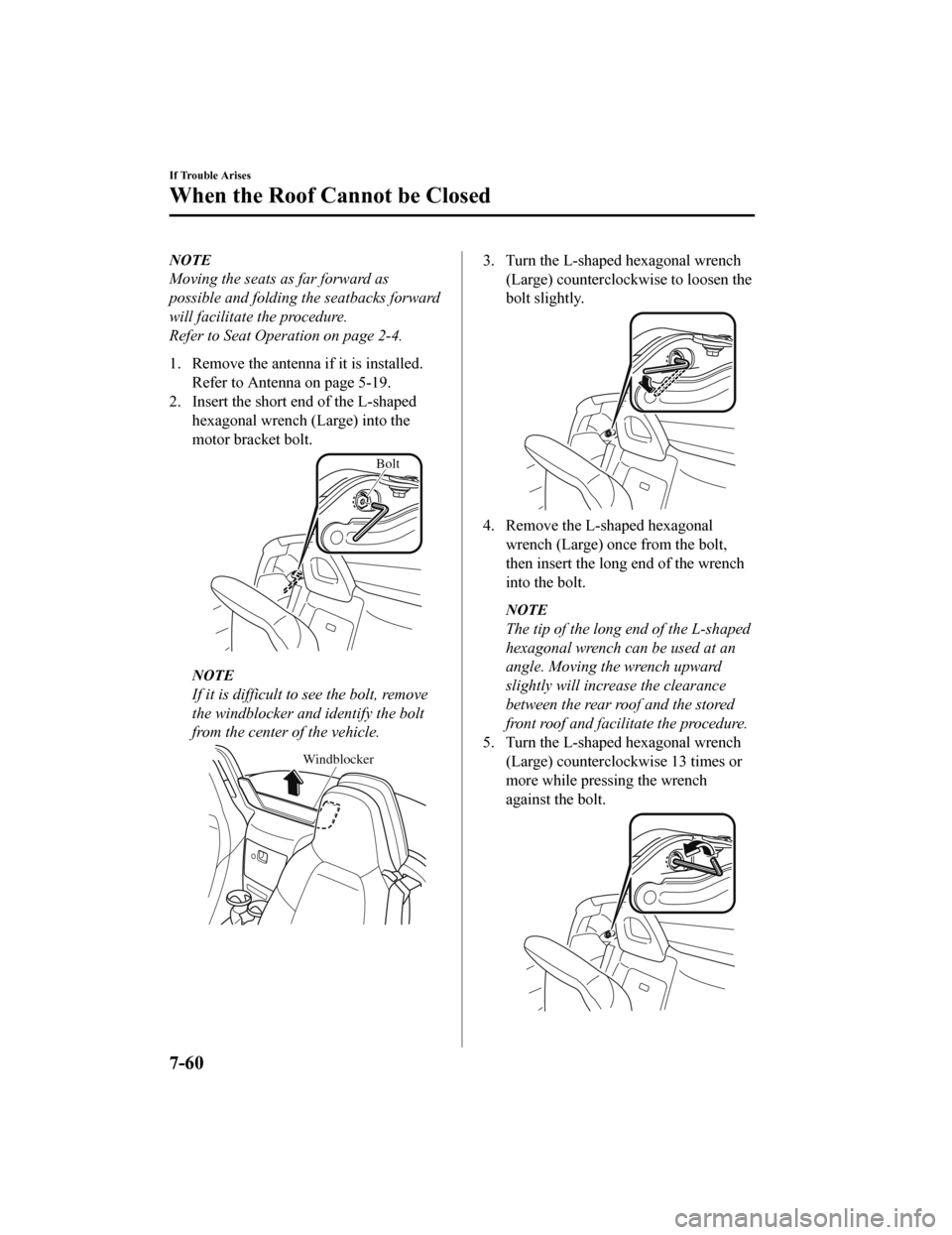

NOTE
Moving the seats as far forward as
possible and folding the seatbacks forward
will facilitate the procedure.
Refer to Seat Operation on page 2-4.
1. Remove the antenna if it is installed.Refer to Antenna on page 5-19.
2. Insert the short end of the L-shaped hexagonal wrench (Large) into the
motor bracket bolt.
Bolt
NOTE
If it is difficult to see the bolt, remove
the windblocker and identify the bolt
from the center of the vehicle.
Windblocker
3. Turn the L-shaped hexagonal wrench
(Large) counterclockwise to loosen the
bolt slightly.
4. Remove the L-shaped hexagonalwrench (Large) once from the bolt,
then insert the long end of the wrench
into the bolt.
NOTE
The tip of the long end of the L-shaped
hexagonal wrench can be used at an
angle. Moving the wrench upward
slightly will increase the clearance
between the rear roof and the stored
front roof and facilitate the procedure.
5. Turn the L-shaped hexagonal wrench (Large) counterclockwise 13 times or
more while pressing the wrench
against the bolt.
If Trouble Arises
When the Roof Cannot be Closed
7-60
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

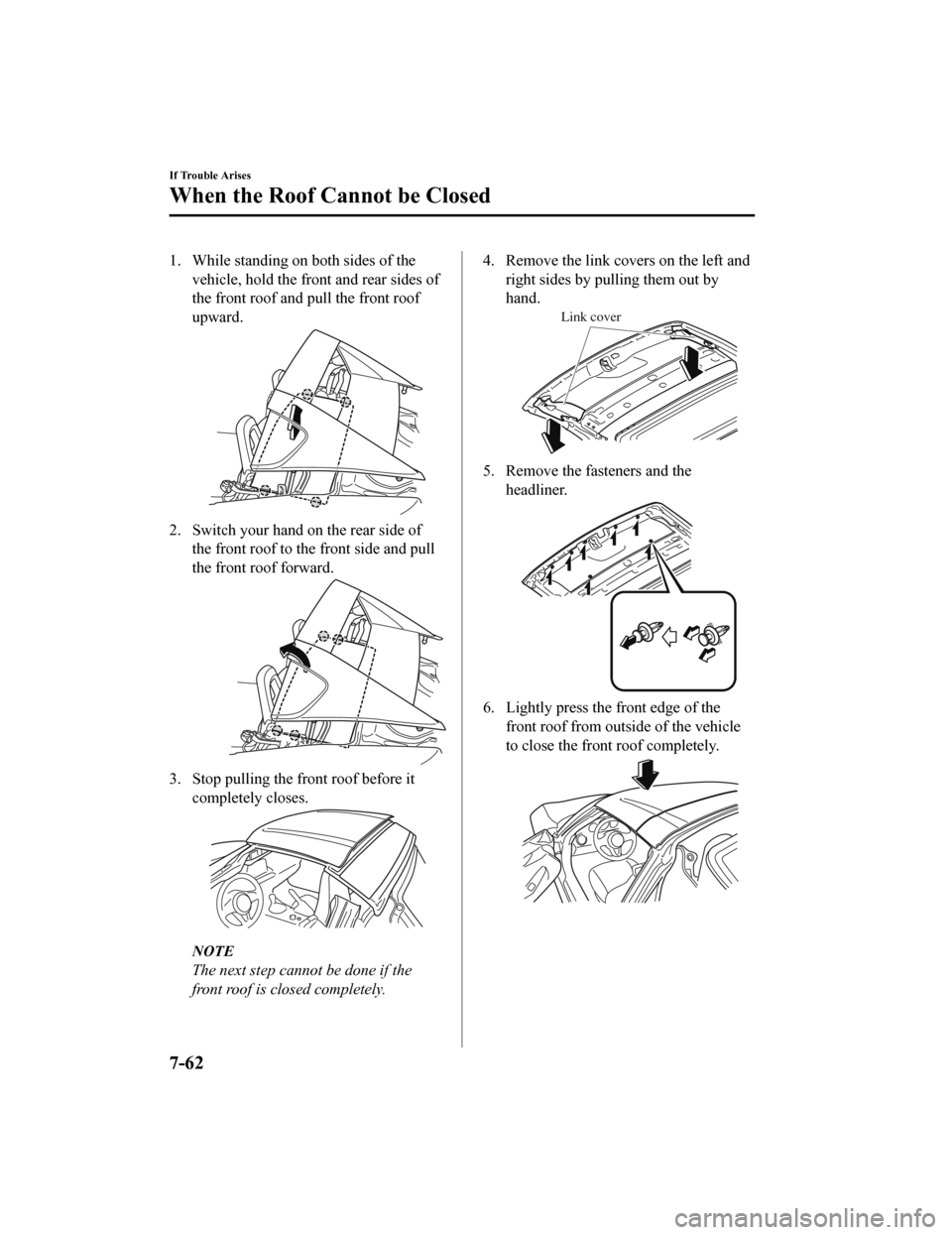

1. While standing on both sides of thevehicle, hold the front and rear sides of
the front roof and pull the front roof
upward.
2. Switch your hand on the rear side ofthe front roof to the front side and pull
the front roof forward.
3. Stop pulling the fr ont roof before it
completely closes.
NOTE
The next step cannot be done if the
front roof is closed completely.
4. Remove the link covers on the left and
right sides by pulling them out by
hand.
Link cover
5. Remove the fasteners and theheadliner.
6. Lightly press the front edge of thefront roof from outside of the vehicle
to close the front roof completely.
If Trouble Arises
When the Roof Cannot be Closed
7-62
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

14. Install the left and right link covers
from the vehicle interior.
Link cover
Closing the rear roof
CAUTION
 Slowly close the rear roof. If the rear roof
is closed suddenly, a hand or other body
part may be pinched, leading to a serious
injury.
 Do not attempt to forcefully push the
rear roof. Pushing the rear roof forcefully
may damage vehicle parts.
1. Fold the rope in half and hook it to the link pin of the rear roof.
Rope Link pin
2. Do the same procedure on the other
side.
3. Close the rear roo f uniformly on both
sides using two adults, one on each
side of the vehicle.
CAUTION
Close the rear roof with its left and right
positions as parallel as possible. If the
rear roof is closed with its left or right
height slanted, it could deform the link
mechanism.
4. Slowly close the rear roof while lightly pulling the rope with one hand so that
the rope does not unhook.
Rope
NOTE
Route the rope rearward through the
clearance between the rear roof and
trunk.
5. One person pushes the rear roof down and the other person pulls the rope
strongly and straight back towards the
vehicle rear until a click sound is
heard.
Rope
If Trouble Arises
When the Roof Cannot be Closed
7-65
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
