MAZDA MODEL MX-5 2018 Owners Manual (in English)

Mexico
Brief description: Bluetooth module for Hands-free telephone and streaming audio
Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.
Brand name of the product: Johnson Controls Inc.
Model name of the product: MAZ
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumable s and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations o r exceptions:
Refer to the Warranty Booklet fo r detailed warranty information.
Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Electrical specifications:
Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-49
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

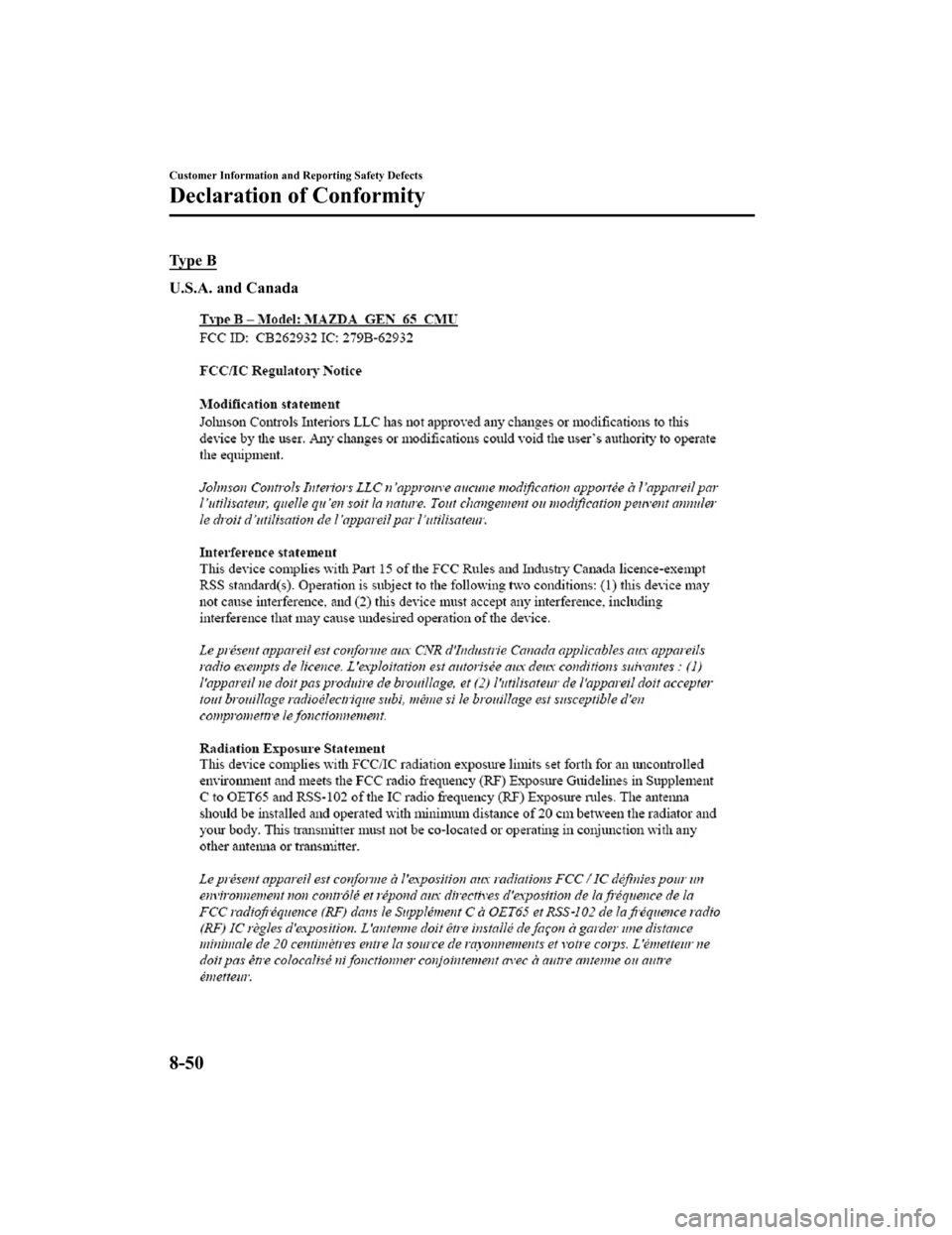

Ty p e B
U.S.A. and Canada
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-50
MX-5_8GF7-EA-17J_Edition22017-10-31 14:07:27

Mexico
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-51
MX-5_8GF7-EA-17J_Edition22017-10-31 14:07:27

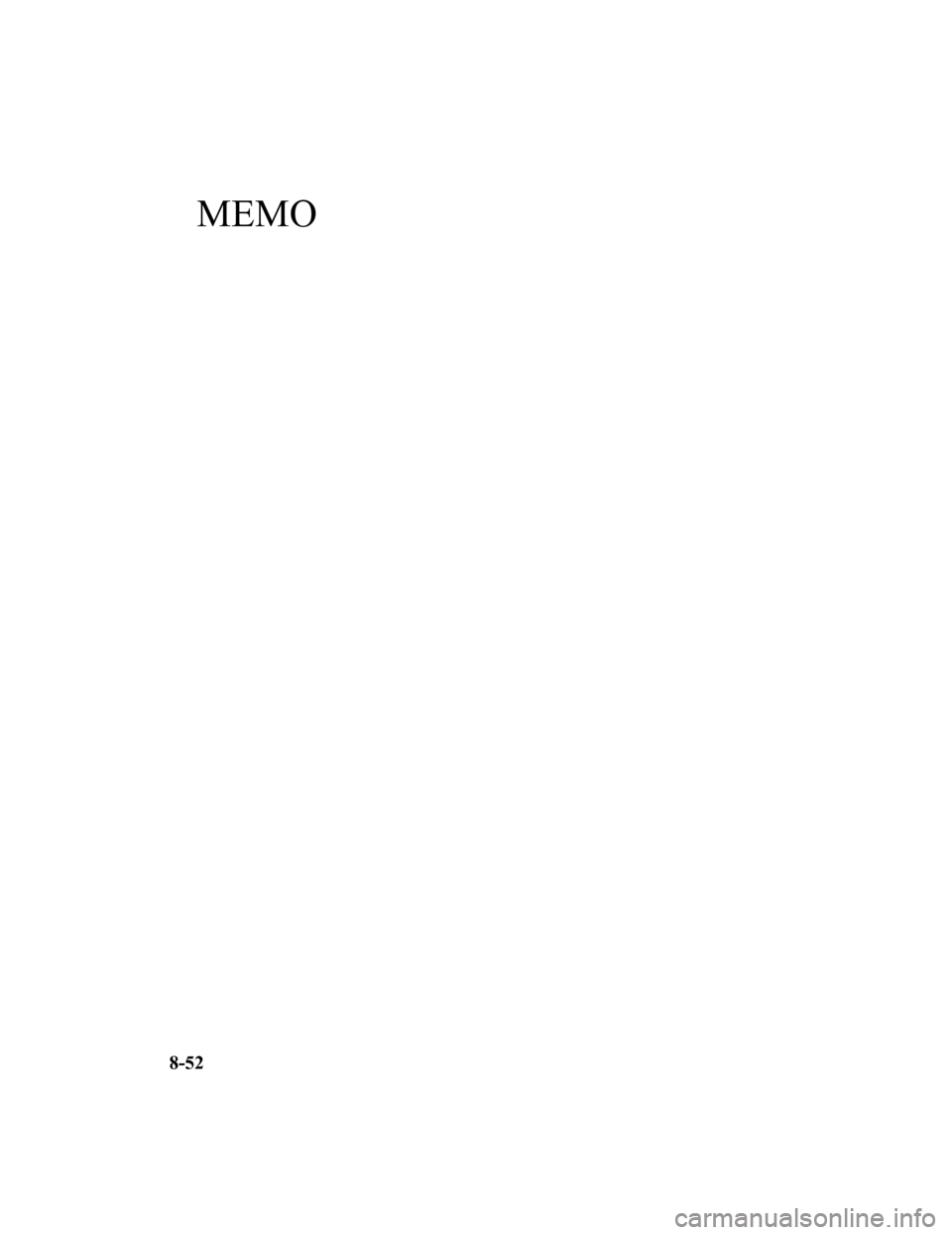

MEMO
8-52
MX-5_8GF7-EA-17J_Edition22017-10-31 14:07:27

9Specifications
Identification Numbers..................... 9-2Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4 Specifications............................... 9-4Personalization Featur es...................9-9
Personalization Features............... 9-9
9-1
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

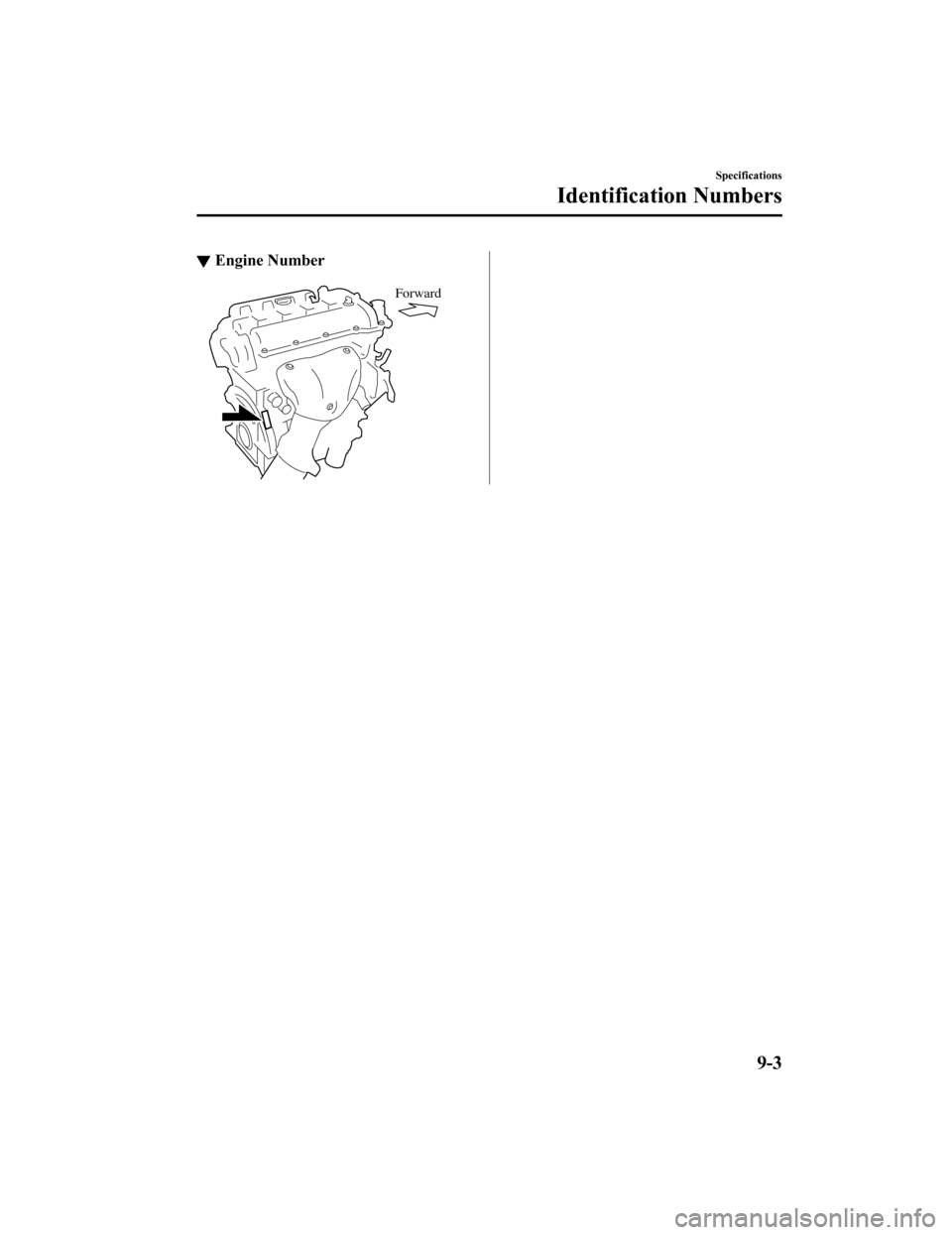

▼Engine Number
Forward
Specifications
Identification Numbers
9-3
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

Specifications
▼Engine
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery 12V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-22.
Coolant FL-22 type
Manual transmission oil Mazda Original Long Life Gear Oil IS
*1
Automatic transmission fluid Mazda Genuine JWS3309
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optim um shift-feel. Using Mazda Original Long Life
Gear Oil IS is recommended.
If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE
75W-90)). However, shifting in very low temperatures may become difficult.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
Specifications
Specifications
9-4
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 4.1 L (4.3 US qt, 3.6 Imp qt)
Coolant Manual transmission
6.0 L (6.3 US qt, 5.3 Imp qt)
Automatic transmission 5.9 L (6.2 US qt, 5.2 Imp qt)
Manual transmission oil 2.0 L (2.1 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.2 L (7.6 US qt, 6.3 Imp qt)
Rear differential oil 0.6 L (0.6 US qt, 0.5 Imp qt)
Fuel tank 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
U.S.A. and Canada
Item Vehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,235 mm (48.6 in)
―
17 inch wheel vehicle 1,240 mm (48.8 in) 1,245 mm (49.0 in)
Front tread 1,495 mm (58.9 in) 1,495 mm (58.9 in)
Rear tread 1,505 mm (59.3 in) 1,505 mm (59.3 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)

Mexico
ItemVehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,225 mm (48.2 in)
―
17 inch wheel vehicle 1,230 mm (48.4 in) 1,235 mm (48.6 in)
Front tread 1,495 mm (58.9 in) 1,495 mm (58.9 in)
Rear tread 1,505 mm (59.3 in) 1,505 mm (59.3 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)
Specifications
Specifications
9-5
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

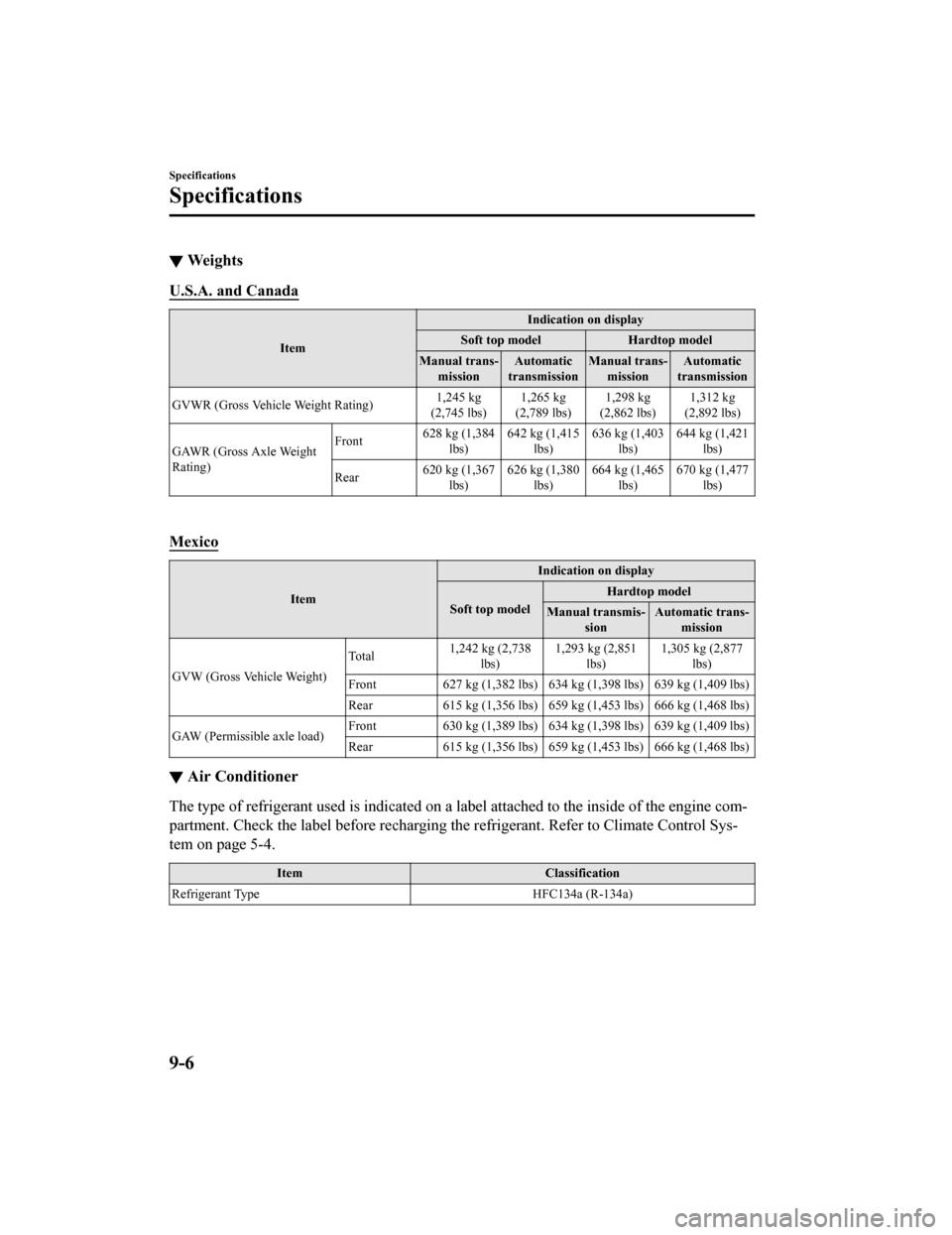

▼We i g h t s
U.S.A. and Canada
Item Indication on display
Soft top model Hardtop model
Manual trans- mission Automatic
transmission Manual trans-
mission Automatic
transmission
GVWR (Gross Vehicle Weight Rating) 1,245 kg
(2,745 lbs) 1,265 kg
(2,789 lbs) 1,298 kg
(2,862 lbs) 1,312 kg
(2,892 lbs)
GAWR (Gross Axle Weight
Rating) Front
628 kg (1,384
lbs) 642 kg (1,415
lbs) 636 kg (1,403
lbs) 644 kg (1,421
lbs)
Rear 620 kg (1,367
lbs) 626 kg (1,380
lbs) 664 kg (1,465
lbs) 670 kg (1,477
lbs)

Mexico
Item Indication on display
Soft top model Hardtop model
Manual transmis- sion Automatic trans-
mission
GVW (Gross Vehicle Weight) To t a l
1,242 kg (2,738
lbs) 1,293 kg (2,851
lbs) 1,305 kg (2,877
lbs)
Front 627 kg (1,382 lbs) 634 kg (1,398 lbs) 639 kg (1,409 lbs)
Rear 615 kg (1,356 lbs) 659 kg (1,453 lbs) 666 kg (1,468 lbs)
GAW (Permissible axle load) Front
630 kg (1,389 lbs) 634 kg (1,398 lbs) 639 kg (1,409 lbs)
Rear 615 kg (1,356 lbs) 659 kg (1,453 lbs) 666 kg (1,468 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com-
partment. Check the la bel before recharging the refrigerant. Re fer to Climate Control Sys-
tem on page 5-4.
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
Specifications
9-6
