CAUTION
Remove leaves or other matter that may accumulate on and around the convertible top. If
leaves or other matter block the drain filter, water may enter the vehicle. Clean the drain
filter at least once a year.
Refer to Convertible Top Maintenance on page 6-62.
 Before opening the convertible top, make sure the rear window defogger switch is turned
off. Otherwise the heat generated from the defogger could damage the convertible top and
the internal material.
 Before lowering or raising the convert ible top, stop in a safe place
off the right-of-way and
park on a level surface.
 Make sure nothing is on the convertible top or near the back window when raising or
lowering the convertible top.
Even small objects may interfere and cause damage.
 Do not drive through an automatic car wash; it may damage the convertible top.
 Do not raise or lower the convertible top when the temperature is below 5 °C (41 °F) ; this
will damage the convertible top material.
 Do not lower the convertible top when it's wet. If the convertible top dries while folded, it
will deteriorate and mold.
 Lowering the convertible top while it's wet can also cause water to drip into the passenger
compartment.
 Do not raise or lower the convertible top in a strong wind as it could damage the
convertible top or cause an unexpected accident.
NOTE

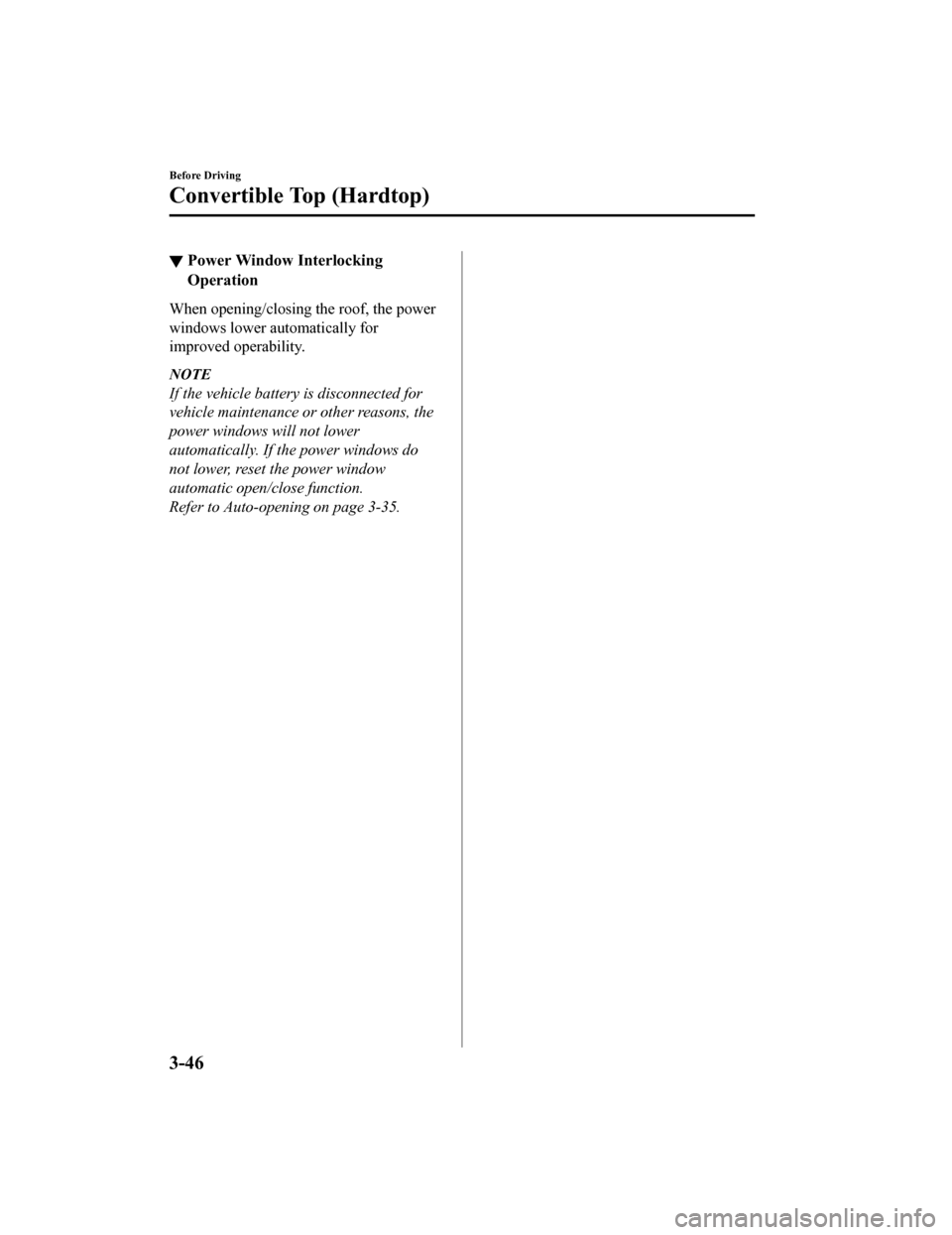

The power windows go down automatically in conjunction with the convertible top
opening/closing. However, this is a function for improving the operability, and it does not
mean there is a problem. If the vehicle battery is disconnected for vehicle maintenance or
other reasons, the power windows will not go down automatically. If the power windows
do not go down, the automatic open/close mechanism for the windows must be reset.
Refer to Auto-opening on page 3-35.
When lowering the convertible top, make sure objects inside the vehicle are not blown
away by the wind.
Secure all loose objects inside before driving with the convertible top down.
To help prevent burglary or vandalism and to ensure that the passenger compartment
stays dry, close the convertible top and both windows securely and lock both doors when
leaving the vehicle.
The soft top is made of high quality material and if it is not maintained correctly, the
material could harden, becomes stained, or have an uneven gloss.
Before Driving
Convertible Top (Soft Top)
3-37
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

▼Lowering the Convertible Top
CAUTION
Do not sit on the folded convertible top.
Otherwise, the convertible top could be
damaged or you may fall off and be
injured.
1. Make sure the parking brake isapplied.
2. If the engine is running, turn it off.
3. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
4. With the lock release button depressed forward, pull back the top latch lever
to unlock it.

Top latch
Lock release button
5. Remove the striker from the anchor.

Anchor Striker
NOTE
If the power windows do not go down
automatically, fully open the windows
or open the doors.
6. Standing outside of the vehicle, hold
the convertible top along the front edge
and pull it toward the vehicle rear.

Front edge
NOTE
To lower the convertible top from
inside the vehicle, use the convertible
top's handles.

Convertible top's handles
Before Driving
Convertible Top (Soft Top)
3-38
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

7. Move the convertible top rearward andfold it while pressing the rear glass
lightly with your hand.

8. With the back end of the convertibletop pressed, press the front end until a
latch sound is heard.
Lightly rock the retracted convertible
top to make sure it is securely locked.

▼Raising the Convertible Top
1. Make sure the parking brake is applied.
2. If the engine is running, turn it off.
3. Pull up the unlock lever to disengage the lock.

Unlock Lever
4. Standing outside of the vehicle, holdthe convertible top along the front edge
and pull it towards the vehicle front.

Front edge
NOTE
If the power windows do not go
down automatically, fully open the
windows or open the doors.
Before Driving
Convertible Top (Soft Top)
3-39
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

To raise the convertible top from
inside the vehicle, use the
convertible top's handles.

Convertible top's handles
5. Sitting in a seat, grasp the convertibletop's handles, and press the convertible
top against the windshield.
Make sure the strik er engages with the
anchor, move the top latch slowly, and
then push the top latch upward until a
latch sound is heard.

Convertible top's handles
Striker
Anchor
CAUTION

Driving with the convertible top not fully
locked could damage the convertible
top.
If the red indicator is visible on the lock
release button, the convertible top is not
locked. After locking the convertible top,
verify that the red indicator is not visible.

Locked position
Unlocked position Red indicator
 Do not spray water directly near the
seam of the window and convertible top
when flushing away dirt on the soft top
with water. Otherwise, water may enter
the vehicle.
Refer to Convertible Top Maintenance on
page 6-62.
NOTE
The convertible top may be constricted
if it is left retracted for a long period.
Therefore, if the top has become
constricted, it may be difficult to hook
the top latch striker to the anchor.
Make sure the convertible top is
securely locked by pushing up on it. If it
still sounds loose (rattles) after being
locked by the top latch, have it inspected
at an Authorized Mazda Dealer.
Before Driving
Convertible Top (Soft Top)
3-40
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Convertible Top (Hardtop)
The retractable hardtop opens/closes electrically by operating switches in the vehicle. When
opening/closing the roof and window glass operate together. The front roof is stored in the
storage area under rear roof.
To help prevent burglary or vandalism and to ensure that the pa ssenger compartment stays
dry, close the roof and both windows securely and lock both doors when leaving the vehicle.
Front roof
Rear roofMiddle roof
▼Convertible Top Precautions
WARNING
Always confirm that there are no people around the vehicle before operating the roof:
If the roof were to operate unexpectedly, it coul d result in an accident and serious injury from
someone getting caught in the mechanism.
Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the rear roof or center console when the vehicle is
moving is a dangerous way to ride. During a sudden maneuver or collision you could be
seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when moving the
roof:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.
Before Driving
Convertible Top (Hardtop)
3-41
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

CAUTION
When getting in or out of the vehicle with the roof open, be careful not to hit your head or
body on the corner of the windshield glass. It may cause an injury.
 Do not drive with the roof partially opened ; this could damage the roof or cause an
unexpected accident.
 Children should not be allowed to play with the retractable hardtop switch.
 Do not place objects or cargo around the rear roof, rear glass, or the front roof storage area.
Even small objects may interfere and cause damage.
 Remove leaves that accumulate on and around the roof. If the leaves are not removed, they
may block the water drainage outlets.
 Before opening the roof, make sure the rear window defogger switch (Defroster) is turned
off. Otherwise the heat generated from the defogger could damage the roof and the
internal material.
 When opening/closing the roof, verify that ther e is no obstruction above the roof (about 1.6
m (5 ft 2 in) from the ground) so as not to damage the roof or the obstruction.
 When opening/closing the roof, do not apply any load to the front roof or the rear roof. The
opening/closing mechanism of the roof may be damaged.
 Do not spray water directly near the seam of the window and roof when washing off dirt on
the roof with water. Otherwise, water may enter the cabin.
Refer to Convertible Top (Retractable Hardtop) Maintenance on page 6-64.
 Open/close the roof with the vehicle parked on a hard, level ground in a safe place where
the vehicle does not obstruct traffic. If the roof is opened/closed on a slope or bump, the
opening/closing mechanism of the roof may be damaged.
 Do not drive through an automatic car wash as it may damage the roof.
 Do not open or close the roof forcefully when the ambient temperature is low and the roof
or the surrounding area is frozen as it could damage the roof.
 Opening the roof while it is wet can also cause water to drip into the passenger
compartment.
 Do not open or close the roof in a strong wind as it could damage the roof.
Before Driving
Convertible Top (Hardtop)
3-42
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

▼Opening the Roof
When opening the roof, make sure objects
inside the vehicle are not blown away by
the wind. Secure all loose objects inside
before driving with the roof down.
1. Park the vehicle on level ground in a safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual transmission vehicle.
Shift the selector lever to P on an
automatic transmission vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Start the engine to prevent the battery
from going dead.
4. Continue pressing the retractable
hardtop switch in the open direction
until the roof opening operation is
completed. When the opening
operation is completed, a beep sound is
activated and the operation indicator
light turns off.
NOTE
If the retractable hardtop switch is
pressed in the open direction, a
warning beep sounds.
When pressing the retractable
hardtop switch while the windows
are closed, the windows open
slightly. If the switch is continuously
pressed in the open direction until
the roof opening operation is
completed, the wi ndows return to
their original positions. However,
the windows may not return to their
original positions depending on the
conditions.
The roof keeps opening and the
operation indicator light flashes
while the retractable hardtop switch
is pressed in the open direction.
If the switch is released while the
roof is opening, the roof stops
opening. If the switch is pressed in
the open direction again, the roof
resumes opening.
When the roof is half-open, the front
roof resumes opening after the rear
roof is completely open.
▼Closing the Roof
1. Park the vehicle on level ground in a safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual vehicle.
Shift the selector lever to P on an
automatic vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Slightly slide the seats back if they are in the foremost position.
4. Start the engine to prevent the battery from going dead.
Before Driving
Convertible Top (Hardtop)
3-44
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

5. Continue pressing the retractablehardtop switch in the close direction
until the roof closing operation is
completed. When the closing operation
is completed, a beep sound is activated
and the operation i ndicator light turns
off.

6. Close the windows using the power window switch.
NOTE
If the retractable hardtop switch is
pressed in the close direction, a warning
beep sounds.
When pressing the retractable hardtop
switch while the windows are closed, the
windows open slightly. The windows do
not return to their original positions
even after the roof closing operation is
completed.
The roof keeps closing and the operation
indicator light flashes while the
retractable hardtop switch is pressed in
the close direction.
If the switch is released while the roof is
closing, the roof stops closing. If the
switch is pressed in the close direction
again, the roof resumes closing.
▼Operation Conditions
If the following conditions have been
satisfied, the roof can be opened/closed.
The ignition is switched ON.
Shift/selector lever is in a position other
than R (reverse).
Vehicle speed is 10 km/h (6.2 mph) or
less.
The trunk lid is closed.
The vehicle is tilted at an angle of 15
degrees or less.
CAUTION
If the vehicle speed exceeds 10 km/h (6.2
mph) during the opening/closing
operation, the opening/closing operation
of the roof stops midstream. If the roof
stops midstream, visibility at the rear may
be impaired or damage to the roof may
occur which could lead to an accident.
Operate the switch again with the vehicle
stopped, depending on the road and traffic
conditions, to complete opening/closing
operation of the roof.
NOTE
For the purposes of safety when
opening/closing the roof, follow the
instructions for Opening the Roof and
Closing the Roof.
If the roof cannot be closed even after
the operation conditions are all met,
have it checked at an Authorized Mazda
Dealer.
The roof can be closed manually as an
emergency measure.
Refer to When the Roof Cannot be
Closed on page 7-57.
Before Driving
Convertible Top (Hardtop)
3-45
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

▼Power Window Interlocking
Operation
When opening/closing the roof, the power
windows lower automatically for
improved operability.
NOTE
If the vehicle battery is disconnected for
vehicle maintenance or other reasons, the
power windows will not lower
automatically. If the power windows do
not lower, reset the power window
automatic open/close function.
Refer to Auto-opening on page 3-35.
Before Driving
Convertible Top (Hardtop)
3-46
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry into the vehicle, which
could result in the veh icle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
Forcing open a door, the hood or the
trunk lid.
Opening the hood by operating the hood
release handle.
Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activat e until the driver's
door is unlocked wit h the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
The trunk lid does not open while the
theft-deterrent system is operating.
If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash when the battery is
charged or replaced.
▼How to Arm the System
1. Close the windows and the convertible top securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close both of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
Before Driving
Security System
*Some models.3-49
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
