MAZDA MODEL MX-5 2020 Owners Manual (in English)

▼Audio System
(U.S.A. and Canada)
FCC ID: NT862932
FCC
This device complies with part 15 of the FCC Rules. Operation i s subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
IC: 3043A-62932
ISED CANADA
This device complies with Industry Canada license-exempt RSS st andard(s). Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Mazda Audio System Customer Service
U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect
Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-47
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

(Mexico)
Name and address of the importer: Refer to "MEXICO" (page 8-13) in Importer/
Distributor section.
Brand name of the product: Visteon Corporation
Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-13) in Importer/Distributor section.
Names and addresses of where to acquire spare parts, consumable s and accessories: Refer
to "MEXICO" (page 8-13) in Importer/Distributor section.
Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.
Warranty procedure:
Centre of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Brief description: Automotive Electronics Infotainment Head Uni t
Model name of the product: MAZDA_GEN_65_CMU
Homologation ID: RCPJOMA13-1301
Electrical specifications:
Voltage: 10-16V, Frequency: 2.4GHz, Current: 1A(Typ)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-48
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

9Specifications
Technical information about your Mazda.
Identification Numbers..................... 9-2 Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4 Specifications............................... 9-4
Personalization Featur es...................9-9
Personalization Features............... 9-9
9-1
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

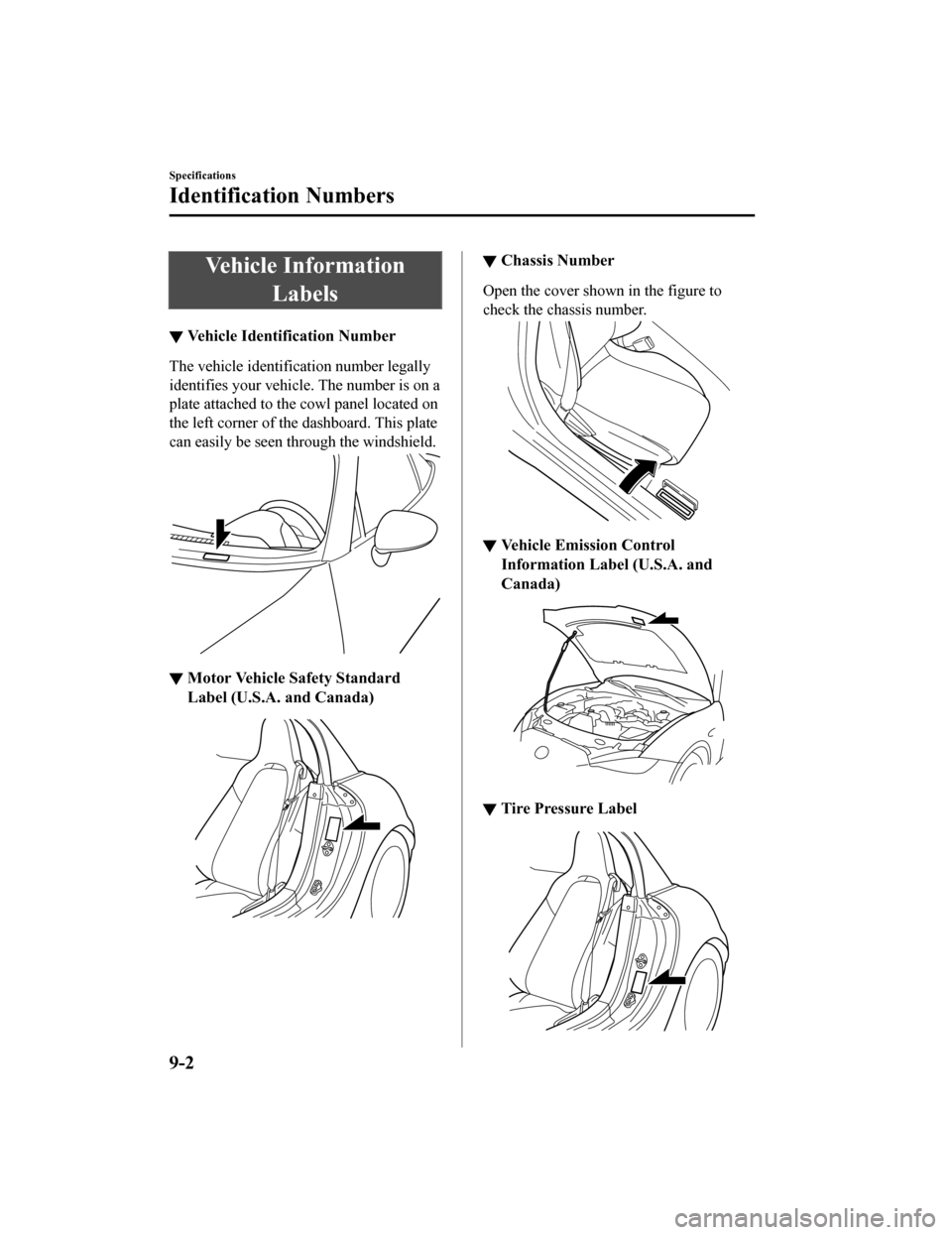

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

▼Engine Number
Forward
Specifications
Identification Numbers
9-3
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

Specifications
▼Engine
ItemSpecification
Ty p e DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
▼Electrical System
ItemClassification
Battery 12V-45Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance . Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.
▼Lubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 6-23.
Coolant FL-22 type
Manual transmission oil Mazda Original Long Life Gear Oil IS
*1
Automatic transmission fluid Mazda Genuine JWS3309
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life
Gear Oil IS is recommended.
If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE
75W-90)). However, shifting in very low temperatures may become difficult.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
Specifications
Specifications
9-4
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

▼Capacities
(Approximate Quantities)
ItemCapacity
Engine oil With oil filter replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter replacement 4.1 L (4.3 US qt, 3.6 Imp qt)
Coolant Manual transmission
6.0 L (6.3 US qt, 5.3 Imp qt)
Automatic transmission U.S.A. and Canada 5.7 L (6.0 US qt, 5.0 Imp qt)
Mexico
5.8 L (6.1 US qt, 5.1 Imp qt)
Manual transmission oil 2.0 L (2.1 US qt, 1.8 Imp qt)
Automatic transmission fluid 7.2 L (7.6 US qt, 6.3 Imp qt)
Rear differential oil 0.6 L (0.6 US qt, 0.5 Imp qt)
Fuel tank 45.0 L (11.9 US gal, 9.90 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
U.S.A. and Canada
ItemVehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,235 mm (48.6 in)
―
17 inch wheel vehicle 1,240 mm (48.8 in) 1,245 mm (49.0 in)
Front tread 1,496 mm (58.9 in) 1,496 mm (58.9 in)
Rear tread 1,503 mm (59.2 in) 1,503 mm (59.2 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)

Mexico
ItemVehicle specification
Soft top model Hardtop model
Overall length 3,915 mm (154.1 in) 3,915 mm (154.1 in)
Overall width 1,735 mm (68.3 in) 1,735 mm (68.3 in)
Overall height 16 inch wheel vehicle 1,225 mm (48.2 in)
―
17 inch wheel vehicle 1,230 mm (48.4 in) 1,235 mm (48.6 in)
Front tread 1,496 mm (58.9 in) 1,496 mm (58.9 in)
Rear tread 1,503 mm (59.2 in) 1,503 mm (59.2 in)
Wheelbase 2,310 mm (90.9 in) 2,310 mm (90.9 in)
Specifications
Specifications
9-5
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

▼We i g h t s
U.S.A. and Canada
ItemWeight
Soft top model Hardtop model
Manual
transmission Automatic
transmission Manual
transmission Automatic
transmission
GVWR (Gross Vehicle Weight Rating) 1,245 kg
(2,745 lbs) 1,265 kg
(2,789 lbs) 1,298 kg
(2,862 lbs) 1,312 kg
(2,892 lbs)
GAWR (Gross Axle Weight Rating) Front
628 kg
(1,384 lbs) 642 kg
(1,415 lbs) 636 kg
(1,402 lbs) 644 kg
(1,420 lbs)
Rear 620 kg
(1,367 lbs) 626 kg
(1,380 lbs) 664 kg
(1,464 lbs) 670 kg
(1,477 lbs)

Mexico
Item Weight
Soft top model Hardtop model
Manual transmis‐ sion Automatic trans‐
mission
GVW (Gross Vehicle Weight) To t a l
1,242 kg
(2,738 lbs) 1,293 kg
(2,851 lbs) 1,305 kg
(2,877 lbs)
Front 627 kg (1,382 lbs) 634 kg (1,398 lbs) 639 kg (1,409 lbs)
Rear 615 kg (1,356 lbs) 659 kg (1,453 lbs) 666 kg (1,468 lbs)
GAW (Permissible axle load) Front
630 kg (1,389 lbs) 634 kg (1,398 lbs) 639 kg (1,409 lbs)
Rear 615 kg (1,356 lbs) 659 kg (1,453 lbs) 666 kg (1,468 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t o the inside of the engine com‐
partment. Check the la bel before recharging the refrigerant. Re fer to Climate Control Sys‐
tem on page 5-2.
Item Specification
Refrigerant Type HFC134a (R-134a)
Specifications
Specifications
9-6
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06

▼Light Bulbs
Exterior light
Light bulbCategory
Wattage UN-R*1 (SAE)
Headlights High beam
LED
*2― (―)
Low beam LED
*2― (―)
Daytime running lights LED type
LED
*2― (―)
Bulb type 21W21W (7440)
Parking lights LED
*2― (―)
Front side-marker lights 5W5W (―)
Front turn signal lights 28/8― (7444NA)
Side turn signal lights 5
*3WY5W (―)
High-mount brake light LED
*2― (―)
Rear turn signal lights 21WY21W (7443NA)
Rear side-marker lights 5W5W (―)
Brake lights LED
*2― (―)
Taillights LED
*2― (―)
Reverse lights 21W21W (7440)
License plate lights 5W5W (―)
*1 UN-R stands for Unite d Nations Regulation.*2 LED is the abbreviation for Light Emitting Diode.*3 Bulb replacement is not possibl e because it is built into the unit. Replace the unit.

Interior light
Light bulb Category
Wattage UN-R*1
Overhead light 10―
Trunk light 5―
*1 UN-R stands for United Nations Regulation.
Specifications
Specifications
9-7
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 6-38.
Standard tire
Tire size Inflation pressure
Front Rear
195/50R16 84V 200 kPa (2.0 bar, 29 psi) 200 kPa (2.0 bar, 29 psi)
205/45R17 84W 200 kPa (2.0 bar, 29 psi) 200 kPa (2.0 bar, 29 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following to rque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-52.
Specifications
Specifications
9-8
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
