Page 6 of 564
Interior Equipment (View A)
Æ’Door-lock knob..................................................................................................... page 3-21
„ Turn and lane-change signal..................................................................................page 4-50
… Lighting control.....................................................................................................page 4-45
†Wiper and washer lever......................................................................................... page 4-51
‡ DSC OFF switch................................................................................................... page 4-68
ˆ Lane Departure Warning System (LDWS) OFF switch........................................page 4-84
‰ Outside mirror switch............................................................................................page 3-30
Å Door-lock switch................................................................................................... page 3-18
‹ Power window lock switch................................................................................... page 3-33
Å’ Power window switches........................................................................................ page 3-33
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 9 of 564
Interior Equipment (View D)
â–¼Convertible Top (Soft Top)
Æ’Windblocker........................................................................................................ page 5-101
„ Seat side box......................................................................................................... page 5-9 9
… Cup holders........................................................................................................... page 5-9 5
†Console box...........................................................................................................page 5-9 9
‡ Interior light................................................. ......................................................... page 5-92
ˆ Rearview mirror................................................ .................................................... page 3-31
‰ Sunvisor....................................................... ..........................................................page 5-92
Å Vanity mirror......................................................................................................... page 5-9 2
‹ Parking brake.................................................. ...................................................... page 4-62
Å’ Seat........................................................... ............................................................... page 2-5
SRS air bag............................................................................................................page 2- 36
Ž Back trim storage boxes..................................................................................... page 5-100
Seat belt................................................................................................................. page 2-13
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-5
MX-5_8JA4-EA-19K_Edition2_old 2019-8-29 16:18:06
Page 10 of 564
â–¼Convertible Top (Hardtop)
Æ’Windblocker........................................................................................................ page 5-101
„ Seat side box......................................................................................................... page 5-9 9
… Cup holders........................................................................................................... page 5-95
†Console box...........................................................................................................page 5-99
‡ Interior light.......................................................................................................... page 5-92
ˆ Rearview mirror.................................................................................................... page 3-31
‰ Sunvisor.................................................................................................................page 5-92
Å Vanity mirror......................................................................................................... page 5-9 2
‹ Parking brake........................................................................................................ page 4-62
Å’ Seat.......................................................................................................................... page 2-5
SRS air bag............................................................................................................page 2- 36
Ž Back trim storage box.........................................................................................page 5-100
Seat belt...................................................... ........................................................... page 2-13
Pictorial Index
Interior Overview
1-6The equipment and installation position varies by vehicle
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 11 of 564
Convertible Top (Soft Top)
Æ’Hood...................................................................................................................... page 6-20
„ Windshield wiper blades....................................................................................... page 6-28
… Convertible Top (Soft Top)................................................................................... page 3-36
†Door and key................................................... ...................................................... page 3-15
‡ Fuel-filler lid......................................................................................................... page 3 -28
ˆ Wheels and Tires................................................................................................... page 6-38
‰ Exterior lights........................................................................................................ page 6- 42
Å Trunk Lid...............................................................................................................page 3 -22
‹ Antenna................................................................................................................. page 5 -17
Å’ Outside mirror....................................................................................................... page 3-30
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle1-7
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 12 of 564
Convertible Top (Hardtop)
Æ’Hood........................................................... ........................................................... page 6-20
„ Windshield wiper blades........................................ ............................................... page 6-28
… Convertible Top (Hardtop).................................................................................... page 3-41
†Door and key......................................................................................................... page 3-15
‡ Fuel-filler lid......................................................................................................... page 3-28
ˆ Wheels and Tires................................................................................................... page 6-38
‰ Exterior lights................................................ ........................................................ page 6-42
Å Trunk Lid...............................................................................................................page 3-22
‹ Antenna................................................................................................................. page 5-17
Å’ Outside mirror....................................................................................................... page 3-30
Pictorial Index
Exterior Overview
1-8The equipment and installatio n position varies by vehicle
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 17 of 564
Seat
â–¼Adjusting the Driver's Seat
Using the driving position set up procedure recommended by Mazda allows you to maintain
a relaxed posture, drive the vehicle for longer periods without feeling tired, and make quick
operations naturally.
Also, you can be assured of a clear view in the forward directi on to help you drive more
safely and comfortably.
The adjustments for the driving position recommended by Mazda are done using the
following procedures.
1. Moving the steering wheel and seat to their default positions .
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the steering wheel position.
Seat Slide
To move a seat forward or backward, raise the lever and slide t he seat to the desired position
and release the lever.
Make sure the lever returns to i ts original position and the seat is locked in place by
attempting to push it forward and backward.
Height Adjustment for Front Edge of Seat Bottom
To adjust the height for front e dge of the seat bottom, rotate the dial to the desired position.
Seat Recline
To change the seatback angle, lean forward slightly while raisi ng the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to i ts original position and the seatback is locked in place by
attempting to push it forward and backward.
Essential Safety Equipment
Seats
2-5
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 19 of 564
Seat adjustment procedure for the driving position recommended by Mazda
Adjusting the seatback angle (reclining)
Adjust the seatback to the angle providing a comfortable seated posture.
1. With your posture slightly slouched, move the seatback forwar d to the angle where your
waist feels slightly cramped.
2. Move the seatback backward to a comfortable seated posture wi thout any feeling of
cramping in your waist.
Essential Safety Equipment
Seats
2-7
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 20 of 564
Adjusting the seat position forward and back (sliding)
Adjust the seat to the position best for operating the accelerator and brake pedals.
1. Place your left foot on the fo otrest, your right foot between the accelerator and brake
pedals, and position your heel to the position allowing easy sw itching between the
pedals.
2. With your heel set on the floor, set your right foot on the brake pedal and move the seat forward as far as possible until you feel a slight cramping in your ankle.
3. With your right foot set on the brake pedal, move the seat ba ck until you no longer feel
cramping in your ankle.
4. With your heel set on the floor, make sure you can move your foot between the brake
pedal and accelerator pedal smoothly.
5. Depress the accelerator pedal completely with your heel set o n the floor and make sure
that your ankle does not feel over-stretched.
Essential Safety Equipment
Seats
2-8
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 22 of 564

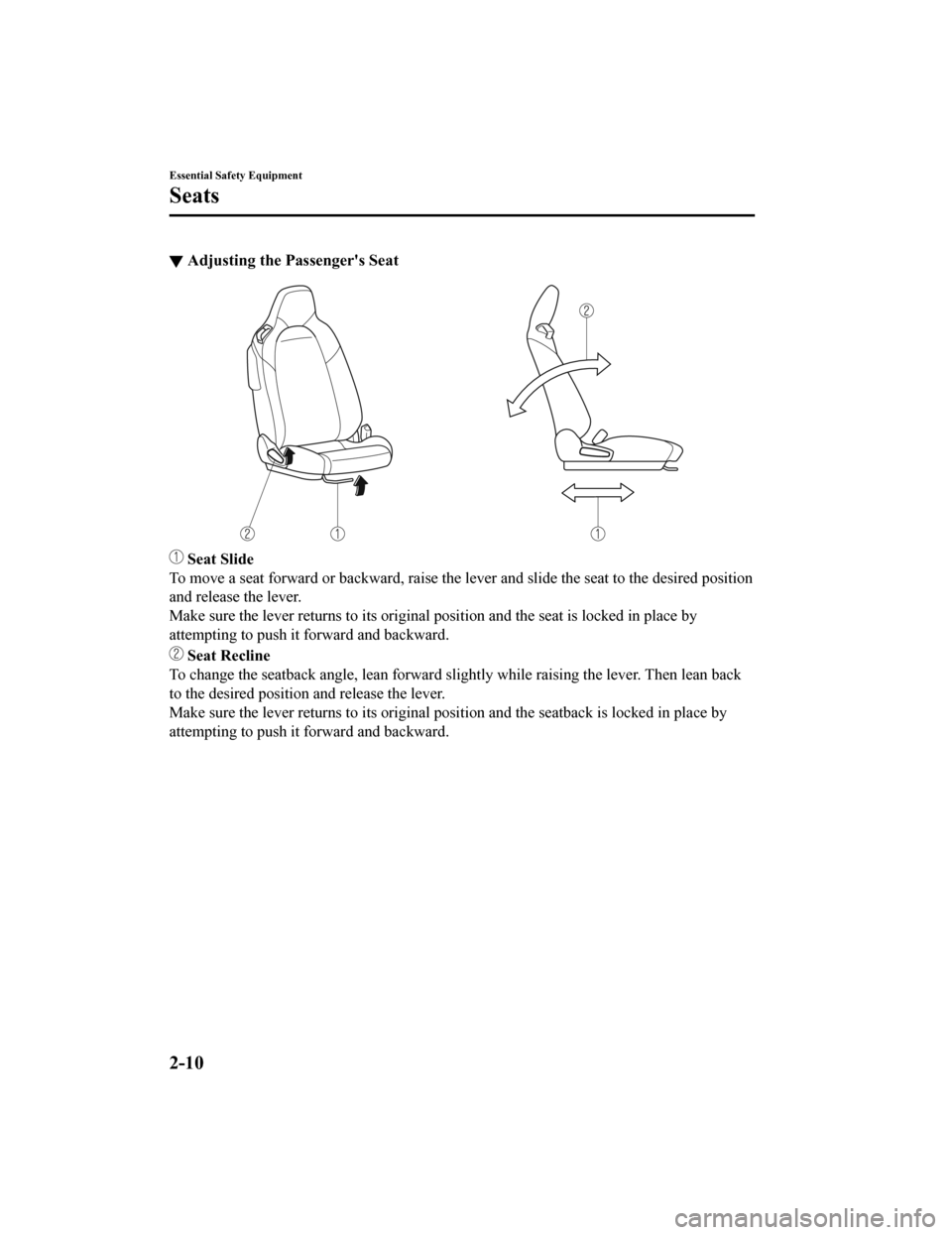

â–¼Adjusting the Passenger's Seat
Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to i ts original position and the seat is locked in place by
attempting to push it forward and backward.
Seat Recline
To change the seatback angle, lean forward slightly while raisi ng the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to i ts original position and the seatback is locked in place by
attempting to push it forward and backward.
Essential Safety Equipment
Seats
2-10
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
Page 24 of 564
Seat Warmer*
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
Low Mid
High
OFF
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
ï‚·Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
ï‚·If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
ï‚·The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
Essential Safety Equipment
Seat Warmer
2-12*Some models.
