ESP MAZDA MODEL MX-5 MIATA 2004 Owners Manual

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user ’s authority to operate the
equipment.
CAUTION
Door Locks
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don ’t leave
the keys in your vehicle with children.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors when leaving your
vehicle unattended. This discourages
intruders and thieves.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 7 Thursday, August 21, 2003 10:04 AM

3-14
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G
The ignition switch must be in the ON
position for the power windows to
operate.

Operating the Driver’s Side
Power Window
Opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Auto-opening
To fully open the window automatically,
push the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Power Windows
Closing Power Windows:
Closing power windows are
dangerous. A person
’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don ’t leave
the keys in your vehicle with children.
WARNING
Open
Close
Left
window
J07S_8S15-EA-03G_Edition2.book Page 14 Thursday, August 21, 2003 10:04 AM

3-29
Knowing Your Mazda
Form No. 8S15-EA-03G
Security System
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
Immobilizer System*
•Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user
’s authority to operate
the equipment.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
•When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not
being transmitted correctly.

A key ring rests on the key grip.
 Metal parts of other keys or
metal objects touch the key grip.
 Spare keys or keys for other
vehicles equipped with an
immobilizer system touch or
come near the key grip.
 Devices for electronic purchases,
or security passage touch or
come near the key.
CAUTION
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 29 Thursday, August 21, 2003 10:04 AM

5-7
Driving Your Mazda
Starting and Driving
Form No. 8S15-EA-03G

Anti-Lock Brake System (ABS)*
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel
’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don ’t
pump the brakes, continue to press down
on the brake pedal.
Brake Warning Light:
Driving with the brake system warning
light on is dangerous. It indicates that
your brakes may not work at all or that
they could completely fail at any time.
If this light remains on, after checking
that the parking brake is released, have
the brakes inspected immediately.
Don ’t drive with this light on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon as
possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don ’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don ’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 7 Thursday, August 21, 2003 10:04 AM

6-25
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Seek tuning
Pressing the seek tuning button
( , ) will cause the tuner to seek a
higher or lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button ( ) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the station you want.
2. Depress a channel preset button for about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed. Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
When the clock is displayed, the preset
channel number will not be displayed.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
•
When the clock is displayed, the
preset channel number will not be
displayed.
• If no stations can be tuned after
scanning operations, "A" will be
displayed.
J07S_8S15-EA-03G_Edition2.book Page 25 Thursday, August 21, 2003 10:04 AM

6-47
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Seek tuning
Pressing the seek tuning button
( , ) will cause the tuner to seek a
higher or lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button ( ) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the station you want.
2. Depress a channel preset button for about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed. Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
If no stations can be tuned after
scanning operations, "A" will be
displayed.
J07S_8S15-EA-03G_Edition2.book Page 47 Thursday, August 21, 2003 10:04 AM

6-58
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

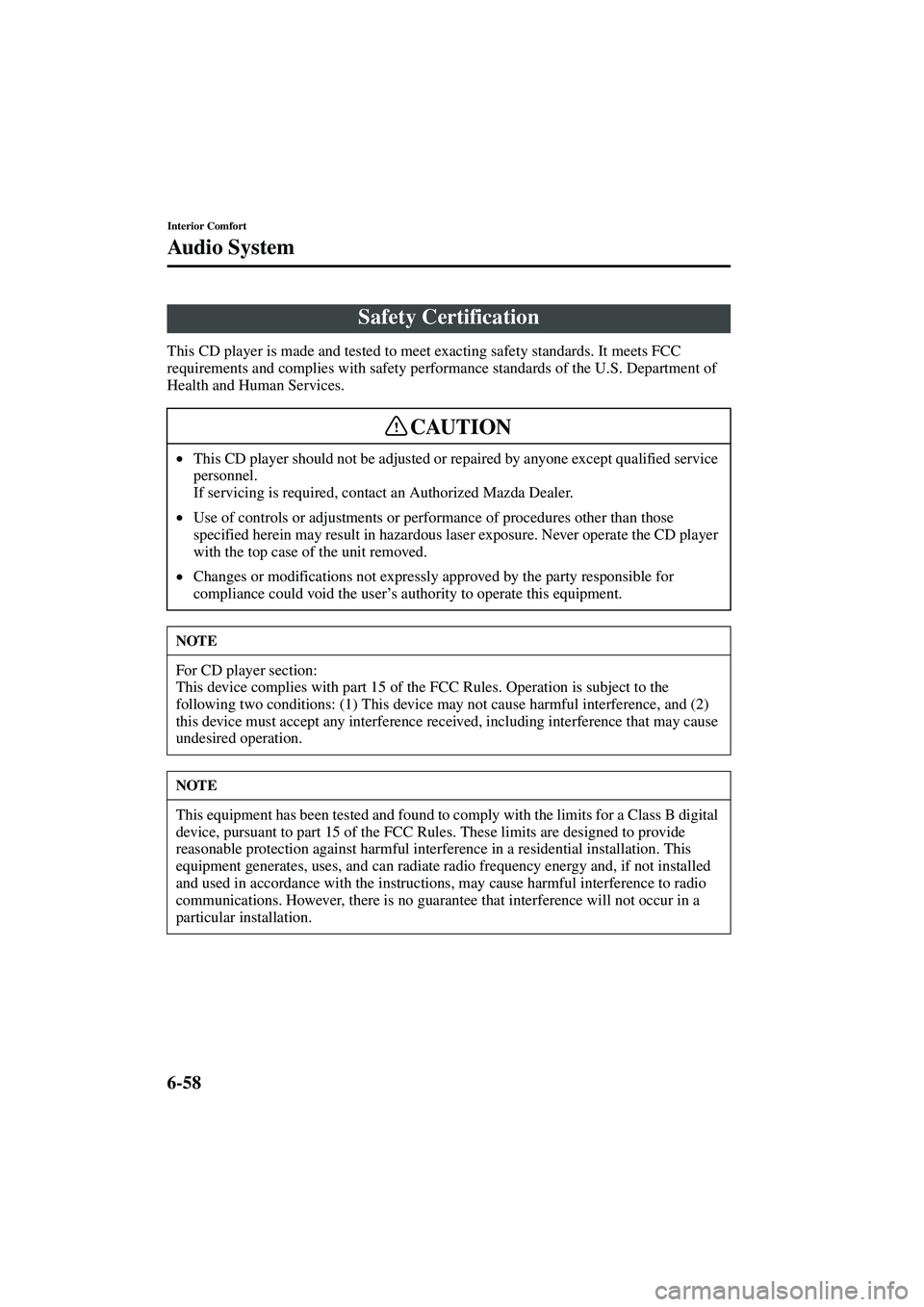

This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
• Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
• Changes or modifications not expressly approved by the party responsible for
compliance could void the user
’s authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 58 Thursday, August 21, 2003 10:04 AM

8-2
Maintenance and Care
Form No. 8S15-EA-03G
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda ’s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
J07S_8S15-EA-03G_Edition2.book Page 2 Thursday, August 21, 2003 10:04 AM

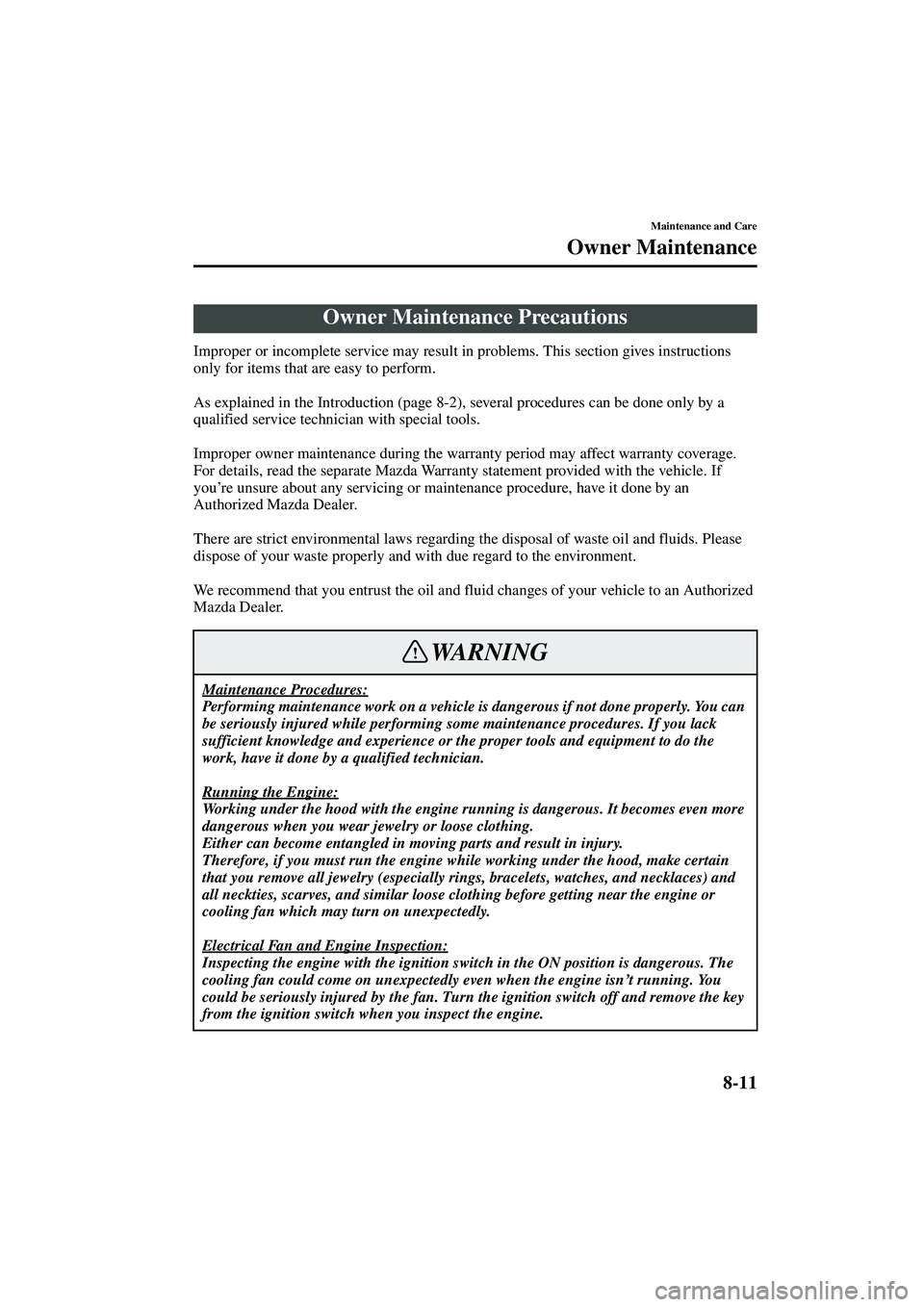

8-11
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn ’t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 11 Thursday, August 21, 2003 10:04 AM

8-14
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
5. Pull it out again and examine the level.It’s OK between L and F.
But if it ’s near or below L, add enough
oil to bring the level to F.
6. Make sure the O-ring is positioned properly before reinserting the
dipstick.
The distance between L and F on the
dipstick represents the following:

Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly
—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information. Changing engine oil
1. Warm up the engine for a few minutes
and turn it off. Remove the oil-filler
cap.
2. Remove the drain plug and drain the oil into a suitable container.
3. Replace the drain plug washer after the oil has thoroughly drained.
4. Reinstall the plug tightly.
5. Fill the engine with new oil to the F mark on the dipstick.
6. Securely reinstall the oil-filler cap.
7. Start the engine and inspect around the drain plug for leaks.
8. Turn it off and wait 5 minutes for the oil to return to the oil pan.
Don
’t add engine oil over F. This may
cause engine damage.
L (US qt, Imp qt) 0.8 (0.85, 0.70)
Handling Used Engine Oil:
Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
CAUTION
WARNING
Checking or Changing Engine Oil:
Hot engine oil is dangerous. If the
engine has been running, the engine
oil becomes very hot. You could be
seriously burned. Don ’t check or
change the engine oil when the
engine is hot.
WARNING
Tighten
Loosen
Drain plug
J07S_8S15-EA-03G_Edition2.book Page 14 Thursday, August 21, 2003 10:04 AM
