set clock MAZDA MODEL MX-5 MIATA 2004 Owners Manual

6-17
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Power/Volume/Sound Controls ............................................................................................. 6-18
Clock ..................................................................................................................................... 6-22
Operating the Radio ........................................................................................................... .... 6-24
Operating the Cassette Tape Player* ...................................................................................... 6-26
Operating the Mini Disc (MD) Player* ................................................................................. 6-28
Operating the Compact Disc (CD) Player* ........................................................................... 6-30
Operating the In-Dash CD Changer* .................................................................................... 6-32
Error Indications ............................................................................................................. ....... 6-36
Audio Set (Type A)*
CD Player* In-dash CD Changer*
Cassette Tape Player* Mini Disc (MD) Player* Illustration is of a representative audio unit.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 17 Thursday, August 21, 2003 10:04 AM

6-22
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Clock
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock ’s current time will flash. 2. To advance the hours, press the hour
set button ( ). To advance the
minutes, press the minute set button
( ) while the time is flashing.
3. Press the clock button ( ) again to start the clock.
Display Clock button
Hour set
button
Minute set
button
NOTE
To select 12-hour or 24-hour clock
time, turn the audio control dial while
the clock display is flashing. After
selecting the desired display, press the
audio control dial to return to the
flashing clock display.
J07S_8S15-EA-03G_Edition2.book Page 22 Thursday, August 21, 2003 10:04 AM

6-23
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Exact hour adjustment
1. To set the exact hour, press the clock button ( ) for about 2 seconds
until a beep is heard.
The clock ’s current time will flash.
2. Press the clock button ( ) again and the time will be adjusted as
follows:
(Example)
12:01—12:29 →12:00
12:30—12:59 →1:00
Changing the display mode
The display on the unit can be changed by
pressing the clock button ( ). This
alternates the display between clock mode
and normal mode. When the clock mode
has been selected, the time will be
displayed.
NOTE
• When the clock button ( ) is
released, the seconds are reset to
"00".
• If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle
’s battery is disconnected),
the clock will need to be reset.
NOTE
The displays when using the audio
differ in clock mode and normal mode.
J07S_8S15-EA-03G_Edition2.book Page 23 Thursday, August 21, 2003 10:04 AM

6-25
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Seek tuning
Pressing the seek tuning button
( , ) will cause the tuner to seek a
higher or lower frequency automatically.
Scan tuning
Press the scan button ( ) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button ( ) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the station you want.
2. Depress a channel preset button for about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed. Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
( ) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
( ) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
NOTE
When the clock is displayed, the preset
channel number will not be displayed.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
NOTE
•
When the clock is displayed, the
preset channel number will not be
displayed.
• If no stations can be tuned after
scanning operations, "A" will be
displayed.
J07S_8S15-EA-03G_Edition2.book Page 25 Thursday, August 21, 2003 10:04 AM

6-28
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Operating the Mini Disc (MD) Player*
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
The track number and the elapsed play
back time for the current track will be
displayed on the display. PlayingPress the MD play button ( ) to
start playing when a MD is in the unit.
Ejecting the MD
Press the MD eject button ( ) to eject the
MD.
Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Main display
Fast-forward button
Track up
button
Track down
button MD play button
Reverse button Scan
button
Repeat button
MD display
MD slot
Random buttonMD eject
button
MD display button Display
button
Display
feed dial
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial
to the right. Turn the dial to the left to
return to the previous display.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 28 Thursday, August 21, 2003 10:04 AM

6-30
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Operating the Compact Disc (CD) Player*
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate, and
the track number and the elapsed play
back time for the current track will be
displayed. PlayingPress the CD play button ( ) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button ( ) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Display
CD slot
Disc-in indicator
CD ejectbutton
CD play button
Random button
Repeat button Scan
button
Fast-forward button
Reverse
button
Track up
button
Track down
button
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial
to the right. Turn the dial to the left to
return to the previous display.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 30 Thursday, August 21, 2003 10:04 AM

6-32
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Operating the In-Dash CD Changer*
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number, the track number and
the elapsed play back time for the current
track will be displayed.
Display CD slot
Disc-in indicator
CD ejectbutton
CD play button
Random button
Repeat button
Disc up button Scan
button
Fast-forward
button
Reverse button
Track up
button
Track down
button
Disc down
button
Load button
Power/Volume dial
Channel preset buttons
NOTE
•When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed
play back time, turn the audio
control dial to the right. Turn the
dial to the left to return to the
previous display.
• A CD cannot be inserted while the
display reads "WAIT". A beeping
sound can be heard during this
waiting time. Simultaneously
pressing the power/volume dial and
the load button ( ) for about 2
seconds will turn this beeping sound
ON or OFF.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 32 Thursday, August 21, 2003 10:04 AM

6-37
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Antitheft System* .................................................................................................................. 6-38
Power/Volume/Sound Controls ............................................................................................. 6-42
Clock ......................................................................................................................... ............ 6-44
Operating the Radio ........................................................................................................... .... 6-46
Operating the Cassette Tape Player* ..................................................................................... 6-48
Operating the Mini Disc (MD) Player* ................................................................................. 6-50
Operating the Compact Disc (CD) Player* ........................................................................... 6-52
Operating the In-Dash CD Changer* .................................................................................... 6-54
Error Indications ............................................................................................................. ....... 6-57
Audio Set (Type B)*
CD Player* In-dash CD Changer*
Cassette Tape Player* Mini Disc (MD) Player* Illustration is of a representative audio unit.
(Some countries.)
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 37 Thursday, August 21, 2003 10:04 AM

6-44
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

Clock
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock ’s current time will flash.
2. To advance the hours, press the hour set button ( ). To advance the minutes,
press the minute set button ( ) while
the time is flashing.
3. Press the clock button ( ) again to start the clock. Exact hour adjustment1. To set the exact hour, press the clock
button ( ) for about 2 seconds
until a beep is heard.
The clock ’s current time will flash.
2. Press the clock button ( ) again and the time will be adjusted as
follows:
(Example)
12:01 —12:29
→12:00
12:30 —12:59
→1:00
Display Clock button
Hour set
button
Minute set
button
NOTE
If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle ’s battery is disconnected), the
clock will need to be reset.
J07S_8S15-EA-03G_Edition2.book Page 44 Thursday, August 21, 2003 10:04 AM

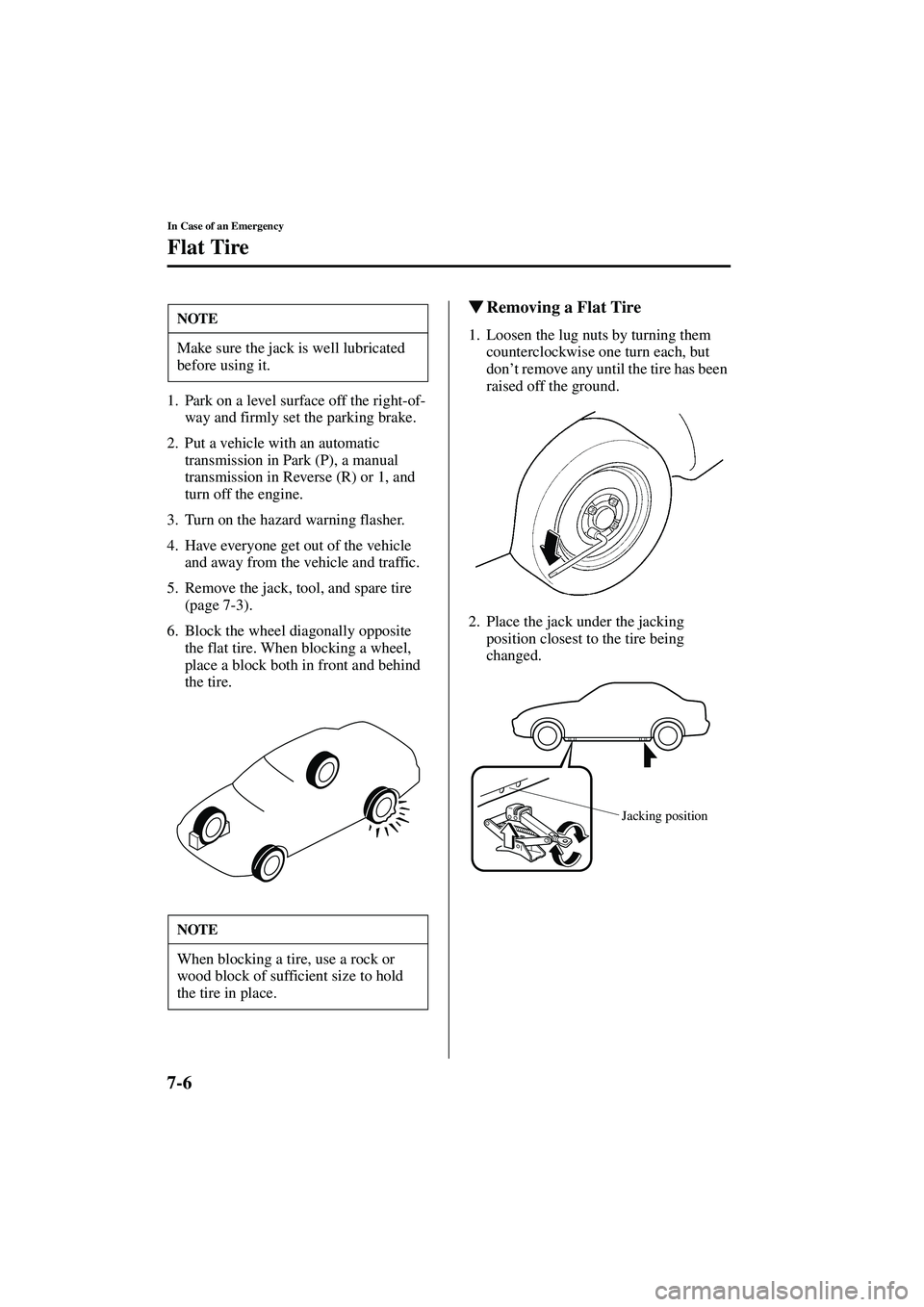

7-6
In Case of an Emergency
Flat Tire
Form No. 8S15-EA-03G
1. Park on a level surface off the right-of-way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.

Removing a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don ’t remove any until the tire has been
raised off the ground.
2. Place the jack under the jacking position closest to the tire being
changed.
NOTE
Make sure the jack is well lubricated
before using it.
NOTE
When blocking a tire, use a rock or
wood block of sufficient size to hold
the tire in place.
Jacking position
J07S_8S15-EA-03G_Edition2.book Page 6 Thursday, August 21, 2003 10:04 AM
