8. Turn the ignition switch to the ACCposition while pushing the start knob
in.
9. Turn the ignition switch from the ACCposition to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the battery.
10. After starting the engine, let it idle for about 10 seconds.
NOTE
lIn extremely cold weather, below
_18° C (0° F), or after the vehicle
has not been driven in several days,
let the engine warm up without
operating the accelerator.
lWhether the engine is cold or warm,
it should be started without use of
the accelerator. Turning off the engine
1. Shift the shift lever to the P position
(Automatic transmission).
2. Turn the ignition switch from the ON position to the ACC position.
NOTE
When the engine is turned off and the
ignition switch it turned from the ACC
position to the LOCK position, the
KEY indicator light (green) flashes in
the instrument cluster for about 30
seconds if the battery power of the
advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page
3-6).
3. Push in the start knob from the ACC position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
MX-5_8U35-EA-05F_Edition4 Page71
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (72,1)
NOTE
lWhen turning the ignition switch to
the LOCK position, the ignition
switch has to be pushed in from the
ACC position and turned. Without
being pushed in, the ignition switch
stops at the ACC position and the
vehicle battery may be discharged if
the ignition switch is left in the ACC
position. When leaving the vehicle,
make sure the ignition switch is
turned to the LOCK position.
lIf the vehicle is left with the ignition
switch not in the LOCK position, a
beep sound is heard and the indicator
light flashes to notify the driver.
Refer to Warning Beep (page 3-18).
Operation Using Advanced
Key Functions
qKeyless Entry System
This system remotely locks and unlocks
the doors and opens the trunk lid.
It can also help you signal for attention.
Press the button slowly and carefully.
NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary due to local
conditions.
lThe system does not operate when
the ignition switch is not in the
LOCK position or the start knob is
pushed in.
lWith the start knob installed in the
LOCK position, the system is fully
operational. If the ignition switch is
not in the LOCK position or the start
knob is pushed in, the system does
not operate.
lBoth doors cannot be locked by
pressing the lock button while either
door is open. The hazard warning
lights will also not flash.
lIf the transmitter does not operate
when pressing a button or the
operational range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page72
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (73,1)

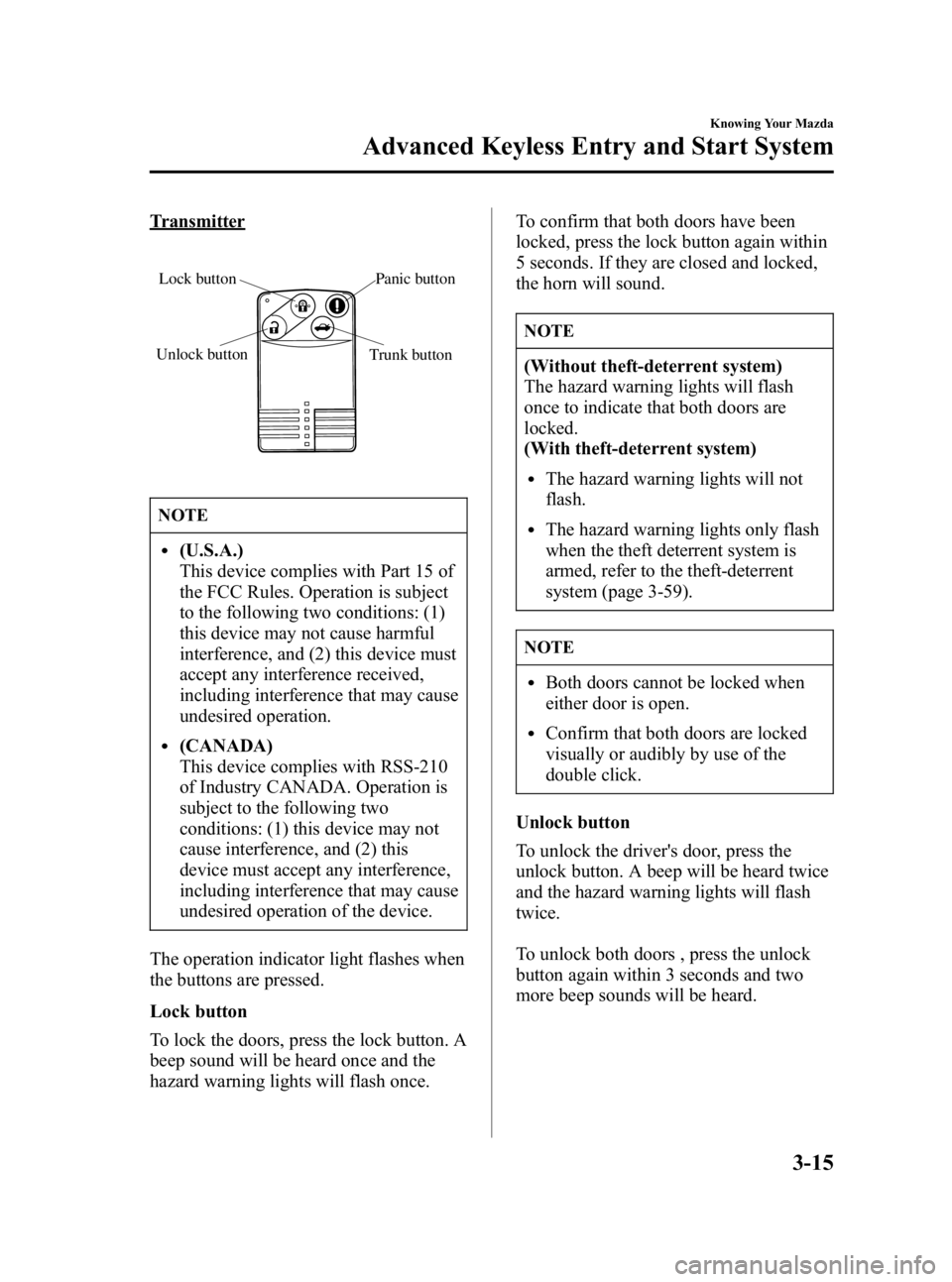

Transmitter
Panic button
Unlock button Lock button
Trunk button
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once. To confirm that both doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
once to indicate that both doors are
locked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed, refer to the theft-deterrent
system (page 3-59).
NOTE
lBoth doors cannot be locked when
either door is open.
lConfirm that both doors are locked
visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock both doors , press the unlock
button again within 3 seconds and two
more beep sounds will be heard.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
MX-5_8U35-EA-05F_Edition4 Page73
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (74,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that both doors are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
turned off, refer to the theft-deterrent
system (page 3-59).
NOTE
After unlocking with the transmitter,
both doors will automatically lock if
one of the doors is not opened within
about 30 seconds.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether
either door is open or closed. (Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not
function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
q Auxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page74
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (75,1)
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-28).
Opening the trunk lid
The trunk lid can be opened using the
auxiliary key, refer to Opening and
Closing the Trunk Lid (page 3-31).
Starting the engine
The engine can be started with the
auxiliary key, refer to Starting the Engine
(page 5-4).
Advanced Key Suspend
Function
If an advanced key is left in the vehicle or
the trunk, the functions of the advanced
key left in the vehicle or the trunk are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the start
knob.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions suspended.
lWhile carrying another advanced key,
push in the start knob until the KEY
indicator light (green) illuminates.
lInsert the auxiliary key and turn the
ignition switch to the ON position.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-17
MX-5_8U35-EA-05F_Edition4 Page75
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (76,1)
Warning and Beep Sounds
qSystem Malfunction Warning Beep
If any malfunction occurs in the advanced
keyless function, the KEY warning light
(red) in the instrument cluster illuminates
continuously and beep sounds will be
heard.
CAUTION
If the KEY warning light (red) remains
illuminated, do not continue to drive the
vehicle with the advanced keyless
function. Park the vehicle in a safe
place and use the auxiliary key to
continue driving the vehicle. Have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Ignition Switch (page 5-2).
qStart Knob Not in LOCK
Warning Beep
If the start knob is in the ACC position
and the driver's door is opened, a
continuous beep sound will be heard to
notify the driver that the start knob has not
been returned to the LOCK position. In
this case, the keyless entry system does
not operate.
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
will be heard 6 times and the KEY
warning light (red) will flash continuously
when the start knob has not been returned
to the LOCK position to notify the driver
that the advanced key has been removed.
The KEY warning light (red) will stop
flashing when the advanced key is back
inside the vehicle:
lThe start knob has not been returned to
the LOCK position, the driver's door is
open, and the advanced key is removed
from the vehicle.
However the beep will be heard
continuously when the start knob is in
the ACC position and the door is open
due to the activation of the warning
beep indicating that the start knob is
not in the LOCK position.
lThe start knob has not been returned to
the LOCK position and all the doors
are closed after removing the advanced
key from the vehicle.
NOTE
Because the advanced key utilizes low-
intensity radio waves, the Advanced
Key Removed From Vehicle Warning
may activate if the advanced key is
carried together with a metal object or it
is placed in a poor signal reception area.
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page76
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (77,1)
qRequest Switch Inoperable
Warning Beep
Under the following conditions, if the
request switch for a front door is pressed
while the advanced key is being carried, a
beep will be heard 6 times to indicate that
the front doors cannot be locked.
lA door is open (door ajar included).
lThe start knob has not been returned to
the LOCK position.
lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the start knob is returned to the
ACC or LOCK position from the ON
position, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (page 3-20).
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the start knob will not rotate to
the ACC position even if it is pushed in
from the LOCK position.
lThe advanced key battery is dead.
lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-trunk
Warning Beep
If the advanced key is left in the trunk
compartment with both doors locked and
the trunk lid closed, a beep sound is heard
for about 10 seconds to remind the driver
the advanced key has been left in the
trunk compartment. If this happens, open
the trunk lid by pressing the request
switch and remove the advanced key.
Because the functions of the advanced
key removed from the trunk may have
been temporarily suspended, the advanced
key removed from the trunk may have
lose its function. To restore the advanced
key function, perform the procedure to
restore the advanced key function (page
3-17).
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and both doors are locked using a
separate advanced key, a beep sound is
heard for about 10 seconds to remind the
driver that the advanced key has been left
in the vehicle cabin. If this happens, the
doors lock but the functions of the
advanced key left in the vehicle cabin
may be temporarily suspended. Perform
the following procedure to restore the
functions of the advanced key (page
3-17).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
MX-5_8U35-EA-05F_Edition4 Page77
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (78,1)
Setting Change (Function Customization)
The following function settings are possible. These settings can only be changed by an
Authorized Mazda Dealer.
SettingFunctionAt Initial
Setting After Setting
Change
Advanced key battery dead
indicator KEY indicator light (green) flashes to indicate
that the advanced key battery power is low.
Activated Deactivated
Lock/unlock operation
confirmation beep sound
*1A beep sound is heard to confirm that both doors
or the trunk lid have been locked/unlocked. Activated Deactivated
Autolock function When both doors are closed and the advanced key
is being carried and out of operational range, both
doors automatically lock after 3 seconds.
(Even if the driver is in the operational range,
both doors are locked automatically after about 30
seconds.) Deactivated Activated
*1 : When the autolock function is operating, the warning sound will be heard regardless of the setting.
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page78
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (79,1)
User Mis-Operation Warning Indicators
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-18).
Warning conditionCheck
When a door is open, a continuous beep sound will be
heard. Check whether the start knob has been returned to the
LOCK position.
When a door is open, 6 beep sounds are heard, and the
KEY warning light (red) in the instrument cluster
flashes. Check whether the advanced key has been removed
from the vehicle.
When a door is closed, a beep sound is heard 6 times,
and the KEY warning light (red) in the instrument
cluster flashes. Check whether the advanced key has been removed
from the vehicle.
When attempting to lock the doors, a beep sound is
heard 6 times. Check whether the advanced key has been left in the
vehicle.
Check whether the start knob has been returned to the
LOCK position.
Check whether a door is open.
When the KEY indicator light (green) flashes in the
instrument cluster. The advanced key battery power is low. Replace the
battery with a new one.
Refer to Advanced Key Maintenance on page 3-5.
When the KEY warning light (red) remains illuminated
in the instrument cluster. The advanced key is malfunctioning. Park the vehicle in
a safe place, and use the auxiliary key to continue
driving the vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-21
MX-5_8U35-EA-05F_Edition4 Page79
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (80,1)
Keys (without Advanced Key)
WARNING
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move. Don't leave the keys in your
vehicle with children and keep them in
a place where your children will not
find or play with them.
NOTE
lRefer to Immobilizer System (page
3-56) for information regarding keys
and engine starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System
(page 3-59) for information
regarding keys and the prevention of
vehicle and vehicle contents theft.
The keys operate all locks.
With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep
it in a separate safe and convenient
place, but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer and have
your code number ready.
3-22
Knowing Your Mazda
Doors and Locks
MX-5_8U35-EA-05F_Edition4 Page80
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F
