MAZDA MODEL MX-5 MIATA 2006 Repair Manual

Black plate (61,1)
Panic button Trunk buttonKey code number plate
Operation indicator light Unlock button
Lock button
Auxiliary key
A code number is stamped on the plate attached to the key set; detach this plate and store it
in a safe place (not in the vehicle) for use if you need to make a replacement key.
Also write down the code number and keep it in another safe and handy place, but not in
the vehicle.
If your key is lost, consult your Authorized Mazda Dealer with the code number ready.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-3
MX-5_8U35-EA-05F_Edition4 Page61
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (62,1)
CAUTION
lBecause the advanced key uses low-intensity radio waves, it may not function
correctly under the following conditions:
lThe advanced key is carried with communication devices such as cellular phones.lThe advanced key contacts or is covered by a metal object.lThe advanced key is near electronic devices such as personal computers.lNon-Mazda genuine electronic equipment is installed in the vehicle.lThere is equipment which discharges radio waves near the vehicle.lIf the vehicle is near equipment such as wireless pay devices installed at certain gas
stations.
lThe advanced key may consume battery power excessively if it receives high-
intensity radio waves. Do not place the advanced key near electronic devices such as
televisions or personal computers.
lTo avoid damage to the advanced key, DO NOT:
lDrop the advanced key.lGet the advanced key wet.lDisassemble the advanced key.lExpose the advanced key to high temperatures on places such as the dashboard or
hood, under direct sunlight.
lPlace heavy objects on the advanced key.lPut the advanced key in an ultrasonic cleaner.lPut any magnetized objects close to the advanced key.
NOTE
lBattery life is about one year. Replace the battery when the KEY indicator light
(green) flashes in the instrument cluster.
Refer to Advanced Key Dead Warning on page 3-19.
lAdditional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6
advanced keys can be used with the advanced keyless functions per vehicle.
3-4
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page62
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (63,1)

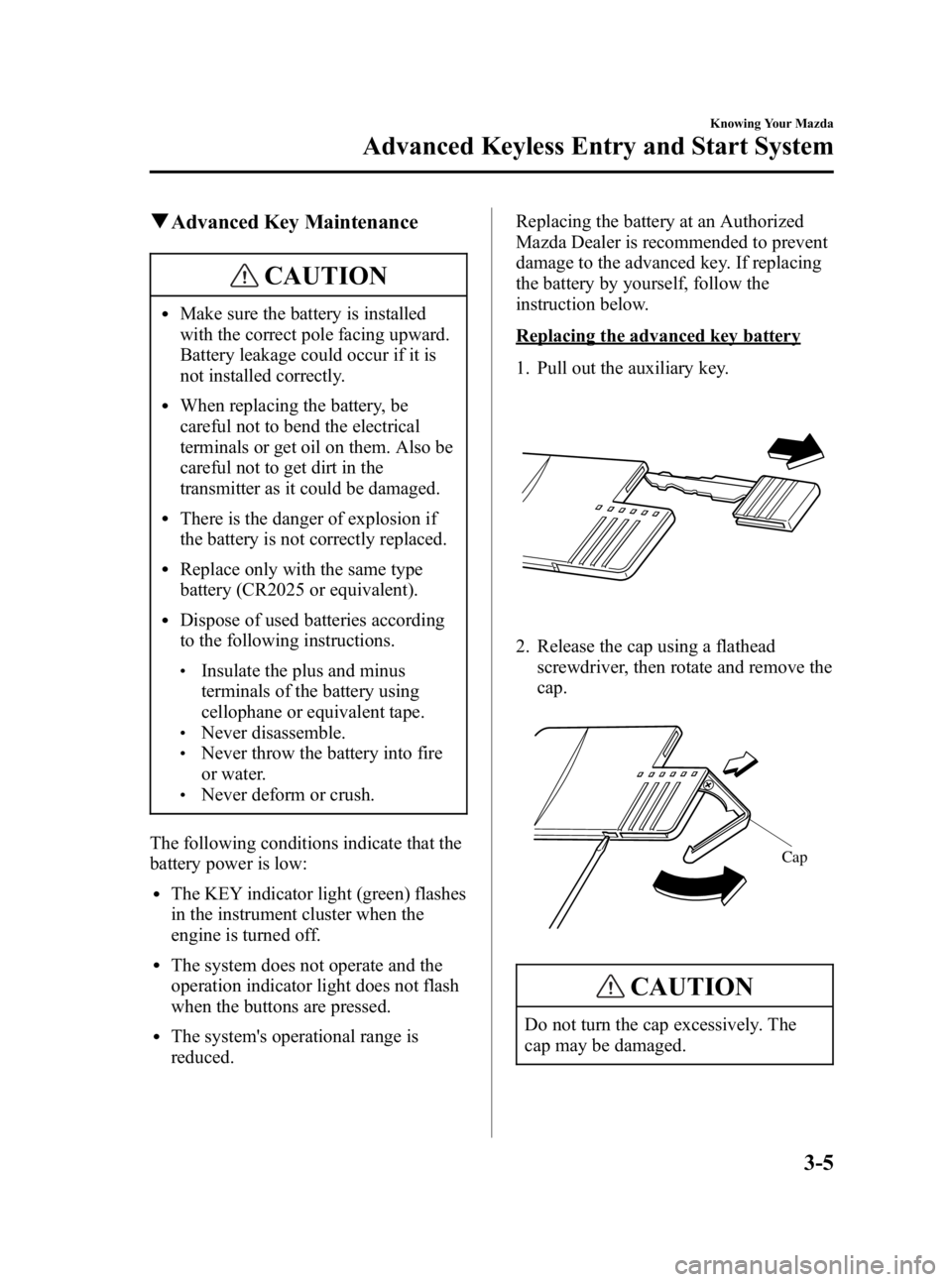

qAdvanced Key Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR2025 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
or water.
lNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster when the
engine is turned off.
lThe system does not operate and the
operation indicator light does not flash
when the buttons are pressed.
lThe system's operational range is
reduced. Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Release the cap using a flathead
screwdriver, then rotate and remove the
cap.
Cap
CAUTION
Do not turn the cap excessively. The
cap may be damaged.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
MX-5_8U35-EA-05F_Edition4 Page63
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (64,1)
3. Insert a flathead screwdriver into thecrack and press the battery out.
4. Insert the new battery (CR2025 or
equivalent) with the positive pole (
)
facing the (
) mark on the cap.
5. Rotate and close the cap.
Cap
6. Reinsert the auxiliary key.
q Service
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
3-6
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page64
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (65,1)
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in
places where there are high-intensity
radio waves or noise, the operational
range may become narrower or the
system may not operate.
Locking, unlocking the doors
The operational range for locking/
unlocking the doors is up to 80 cm (2.6 ft)
from the center of the door handles.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are
too close to the windows, door handles.
Opening the trunk lid
The operational range for opening the
trunk lid is up to 80 cm (2.6 ft) from the
center of the trunk lid.
Exterior transmitter
Operational range
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area.
Operational range
Interior transmitter
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
MX-5_8U35-EA-05F_Edition4 Page65
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (66,1)
NOTE
lThe trunk is out of the operational
range, however, starting the engine
may be possible.
lThe engine may not start if the
advanced key is placed in the
following areas:
lAround the dashboardlIn the storage compartments such
as the glove box
lOn the rear parcel shelf
lStarting the engine may be possible
even if the advanced key is outside
of the vehicle and extremely close to
a door and window, however, always
start the engine from the driver's seat.
If the vehicle is started and the
advanced key is not in the vehicle,
the vehicle will not restart after it is
shut off and the ignition switch is
turned to the lock position.
lIf the advanced key is detected
within operational range, the
operation indicator light flashes
momentarily.
qLocking, Unlocking the Doors
with Request Switch
Both doors can be locked/unlocked by
pressing the request switch on a door
while the advanced key is being carried.
Request switch
To lock
To lock the doors, press the request
switch. A beep sound will be heard once
and the hazard warning lights will flash
once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock both doors , press the request
switch again within 3 seconds and two
more beep sounds will be heard.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page66
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (67,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that the doors are
unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
turned off, refer to the theft-deterrent
system (page 3-59).
Passenger door request switch
To unlock the doors, press the request
switch. A beep sound will be heard twice
and the hazard warning lights will flash
twice.
NOTE
lConfirm that both doors are securely
locked.
lBoth doors cannot be locked when
any door is open.
lA beep sound is heard for
confirmation when the doors are
locked/unlocked using the request
switch. If your prefer, the beep sound
can be turned off (page 3-20).
NOTE
lThe setting can be changed so that
the doors are locked automatically
without pressing the request switch.
(Auto-lock function)
A beep sound is heard when both
doors are closed while the advanced
key is being carried. Both doors are
locked automatically after about 3
seconds when the advanced key is
out of the operational range. Also,
the hazard warning lights flash once.
(Even if the driver is in the
operational range, both doors are
locked automatically after about 30
seconds.)
If you are out of the operational
range before the doors are
completely closed, the auto-lock
function will not work. Always make
sure that both doors are locked
before leaving the vehicle (page
3-20).
lAfter unlocking doors by pressing
the request switch, both doors will
automatically lock and the hazard
warning light will flash if any of the
following operations are not
performed within about 30 seconds.
lA door is opened.lThe auxiliary key is inserted into
the ignition switch.
lThe start knob is pushed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
MX-5_8U35-EA-05F_Edition4 Page67
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (68,1)
qOpening the Trunk Lid with
Request Switch
The trunk lid can be opened by pressing
the request switch on the under side of the
trunk lid above the license plate while the
advanced key is being carried.
Request switch
NOTE
If the advanced key is left in the trunk,
the trunk lid will close. However, the
trunk lid can be opened by pressing the
request switch.
qStarting the Engine
Ignition Switch Positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK(Released)
The steering wheel locks to help protect
against theft.
LOCK(Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Not Setting the Parking Brake:
Leaving the driver's seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident. Before leaving the driver's
seat, always set the parking brake and
make sure the shift lever is in P with
an automatic transmission or in 1 or R
with a manual transmission.
NOTE
lIf turning the ignition switch is
difficult, jiggle the steering wheel
from side to side.
l(Automatic transmission)
The ignition switch cannot be turned
from the ACC position to the LOCK
position when the shift lever is not in
P.
ACC(Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page68
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (69,1)
NOTE
The Advanced Keyless Entry System
does not function in the ACC position,
and the doors will not lock/unlock even
if they have been locked manually or
the advanced key is carried away from
the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-38).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-38).
Starting the Engine
NOTE
lEngine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
lThe advanced key must be carried
because the advanced key carries an
immobilizer chip that must
communicate with the engine
controls at short range.
lWhen starting the engine, be sure the
start knob is securely attached before
trying to operate it. If the knob
becomes detached from the ignition
switch, re-attach it by pushing it on
to the ignition switch.
1. Make sure the advanced key is being carried.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
MX-5_8U35-EA-05F_Edition4 Page69
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

Black plate (70,1)
5.(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch
pedal is notdepressed all the way.
(Automatic transmission)
The starter will not operate if the shift
lever is not in P or N.
6. Push the start knob slowly all the way in.
7. Verify that the KEY indicator light(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine (page 3-21).
NOTE
In the following cases, the KEY
warning light (red) illuminates and the
engine will not start.
lThe advanced key battery is dead.
lThe advanced key is out of
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8U35-EA-05F_Edition4 Page70
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
