Black plate (130,1)
Hazardous Driving
WARNING
Downshifting on Slippery Surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident. If it is
necessary to downshift on slippery
surfaces, be very careful.
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident. So don't rely on
ABS as a substitute for safe driving.
When driving on ice or in water, snow,
mud, sand, or similar hazard:
lBe cautious and allow extra distance
for braking.
lAvoid sudden braking and quick
steering.
lIf your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Don't hold the
pedal down constantly.
If your vehicle is equipped with ABS,
don't pump the brakes. Continue to
press down on the brake pedal.
lIf you get stuck, select a lower gear and
accelerate slowly. Don't spin the rear
wheels.
lFor more traction in starting on
slippery surfaces such as ice or packed
snow, use sand, rock salt, chains,
carpeting, or other nonslip material
under the rear wheels.
NOTE
Use snow chains only on the rear
wheels.
4-8
Before Driving Your Mazda
Driving Tips
MX-5_8U35-EA-05F_Edition4 Page130
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (131,1)
Rocking the Vehicle
WARNING
Spinning the Wheels:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries. Don't spin the wheels at more
than 56 km/h (35 mph), and don't
allow anyone to stand behind a wheel
when pushing the vehicle.
CAUTION
Too much rocking may cause engine
overheating, transmission failure, and
tire damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the
accelerator slightly and slowly move the
shift lever from 1 (D) to R.
Winter Driving
lCarry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask an Authorized Mazda Dealer to
perform the following precautions:
lHave the proper ratio of antifreeze in
the radiator.
Refer to Engine Coolant on page 8-18.
lInspect the battery and its cables. Cold
reduces battery capacity.
lInspect the ignition system for damage
and loose connections.
lUse washer fluid made with
antifreeze ―but don't use engine
coolant antifreeze for washer fluid
(page 8-22).
lDon't use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P with an
automatic transmission and to 1 or R
with a manual transmission. Block the
rear wheels.
Before Driving Your Mazda
Driving Tips
4-9
MX-5_8U35-EA-05F_Edition4 Page131
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (132,1)
qSnow Tires
Use snow tires on all four wheels
Don't go faster than 120 km/h (75 mph)
while driving with snow tires. Inflate
snow tires 30 kPa (0.3 kgf/cm
2, 4.3 psi)
more than recommended on the tire
pressure label (driver's door frame), but
never more than the maximum cold-tire
pressure shown on the tires.
Your vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, Mazda recommends that
you replace the tires originally equipped
on your vehicle with snow tires during the
winter months.
WARNING
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
CAUTION
Check local regulations before using
studded tires.
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the system
may not function correctly when using
tires with steel wire reinforcement in
the sidewalls (page 5-30).
q Tire Chains
Check local regulations before using tire
chains.
CAUTION
lChains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
lChains may affect handling.
lDon't go faster than 50 km/h (30
mph) or the chain manufacturer's
recommended limit, whichever is
lower.
lDrive carefully and avoid bumps,
holes, and sharp turns.
lAvoid locked-wheel braking.
lDon't use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
NOTE
If your vehicle is equipped with the tire
pressure monitoring system, the system
may not function correctly when using
tire chains.
Install the chains on the rear tires.
Don't use chains on the front tires.
Use only genuine Mazda tire chains.
Please consult an Authorized Mazda
Dealer.
Installing the chains
1. Secure the chains on the rear tires as tightly as possible. Always follow the
chain manufacturer's instructions.
4-10
Before Driving Your Mazda
Driving Tips
MX-5_8U35-EA-05F_Edition4 Page132
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (159,1)

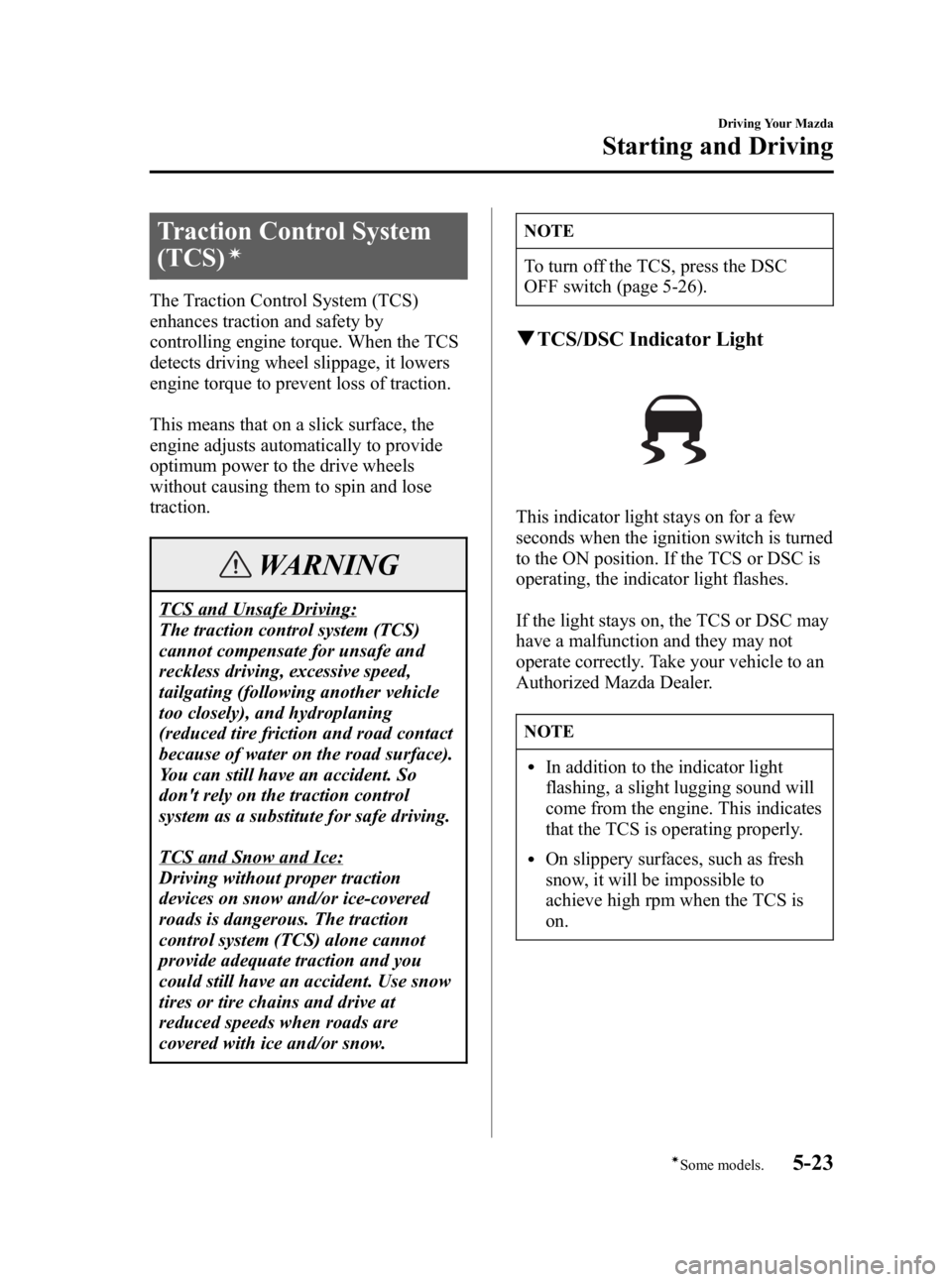

Traction Control System
(TCS)
í
The Traction Control System (TCS)
enhances traction and safety by
controlling engine torque. When the TCS
detects driving wheel slippage, it lowers
engine torque to prevent loss of traction.
This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels
without causing them to spin and lose
traction.
WARNING
TCS and Unsafe Driving:
The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road contact
because of water on the road surface).
You can still have an accident. So
don't rely on the traction control
system as a substitute for safe driving.
TCS and Snow and Ice:
Driving without proper traction
devices on snow and/or ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident. Use snow
tires or tire chains and drive at
reduced speeds when roads are
covered with ice and/or snow.
NOTE
To turn off the TCS, press the DSC
OFF switch (page 5-26).
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This indicates
that the TCS is operating properly.
lOn slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the TCS is
on.
Driving Your Mazda
Starting and Driving
5-23íSome models.
MX-5_8U35-EA-05F_Edition4 Page159
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (166,1)
Warning light illuminates/Warning
beep sounds
If the tire pressures decrease extremely
after the TPMS warning light has
illuminated, or if a tire is punctured, the
flat tire warning light also illuminates, and
a beep sound will be heard for
approximately 30 seconds.
Refer to Vehicle with run-flat tires on
page 7-3.
qSystem Error Activation
When the TPMS warning light flashes,
there may be a system malfunction.
Consult an Authorized Mazda Dealer.
A system error activation may occur in
the following cases:
lWhen there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.
lWhen a metallic device such as a non-
genuine navigation system is equipped
near the center of the dashboard, which
may block radio signals from the tire
pressure sensor to the receiver unit.
lWhen using the following devices in
the vehicle that may cause radio
interference with the receiver unit.
lA digital device such as a personal
computer.
lA current converter device such as a
DC-AC converter.
lWhen excess snow or ice adheres to
the vehicle, especially around the
wheels.
lWhen the tire pressure sensor batteries
are exhausted.
lWhen using a wheel with no tire
pressure sensor installed.
lWhen using tires with steel wire
reinforcement in the side walls.
lWhen using tire chains.
qTires and Wheels
CAUTION
When inspecting or adjusting the tire air
pressures, do not apply excessive force
to the stem part of the wheel unit. The
stem part could be damaged.
Changing tires and wheels
The following procedure allows the
TPMS to recognize a tire pressure sensor's
unique ID signal code whenever tires or
wheels are changed, such as changing to
and from winter tires.
NOTE
Each tire pressure sensor has a unique
ID signal code. The signal code must be
registered with the TPMS before it can
work. The easiest way to do it is to have
an Authorized Mazda Dealer change
your tire and complete ID signal code
registration.
When having tires changed at an
Authorized Mazda Dealer
Tire pressure sensor ID signal code
registration is completed when an
Authorized Mazda Dealer changes your
vehicle's tires.
5-30
Driving Your Mazda
Starting and Driving
MX-5_8U35-EA-05F_Edition4 Page166
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (378,1)
T
TiedownHook .......................................... 7-28
Tire Information ................................ 9-18
Tire Pressure Monitoring System ...... 5-27 System error activation .............. 5-30
Tire pressure monitoring system
warning light .............................. 5-28
Tires and wheels ......................... 5-30
Tires Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-30
Replacement ............................... 8-32
Rotation ...................................... 8-31
Snow tires .................................. 4-10
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-5
Tool Storage ........................................ 7-5
Towing Description ................................. 7-27
Emergency towing ..................... 7-27
Hook .......................................... 7-28
Recreational towing ................... 7-30
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-23 TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-34
Trunk Lid .......................................... 3-31 Inside trunk release lever ............ 3-34
Trunk Light ....................................... 6-39
Turn and Lane-Change Signals ......... 5-54
V
Vanity Mirrors ................................... 6-39
V
Vehicle Information Labels ............... 10-2
W
Warning Light KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-46
Warning Lights ................................. 5-38
ABS ............................................ 5-40
Air bag system ........................... 5-42
Automatic transmission .............. 5-44
Brake system .............................. 5-40
Charging system ......................... 5-41
Check engine .............................. 5-42
Door-ajar .................................... 5-44
Flat tire ....................................... 5-46
Low fuel ..................................... 5-43
Seat belt ...................................... 5-43
Seat belt pretensioner system ..... 5-42
Tire pressure monitoring
system ........................................ 5-45
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-22
Weights ............................................. 10-5
Wheel Replacement .......................... 8-33
Windblocker ...................................... 6-43
Windows Power windows .......................... 3-35
Windshield Washer ........................... 5-56
Windshield Wipers ............................ 5-55 Blades replacement .................... 8-25
Winter Driving .................................... 4-9
11-6
Index
MX-5_8U35-EA-05F_Edition4 Page378
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F
