To reduce the chance of injuries caused by the deployment of the passenger air bag, there
are two methods to deactivate the passenger air bag for a child's safety as follows―
however the surest way to avoid the passenger air bag not deploying is to use the key and
turn off the passenger air bag and not rely on the passenger seat weight sensors, which will
also detect other loads or objects on and around the passenger seat;
Passenger air bag deactivation switch
This switch should be used to deactivate the passenger front and side air bags and also the
passenger seat belt pretensioner system if installing a child-restraint system is installed on
the passenger seat.
Make sure the passenger air bag deactivation switch is in the ON position except when a
child-restraint system is installed on the passenger seat.
Refer to Passenger Air Bag Deactivation Switch on page 2-39.
Passenger seat weight sensors
These sensors deactivate the passenger front and side air bags and also the passenger seat
belt pretensioner system when the total seated weight on the passenger seat is less than
approximately 30 kg (66 lb).
When an infant or small child is seated on the passenger seat, the system shuts off the
passenger air bag, so make sure the passenger air bag deactivation indicator light
illuminates.
Refer to Passenger seat weight sensors on page 2-43.
LATCH Child-Restraint System
We have installed lower LATCH anchor points for LATCH style junior seats and infant
carriers that work without tethers only. Any other child-restraint system that has an upper
tether cannot be used in this vehicle because there is no tether anchor. A child-restraint
system with a tether cannot be properly mounted in this vehicle unless the child restraint
manufacturer provides instructions on mounting the child-restraint system with only seat
belts in automatic locking mode. Even then, without a tether, the child-restraint system may
move forward more easily in seat belts, further degrading the safety provided if you were to
put the child restraint in a tether anchor equipped rear seat of another vehicle. The seat and
head restraint is designed for maximum adult space utilization in this vehicle. Do not try to
secure the tether to something else in the vehicle, as too much slack will result and the
serious risk of injury or death to the child. Use the seat belts to properly secure the non-
tethered child-restraint systems other than the LATCH junior seats and non-tethered infant
carriers. Turn off the passenger air bag deactivation switch. To expose and use the lower
LATCH anchor points, which are affixed to the body and not the seat, slide the seat all the
way rearward which is the optimal vehicle seat position for all children in this two seat car.
WARNING
Use the correct size child-restraint system: For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
2-18
Essential Safety Equipment
Child Restraint
MX-5_8Z78-EA-08K_Edition1 Page30
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (31,1)
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make
sure any child-restraint system is properly secured in place according to the child-
restraint system manufacturer's instructions. When not in use, remove it from the
vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors
for LATCH child-restraint systems.
Always secure a child in a proper child-restraint system: Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a
sudden stop or collision and it could result in serious injury or death to the child or
other occupants. Even in a moderate accident, the child may be exposed to air bag
forces that could result in serious injury or death to the child, or the child may be
slammed into an adult, causing injury to both child and adult.
Always make sure the passenger air bag deactivation indicator light is illuminated
when using a rear-facing child-restraint system: Seating a child in a rear-facing child-restraint system that is installed on the
passenger seat with the passenger air bag deactivation indicator light not
illuminated is extremely dangerous. In an accident, a air bag could inflate and cause
serious injuries or even death to the child seated in the rear-facing child-restraint
system. Always make sure the passenger air bag deactivation indicator light is
illuminated using the key to turn the passenger air bag off.
Refer to Passenger Air Bag Deactivation Switch on page 2-39.
Refer to Passenger seat weight sensors on page 2-43.
Essential Safety Equipment
Child Restraint
2-19
MX-5_8Z78-EA-08K_Edition1 Page31
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (32,1)
Seating a child in a child-restraint system on the passenger seat is dangerous:This vehicle is equipped with both a passenger seat weight sensor and a passenger
air bag deactivation indicator light (page 2-43). Even with the passenger seat weight
sensors, seating a child in a child-restraint system on the passenger seat under the
following conditions increases the danger of the passenger air bag deploying and
could result in serious injury or death to the child. These are among the reasons why
the passenger air bag should be turned off using the key.
ØThe total seated weight of the child with the child-restraint system on the
passenger seat is approximately 30 kg (66 lb) or more with a child in the child-
restraint system.
Ø Luggage or other items are placed on the seat with the child in the child-restraint
system.
Ø The seat is washed.
Ø Liquids are spilled on the seat.
Ø The passenger seat is moved backward, and it is pushed into luggage or other
items placed behind it.
Ø Luggage or other items are placed between the passenger seat and center
console.
Ø Any accessories, which might increase the total seated weight on the passenger
seat, are attached to the passenger seat.
Before installing child-restraint system on the passenger seat, move the passenger
seat as far back as possible: In a collision, the force of a deploying air bag could cause serious injury or death to
the child. Make sure that the passenger air bag deactivation switch is in the OFF
position. Refer to Passenger Air Bag Deactivation Switch (page 2-39).
Do not allow a child to lean over or against the side window of a vehicle with side air
bags:Allowing anyone to lean over or against the door is dangerous. If the vehicle is
equipped with side air bags, the impact of an inflating side air bag could cause
serious injury or death to the person. Children are more likely to sleep in the vehicle;
when they do, they are more at risk in the passenger's seat that has a side air bag
because they may slump over into the path of the seatback-mounted air bag.
Furthermore, leaning over or against the doors could block the side air bag and
eliminate the advantages of supplemental protection. Because the side air bag
deploys from the outboard shoulder of the seat, do not allow the child to lean over or
against the side window, even if the child is seated in a child-restraint system.
2-20
Essential Safety Equipment
Child Restraint
MX-5_8Z78-EA-08K_Edition1 Page32
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (34,1)
Installing a Child-
Restraint System
The passenger lap/shoulder belt can easily
be converted into the automatic locking
mode, which must be done to hold the
child-restraint system.
Some child-restraint systems also employ
specially designed LATCH attachments;
refer to“LATCH Child-Restraint
Systems ”(page 2-25).
Follow these manufacturer's instructions
when installing a child-restraint system on
the passenger's seat, unless you are
attaching a LATCH-equipped child-
restraint system to the LATCH lower
anchors. Refer to “LATCH Child-
Restraint Systems ”(page 2-25).
NOTE
Follow the child-restraint system
manufacturer's instructions carefully. If you
are not sure whether you have a LATCH
system, check in the child-restraint system
manufacturer's instructions and follow them
accordingly. Depending on the type of child-
restraint system, it may not employ seat belts
which are in automatic locking mode, however
if it uses an upper tether, it may not be
mounted properly in this vehicle as there is no
safe way to anchor the tether. Confirm whether
the child-restraint system can be used with seat
belts by reading the child-restraint system
manufacturer's instructions.
Before installing a child-restraint system,
make sure the passenger air bag
deactivation indicator light illuminated by
using the key to turn the passenger air bag
off.
Refer to Passenger seat weight sensors on
page 2-43.
Refer to Passenger Air Bag Deactivation
Switch on page 2-39.
1. Make sure to remove articles from behind the passenger seat that would
prevent the seat from sliding back fully,
and then slide the seat as far back as
possible.
2. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
3. To get the retractor into the automatic locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
2-22
Essential Safety Equipment
Child Restraint
MX-5_8Z78-EA-08K_Edition1 Page34
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (35,1)
4. Push the child-restraint system firmlyinto the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.
5. Make sure the passenger air bag deactivation indicator light illuminates
by using the key to turn the passenger
air bag off after installing a child-
restraint system on the passenger seat.WARNING
Always make sure the passenger air
bag deactivation indicator light is
illuminated when using a rear-facing
child-restraint system: Seating a child in a rear-facing child-
restraint system that is installed on
the passenger seat with the
passenger air bag deactivation
indicator light not illuminated is
extremely dangerous. In an accident,
a air bag could inflate and cause
serious injuries or even death to the
child seated in the rear-facing child-
restraint system. Always make sure
the passenger air bag deactivation
indicator light is illuminated using
the key to turn the passenger air bag
off.
Refer to Passenger seat weight
sensors on page 2-43.
Refer to Passenger Air Bag
Deactivation Switch on page 2-39.
Essential Safety Equipment
Child Restraint
2-23
MX-5_8Z78-EA-08K_Edition1 Page35
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (38,1)
qLATCH Child-Restraint System
Installation Procedure
Before installing a child-restraint system,
make sure the passenger air bag
deactivation indicator light illuminated by
using the key to turn the passenger air bag
off.
Refer to Passenger seat weight sensors on
page 2-43.
Refer to Passenger Air Bag Deactivation
Switch on page 2-39.
1. Make sure to remove articles from
behind the passenger seat that would
prevent the seat from sliding back fully,
and then slide the seat as far back as
possible to insert the LATCH lower
anchors between the seat bottom and
the seatback.
2. Expand the area between the seat bottom and the seatback slightly to
verify the locations of the LATCH
lower anchors.
NOTE
The markings above the LATCH lower anchors
indicate the locations of the LATCH lower
anchors for the attachment of a child-restraint
system.
3. Secure the child-restraint system usingBOTH LATCH lower anchors,
following the child-restraint system
manufacturer's instruction, however if
it uses an upper tether, it may not be
mounted properly in this vehicle as
there is no safe way to anchor the
tether. Confirm whether the child-
restraint system can be used with seat
belts by reading the child-restraint
system manufacturer's instructions.
4. Make sure the passenger air bag deactivation indicator light illuminates
by using the key to turn the passenger
air bag off after installing a child-
restraint system on the passenger seat.
2-26
Essential Safety Equipment
Child Restraint
MX-5_8Z78-EA-08K_Edition1 Page38
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (39,1)
WARNING
Always make sure the passenger air
bag deactivation indicator light is
illuminated when using a rear-facing
child-restraint system:Seating a child in a rear-facing child-
restraint system that is installed on
the passenger seat with the
passenger air bag deactivation
indicator light not illuminated is
extremely dangerous. In an accident,
a air bag could inflate and cause
serious injuries or even death to the
child seated in the rear-facing child-
restraint system. Always make sure
the passenger air bag deactivation
indicator light is illuminated using
the key to turn the passenger air bag
off.
Refer to Passenger seat weight
sensors on page 2-43.
Refer to Passenger Air Bag
Deactivation Switch on page 2-39.
Essential Safety Equipment
Child Restraint
2-27
MX-5_8Z78-EA-08K_Edition1 Page39
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (40,1)

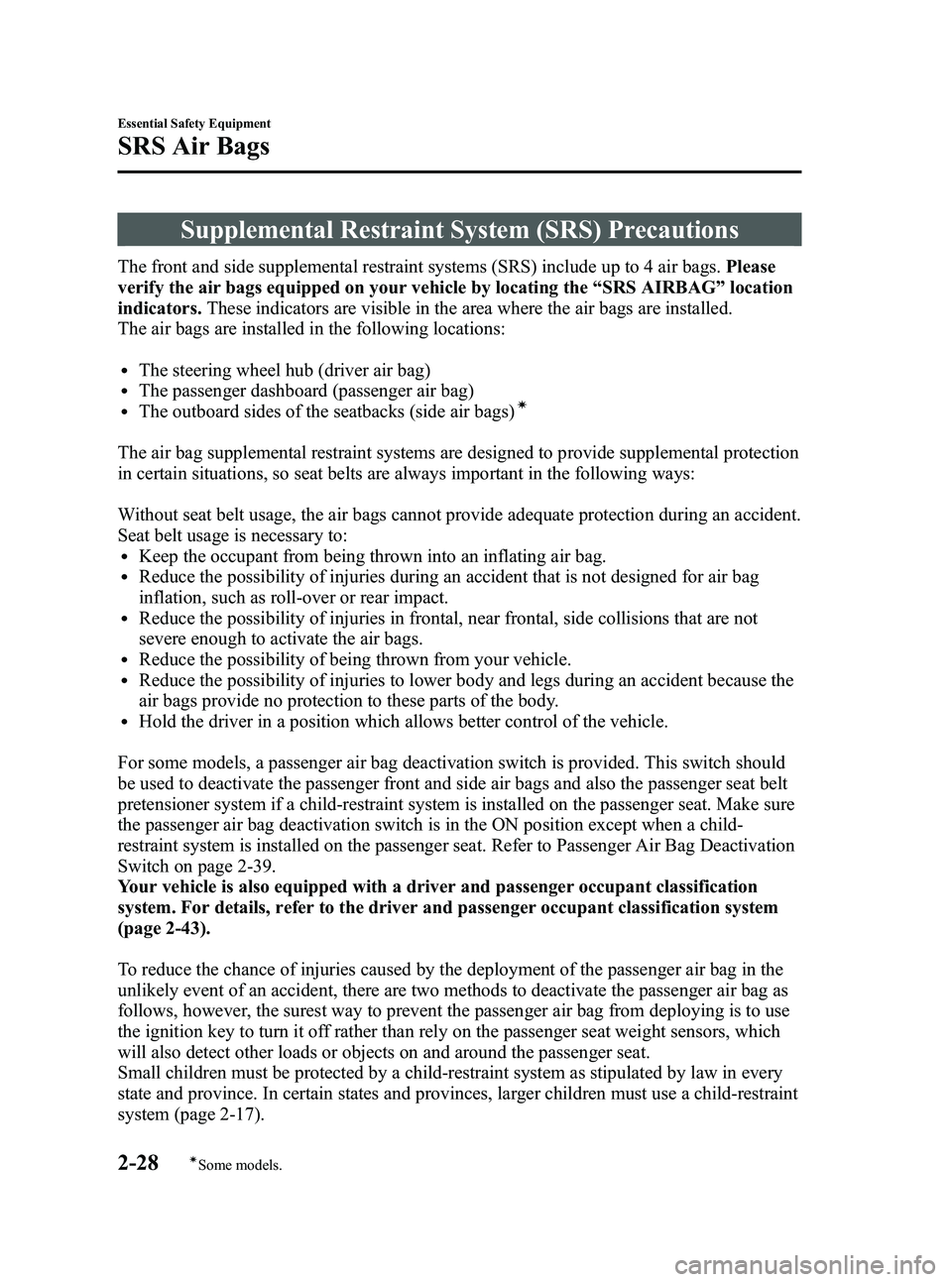

Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include up to 4 air bags.Please
verify the air bags equipped on your vehicle by locating the “SRS AIRBAG ”location
indicators. These indicators are visible in the area where the air bags are installed.
The air bags are installed in the following locations:
lThe steering wheel hub (driver air bag)lThe passenger dashboard (passenger air bag)lThe outboard sides of the seatbacks (side air bags)í
The air bag supplemental restraint systems are designed to provide supplemental protection
in certain situations, so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
lReduce the possibility of injuries in frontal, near frontal, side collisions that are not
severe enough to activate the air bags.
lReduce the possibility of being thrown from your vehicle.lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
For some models, a passenger air bag deactivation switch is provided. This switch should
be used to deactivate the passenger front and side air bags and also the passenger seat belt
pretensioner system if a child-restraint system is installed on the passenger seat. Make sure
the passenger air bag deactivation switch is in the ON position except when a child-
restraint system is installed on the passenger seat. Refer to Passenger Air Bag Deactivation
Switch on page 2-39.
Your vehicle is also equipped with a driver and passenger occupant classification
system. For details, refer to the driver and passenger occupant classification system
(page 2-43).
To reduce the chance of injuries caused by the deployment of the passenger air bag in the
unlikely event of an accident, there are two methods to deactivate the passenger air bag as
follows, however, the surest way to prevent the passenger air bag from deploying is to use
the ignition key to turn it off rather than rely on the passenger seat weight sensors, which
will also detect other loads or objects on and around the passenger seat.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-17).
2-28
Essential Safety Equipment
íSome models.
SRS Air Bags
MX-5_8Z78-EA-08K_Edition1 Page40
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (41,1)
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
Do not use a child-restraint system which employs an upper tether because there is no
appropriate means to anchor the tether.
WARNING
Seat belts must be worn in air bag equipped vehicles:Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in the first accident, such as frontal, near frontal, side
collisions that are at least moderate. Vehicle occupants should always wear seat
belts.
Always make sure the passenger air bag deactivation indicator light is illuminated
when using a rear-facing child-restraint system: Seating a child in a rear-facing child-restraint system that is installed on the
passenger seat with the passenger air bag deactivation indicator light not
illuminated is extremely dangerous. In an accident, a air bag could inflate and cause
serious injuries or even death to the child seated in the rear-facing child-restraint
system. Always make sure the passenger air bag deactivation indicator light is
illuminated using the key to turn the passenger air bag off.
Refer to Passenger Air Bag Deactivation Switch on page 2-39.
Refer to Passenger seat weight sensors on page 2-43.
Do not sit too close to the driver and passenger air bags:
Sitting too close to the driver and passenger air bag modules or placing hands or
feet on them is extremely dangerous. The driver and passenger air bags inflate with
great force and speed. Serious injuries could occur if someone is too close. The driver
should always hold onto only the rim of the steering wheel. The seat passenger
should keep both feet on the floor. Seat occupants should adjust their seats as far
back as possible and always sit upright against the seatbacks with seat belts worn
properly.
Essential Safety Equipment
SRS Air Bags
2-29
MX-5_8Z78-EA-08K_Edition1 Page41
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K
