3. If your vehicle has a lid, pull the latchto open.
When finished, return the seat to its
original position and secure it. After
returning the seat to its original position,
make sure the seat is secured by
attempting to lightly move it forward and
backward.
CAUTION
Do not store excessive weight in the
back trim storage box as it could be
damaged.
q Mesh Pocket
Maps or pamphlets can be placed in the
mesh pocket.
Mesh pocket
CAUTION
Do not place thick objects in the
mesh pocket as they could damage
the pocket.
Accessory Socket
The ignition switch must be in the ACC
or ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
Ø Do not use accessories that require
more than 120 W (DC 12 V, 10 A).
Ø Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
Ø Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
Ø Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-83
MX-5_8AV1-EA-09F_Edition5 Page301
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (302,1)
Windblocker
This windblocker reduces rear wind blast
into the cabin when driving with the
convertible top down.
To use the windblocker, lift it upright.
6-84
Interior Comfort
Interior Equipment
MX-5_8AV1-EA-09F_Edition5 Page302
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (303,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Flat Tire
í.................................................................................. 7-3
Tool Storage .............................................................................. 7-5
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit
í.......................................................................................... 7-7
Changing a Tire ....................................................................... 7-13
Overheating ................................................................................. 7-18 Overheating ............................................................................. 7-18
Emergency Starting .................................................................... 7-20 Starting a Flooded Engine ....................................................... 7-20
Jump-Starting .......................................................................... 7-21
Push-Starting ........................................................................... 7-24
Emergency Towing ..................................................................... 7-25 Towing Description ................................................................. 7-25
Tiedown Hooks ....................................................................... 7-26
Recreational Towing ............................................................... 7-28
7-1íSome models.
MX-5_8AV1-EA-09F_Edition5 Page303
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (304,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
MX-5_8AV1-EA-09F_Edition5 Page304
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (305,1)
Flat Tireí
Either run-flat tires or conventional tires
are equipped on your Mazda depending
on the specification, therefore the
procedure for repairing a flat tire differs
depending on the type of tire. Before
driving, make sure which type of tire is
equipped on your Mazda. If you cannot
identify your tire type, consult an
Authorized Mazda Dealer.
qHow to identify your tire type
Run-flat tire
A run-flat tire has a “RFT ”mark on the
side wall.
Conventional tire
A conventional tire does not have a
“ RFT ”mark on the side wall.
q Vehicle with run-flat tires
WARNING
Have the tires checked or perform the
appropriate repair as soon as possible
by an Authorized Mazda Dealer:
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard, it is
dangerous to drive the vehicle at high
speeds, or perform sudden
maneuvering or braking. Vehicle
drivability could worsen and result in
an accident.
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard,
decrease vehicle speed immediately
and avoid sudden maneuvering and
braking.
If a run-flat tire is punctured, the FLAT
TIRE warning light illuminates in the
instrument cluster, and a beep sound is
heard for about 30 seconds.
NOTE
Until the flat tire is changed, the beep sound is
heard for about 30 seconds every time the
ignition switch is turned to the ON position.
Vehicles with run-flat tires can be driven
even with a punctured tire under the
following conditions.
In Case of an Emergency
Flat Tire
7-3íSome models.
MX-5_8AV1-EA-09F_Edition5 Page305
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (306,1)
Maximum vehicle speed with a
punctured run-flat tire: 80 km/h (49
mph)
Maximum driving distance with a
punctured run-flat tire: 80 km (49
miles)
CAUTION
The maximum driving distance may
be shorter depending on the driving
conditions.
If a run-flat tire is punctured, carefully
drive the vehicle to the nearest Mazda
Dealer and have the tire changed.
NOTE
lA spare tire or Instant Mobility System
(IMS) emergency flat tire repair kit is not
equipped on vehicles with run-flat tires as
standard.
lReplacing a punctured run-flat tire with a
new run-flat tire is recommended.
lDo not use run-flat tires and conventional
tires on the same vehicle.
q Vehicle with conventional tires
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction. If a
conventional tire is punctured, refer to
“Tool Storage ”(page 7-5) and “Instant
Mobility System (IMS) Emergency
Flat Tire Repair Kit ”(page 7-7).
7-4
In Case of an Emergency
Flat Tire
MX-5_8AV1-EA-09F_Edition5 Page306
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (307,1)
Tool Storage
Tools are stored in the locations illustrated in the diagram.
Power retractable hardtop
emergency tool bag
Tool bag
ropeGlove boxLug wrench
Jack
Jack Lever
eyebolt
hexagonal
wrench
Some models.
Instant Mobility System (IMS) Emergency Flat Tire Repair Kit
Trunk room
Towing/Tiedown eyelet
In Case of an Emergency
Flat Tire
7-5
MX-5_8AV1-EA-09F_Edition5 Page307
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (308,1)
qJack
To remove the jack
1. Turn the knob and remove the cover.
2. Turn the wing bolt and jack screw
counterclockwise.
Wing bolt
Jack screw
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing back and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
7-6
In Case of an Emergency
Flat Tire
MX-5_8AV1-EA-09F_Edition5 Page308
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (309,1)
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
í
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit.
After temporarily repairing a tire with the
emergency flat tire repair kit, take your vehicle
to an Authorized Mazda Dealer to have the tire
replaced.
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hose Compressor
Repaired tire
sticker
Valve core
tool
Spare valve
core
Speed restriction
sticker
Instructions
Case
WARNING
Do not allow children to touch the tire
sealant: Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant: Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
In Case of an Emergency
Flat Tire
7-7íSome models.
MX-5_8AV1-EA-09F_Edition5 Page309
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F

Black plate (310,1)

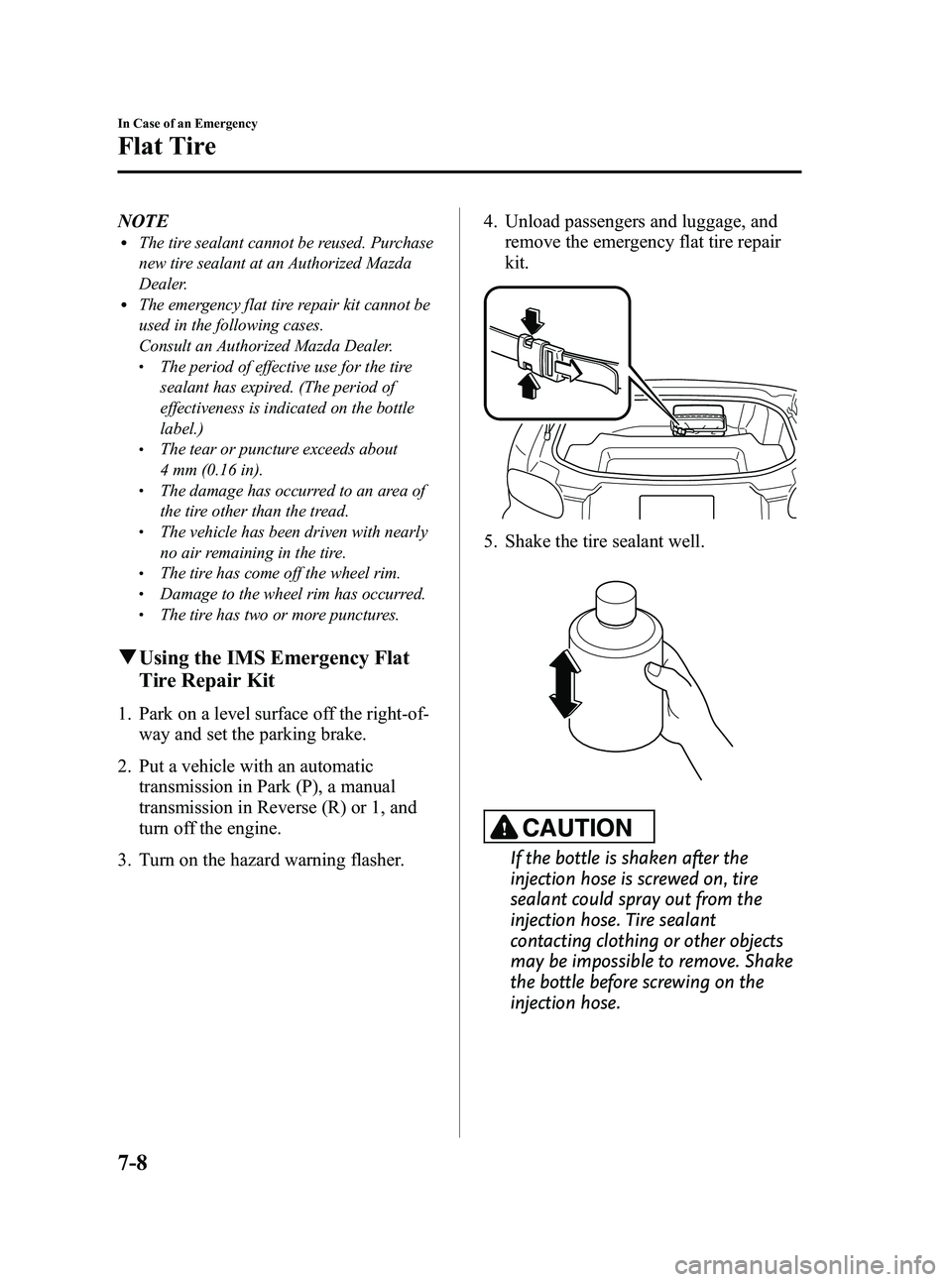

NOTElThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher. 4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the
injection hose is screwed on, tire
sealant could spray out from the
injection hose. Tire sealant
contacting clothing or other objects
may be impossible to remove. Shake
the bottle before screwing on the
injection hose.
7-8
In Case of an Emergency
Flat Tire
MX-5_8AV1-EA-09F_Edition5 Page310
Friday, May 7 2010 9:17 AM
Form No.8AV1-EA-09F
