MAZDA MODEL MX-5 MIATA 2013 Owners Manual

Black plate (321,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level: Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery: Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving: Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
Discharged battery
Connect cables in numerical order and disconnect in reverse order.
Jumper cables
Booster battery
In Case of an Emergency
Emergency Starting
7-23
MX-5_8CM3-EA-12F_Edition2 Page321
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (322,1)
1. Remove the rubber hose from thebattery cover.
2. Remove the battery cover from its right
side.
3. Make sure the booster battery is 12 Vand that its negative terminal is
grounded.
4. If the booster battery is in another vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles. 5. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
6. Start the engine of the booster vehicle and run it a few minutes. Then start the
engine of the other vehicle.
7. When finished, carefully disconnect the cables in the reverse order described in
the illustration.
8. If the battery cover has been removed, install it in the reverse order of
removal.
7-24
In Case of an Emergency
Emergency Starting
MX-5_8CM3-EA-12F_Edition2 Page322
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

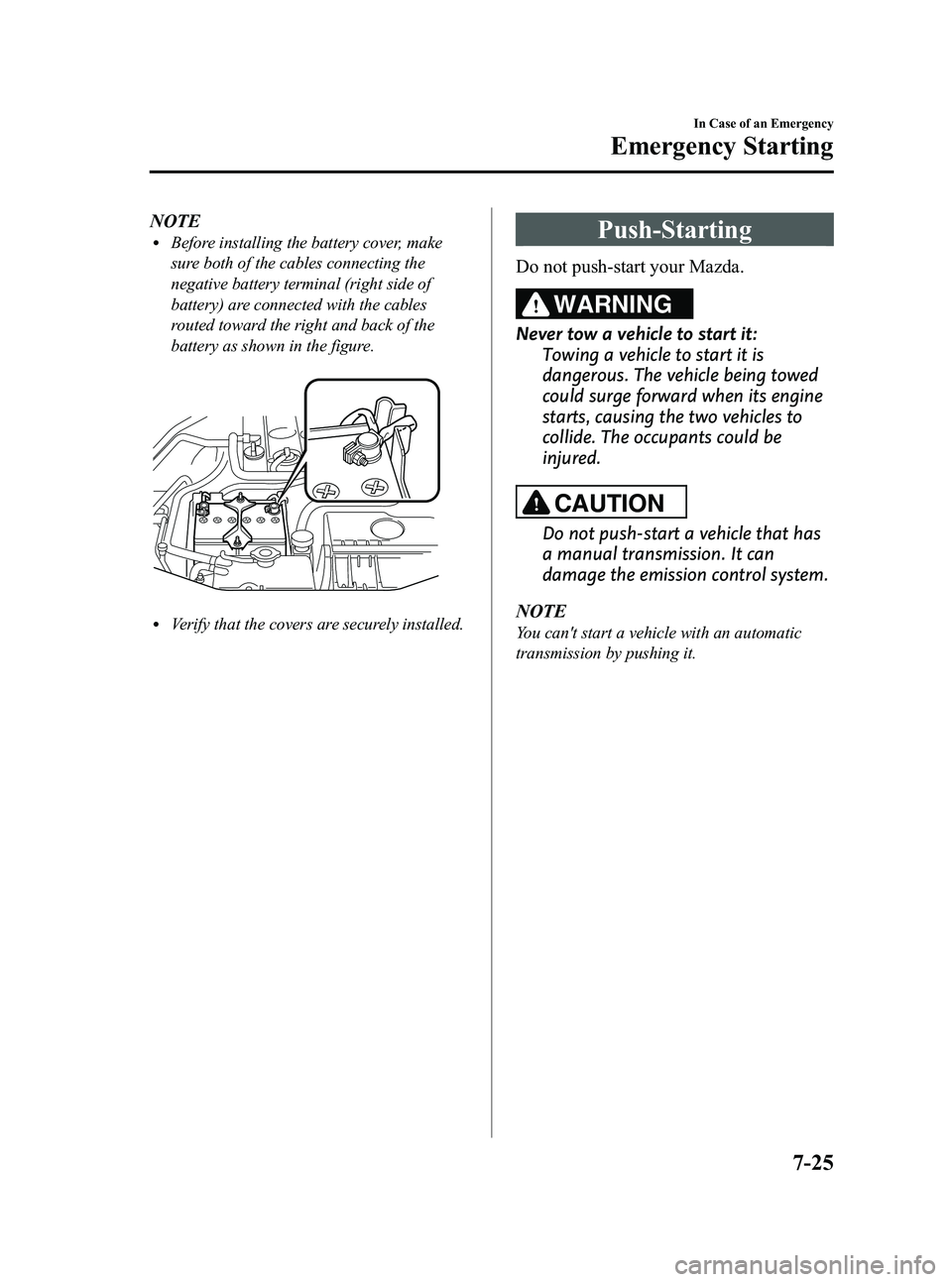

Black plate (323,1)
NOTElBefore installing the battery cover, make
sure both of the cables connecting the
negative battery terminal (right side of
battery) are connected with the cables
routed toward the right and back of the
battery as shown in the figure.
lVerify that the covers are securely installed.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transmission. It can
damage the emission control system.
NOTE
You can't start a vehicle with an automatic
transmission by pushing it.
In Case of an Emergency
Emergency Starting
7-25
MX-5_8CM3-EA-12F_Edition2 Page323
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (324,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (rear wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.
Wheel dollies
CAUTION
Do not tow the vehicle pointed
forward with driving wheels on the
ground. This may cause internal
damage to the transmission.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
7-26
In Case of an Emergency
Emergency Towing
MX-5_8CM3-EA-12F_Edition2 Page324
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (325,1)
Tiedown Hooks
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-5).
2. Wrap the jack lever with a soft cloth to prevent damage to a painted bumper,
and open the cap located on the front or
rear bumper.
Front
Rear
CAUTION
Ø Do not use excessive force as it
may damage the cap or scratch
the painted bumper surface.
Ø The rear bumper cover cannot be
removed completely. Attempting
to forcefully remove the rear
bumper cover could result in it
being damaged.
NOTE
Remove the front bumper cover completely and
store it so as not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Front
Lug wrench
In Case of an Emergency
Emergency Towing
7-27
MX-5_8CM3-EA-12F_Edition2 Page325
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (326,1)
Rear
Lug wrench
4. Hook the tying rope to the tiedowneyelet.
Front
Tiedown eyelet
Rear
Tiedown eyelet
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
7-28
In Case of an Emergency
Emergency Towing
MX-5_8CM3-EA-12F_Edition2 Page326
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (327,1)
Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-26) and
“ Tiedown Hooks ”(page 7-27) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-29
MX-5_8CM3-EA-12F_Edition2 Page327
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (328,1)
7-30
MX-5_8CM3-EA-12F_Edition2 Page328
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (329,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-4 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-4
Scheduled Maintenance (Mexico) ............................................. 8-9
Owner Maintenance ................................................................... 8-16 Owner Maintenance Schedule ................................................ 8-16
Owner Maintenance Precautions ............................................. 8-17
Engine Compartment Overview .............................................. 8-19
Engine Oil ............................................................................... 8-20
Engine Coolant ....................................................................... 8-22
Brake/Clutch Fluid .................................................................. 8-24
Power Steering Fluid ............................................................... 8-25
Washer Fluid ........................................................................... 8-25
Body Lubrication .................................................................... 8-26
Wiper Blades ........................................................................... 8-27
Battery ..................................................................................... 8-29
Tires ........................................................................................ 8-32
Light Bulbs ............................................................................. 8-38
Fuses ....................................................................................... 8-47
Appearance Care ........................................................................ 8-52 How to Minimize Environmental Paint Damage .................... 8-52
Exterior Care ........................................................................... 8-54
Interior Care ............................................................................ 8-60
8-1
MX-5_8CM3-EA-12F_Edition2 Page329
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (330,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.
This evidence may consist of the following:
lThe Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
lOriginal copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
lFor self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
8-2
Maintenance and Care
Introduction
MX-5_8CM3-EA-12F_Edition2 Page330
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F
