5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse orderof the removal procedure.
Front turn signal lights/Parking lights
1. If you are changing the right bulb, startthe engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
2. Make sure the turn signal switch is off.
3. Turn the center section of the plastic retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it. 5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
Rear turn signal lights, Reverse lights,
Brake lights/Taillights, Rear side
marker lights
Rear side marker lights
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Rear turn signal lights, Reverse lights,
Brake lights/Taillights
1. Make sure the ignition is switched offand the applicable light switch is off.
2. Lift the trunk.
Maintenance and Care
Owner Maintenance
8-43
MX-5_8CM3-EA-12F_Edition2 Page371
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (372,1)
3. Pull the center section of the plasticretainers and remove them, then
remove the trunk end trim.
Removal
Installation
4. Remove the trunk light connector.
5. Remove the trunk lid release lock-out button connector.
6. Pull the center section of the plasticretainers and remove them, then
remove the trunk side trim.
Removal
Installation
7. Turn the socket and bulb assembly counterclockwise and remove it.
8. Disconnect the bulb from the socket.
Rear turn signal lights
8-44
Maintenance and Care
Owner Maintenance
MX-5_8CM3-EA-12F_Edition2 Page372
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (373,1)
Reverse lights
Brake lights/Taillights
9. Install the new bulb in the reverse orderof the removal procedure.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the trunk. 3. Slide the light to the left side of the
vehicle and remove it.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order of the removal procedure.
Maintenance and Care
Owner Maintenance
8-45
MX-5_8CM3-EA-12F_Edition2 Page373
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (374,1)
qReplacing Interior Light Bulbs
Overhead light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the cover.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of the removal procedure.
Trunk light
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of the removal procedure.
8-46
Maintenance and Care
Owner Maintenance
MX-5_8CM3-EA-12F_Edition2 Page374
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (375,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
3. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
Fuse puller
Fuse block cover
4. Inspect the fuse and replace it if it'sblown.
Normal Blown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Maintenance and Care
Owner Maintenance
8-47
MX-5_8CM3-EA-12F_Edition2 Page375
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (376,1)
6. Reinstall the cover and make sure thatit is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
8-48
Maintenance and Care
Owner Maintenance
MX-5_8CM3-EA-12F_Edition2 Page376
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (377,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 7.5 A Cooling fan
3 DEFOG 20 A Rear window defroster
4 H/CLEAN ――
5 ROOM 15 A Overhead lights, Luggage compartment light, For protection of
various circuits, Trunk opener
6 IG KEY2 15 A For protection of various circuits
7 HEATER 40 A Air conditioner
í
8 ABS 30 A ABS
9 FOG 15 A Front fog lightsí
10R.FOG ――
11 RHT L 30 A Power retractable hardtop (LH)í
12 RHT R 30 A Power retractable hardtop (RH)í
13MAG 7.5 A Air conditionerí
14ST 20 A Starter
15 TAIL 15 A Taillights, Parking lights, License plate lights, Illumination
16 ABS 40 A ABS
Maintenance and Care
Owner Maintenance
8-49íSome models.
MX-5_8CM3-EA-12F_Edition2 Page377
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (378,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
17 BTN 30 A For protection of various circuits
18 MAIN 120 A For protection of all circuits
19 EGI INJ 10 A Injector
20 EGI COMP1 10 A Engine control system
21 EGI COMP2 10 A Engine control system
22 HEAD LOW L 15 A Headlight low beam (LH)
23 HEAD LOW R 15 A Headlight low beam (RH)
24 HEAD 15 A Headlight high beams
25 P.WIND 20 A Power windows
26 ENGINE 15 A Engine control system
27 WIPER 20 A Windshield wipers and washer
28 DRL 15 A DRL
í
29HORN 15 A Horn
30 STOP 10 A Brake lights
31 ETV 10 A Electric throttle valve
32 FUEL PUMP 15 A Fuel Pump
33 HAZARD 10 A Turn signals, Hazard warning flashers
34 P.WIND2 20 A Power windows
í
35 IG KEY140 A For protection of various circuits
8-50
Maintenance and Care
íSome models.
Owner Maintenance
MX-5_8CM3-EA-12F_Edition2 Page378
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (379,1)
Fuse block (Driver's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 ACC 7.5 A Audio system, Power control mirror
2 AUX PWR 15 A Accessory Socket
3 METER 15 A Instrument cluster
4 SEAT WARM 20 A Seat warmer
í
5 ILLUMI 7.5 A Illumination
6 A/C 7.5 A Air conditionerí
7 ENGINE 7.5 A Engine control system, For protection of various circuits
8 ―― ―
9 M.DEF ――
10 AUDIO 20 A Audio system
í
11 D.LOCK20 A Power door lockí
12SILEN ――
13 ―― ―
14 ―― ―
15 ―― ―
16 ―― ―
Maintenance and Care
Owner Maintenance
8-51íSome models.
MX-5_8CM3-EA-12F_Edition2 Page379
Friday, August 31 2012 1:46 PM
Form No.8CM3-EA-12F

Black plate (380,1)

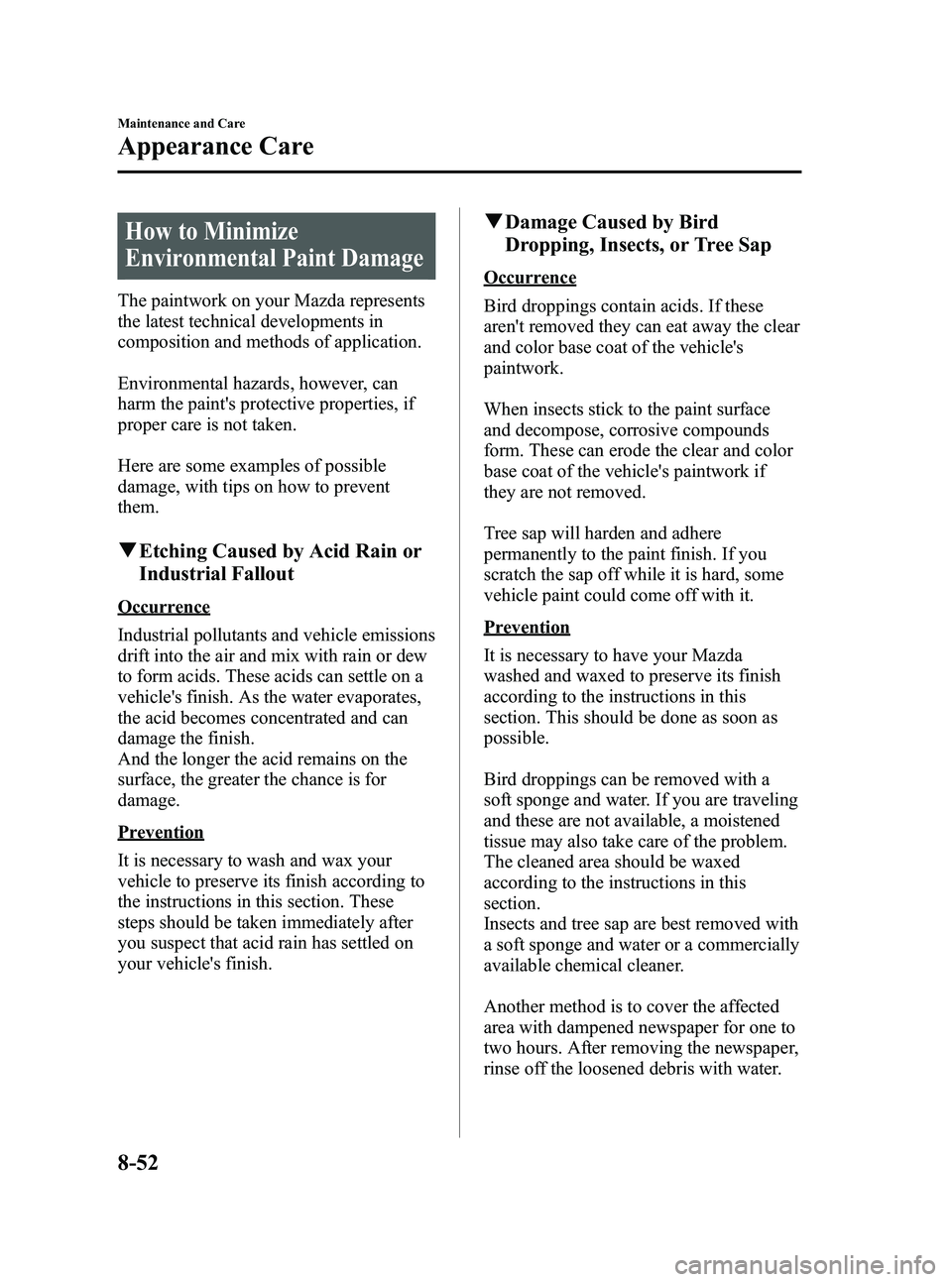

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
