MAZDA MODEL MX-5 MIATA 2018 Owners Manual

▼Opening the Roof
When opening the roof, make sure objects
inside the vehicle are not blown away by
the wind. Secure all loose objects inside
before driving with
the roof down.
1. Park the vehicle on level ground in a safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual transmission vehicle.
Shift the selector lever to P on an
automatic transmi ssion vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Start the engine to prevent the battery
from going dead.
4. Continue pressing the retractable
hardtop switch in the open direction
until the roof opening operation is
completed. When the opening
operation is completed, a beep sound is
activated and the operation indicator
light turns off.
NOTE
If the retractable hardtop switch is
pressed in the open direction, a
warning beep sounds.
When pressing the retractable
hardtop switch while the windows
are closed, the windows open
slightly. If the switch is continuously
pressed in the open direction until
the roof opening operation is
completed, the windows return to
their original positions. However,
the windows may not return to their
original positions depending on the
conditions.
The roof keeps opening and the
operation indicator light flashes
while the retractable hardtop switch
is pressed in the open direction.
If the switch is released while the
roof is opening, the roof stops
opening. If the switch is pressed in
the open direction again, the roof
resumes opening.
When the roof is half-open, the front
roof resumes opening after the rear
roof is completely open.
▼Closing the Roof
1. Park the vehicle on level ground in a
safe place where the vehicle does not
obstruct traffic.
Shift the shift lever to neutral on a
manual vehicle.
Shift the selector lever to P on an
automatic vehicle.
Apply the parking brake.
2. Make sure that the trunk is closed.
3. Slightly slide the seats back if they are in the foremost position.
4. Start the engine to prevent the battery from going dead.
Before Driving
Convertible Top (Hardtop)
3-43
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

5. Continue pressing the retractablehardtop switch in the close direction
until the roof closing operation is
completed. When the closing operation
is completed, a beep sound is activated
and the operation indicator light turns
off.

6. Close the windows using the powerwindow switch.
NOTE
If the retractable hardtop switch is
pressed in the close direction, a warning
beep sounds.
When pressing the retractable hardtop
switch while the windows are closed, the
windows open slightly. The windows do
not return to their original positions
even after the roof closing operation is
completed.
The roof keeps closing and the operation
indicator light flashes while the
retractable hardtop switch is pressed in
the close direction.
If the switch is released while the roof is
closing, the roof stops closing. If the
switch is pressed in the close direction
again, the roof resumes closing.
▼Operation Conditions
If the following conditions have been
satisfied, the roof can be opened/closed.
The ignition is switched ON.
Shift/selector lever is in a position other
than R (reverse).
Vehicle speed is 10 km/h (6.2 mph) or
less.
The trunk lid is closed.
The vehicle is tilted at an angle of 15
degrees or less.
CAUTION
If the vehicle speed exceeds 10 km/h (6.2
mph) during the opening/closing
operation, the opening/closing operation
of the roof stops midstream. If the roof
stops midstream, visibility at the rear may
be impaired or damage to the roof may
occur which could lead to an accident.
Operate the switch again with the vehicle
stopped, depending on the road and traffic
conditions, to complete opening/closing
operation of the roof.
NOTE
For the purposes of safety when
opening/closing the roof, follow the
instructions for Opening the Roof and
Closing the Roof.
If the roof cannot be closed even after
the operation conditions are all met,
have it checked at an Authorized Mazda
Dealer.
The roof can be closed manually as an
emergency measure.
Refer to When the Roof Cannot be
Closed on page 7-58.
Before Driving
Convertible Top (Hardtop)
3-44
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

▼Power Window Interlocking
Operation
When opening/closing the roof, the power
windows lower automatically for
improved operability.
NOTE
If the vehicle battery is disconnected for
vehicle maintenance or other reasons, the
power windows will not lower
automatically. If the power windows do
not lower, reset the power window
automatic open/close function.
Refer to Auto-opening on page 3-34.
Before Driving
Convertible Top (Hardtop)
3-45
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

Modification and Add-OnEquipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent
vehicle theft.
If you have a pr oblem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
 Radio equipment like this is governed by
laws in the United States.
Changes or
modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of magnetic
field.
 Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
Before Driving
Security System
3-46
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

NOTE
The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼ Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard. Move
the key to a location within the signal
range, switch the ignition off, and then
restart the engine.
Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indica
tor light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after 3
or more tries, contact an Authorized
Mazda Dealer.
NOTE
If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorized Mazda
Dealer so that they can be programmed.
Before Driving
Security System
3-47
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼ Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the sys
tem is triggered by
any one of the following:
Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
Forcing open a door, the hood or the
trunk lid.
Opening the hood by operating the hood
release handle.
Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door is unlocked with the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
The trunk lid does not open while the
theft-deterrent system is operating.
If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash wh en the battery is
charged or replaced.
▼ How to Arm the System
1. Close the windows and the convertible
top securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
trunk lid are closed.
4. Press the lock butto n on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close both of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
Before Driving
Security System
3-48*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

NOTE
The theft-deterrent system can also be
armed by activating the auto relock
function with both the doors, the trunk
lid and the hood closed.
Refer to Transmitter on page 3-4.
The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
Unlocking any door.
Opening any door.
Opening the hood.
Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by pressing
the lock button on the transmitter or
using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
▼ To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a reque
st switch on the
doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
▼ To S t o p t h e A l a r m
A triggered alarm can be turned off using
any one of the following methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push button
start.
(With the advanced keyless function)
Pressing a request switch on the
doors.
Pressing the electric trunk lid opener
while the key is being carried.
The hazard warning lights will flash twice.
Before Driving
Security System
3-49
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of the vehicle.
Do not race the engine.
Do not maintain one constant speed,
either slow or fast, for a long period of
time.
Do not drive constantly at full-throttle or
high engine rpm for e xtended periods of
time.
Avoid unnecessary hard stops.
Avoid full-throttle starts.
Saving Fuel and Protection of the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO
2.
Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
Avoid fast starts.
Drive at lower speeds.
Anticipate when to apply the brakes
(avoid sudden braking).
Follow the maintenance schedule (page
6-4) and have an Authorized Mazda
Dealer perform inspections and
servicing.
Use the air conditioner only when
necessary.
Slow down on rough roads.
Keep the tires properly inflated.
Do not carry unnecessary weight.
Do not rest your foot on the brake pedal
while driving.
Keep the wheels in correct alignment.
Keep windows closed at high speeds.
Slow down when driving in crosswinds
and headwinds.
WA R N I N G
Never stop the engine when going down a
hill:
Stopping the engine when going down a
hill is dangerous. This causes the loss of
power steering and power brake control,
and may cause damage to the drivetrain.
Any loss of steering or braking control
could cause an accident.
Before Driving
Driving Tips
3-50
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Hazardous Driving
WA R N I N G
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear while driving
on slippery surfaces is dangerous. The
sudden change in tire speed could cause
the tires to skid. This could lead to loss of
vehicle control and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
Be cautious and allow extra distance for
braking.
Avoid sudden braking and sudden
maneuvering.
Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-64.
If you get stuck, select a lower gear and
accelerate slowly. Do not spin the rear
wheels.
For more traction in starting on slippery
surfaces such as ice or packed snow, use
sand, rock salt, chains, carpeting, or
other nonslip material under the rear
wheels.
NOTE
Use snow chains only on the rear wheels.
Floor Mat
We recommend the use of Genuine
Mazda floor mats.
WA R N I N G
Make sure the floor mats are hooked on the
retention pins to prevent them from
bunching up under the foot pedals:
Using a floor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.
Do not install two floor mats, one on top of
the other, on the driver's side:
Installing two floor mats, one on top of the
other, on the driver's side is dangerous as
the retention pins can only keep one floor
mat from sliding forward.
Loose floor mat(s) will interfere with the
foot pedals and could result in an accident.
If using an all-weather mat for winter use
always remove the original floor mat.
When setting a floor mat, position the
floor mat so that its grommets are inserted
over the pointed end of the retention posts.
Before Driving
Driving Tips
3-51
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

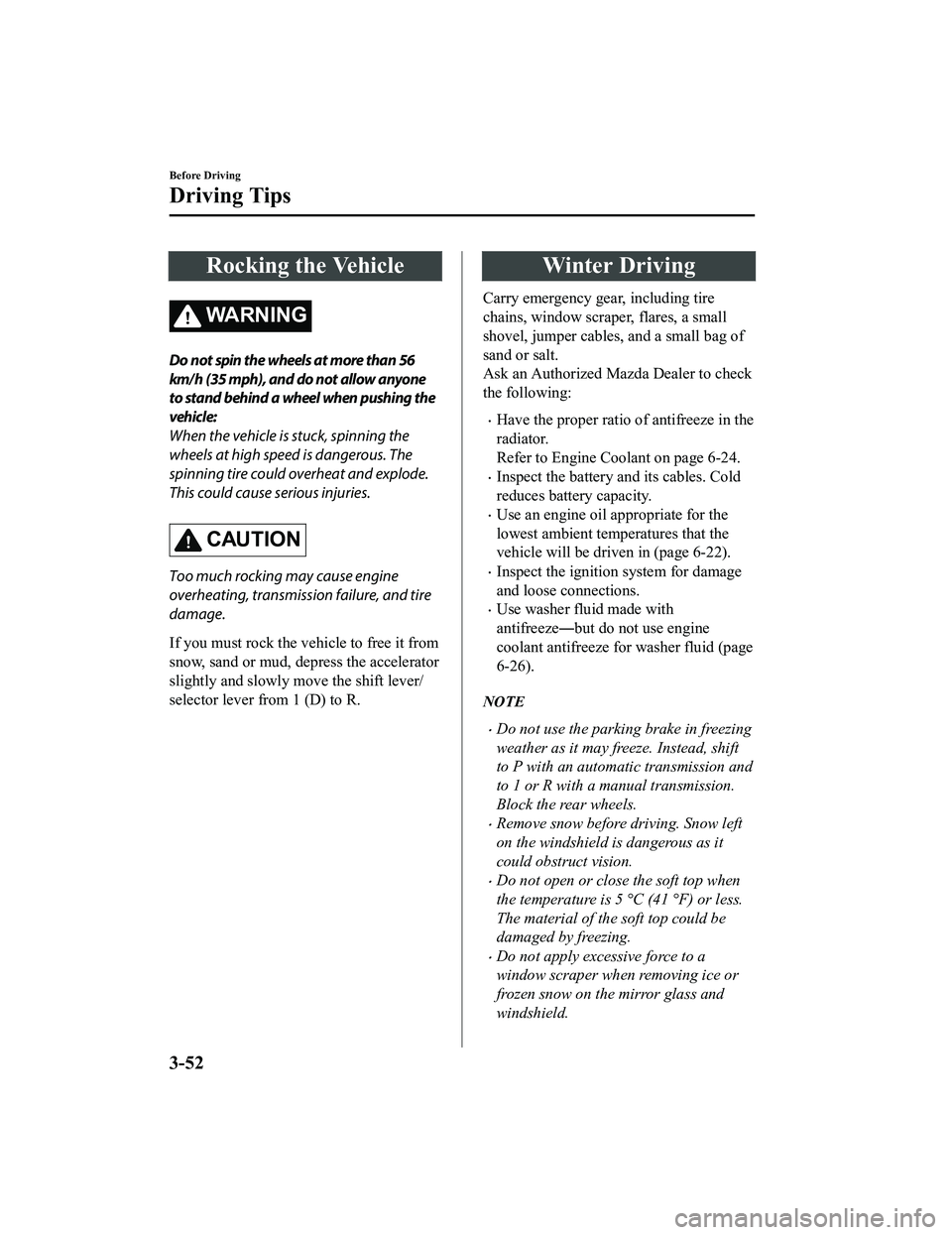

Rocking the Vehicle
WA R N I N G
Do not spin the wheels at more than 56
km/h (35 mph), and do not allow anyone
to stand behind a wheel when pushing the
vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous. The
spinning tire could overheat and explode.
This could cause serious injuries.
CAUTION
Too much rocking may cause engine
overheating, transmission failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever/
selector lever from 1 (D) to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page 6-24.
Inspect the battery and its cables. Cold
reduces battery capacity.
Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-22).
Inspect the ignition system for damage
and loose connections.
Use washer fluid made with
antifreeze―but do not use engine
coolant antifreeze for washer fluid (page
6-26).
NOTE
Do not use the parking brake in freezing
weather as it may freeze. Instead, shift
to P with an automatic transmission and
to 1 or R with a manual transmission.
Block the rear wheels.
Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
Do not open or close the soft top when
the temperature is 5 °C (41 °F) or less.
The material of the soft top could be
damaged by freezing.
Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
Before Driving
Driving Tips
3-52
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
