MAZDA MODEL MX-5 MIATA 2018 Owners Manual

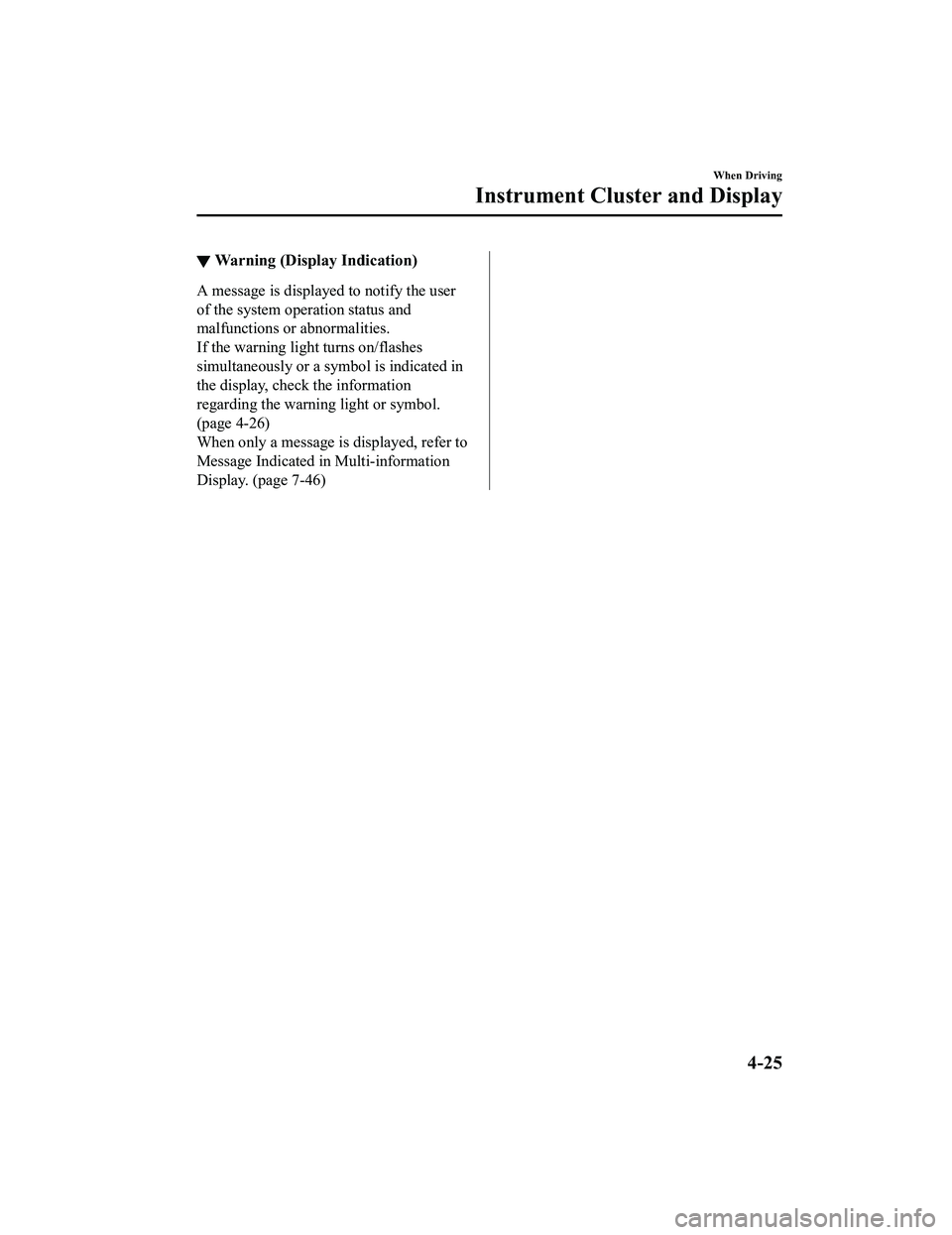

▼Warning (Display Indication)
A message is displayed to notify the user
of the system operation status and
malfunctions or abnormalities.
If the warning light turns on/flashes
simultaneously or a symbol is indicated in
the display, check the information
regarding the warning light or symbol.
(page 4-26)
When only a message is displayed, refer to
Message Indicated in Multi-information
Display. (page 7-46)
When Driving
Instrument Cluster and Display
4-25
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Center of Dashboard
Warning/Indicator lights will appear in any of the highlighted areas
Type A
(With Multi-information Display)
Type B
(Without Multi-information Display)
Instrument Cluster
▼
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Warning Lights Page
Brake System Warning Light*1*27-33
Charging System Warning Indication/Warning Light*17-33
Engine Oil Warning Light*17-33
(Red)High Engine Coolant Temperature Warning Indication/Warning
Light*17-33
Power Steering Malfunction Indicator Light*17-33
*Master Warning Indication/Warning Light*17-36
Electric Vacuum Pump Warning Light*17-36
When Driving
Instrument Cluster and Display
4-26*Some models.
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

SignalWarning Lights Page
ABS Warning Light*1
Electronic Brake Force
Distribution System Wa r n i n g
7-33
ABS warning 7-36
Check Engine Light*17-36
*Automatic Transmission Warni ng Indication/Warning Light*17-36
Air Bag/Seat Belt Pretensioner System Warning Light*17-36
Tire Pressure Monitoring System Warning Light*1
Flashing
7-36
Turns on 7-41
(Red)
*KEY Warning Indication/Warning Light*1
Turns on7-36
Flashing 7-41
(Amber)
*KEY Warning Indication 7-36
*Lane Departure Warning System (LDWS) Warning Indication/
Wa r n i n g L i g h t*1
Turns on 7-36
Flashing 4-83
(Amber)
*High Beam Control System (HB C) Warning Indication/Warn-
ing Light*17-36
*Blind Spot Monitoring (BS M) Warning Indication 7-36
*Retractable Hardtop Warning Indication
7-36
LED Headlight Warning Light*17-36
Seat Belt Warning Light
7-41
*Door-Ajar Warning Light7-41
When Driving
Instrument Cluster and Display
*Some models.4-27
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

SignalWarning Lights Page
*Door-Ajar Warning Indication 7-41
*Trunk lid-Ajar Wa
rning Indication 7-41
*Low Fuel Warning Indication/Warning Light
7-41
Check Fuel Cap Warning Light*17-41
*Low Washer Fluid Level Warni
ng Indication/Warning Light 7-41
*1 The light turns on when the ignition is switched on for an ope
ration check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
▼Indication/Indicator Lights
These lights turn on or flash to notify the user of the system
operation status or a system
malfunction.
Signal Indicator Lights Page
*Passenger Air Bag Deactivation Indicator Light*12-40
(White/Green)
*KEY Indicator/Indicator Light 3-9
Security Indicator Light*13-47
*Retractable Hardtop Operation Indicator Light3-42
*Wrench Indication/Indicator Light*14-30
(Blue)Low Engine Coolant Temperature Indicator Light 4-30
*Shift Position Indication
4-36
Lights-On Indicator Light
4-44
When Driving
Instrument Cluster and Display
4-28*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

SignalIndicator Lights Page
Headlight High-Beam Indicator Light Headlight High-Low
Beam4-47
Flashing the Headlights 4-47
Turn Signal/Hazard Warning Indicator Lights Turn and Lane-Change
Signals4-49
Hazard Warning Flasher 4-55
TCS/DSC Indicator Light*1
Traction Control System(TCS)4-65
Dynamic Stability Con- trol (DSC)4-66
(Turns on) 7-36
DSC OFF Indicator Light*14-67
*Select Mode Indication 4-72
(Green)
*High Beam Control System (HBC) Indicator Light4-77
*Blind Spot Monitoring (BSM) OFF Indicator Light*14-89
*Lane Departure Warning System (LDWS) OFF Indicator
Light*14-82
(White/Amber) Cruise Main Indication/Indicator Light 4-99
(Green)Cruise Set Indication/Indicator Light 4-99
*1 The light turns on when the ignition is switched on for an ope
ration check, and turns off
a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda De aler.
When Driving
Instrument Cluster and Display
*Some models.4-29
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

▼Wrench Indication/Indicator Light*
Type A instrument cluster
Perform maintenance in accordance with
the message.
Type B instrument cluster
When the ignition is switched ON, the
wrench indicator light is illuminated and
then turns off after a few seconds.
The wrench indicator light turns on when
the preset maintenance period arrives.
Verify the content and perform
maintenance.
Refer to Maintenance Monitor on page 6-
15.
▼ Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine c
oolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.
When Driving
Instrument Cluster and Display
4-30*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Manual Transmission ShiftPattern
Neutral position
The shift pattern of the transmission is
conventional, as shown.

Depress the clutch pedal all the way down
while shifting; then release it slowly.

Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
R.

WA R N I N G
Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Always leave the shift lever in 1 or R
position and set the parking brake when
leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.
CAUTION
 Keep your foot off the clutch pedal except
when shifting gears. Also, do not use the
clutch to hold the vehicle on an upgrade.
Riding the clutch will cause needless
clutch wear and damage.
 Do not apply any excessive lateral force
to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the
transmission.
 Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transmission.
When Driving
Manual Transmission Operation
4-31
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

NOTE
A natural driving posture can be
realized by lightly gripping the shift
lever from the side without having to
rest your elbow on the center console
box.

If shifting to R is difficult, shift back into
neutral, release the clutch pedal, and try
again.
▼Gear Shift Indicator (GSI)
The GSI supports you to obtain optimum
fuel economy and smooth driving. It
displays the selected gear position in the
instrument cluster as well as notifies the
driver to change to the most suitable gear
position corresponding to the actual
driving condition.

Selected gear position Suitable gear position
Indication
Condition
Numeral The selected gear position is dis-
played.
and numeral Shift up or down to the indicated
gear position is recommended.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traffic conditions
have to be judged correctly by the driver
before shifting.
NOTE
The GSI turns off wh
en the following
operations are performed.
The vehicle is stopped.
The vehicle is put in neutral.
The vehicle is driven in reverse.
The clutch is not fully engaged when
accelerating from a stop.
The clutch pedal remains depressed for
2 seconds or longer while driving.
When Driving
Manual Transmission Operation
4-32
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

▼Recommendations for Shifting
Upshifting
For normal acceleration, Mazda
recommends these shift points:
Gear
Vehicle speed
1 to 2 23 km/h (14 mph)
2 to 3 39 km/h (24 mph)
3 to 4 53 km/h (33 mph)
4 to 5 61 km/h (38 mph)
5 to 6 77 km/h (48 mph)
For cruising, Mazda recommends these
shift points:
Gear Vehicle speed
1 to 2 11 km/h (7 mph)
2 to 3 31 km/h (19 mph)
3 to 4 42 km/h (26 mph)
4 to 5 55 km/h (34 mph)
5 to 6 66 km/h (41 mph)
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade, downshift
before the engine starts to overwork. This
reduces the chance of stalling and gives
better acceleration when you need more
speed.
On a steep downgrade , downshifting
helps maintain safe speed and prolongs
brake life.
When Driving
Manual Transmission Operation
4-33
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Automatic Transmission Controls
Lock-release button
Indicates the selector lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift. Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Various Lockouts:
NOTE
The Sport AT has an option that is not included in the traditional automatic transmission
that gives the driver the option of selectin
g each gear instead of leaving it to the
transmission to shift gears. Even if you inte nd to use the automatic transmission functions as
a traditional automatic, you should also be aware that you can inadvertently shift into
manual shift mode and an inappropriate gear may be retained as the vehicle speed
increases. If you notice the engine speed going higher or hear the engine racing, confirm
you have not accidentally slipped into manual shift mode (page 4-37).
When Driving
Automatic Transmission
4-34
