Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in
places where there are high-intensity radio
waves or noise, the operational range may
become narrower or the system may not
operate. For determining battery
replacement, Refer to Keyless Entry
System on page 3-3.
â–¼Locking, Unlocking the Doors
80cm (31in)
80cm (31in) Exterior antenna
Operational range
NOTE
ï‚·The system may not operate if you are
too close to the windows or door
handles.
ï‚·If the key is left in the following areas
and you leave the vehicle, the doors may
be locked depending on the radio wave
conditions even if the key is left in the
vehicle.
ï‚·Around the dashboard
ï‚·In the storage compartments such as
the console box
ï‚·Next to a communication device such
as a mobile phone
â–¼Opening the Trunk Lid
80cm (31in)
Exterior antenna
Operational range
Before Driving
Advanced Keyless Entry System
3-10
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Door Locks
WA R N I N G
Always take all children and pets with you
or leave a responsible person with them:
Leaving a child or a pet unattended in a
parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle can
become high enough to cause brain
damage or even death.
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:
Leaving children in a vehicle with the key is
dangerous. This could result in someone
being badly injured or even killed.
Keep both doors locked when driving:
Unlocked doors in a moving vehicle are
dangerous. Passengers can fall out if a
door is accidentally opened and can more
easily be thrown out in an accident.
Always close both the windows and
convertible top, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is dangerous
as children could lock themselves in a hot
vehicle, which could result in death. Also, a
vehicle left unlocked becomes an easy
target for thieves and intruders.
After closing the doors, always verify that
they are securely closed:
Doors not securely closed are dangerous, if
the vehicle is driven with a door not
securely closed, the door could open
unexpectedly resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is dangerous. A
passing vehicle or a pedestrian could be hit
and cause an accident.
CAUTION
 Always confirm the conditions around
the vehicle before opening/closing the
doors and use caution during strong
winds or when parked on an incline. Not
being aware of the conditions around
the vehicle is dangerous because fingers
could get caught in the door or a passing
pedestrian could be hit, resulting in an
unexpected accident or injury.
 If the power window does not go up or
down automatically because the battery
is dead, slowly open/close the power
window while pressing the glass inward.
Otherwise, the power window may
contact the convertible top/roof and the
door cannot be opened/closed resulting
in damage to the window.
NOTE
ï‚·Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside the
cabin.
Before Driving
Doors and Locks
3-11
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

ï‚·If the key is left in the following areas
and you leave the vehicle, the doors may
be locked depending on the radio wave
conditions even if the key is left in the
vehicle.
ï‚·Around the dashboard
ï‚·In the storage compartments such as
the console box
ï‚·Next to a communication device such
as a mobile phone
ï‚·When the ignition is switched to ACC or
ON, the vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
Both doors will automatically unlock if
they are locked using the power door
locks with any door open.
If both the doors are closed even though
the trunk lid is open, both the doors and
the fuel-filler lid will lock.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened from the
outside while the key is inside the
vehicle, the closed doors are locked.
Both the doors are automatically
unlocked by closing the open door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key
has been left in the vehicle.
(Without the advanced keyless
function)
The horn sound is heard twice to notify
the driver that the key has been left in
the vehicle.
ï‚·(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors in the event the vehicle is involved
in an accident to allow passengers to get
out of the vehicle immediately and
prevent being trapped inside. While the
ignition is switched ON and in the event
the vehicle receives an impact strong
enough to inflate the air bags, both the
doors are automatically unlocked after
about 6 seconds have elapsed from the
time of the accident.
The doors may not unlock depending on
how an impact is applied, the force of
the impact, and other conditions of the
accident.
If door-related systems or the battery is
malfunctioning, the doors will not
unlock.
ï‚·When opening a door, the power
windows open a little automatically.
When closing the door, the power
windows close automatically. This is a
function for improving the sealability,
and it does not mean there is a problem.
If the vehicle battery is disconnected for
vehicle maintenance or other reasons,
the power windows will not open or
close automatically. If the power
windows do not open or close, the
automatic open/close mechanism for the
windows must be reset.
Refer to Auto-opening on page 3-34.
Before Driving
Doors and Locks
3-12
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

ï‚·Pressing a request switch.
ï‚·(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-48.
ï‚·The setting can be changed so that the
doors and the fuel-filler lid are locked
automatically without pressing the
request switch.
Refer to Personalization Features on
page 9-9.
(Auto-lock function)
A beep sound is heard when both doors
are closed while the advanced key is
being carried. Both doors and the
fuel-filler lid are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
flash once. (Even if the driver is in the
operational range, both doors and the
fuel-filler lid are locked automatically
after about 30 seconds.) If you are out of
the operational range before the doors
and the trunk lid are completely closed
or another key is left in the vehicle, the
auto-lock function will not work. Always
make sure that both doors and the trunk
lid are closed and locked before leaving
the vehicle. The auto-lock function does
not close the power windows.
ï‚·Auto re-lock function
After unlocking with the request switch,
both doors and the fuel-filler lid will
automatically lock if any of the
following operations are not performed
within about 60 seconds. If your vehicle
has a theft-deterrent system, the hazard
warning lights will flash for
confirmation.
The time required for the doors and the
fuel-filler lid to lock automatically can
be changed.
Refer to Personalization Features on
page 9-9.
ï‚·Opening a door or the trunk lid.
ï‚·Switching the ignition to any position
other than off.
â–¼ Locking, Unlocking with
Transmitter
Both doors and the fu
el-filler lid can be
locked/unlocked by operating the keyless
entry system transmitt er, refer to Keyless
Entry System (page 3-3).
â–¼ Locking, Unlocking with Door-Lock
Switch
Both doors and the fu
el-filler lid lock
automatically when the lock side is
pressed. They unlock when the unlock
side is pressed.
Driver's door
Unlock
Lock
Before Driving
Doors and Locks
3-15
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

â–¼Engine Exhaust (Carbon monoxide)
WA R N I N G
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contai
ns carbon monoxide (CO), which is colorless,
odorless, and poisonous. When inhaled, it can cause loss of consciousness and death. If you
smell exhaust gas inside the vehicle, keep al l windows fully open and contact an Authorized
Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust gas,
which contains poisonous carbon monoxide , could easily enter the cabin. Loss of
consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when idling the
engine:
Exhaust gas is dangerous. When the vehicle is stopped with the windows closed and the
engine running for a long time even in an open area, exhaust gas, which contains poisonous
carbon monoxide, could enter the cabin. Loss of consciousness or even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe, before
starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust pipe
could be blocked by the snow, allowing exhaus t gas to enter the cabin. Because exhaust gas
contains poisonous carbon monoxide, it could cause loss of consciousness or even death to
occupants in the cabin.
Before Driving
Fuel and Emission
3-25
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

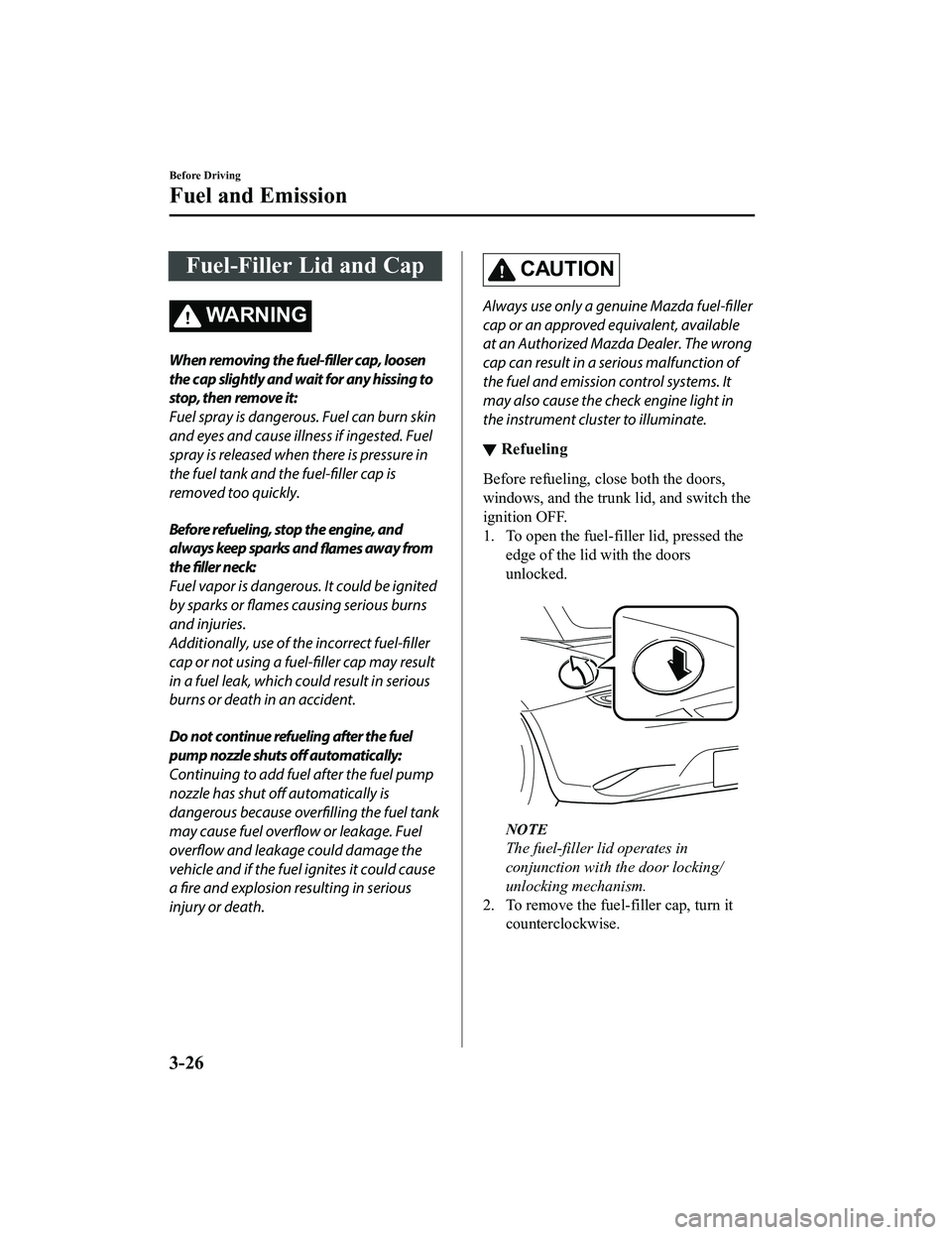

Fuel-Filler Lid and Cap
WA R N I N G
When removing the fuel-filler cap, loosen
the cap slightly and wait for any hissing to
stop, then remove it:
Fuel spray is dangerous. Fuel can burn skin
and eyes and cause illness if ingested. Fuel
spray is released when there is pressure in
the fuel tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away from
the filler neck:
Fuel vapor is dangerous. It could be ignited
by sparks or flames causing serious burns
and injuries.
Additionally, use of the incorrect fuel-filler
cap or not using a fuel-filler cap may result
in a fuel leak, which could result in serious
burns or death in an accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the fuel pump
nozzle has shut off automatically is
dangerous because overfilling the fuel tank
may cause fuel overflow or leakage. Fuel
overflow and leakage could damage the
vehicle and if the fuel ignites it could cause
a fire and explosion resulting in serious
injury or death.
CAUTION
Always use only a ge nuine Mazda fuel-filler
cap or an approved equivalent, available
at an Authorized Mazda Dealer. The wrong
cap can result in a serious malfunction of
the fuel and emission control systems. It
may also cause the check engine light in
the instrument cluster to illuminate.
â–¼ Refueling
Before refueling, close both the doors,
windows, and the trunk lid, and switch the
ignition OFF.
1. To open the fuel-filler lid, pressed the
edge of the lid with the doors
unlocked.

NOTE
The fuel-filler lid operates in
conjunction with the door locking/
unlocking mechanism.
2. To remove the fuel-filler cap, turn it counterclockwise.
Before Driving
Fuel and Emission
3-26
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Driver's side auto-dimming door
mirror*
The movement of the auto-dimming door
mirror is interlocked with the
auto-dimming rearview mirror in the
interior to automatically reduce glare from
rear on-coming vehicles.
Refer to Rearview Mirror on page 3-30.
NOTE
The passenger-side door mirror does not
have the auto-dimming feature.
â–¼Rearview Mirror
WA R N I N G
Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.
Rearview mirror adjustment
Before driving, adjust
the rearview mirror
to center on the scene through the rear
window.

NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Day/Night lever
Day
Night
Auto-dimming mirror
The auto-dim ming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.

Press the OFF button (
) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON button (
). The indicator
light will illuminate.
Indicator lightOFF button
ON button

Before Driving
Mirrors
3-30*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Power Windows
The windows can be opened/closed by
operating the power window switches.
WA R N I N G
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous. A
person's hands, head, or even neck could
be caught by the window and result in
serious injury or even death. This warning
applies especially to children.
Never allow children to play with power
window switches:
Power window switches that are not locked
with the power window lock switch would
allow children to operate power windows
unintentionally, which could result in
serious injury if a child's hands, head or
neck becomes caught by the window.
Make sure nothing bloc ks the window just
before it reaches the fully closed position or
while fully holding up the power window
switch:
Blocking the power window just before it
reaches the fully closed position or while
fully holding up the power window switch
is dangerous.
In this case, the jam-safe function cannot
prevent the window from closing all the
way. If fingers are caught, serious injuries
could occur.
Before Driving
Windows
3-32
MX-5_8GF7-EA-17J_Edition22017-10-31 14:07:27

â–¼Opening/Closing Windows
The window opens while the switch is pressed and it closes whil
e the switch is pulled up
with the ignition switched ON. Do not open or close both window s at the same time.
The passenger window can be opened/closed when the power window lock switch on the
driver's door is in the unlock position. Keep this switch in th e locked position while children
are in the vehicle.

Open Close
Open
Driver's window
Power window
lock switch
Passenger's
window
Close
Unlocked positionLocked position
Master control switch Passenger's window switch
NOTE
ï‚·A power window may no longer open/close if you continue to press the switch after
opening/closing the power window. If the power window does not open/close, wait a
moment and then operate the switch again.
ï‚·The passenger windows may be opened or closed using the master control switches on the
driver's door.
ï‚·The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power windo
w, the switch must be held up firmly
throughout window closure because the auto -closing function will be inoperable.
ï‚·When the power window lock switch is in the locked position, the light on the passenger
power window switch turns off. The light may be difficult to see depending on the
surrounding brightness.
Before Driving
Windows
3-33
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

â–¼Auto-opening
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.

To stop the window partway, pull up the
switch and then release it.
NOTE
ï‚·The power window cannot be fully
closed while the door is open.
ï‚·Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other
reasons (such as a switch continues to
be operated after the window is open/
closed), the window will not fully open
automatically.
The power window auto function will
only resume on the power window that
has been reset.
1. Close the doors and the convertible
top/roof.
2. Switch the ignition ON.
3. Make sure that the power window lock switch located on the driver's
door is not depressed.
4. Press the switch and fully open the
window.
5. Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
6. Make sure that the power windowsoperate correctly using the door
switches.
After the system has been re-initialized,
passenger window can be fully opened
automatically using the master control
switches.

If the automatic power window
operation does not operate normally
while the doors or convertible top/
retractable hardtop are opened/closed,
reset it using the previous procedures.
Before Driving
Windows
3-34
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
