Interior Equipment (View A)
ƒDoor-lock knob..................................................................................................... page 3-21
„ Turn and lane-change sig nal..................................................................................page 4-50
… Lighting control.....................................................................................................page 4-45
† Wiper and washer lever......................................... ................................................ page 4-51
‡ DSC OFF switch................................................................................................... page 4-68
ˆ Lane Departure Warning System (LDWS) OFF switch........................................page 4-84
‰ Outside mirror switch.......................................... ..................................................page 3-30
Š Door-lock switch................................................................................................... page 3-18
‹ Power window lock switch................................................................................... page 3-33
ΠPower window switches........................................................................................ page 3-33
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Interior Equipment (View C)
ƒSRS air bags.......................................................................................................... page 2-3 6
„ Climate control system......................................... ...................................................page 5-2
… Rear window defogger switch.................................... ...........................................page 4-55
† Audio system.........................................................................................................page 5-18
‡ Accessory socket................................................................................................... page 5-93
ˆ External input terminal........................................ ..................................................page 5-15
‰ Drive selection switch......................................... .................................................. page 4-72
Š Commander switch................................................................................................page 5-18
‹ Shift lever/Selector lever..................................... ........................................ page 4-32, 4-35
ΠFuse block (Left side)......................................... ...................................................page 6-52
Pictorial Index
Interior Overview
1-4The equipment and installation position varies by vehicle
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

An additional electrical device , such as a seat warmer is installed to the surface of the
passenger seat.
Do not allow a child or anyone to lean over or against the side window of a vehicle with side
air bags:
It is dangerous to allow anyone to lean over or against the side window, the area of the
passenger seat from which the side air bags depl oy, even if a child-restraint system is used.
The impact of inflation from a side air bag co uld cause serious injury or death to an out of
position child. Furthermore, leaning over or ag ainst the door could block the side air bags and
eliminate the advantages of su pplemental protection. Because the side air bag deploys from
the outboard shoulder of the seat, do not allow the child to lean over or against the side
window, even if the child is seated in a child-restraint system.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Never use one belt for more than one person at a
time and always operate the vehicle with each occupant properly restrained.
Always use a child-restraint system designed for use without a tether or the ISOFIX/LATCH
*1
lower anchor:
Using a child-restraint system that requires a tether or the ISOFIX/LATCH
*1 lower anchor is
dangerous. Your Mazda does not have a ch ild-restraint tether or the ISOFIX/LATCH
*1 lower
anchor. The child-restraint system cannot be pr operly secured. In a collision, it could move
and injure other occupants as well as result in serious injuries or death to the child.
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
CAUTION
A seat belt or child-restraint system can beco me very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
Essential Safety Equipment
Child Restraint
2-24
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Installing Child-RestraintSystems
The passenger lap/shoulder belt can easily
be converted into the automatic locking
mode, which must be done to hold the
child-restraint system.
NOTE
To check if your seats have side air
bags:
Mazda vehicles equipped with side air
bag will have an embossed "SRS
AIRBAG" marking on the outboard
shoulder of the seats.
Follow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-restraint
system, it may not employ seat belts
which are in automatic locking mode,
however if it uses an upper tether, it may
not be mounted properly in this vehicle
as there is no safe way to anchor the
tether. Confirm whether the
child-restraint system can be used with
seat belts by reading the child-restraint
system manufacturer's instructions.
WA R N I N G
Do not allow a child or anyone to lean over
or against the side window of a vehicle
with side air bags:
It is dangerous to allow anyone to lean
over or against the side window, the area
of the passenger seat from which the side
air bags deploy, even if a child-restraint
system is used. The impact of inflation from
a side air bag could cause serious injury or
death to an out of position child.
Furthermore, leaning over or against the
door could block the side air bags and
eliminate the advantages of supplemental
protection. Because the side air bag
deploys from the outboard shoulder of the
seat, do not allow the child to lean over or
against the side window, even if the child is
seated in a child-restraint system.
CAUTION
When moving the seats forward and
rearward, make sure you hold onto the
seatback with your hand while operating. If
the seatback is not he ld, the seat will move
suddenly and could cause injury.
Essential Safety Equipment
Child Restraint
2-29
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

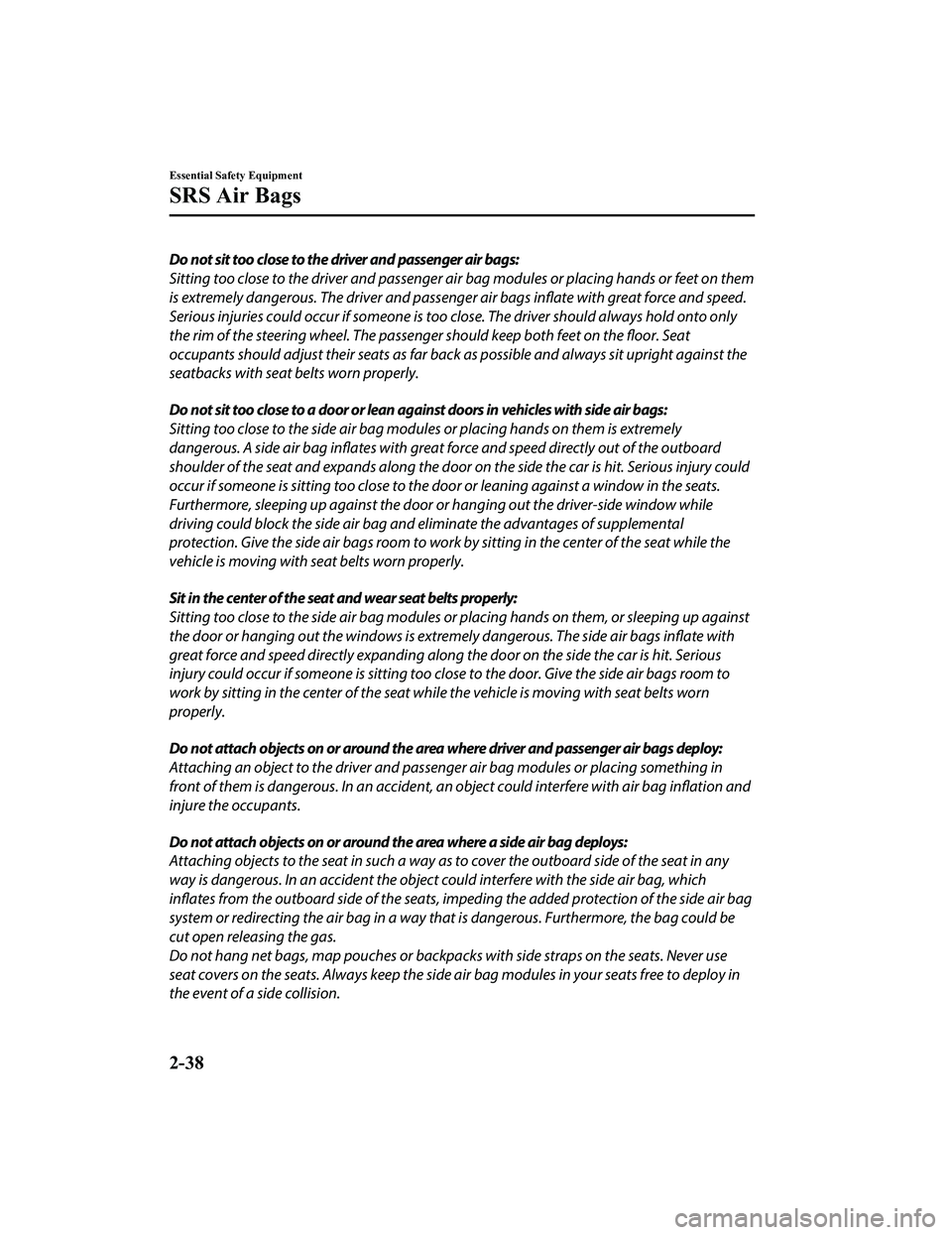

Do not sit too close to the driver and passenger air bags:
Sitting too close to the driver and passenger air bag modules or placing hands or feet on them
is extremely dangerous. The driver and passeng er air bags inflate with great force and speed.
Serious injuries could occur if someone is too close. The driver should always hold onto only
the rim of the steering wheel. The passenger should keep both feet on the floor. Seat
occupants should adjust their seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
Do not sit too close to a door or lean against doors in vehicles with side air bags:
Sitting too close to the side air bag module s or placing hands on them is extremely
dangerous. A side air bag inflates with great force and speed directly out of the outboard
shoulder of the seat and expands along the door on the side the car is hit. Serious injury could
occur if someone is sitting too close to the d oor or leaning against a window in the seats.
Furthermore, sleeping up against the door or hanging out the driver-side window while
driving could block the side air bag and eliminate the advantages of supplemental
protection. Give the side air bags room to work by sitting in the center of the seat while the
vehicle is moving with seat belts worn properly.
Sit in the center of the seat and wear seat belts properly:
Sitting too close to the side air bag modules or placing hands on them, or sleeping up against
the door or hanging out the windows is extremely dangerous. The side air bags
inflate with
great force and speed directly expanding along th e door on the side the car is hit. Serious
injury could occur if someone is sitting too clos e to the door. Give the side air bags room to
work by sitting in the center of the seat while the vehicle is moving with seat belts worn
properly.
Do not attach objects on or around the area where driver and passenger air bags deploy:
Attaching an object to the driver and passenger air bag modules or placing something in
front of them is dangerous. In an accident, an object could interfere with air bag inflation and
injure the occupants.
Do not attach objects on or around the area where a side air bag deploys:
Attaching objects to the seat in such a way as to cover the outboard side of the seat in any
way is dangerous. In an accident the object could interfere with the side air bag, which
inflates from the outboard side of the seats, impe ding the added protection of the side air bag
system or redirecting the air bag in a way that is dangerous. Furthermore, the bag could be
cut open releasing the gas.
Do not hang net bags, map pouches or backpacks with side straps on the seats. Never use
seat covers on the seats. Always keep the side air bag modules in your seats free to deploy in
the event of a side collision.
Essential Safety Equipment
SRS Air Bags
2-38
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

▼Passenger Air Bag
The passenger air bag is mounted in the passenger dashboard.
The inflation mechanism for the passenger air bag is the same a
s the driver's air bag.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-46).
In addition, the passenger air bag is designed to only deploy w hen the passenger occupant
classification sensor detects a passenger sitting on the passen ger's seat. For details, refer to
the passenger occupant classification system (page 2-49).
▼ Side Air Bags
The side air bags are mounted in the outboard sides of the seat
backs.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driv er or passenger's head and chest caused by
directly hitting interior pa rts such as a door or window.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-46).
In addition, the passenger side air bag is designed to only dep loy when the passenger
occupant classification sensor detects a passenger sitting on t he passenger's seat. For details,
refer to the passenger occupant classification system (page 2-4 9).

Essential Safety Equipment
SRS Air Bags
2-44
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys.................................................... 3-2 Keys.............................................. 3-2
Keyless Entry System................... 3-4
Advanced Keyless Entry
System............................................... 3-11 Advanced Keyless Entry System
*.....
.................................................... 3-11
Operational Range...................... 3-12
Doors and Locks.............................. 3-13 Door Locks................................. 3-13
Trunk Lid................. ................... 3-22
Inside Trunk Release Lever
*...... 3-24
Fuel and Emission........................... 3-25 Fuel and Engine Exhaust
Precautions................................. 3-25
Fuel-Filler Lid and Cap.............. 3-28
Mirrors............................................. 3-30 Mirrors........................................ 3-30
Windows........................................... 3-33 Power Windows..........................3-33
Convertible Top (Soft Top)............. 3-36 Convertible Top (Sof t Top).........3-36
Convertible Top (Hardtop)............. 3-41
Convertible Top (Har dtop)......... 3-41
Security System............................... 3-47 Modification and Add-On
Equipment...................................3-47
Immobilizer System....................3-47
Theft-Deterrent System
*.............3-49
Driving Tips..................................... 3-51 Break-In Period.......................... 3-51
Saving Fuel and Protection of the
Environment............................... 3-51
Hazardous Driving.... ..................3-52
Floor Mat.................................... 3-52
Rocking the Vehicle....................3-53
Winter Driving............................3-53
Driving In Flooded A rea............ 3-55
Overloading................................ 3-56
Driving on Uneven Road............ 3-57
Towing.............................................. 3-58 Trailer Towing............................ 3-58
Recreational Towing................... 3-58
*Some models.3-1
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Keys
WA R N I N G
Do not leave the key in your vehicle with
children and keep them in a place where
your children will not find or play with
them:
Leaving children in a vehicle with the key is
dangerous. This could result in someone
being badly injured or even killed. Children
may find these keys to be an interesting toy
to play with and could cause the power
windows or other controls to operate, or
even make the vehicle move.
CAUTION
Because the key (transmitter) uses
low-intensity radio waves, it may not
function correctly under the following
conditions:
 The key is carried with communication
devices such as cellular phones.
 The key contacts or is covered by a
metal object.
 The key is near electronic devices such
as personal computers.
 Non-Mazda genuine electronic
equipment is installed in the vehicle.
 There is equipment which discharges
radio waves near the vehicle.
 The key (transmitter) may consume
battery power excessively if it receives
high-intensity radio waves. Do not place
the key near electronic devices such as
televisions or personal computers.
To avoid damage to the key
(transmitter), DO NOT:
 Drop the key.
 Get the key wet.
 Disassemble the key.
 Expose the key to high temperatures
on places such as the dashboard or
hood, under direct sunlight.
 Expose the key to any kind of magnetic
field.
 Place heavy objects on the key.
 Put the key in an ultrasonic cleaner.
 Put any magnetized objects close to
the key.
NOTE
The driver must carry the key to ensure the
system functions properly.
Ty p e A
Auxiliary key
Transmitter
Removing the auxiliary key
Pull out the auxili ary key from the
transmitter while pressing the knob.
Knob
Before Driving
Keys
3-2
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the following
will occur:
The horn sounds intermittently.
The hazard warning lights flash.
(Turning off the alarm)
The alarm stops by pressing any button on
the key.
Power saving function (Type B)
By turning on the transmitter power saving
function, the advan ced keyless entry
*1 and
push button start system functions turn off
and the battery power consumption of the
transmitter is restricted.
The remote control function is operational
by operating the transmitter switch even
while the power saving function is turned
on. However, the operation indicator light
of the transmitter does not turn on/flash.
Turning on the power saving function
After you have turned on the power saving
function according to the following
procedure, the hazard warning lights and
sound operate
*1 one time.
1. Press the lock button on the transmitter 4 times within 3 seconds to turn on the
operation indicator light.
2. Press the lock button continuously for 1.5 seconds or longer while the
operation indicator light turns on (for 5
seconds).
3. Press any of the buttons on the
transmitter to make sure that the
operation indicator light does not turn
on/flash.
Turning off the power saving function
After you have turned off the power
saving function according to the following
procedure, the hazard warning lights and
sound operate
*1 one time.
1. Press any of the buttons on the
transmitter to make sure that the
operation indicator light does not turn
on/flash.
2. Press the lock button on the transmitter 4 times within 3 seconds to turn on the
operation indicator light.
3. Press the lock button continuously for 1.5 seconds or longer while the
operation indicator light turns on (for 5
seconds).
*1 With the advanced keyless function
▼Operational Range
The system operates only when the driver
is in the vehicle or
within operational
range while the key is being carried.
Starting the Engine
NOTE
Starting the engine may be possible even
if the key is outside of the vehicle and
extremely close to a door and window,
however, always start the engine from
the driver's seat.
If the vehicle is started and the key is not
in the vehicle, the vehicle will not restart
after it is shut off and the ignition is
switched to off.
The trunk is out of the assured
operational range, however, if the key
(transmitter) is operable the engine will
start.
Before Driving
Keys
3-9
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
