NOTE
(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the trunk
lid.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qRemote Trunk Lid Release Lock-Out
The remote release may be canceled using
the trunk lid release lock-out button to
prevent anyone in the vehicle from
opening the trunk.
NOTE
You cannot prevent another person from
getting access to your trunk if you give the
person your key.
The switch is mounted inside the trunk.
OFF position
ON position
With advanced key
With the switch in the ON position, the
remote trunk lid release button can be
operated. With the switch in the OFF position, the
remote release button cannot be operated.
To open the trunk lid when the switch is
in the OFF position, do one of the
following:
lPress the request switch on the trunk
lid.
lPress the trunk button on the
transmitter.
lOpen the trunk with the auxiliary key.
Without advanced key
With the switch in the ON position, the
remote trunk lid release button and the
trunk button on the transmitter can be
operated.
With the switch in the OFF position, the
remote release button or the trunk button
on the transmitter cannot be operated.
To open the trunk lid when the switch is
in the OFF position, open the trunk with
the key.
Knowing Your Mazda
Doors and Locks
3-31
MX-5_8X49-EA-07F_Edition5 Page91
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (92,1)

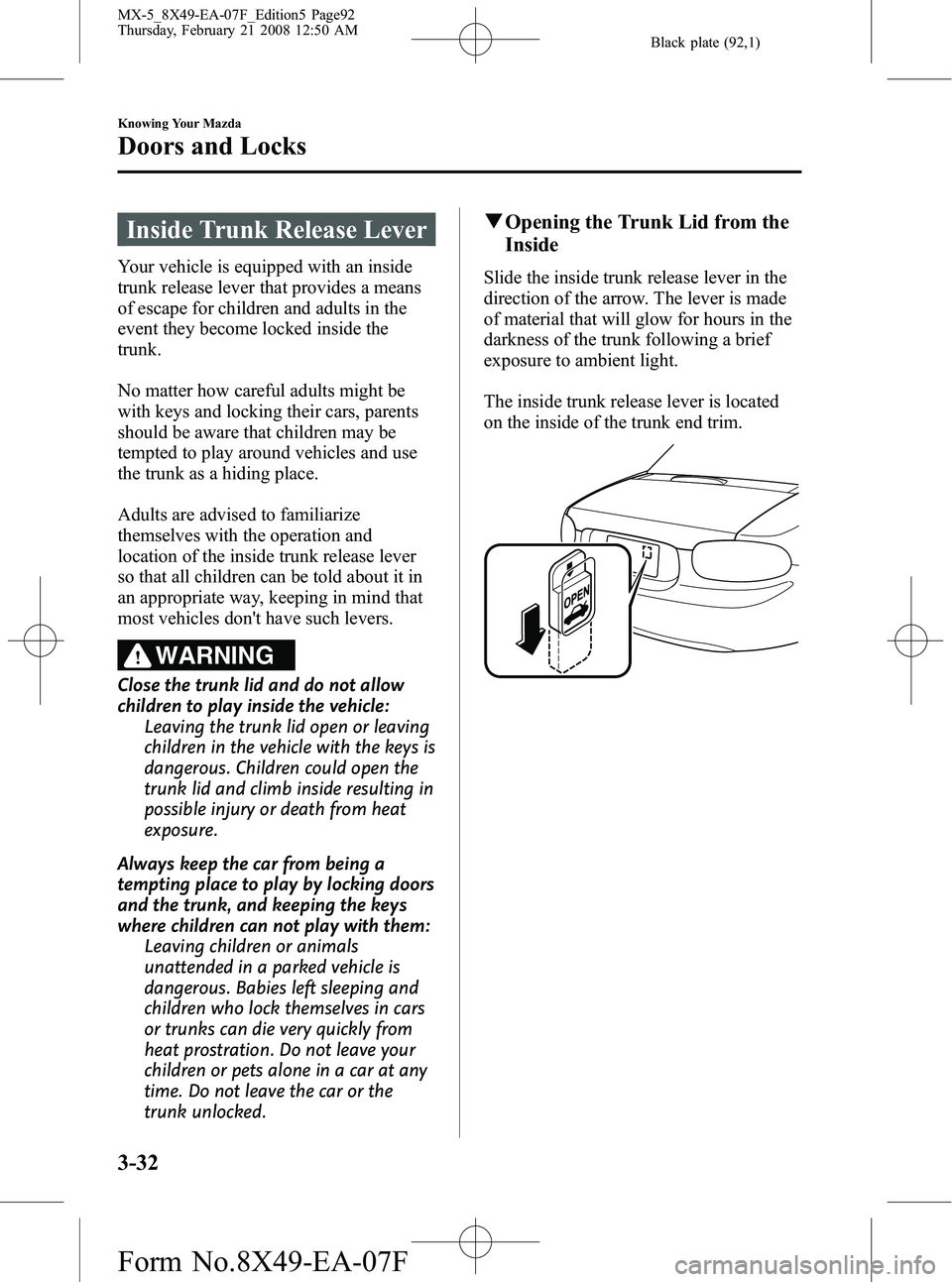

Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by locking doors
and the trunk, and keeping the keys
where children can not play with them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk end trim.
3-32
Knowing Your Mazda
Doors and Locks
MX-5_8X49-EA-07F_Edition5 Page92
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (93,1)
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
qOperating the Power Windows
(Type A)
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Open
Driver's window Passenger's
window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
Knowing Your Mazda
Doors and Locks
3-33
MX-5_8X49-EA-07F_Edition5 Page93
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (94,1)
qOperating the Driver's Side
Power Window (Type B)
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Open
Driver's window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
q Operating the Passenger Power
Window (Type B)
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Passenger's window
q Opening the Power Windows
from Outsideí
Both power windows can be opened from
outside the vehicle after the doors are
closed.
NOTE
The power windows cannot be opened from
outside the vehicle under the following
condition:
lA door or the trunk lid is opened.lThe key is inserted into the ignition switch.l(With advanced key)
The start knob is in any position except
Lock.
3-34
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8X49-EA-07F_Edition5 Page94
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (95,1)
Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the both
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
Press once, then press again within 1.5
seconds and hold.
After the doors are unlocked, both
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
NOTE
The unlock button does not operate unless it is
pressed twice sequentially.
Advanced key
Panic button
Unlock button Lock button
Trunk button
Retractable type key
Lock button
Unlock button
Trunk button Panic button
Knowing Your Mazda
Doors and Locks
3-35
MX-5_8X49-EA-07F_Edition5 Page95
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (96,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosen the
cap slightly and wait for any hissing to
stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
The remote fuel-filler lid release is
mounted in the seat side box.
To open the seat side box, unlock it and
pull the release catch.
To open the fuel-filler lid, pull on the
remote fuel-filler lid release.
3-36
Knowing Your Mazda
Doors and Locks
MX-5_8X49-EA-07F_Edition5 Page96
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (97,1)
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until two or more clicks are heard.
Close
Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap
isn't tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening
and Slide the hood latch to the right
and lift the hood.
Knowing Your Mazda
Doors and Locks
3-37
MX-5_8X49-EA-07F_Edition5 Page97
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (98,1)
3. Grasp the support rod in the paddedarea and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Clip
Support rod
q Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
3-38
Knowing Your Mazda
Doors and Locks
MX-5_8X49-EA-07F_Edition5 Page98
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (99,1)
Convertible Top (Soft Top)í
Windshield headerTop latch assembly
Top storage area
Convertible
top's handlesLabel (The label indicates the position where convertible
top is to be held when lowering or raising it.)
qConvertible Top Precautions
WARNING
Sit in the seat with the seat belt
correctly fastened when the vehicle is
moving:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when the vehicle is
moving is a dangerous way to ride.
During a sudden maneuver or
collision you could be seriously
injured or even killed. Always keep your hands and fingers
away from the fastening mechanisms
when moving the convertible top:
It is dangerous to place your hands
or fingers near the fastening
mechanisms. Your hands or fingers
could be caught and injured by the
mechanism.
CAUTION
Remove leaves or other matter that
may accumulate on and around the
soft top. Otherwise, the water
drainage outlets could become
blocked, resulting in water leakage.
For detailed maintenance of the
water draining outlets, consult an
Authorized Mazda Dealer.
Knowing Your Mazda
Doors and Locks
3-39íSome models.
MX-5_8X49-EA-07F_Edition5 Page99
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (100,1)
lBefore lowering or raising the
convertible top, stop in a safe place off
the right-of-way and park on a level
surface.
lMake sure nothing is on the convertible
top or near the back window when
raising or lowering the convertible top.
Even small objects may interfere and
cause damage.
lWhen lowering the convertible top,
make sure objects inside the vehicle
aren't blown away by the wind.
lSecure all loose objects inside before
driving with the convertible top down.
lTo help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the
convertible top securely and lock both
doors when leaving the vehicle.
lDo not drive through an automatic car
wash; it may damage the convertible
top.
lDo not raise or lower the convertible
top when the temperature is below 5 °C
(41 °F) ; this will damage the
convertible top material.
lDo not lower the convertible top when
it's wet. If the convertible top dries
while folded, it will deteriorate and
shrink.
lLowering the convertible top while it's
wet can also cause water to drip into
the passenger compartment.
lDo not raise or lower the convertible
top in a strong wind as it could damage
the convertible top or cause an
unexpected accident.
qLowering the Convertible Top
1. Make sure the parking brake is applied.
2. Fully open the left and right windows.
3. Turn off the engine.
4. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
WARNING
Do not place heavy or sharp objects in
the convertible top storage area: Putting heavy or sharp objects in the
convertible top storage area is
dangerous.
During a sudden stop or collision,
they can become projectiles that
might hit and injure passengers.
5. Pull the top latch outward by pressing the unlock button to detach the lock.
Make sure the lock is detached.
Unlock button
Top latch
3-40
Knowing Your Mazda
Doors and Locks
MX-5_8X49-EA-07F_Edition5 Page100
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F
