MAZDA MODEL MX-5 MIATA POWER RETRACTABLE HARDTOP 2008 Owners Manual

Black plate (261,1)

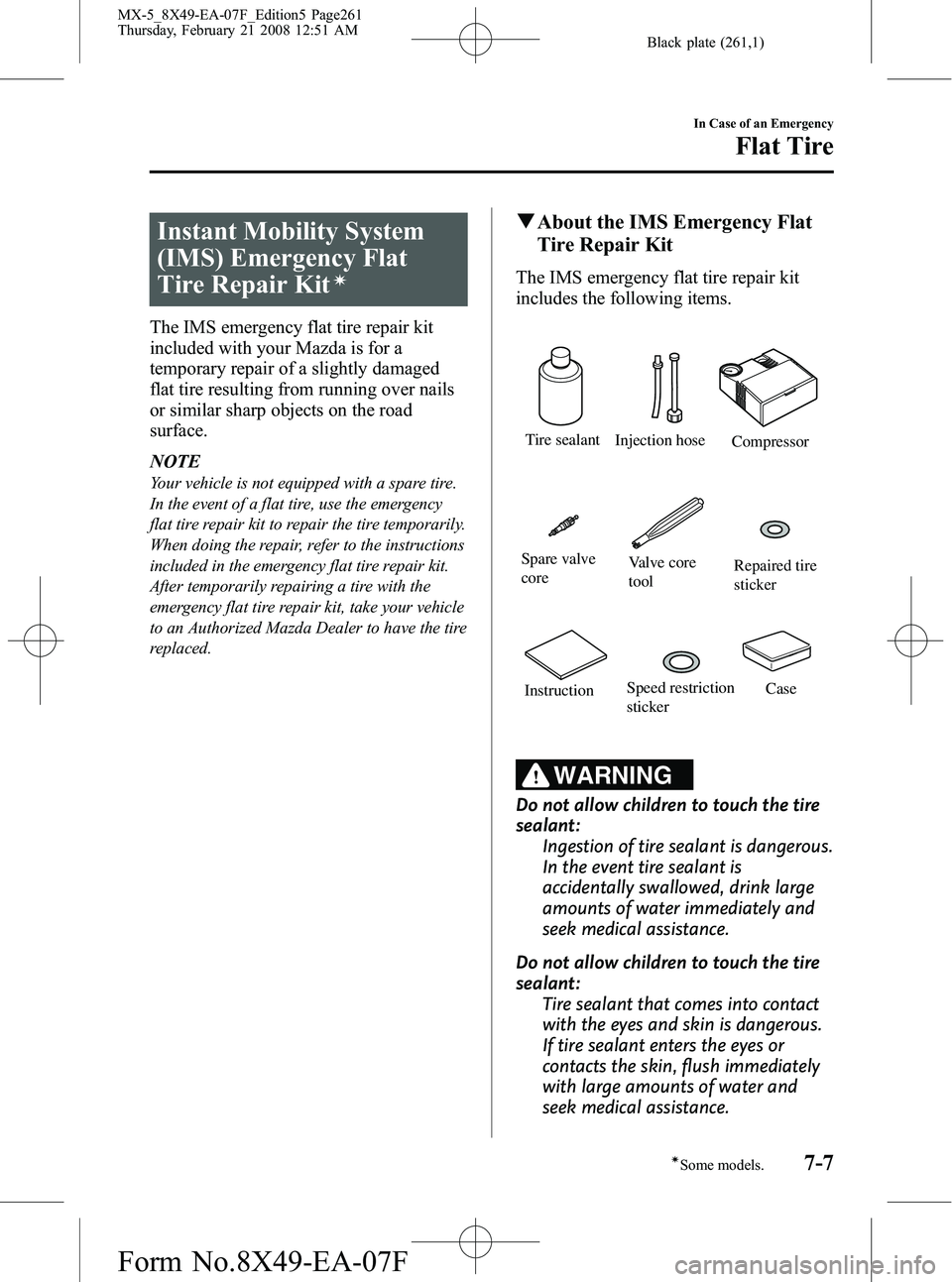

Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
í
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit.
After temporarily repairing a tire with the
emergency flat tire repair kit, take your vehicle
to an Authorized Mazda Dealer to have the tire
replaced.
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hose
Compressor
Instruction
Repaired tire
stickerValve core
tool
Spare valve
core
Speed restriction
sticker Case
WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant: Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
In Case of an Emergency
Flat Tire
7-7íSome models.
MX-5_8X49-EA-07F_Edition5 Page261
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (262,1)
NOTElThe tire sealant cannot be reused. Purchase
new tire sealant at an Authorized Mazda
Dealer.
lThe emergency flat tire repair kit cannot be
used in the following cases.
Consult an Authorized Mazda Dealer.
lThe period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
lThe tear or puncture exceeds about
4 mm (0.16 in).
lThe damage has occurred to an area of
the tire other than the tread.
lThe vehicle has been driven with nearly
no air remaining in the tire.
lThe tire has come off the wheel rim.lDamage to the wheel rim has occurred.lThe tire has two or more punctures.
qUsing the IMS Emergency Flat
Tire Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher. 4. Unload passengers and luggage, and
remove the emergency flat tire repair
kit.
5. Shake the tire sealant well.
CAUTION
If the bottle is shaken after the
injection hose is screwed on, tire
sealant could spray out from the
injection hose. Tire sealant
contacting clothing or other objects
may be impossible to remove. Shake
the bottle before screwing on the
injection hose.
7-8
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page262
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (263,1)
NOTE
The tire sealant can be used at outside
temperatures down to_
30°C.
In extremely cold temperatures (0°C (32°F) or
below), the tire sealant hardens easily and
injection of the sealant will be difficult. Warm
the sealant inside the vehicle before doing the
injection work.
6. Remove the cap from the bottle. Screw on the injection hose with the bottle's
inner cap left on to break the inner cap.
Injection hose
Bottle
7. Remove the valve cap from the flat tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool
Valve
Valve cap
CAUTION
If there is air remaining in the tire
when the valve core is removed, the
valve core could fly out. Remove the
valve core carefully.
8. Turn the valve core counterclockwise with the valve core tool and remove the
valve core.
Valve Valve core
NOTE
Store the valve core in a place where it won't
get dirty.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
Plug
Injection hose
In Case of an Emergency
Flat Tire
7-9
MX-5_8X49-EA-07F_Edition5 Page263
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (264,1)
10. Hold the bottom of the bottle upright,squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused. Purchase a
new tire sealant kit at an Authorized Mazda
Dealer.
11. Pull out the injection hose from thevalve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates completion of the tire repair on a flat
outer surface of the repaired tire.
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire sealant
bottle to an Authorized Mazda Dealer when
replacing the tire. The empty tire sealant bottle
will need to be used to extract and dispose of
the used sealant from the tire.
13. Attach the vehicle speed restrictionsticker in a place where the driver can
easily see it.
WARNING
Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:Attaching the vehicle speed
restriction sticker to the steering
wheel pad is dangerous. The sticker
could interfere with air bag inflation
and cause serious injury.
7-10
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page264
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (265,1)
14. Install the compressor hose to the tirevalve.
Valve Compressor hose
15. Insert the compressor plug into the
interior accessory socket and turn the
ignition switch to the ACC position
(page 6-44).
Compressor plug
Center console
Compressor
CAUTION
ØBefore pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
Ø The compressor turns on and off
with the push-button switch.
16. Turn the compressor switch on and inflate the tire carefully to the correct
inflation pressure.
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm
2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of
the compressor and you could be
burned.
CAUTION
If the compressor operates slowly or
becomes hot, it indicates
overheating. Turn the compressor off
immediately and leave it turned off
for 30 minutes or longer.
NOTE
lCheck the tire inflation pressure label
(driver's door frame) for the correct tire
inflation pressure.
lDo not use the compressor for longer than
10 minutes because using the compressor
for long periods could damage it.
lIf the tire does not inflate, repair of the tire
may not be possible. If the tire does not
reach the correct inflation pressure within a
10-minute period, it probably has received
more extensive damage. When this happens,
the emergency flat tire repair kit cannot be
used to repair the tire. Contact an
Authorized Mazda Dealer.
lIf the tire has been over-inflated, loosen the
screw cap on the compressor and bleed
some of the air out.
17. When the tire has been inflated to the proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.
In Case of an Emergency
Flat Tire
7-11
MX-5_8X49-EA-07F_Edition5 Page265
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (266,1)
18. Install the tire valve cap.
19. Put the emergency flat tire repair kitin the trunk and continue driving.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
Ø If the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
20. After driving the vehicle for 10 minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
Ø If the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
NOTE
When checking the tire inflation pressure with
the tire pressure gauge on the compressor unit,
make sure the compressor switch is turned off.
21. If the tire inflation pressure remains stable, the tire repair is complete.
Drive the vehicle with care to an
Authorized Mazda Dealer to have the
tire replaced.
CAUTION
ØA tire that has been temporarily
repaired with the tire sealant
cannot be reused. Mazda
recommends replacing the tire
with a new one.
Ø The wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new
one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective use.
Check the period of effective use indicated on
the bottle label and do not use it if it has
expired. Have the tire sealant replaced at an
Authorized Mazda Dealer before the period of
effective use has expired.
7-12
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page266
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (267,1)
Changing a Tire
WARNING
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a jack:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
NOTE
lMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-31).
1. Park on a level surface off the right-of- way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine. 3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, and tool (page 7-5).
6. Block the wheel diagonally opposite the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
In Case of an Emergency
Flat Tire
7-13
MX-5_8X49-EA-07F_Edition5 Page267
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (268,1)
qRemoving a Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any until the tire has been
raised off the ground.
2. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
WARNING
Use only the front and rear jacking
positions recommended in this manual: Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Use only the jack provided with your
Mazda: Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack: Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
3. Insert the jack handle into the jack.
7-14
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page268
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (269,1)
4. Turn the jack handle clockwise andraise the vehicle high enough so that
the tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning themcounterclockwise, then remove the
wheel.
qLocking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench. Register them with the
lock manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
this key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the key for the antitheft lug nut.
2. Place the key on top of the nut, and be
sure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
In Case of an Emergency
Flat Tire
7-15
MX-5_8X49-EA-07F_Edition5 Page269
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F

Black plate (270,1)
To install the nut
1. Place the key on top of the nut, and besure to hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Don't use a
power impact wrench.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.
qMounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires: When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the tire. 3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque: Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary.
4. Turn the jack handle counterclockwise and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
7-16
In Case of an Emergency
Flat Tire
MX-5_8X49-EA-07F_Edition5 Page270
Thursday, February 21 2008 12:51 AM
Form No.8X49-EA-07F
