To lock
To lock the doors, press the request
switch. A beep sound will be heard once
and the hazard warning lights will flash
once.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that the doors are locked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is armed.
Refer to the theft-deterrent system on page
3-71.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock both doors , press the request
switch again within 3 seconds and two
more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that the doors are unlocked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
Refer to the theft-deterrent system on page
3-71.
Passenger door request switch
To unlock the doors, press the request
switch. A beep sound will be heard twice
and the hazard warning lights will flash
twice.NOTE
lConfirm that both doors are securely
locked.
lBoth doors cannot be locked when any
door is open.
lA beep sound is heard for confirmation
when the doors are locked/unlocked using
the request switch. If you prefer, the beep
sound can be turned off (page 3-21).
lThe setting can be changed so that the
doors are locked automatically without
pressing the request switch (page 3-21).
(Auto-lock function)
A beep sound is heard when both doors are
closed while the advanced key is being
carried. Both doors are locked
automatically after about 3 seconds when
the advanced key is out of the operational
range. Also, the hazard warning lights flash
once. (Even if the driver is in the
operational range, both doors are locked
automatically after about 30 seconds.)
If you are out of the operational range
before the doors are completely closed or
another advanced key is left in the vehicle,
the auto-lock function will not work.
Always make sure that both doors are
closed and locked before leaving the
vehicle.
l(Auto re-lock function)
After unlocking doors by pressing the
request switch, both doors will
automatically lock and the hazard warning
light will flash if any of the following
operations are not performed within about
30 seconds.
lA door is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pushed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
MX-5_8Z78-EA-08K_Edition1 Page71
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (73,1)
WARNING
Before leaving the driver's seat, always
put the key to LOCK position, set the
parking brake and make sure the shift
lever is in P with an automatic
transmission or in 1 or R with a manual
transmission:It is important to place the key in the
LOCK position even if you are not
removing the key from the ignition or
leaving the vehicle. Leaving the key
in other positions will disable some of
the vehicle security systems and run
the battery down.
Leaving the driver's seat without
putting the ignition switch in LOCK
position, setting the parking brake
and shifting the shift lever to P with
an automatic transmission, or to 1 or
R with a manual transmission is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
lIf turning the ignition switch is difficult,
jiggle the steering wheel from side to side.
l(Automatic transmission)
The ignition switch cannot be turned from
the ACC position to the LOCK position
when the shift lever is not in P.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System does not
function in the ACC position, and the doors
will not lock/unlock using the transmitter or
request switches even if the advanced key is
carried away from the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-40).
NOTE
When the ignition switch is turned to the ON
position, the sound of the fuel pump motor
operating near the fuel tank can be heard. This
does not indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-40).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
MX-5_8Z78-EA-08K_Edition1 Page73
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (76,1)
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.
NOTE
lWhen turning the ignition switch to the
LOCK position, the ignition switch has to
be pushed in from the ACC position and
turned. Without being pushed in, the
ignition switch stops at the ACC position
and the vehicle battery may be discharged
if the ignition switch is left in the ACC
position. When leaving the vehicle, make
sure the ignition switch is turned to the
LOCK position.
lIf the vehicle is left with the ignition switch
not in the LOCK position, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-19).
Operation Using Advanced
Key Functions
q Keyless Entry System
This system uses the more traditional
keyless entry buttons to remotely lock and
unlock the doors and opens the trunk lid,
and opens the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
auxiliary key is in the ignition switch.
lWith the start knob installed in the LOCK
position, the system is fully operational. If
the ignition switch is not in the LOCK
position or the start knob is pushed in, the
system does not operate.
lBoth doors cannot be locked by pressing
the lock button while either door is open.
The hazard warning lights will also not
flash.
l(With power retractable hardtop)
The trunk lid cannot be operated remotely if
the power retractable hardtop is not fully
opened or fully closed.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8Z78-EA-08K_Edition1 Page76
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (77,1)
Transmitter
Lock buttonUnlock button
Trunk button
Operation indicator light
Panic button
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-38).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once.
To confirm that both doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that both doors are locked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if both
the doors are locked before the theft-deterrent
system is properly armed.
Refer to the theft-deterrent system on page
3-71.
NOTElBoth doors cannot be locked when either
door is open.
lConfirm that both doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button. A beep will be heard twice
and the hazard warning lights will flash
twice.
To unlock both doors, press the unlock
button again within 3 seconds and two
more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that both doors are unlocked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
Refer to the theft-deterrent system on page
3-71.
NOTE
(Auto re-lock function)
After unlocking with the transmitter, both
doors will automatically lock and the hazard
warning light will flash if any of the following
operations are not performed within about 30
seconds. If your vehicle has a theft-deterrent
system, the hazard warning lights will flash for
confirmation.
lA door is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pressed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-15
MX-5_8Z78-EA-08K_Edition1 Page77
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (78,1)
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
NOTE
(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the trunk
lid.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether either door
is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8Z78-EA-08K_Edition1 Page78
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (87,1)

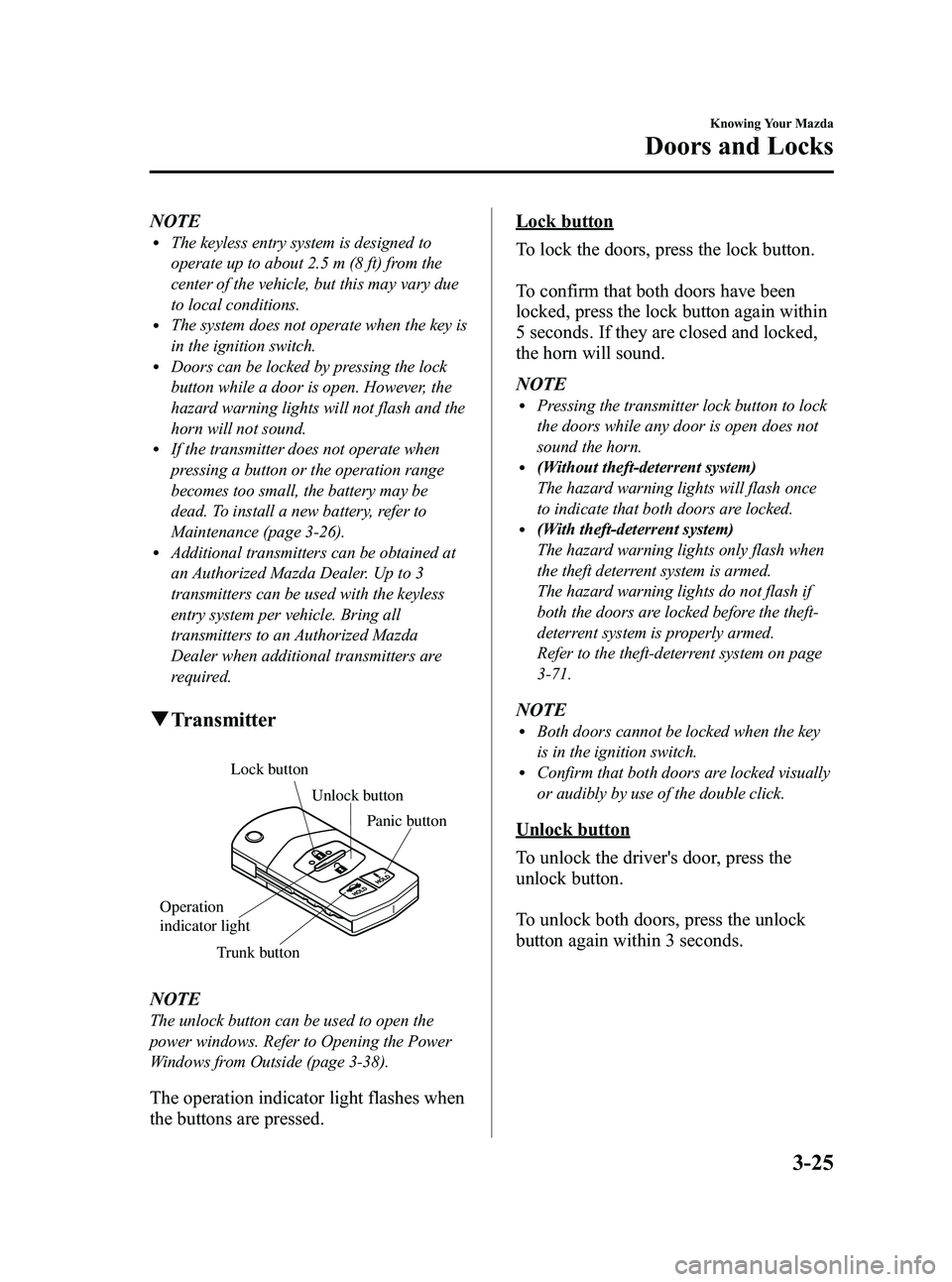

NOTElThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the key is
in the ignition switch.
lDoors can be locked by pressing the lock
button while a door is open. However, the
hazard warning lights will not flash and the
horn will not sound.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-26).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
qTransmitter
Lock button
Unlock button
Trunk button Panic button
Operation
indicator light
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-38).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button.
To confirm that both doors have been
locked, press the lock button again within
5 seconds. If they are closed and locked,
the horn will sound.
NOTE
lPressing the transmitter lock button to lock
the doors while any door is open does not
sound the horn.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that both doors are locked.
l(With theft-deterrent system)
The hazard warning lights only flash when
the theft deterrent system is armed.
The hazard warning lights do not flash if
both the doors are locked before the theft-
deterrent system is properly armed.
Refer to the theft-deterrent system on page
3-71.
NOTElBoth doors cannot be locked when the key
is in the ignition switch.
lConfirm that both doors are locked visually
or audibly by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button.
To unlock both doors, press the unlock
button again within 3 seconds.
Knowing Your Mazda
Doors and Locks
3-25
MX-5_8Z78-EA-08K_Edition1 Page87
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (88,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that both doors are unlocked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
Refer to the theft-deterrent system on page
3-71.
NOTE
Auto re-lock function
After unlocking with the transmitter, both
doors will automatically lock if one of the
doors is not opened within about 30 seconds.
Trunk button
To open the trunk, press the trunk button
for more than 1 second.
NOTE
l(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the
trunk lid.
lThe trunk button is disabled when the trunk
lid release lock-out button inside the trunk
is in the OFF position. Refer to Remote
Trunk Lid Release Lock-Out on page 3-34.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the trunk lid is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
q Transmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
3-26
Knowing Your Mazda
Doors and Locks
MX-5_8Z78-EA-08K_Edition1 Page88
Thursday, October 23 2008 1:52 PM
Form No.8Z78-EA-08K

Black plate (133,1)
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-71.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
l(With advanced key)
The theft-deterrent system can also be
operated using the advanced keyless
function.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure both windows
are completely closed and both doors and
the trunk lid are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 25
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid.
lUnlocking a door with the door lock
switch.
lOpening a door by operating an inside
door-lock knob.
lOpening the hood by operating the
hood release handle.
lOpening the trunk lid by operating the
trunk lid release button.
If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request
switch.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
q How to Arm the System
1. Remove the key from the ignition
switch.
(With advanced key)
Turn the start knob to the LOCK
position.
2. Make sure the hood and the trunk lid are closed. Close and lock both doors
from the outside using the key. If you
have the keyless entry system, press
the lock button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
(With advanced key)
Press a request switch on the doors or
the lock button on the transmitter.
(Without advanced key)
The following method will also arm the
theft-deterrent system:
Close the hood and the trunk lid . Press
the area on the door-lock switch
marked “LOCK ”once. Close both
doors.
Knowing Your Mazda
Security System
3-71íSome models.
MX-5_8Z78-EA-08K_Edition1 Page133
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K

Black plate (134,1)
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)lPress a request switch on the doors
or the unlock button on the
transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
The trunk lid can be opened with the key or the
transmitter even when the system is armed. The
alarm will not come on and the system will
remain armed.
q To Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lOpen the trunk lid with the key.lPress the unlock button or press and
hold the trunk button on the keyless
entry system transmitter.
l(With advanced key)lPress a request switch on the doors.lPress the unlock button or press and
hold the trunk button on the
transmitter. NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
q
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-72
Knowing Your Mazda
Security System
MX-5_8Z78-EA-08K_Edition1 Page134
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K

Black plate (143,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
fluid leaks.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake/clutch fluid,
washer fluid, and other fluid levels should be
inspected. See Maintenance, Section 8.
After Getting In
lAre all doors closed and locked?lIs the seat adjusted properly?lAre the inside and outside mirrors
adjusted?
lIs the steering wheel adjusted properly?lIs each occupant's seat belt fastened?lCheck all gauges.lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Driving Your Mazda
Before Starting the Engine
4-5
MX-5_8Z78-EA-08K_Edition1 Page143
Thursday, October 23 2008 1:53 PM
Form No.8Z78-EA-08K
