9. Switch the ignition from ACC toSTART and hold (up to 10 seconds at a
time) until the engine starts.
CAUTION
Do not try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for about 10 seconds.
NOTE
lIn extremely cold weather or after the
vehicle has not been driven in several days,
let the engine warm up without operating
the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
Turning the engine off
1. Move the shift lever to the P position (Automatic transmission).
2. Switch the ignition from ON to ACC.
NOTE
When the engine is turned off and the ignition
is switched from ACC to OFF/LOCK, the KEY
indicator light (green) flashes in the instrument
cluster for about 30 seconds if the battery
power of the advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page 3-7).
3. Push in the start knob from the ACC position and turn it to the OFF/LOCK.
CAUTION
When leaving the vehicle, make sure
the ignition is switched to OFF/LOCK. NOTE
lWhen switching the ignition to OFF/LOCK,
the ignition switch has to be pushed in from
the ACC position and turned. Without being
pushed in, the ignition switch stops at the
ACC position and the vehicle battery may
be discharged if the ignition switch is left in
the ACC position. When leaving the vehicle,
make sure the ignition is switched to OFF/
LOCK.
lIf the vehicle is left with the ignition not
switched to OFF/LOCK, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-19).
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8CC1-EA-11F_Edition2 Page78
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (82,1)

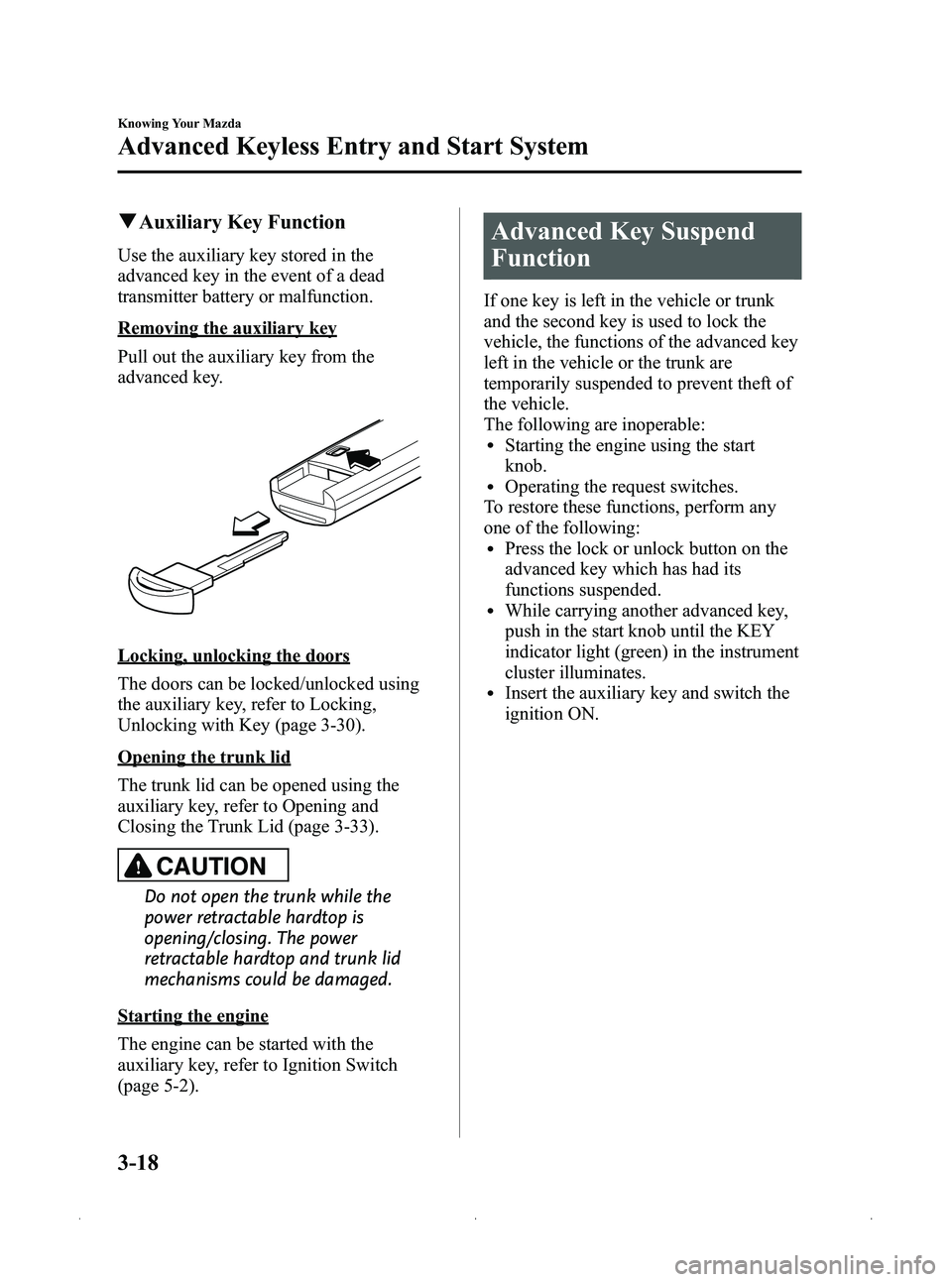

qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-30).
Opening the trunk lid
The trunk lid can be opened using the
auxiliary key, refer to Opening and
Closing the Trunk Lid (page 3-33).
CAUTION
Do not open the trunk while the
power retractable hardtop is
opening/closing. The power
retractable hardtop and trunk lid
mechanisms could be damaged.
Starting the engine
The engine can be started with the
auxiliary key, refer to Ignition Switch
(page 5-2).
Advanced Key Suspend
Function
If one key is left in the vehicle or trunk
and the second key is used to lock the
vehicle, the functions of the advanced key
left in the vehicle or the trunk are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the start
knob.
lOperating the request switches.
To restore these functions, perform any
one of the following:
lPress the lock or unlock button on the
advanced key which has had its
functions suspended.
lWhile carrying another advanced key,
push in the start knob until the KEY
indicator light (green) in the instrument
cluster illuminates.
lInsert the auxiliary key and switch the
ignition ON.
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8CC1-EA-11F_Edition2 Page82
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (84,1)
lThe ignition has not been switched off.lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the ignition is switched to ACC or
switched off from ON, the KEY indicator
light (green) flashes for approximately 30
seconds indicating that the remaining
battery power is low. Replace with a new
battery before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Setting Change (page 3-21).
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the ignition cannot be switched
from off.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-trunk
Warning Beep
If the advanced key is left in the trunk
compartment with both doors locked and
the trunk lid closed, a beep sound is heard
for about 10 seconds to remind the driver
the advanced key has been left in the
trunk compartment. If this happens, open
the trunk lid by pressing the request
switch and remove the advanced key. An
advanced key removed from the trunk
may not function because its functions
may have been temporarily suspended. To
restore the advanced key function,
perform the applicable procedure (page
3-18).
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and both doors are locked using a
separate advanced key, a beep sound is
heard for about 10 seconds to remind the
driver that the advanced key has been left
in the vehicle cabin. If this happens, the
doors lock but the functions of the
advanced key left in the vehicle cabin
may be temporarily suspended. Perform
the following procedure to restore the
functions of the advanced key (page
3-18).
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
MX-5_8CC1-EA-11F_Edition2 Page84
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (87,1)
Keys (without Advanced Key)
WARNING
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. Children may find these new
kinds of keys to be an interesting toy
to play with and could cause the
power windows or other controls to
operate, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page 3-68) for
information regarding keys and engine
starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System (page 3-72)
for information regarding keys and the
prevention of vehicle and vehicle contents
theft.
The keys operate all locks.
With keyless entry system
Key code number plate
Retractable
type key
Without keyless entry system
Key code number plate
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
lWrite down the code number and keep it in
a separate, safe and convenient place, but
not in the vehicle.
If your key is lost, consult your Authorized
Mazda Dealer and have your code number
ready.
lSome types of key chains cannot be
attached to the retractable type key. In this
case, use the key ring provided with the
transmitter which has the key code number
plate attached.
Key ring
Knowing Your Mazda
Doors and Locks
3-23
MX-5_8CC1-EA-11F_Edition2 Page87
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (104,1)
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck: Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
The remote fuel-filler lid release is
mounted in the seat side box.
To open the seat side box, unlock it and
pull the release catch.
To open the fuel-filler lid, pull on the
remote fuel-filler lid release.
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
3-40
Knowing Your Mazda
Doors and Locks
MX-5_8CC1-EA-11F_Edition2 Page104
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (105,1)
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the hood latch lever to the right,
and lift the hood.
Knowing Your Mazda
Doors and Locks
3-41
MX-5_8CC1-EA-11F_Edition2 Page105
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (106,1)
3. Grasp the support rod in the paddedarea and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Clip
Support rod
q Closing the Hood
WARNING
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident. 1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
Pad
3-42
Knowing Your Mazda
Doors and Locks
MX-5_8CC1-EA-11F_Edition2 Page106
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (109,1)
lBefore lowering or raising the
convertible top, stop in a safe place off
the right-of-way and park on a level
surface.
lMake sure nothing is on the convertible
top or near the back window when
raising or lowering the convertible top.
Even small objects may interfere and
cause damage.
lWhen lowering the convertible top,
make sure objects inside the vehicle are
not blown away by the wind.
lSecure all loose objects inside before
driving with the convertible top down.
lTo help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the
convertible top securely and lock both
doors when leaving the vehicle.
lDo not drive through an automatic car
wash; it may damage the convertible
top.
lDo not raise or lower the convertible
top when the temperature is below 5 °C
(41 °F) ; this will damage the
convertible top material.
lDo not lower the convertible top when
it's wet. If the convertible top dries
while folded, it will deteriorate and
shrink.
lLowering the convertible top while it's
wet can also cause water to drip into
the passenger compartment.
lDo not raise or lower the convertible
top in a strong wind as it could damage
the convertible top or cause an
unexpected accident.
qLowering the Convertible Top
1. Make sure the parking brake is applied.
2. Fully open the left and right windows.
3. Turn off the engine.
4. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
WARNING
Do not place heavy or sharp objects in
the convertible top storage area: Putting heavy or sharp objects in the
convertible top storage area is
dangerous.
During a sudden stop or collision,
they can become projectiles that
might hit and injure passengers.
5. Pull the top latch outward by pressing the lock release button to detach the
lock. Make sure the lock is detached.
Lock release button
Top latch
Knowing Your Mazda
Doors and Locks
3-45
MX-5_8CC1-EA-11F_Edition2 Page109
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (111,1)
qRaising the Convertible Top
1. Make sure the parking brake is applied.
2. Fully open the left and right windows.
3. Turn off the engine.
4. Pull the unlock lever outward to
disengage the lock.
Unlock lever
5. Standing outside of the vehicle, holdthe convertible top along the center
edge and pull it towards the vehicle
front.
Center edge
NOTE
To raise the convertible top from inside the
vehicle, use the convertible top's handles.
Convertible top's
handles
6. Sitting in a seat, grasp the convertible
top's handles, and press the convertible
top against the windshield.
Move the top latch slowly to make sure
the anchor engages with the striker,
then rotate the top latch to the lock
position until a click sound is heard.
Striker
Anchor
Convertible top's
handles
Knowing Your Mazda
Doors and Locks
3-47
MX-5_8CC1-EA-11F_Edition2 Page111
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (116,1)
qOpening the Power Retractable
Hardtop
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Apply the parking brake with the brake pedal depressed.
4. Start the Engine.
NOTE
Do not open/close the hardtop with the engine
stopped. Otherwise the vehicle's battery power
could be depleted.
5. With the lock release button depressed, pull the top latch outward to unlock.
Lock release button
Top latch
6. Verify that the operation indicator light is illuminated and the lock is detached. 7. Press and hold the open button until the
hardtop opens completely.
NOTElWhen the open switch is pressed, a beep
sound is heard.
lThe hardtop keeps opening and the
operation indicator light flashes while the
open switch is pressed.
lIf the switch is released while the hardtop is
opening, the hardtop stops opening. If the
switch is pressed again, the hardtop
resumes opening.
8. The deck opens.
NOTE
If the windows are closed, the windows
automatically open partially when the deck
opens.
3-52
Knowing Your Mazda
Doors and Locks
MX-5_8CC1-EA-11F_Edition2 Page116
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F
