WARNING
Always make sure the passenger air
bag deactivation indicator light is
illuminated when using a rear-facing
child-restraint system:Seating a child in a rear-facing child-
restraint system that is installed on
the passenger seat with the
passenger air bag deactivation
indicator light not illuminated is
extremely dangerous. In an accident,
an air bag could inflate and cause
serious injuries or even death to the
child seated in the rear-facing child-
restraint system. Always make sure
the passenger air bag deactivation
indicator light is illuminated using
the key to turn the passenger air bag
off.
Refer to Passenger Seat Weight
Sensors on page 2-47.
Refer to Passenger Air Bag
Deactivation Switch on page 2-43.
Essential Safety Equipment
Child Restraint
2-29
MX-5_8CC1-EA-11F_Edition2 Page41
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (43,1)
If your vehicle is also equipped with a driver and passenger occupant classification
system, refer to the Driver and Passenger Occupant Classification System (page 2-47)
for details.
If your vehicle is equipped with a driver and passenger occupant classification system, the
passenger air bag deactivation indicator light illuminates for a specified time after the
ignition is switched ON.
To reduce the chance of injuries caused by the deployment of the passenger air bag in the
unlikely event of an accident, there are two methods to deactivate the passenger air bag as
follows, however, the surest way to prevent the passenger air bag from deploying is to use
the ignition key to turn it off rather than rely on the passenger seat weight sensors, which
will also detect other loads or objects on and around the passenger seat.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-18).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
Do not use a child-restraint system which employs an upper tether because there is no
appropriate means to anchor the tether.
WARNING
Seat belts must be worn in air bag equipped vehicles:Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in the first accident, such as frontal, near frontal, side
collisions that are at least moderate. Vehicle occupants should always wear seat
belts.
Essential Safety Equipment
SRS Air Bags
2-31
MX-5_8CC1-EA-11F_Edition2 Page43
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (44,1)
Always make sure the passenger air bag deactivation indicator light is illuminated
when using a rear-facing child-restraint system:Seating a child in a rear-facing child-restraint system that is installed on the
passenger seat with the passenger air bag deactivation indicator light not
illuminated is extremely dangerous. In an accident, an air bag could inflate and
cause serious injuries or even death to the child seated in the rear-facing child-
restraint system. Always make sure the passenger air bag deactivation indicator
light is illuminated using the key to turn the passenger air bag off.
Refer to Passenger Air Bag Deactivation Switch on page 2-43.
Refer to Passenger Seat Weight Sensors on page 2-47.
Do not sit too close to the driver and passenger air bags:
Sitting too close to the driver and passenger air bag modules or placing hands or
feet on them is extremely dangerous. The driver and passenger air bags inflate with
great force and speed. Serious injuries could occur if someone is too close. The driver
should always hold onto only the rim of the steering wheel. The seat passenger
should keep both feet on the floor. Seat occupants should adjust their seats as far
back as possible and always sit upright against the seatbacks with seat belts worn
properly.
Do not sit too close to a door or lean against doors in vehicles with side air bags: Sitting too close to the side air bag modules or placing hands on them is extremely
dangerous. A side air bag inflates with great force and speed directly out of the
outboard shoulder of the seat and expands along the door on the side the car is hit.
Serious injury could occur if someone is sitting too close to the door or leaning
against a window in the seats. Furthermore, sleeping up against the door or hanging
out the driver-side window while driving could block the side air bag and eliminate
the advantages of supplemental protection. Give the side air bags room to work by
sitting in the center of the seat while the vehicle is moving with seat belts worn
properly.
Do not attach objects on or around the area where driver and passenger air bags
deploy: Attaching an object to the driver and passenger air bag modules or placing
something in front of them is dangerous. In an accident, an object could interfere
with air bag inflation and injure the occupants.
2-32
Essential Safety Equipment
SRS Air Bags
MX-5_8CC1-EA-11F_Edition2 Page44
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (46,1)
Do not modify the supplemental restraint system:Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Do not make
any modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electrical equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of seats. It
is important to protect the air bag wiring and connections to assure that the bags do
not accidentally deploy, the driver seat slide position sensor and passenger seat
weight sensors are not damaged and that the seats retain an undamaged air bag
connection.
NOTE
lWhen an air bag deploys, a loud inflation noise can be heard and some smoke will be released.
Neither is likely to cause injury, however, the texture of the air bags may cause light skin injuries
on body parts not covered with clothing through friction.
lShould you sell your Mazda, we urge you to tell the new owner of its air bag systems and that
familiarization with all instructions about them, from the Owner's Manual, is important.
2-34
Essential Safety Equipment
SRS Air Bags
MX-5_8CC1-EA-11F_Edition2 Page46
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (47,1)
Supplemental Restraint System Components
Driver/Passenger inflators and air bags
Crash sensor, and diagnostic module (SAS unit)
Seat belt pretensioner and load limiting systems (page 2-13)
Front air bag sensor
Side crash sensorsí
Air bag/seat belt pretensioner system warning light (page 2-38)
Side inflators and air bagsí
Passenger air bag deactivation indicator light (page 2-47)
Passenger air bag deactivation switch (page 2-43)
Passenger seat weight sensors (page 2-47)
Passenger seat weight sensor control module
Driver and passenger seat belt buckle switches (page 2-50)
Driver seat slide position sensor (page 2-47)
Essential Safety Equipment
SRS Air Bags
2-35íSome models.
MX-5_8CC1-EA-11F_Edition2 Page47
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (49,1)
qPassenger Air Bag
The passenger air bag is mounted in the passenger dashboard.
The inflation mechanism for the passenger air bag is the same as the driver's air bag, as
mentioned above.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-40).
In addition, the passenger air bag is designed to only deploy in accordance with the total
seated weight on the passenger seat. For details, refer to the driver and passenger occupant
classification system (page 2-47).
Essential Safety Equipment
SRS Air Bags
2-37
MX-5_8CC1-EA-11F_Edition2 Page49
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (50,1)
qSide Air Bagsí
The side air bags are mounted in the outboard sides of the front seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driver or front passenger's chest caused by
directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria ”
(page 2-40).
In addition, the front passenger side air bag is designed to only deploy in accordance with
the total seated weight on the front passenger seat. For details, refer to the driver and front
passenger occupant classification system (page 2-47).
q Air Bag/Seat Belt Pretensioner System Warning Light
If the air bag/seat belt pretensioner system is working properly, the warning light
illuminates when the ignition is switched ON or after the engine is cranked. The warning
light turns off after a specified period of time.
A system malfunction is indicated if the warning light constantly flashes, constantly
illuminates or does not illuminate at all when the ignition is switched ON. If any of these
occur, consult an Authorized Mazda Dealer as soon as possible. The system may not
operate in an accident.
2-38
Essential Safety Equipment
íSome models.
SRS Air Bags
MX-5_8CC1-EA-11F_Edition2 Page50
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (52,1)

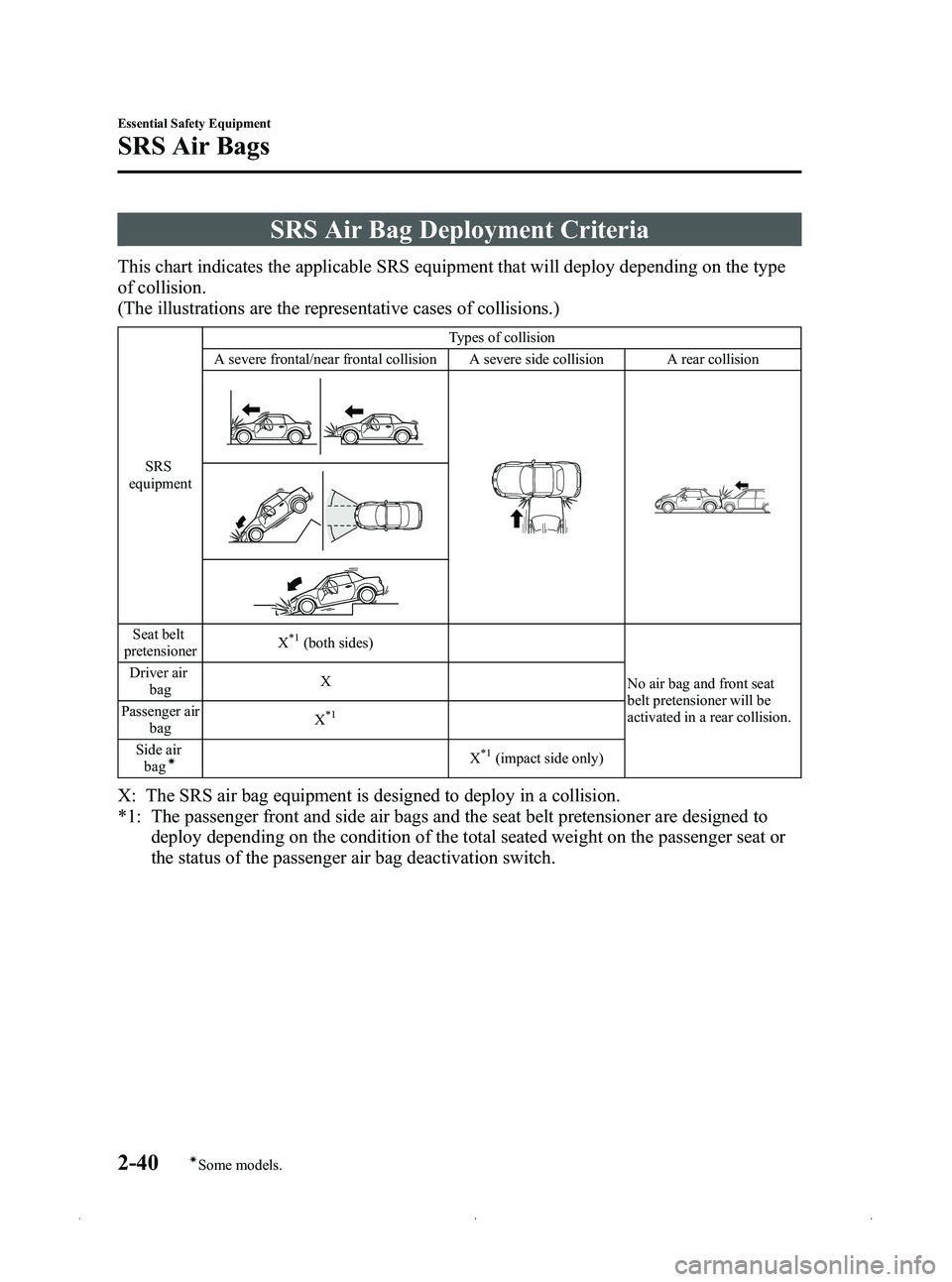

SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type
of collision.
(The illustrations are the representative cases of collisions.)
SRS
equipment Types of collision
A severe frontal/near frontal collision A severe side collision A rear collision
Seat belt
pretensioner X*1(both sides)
No air bag and front seat
belt pretensioner will be
activated in a rear collision.
Driver air
bag X
Passenger air bag X
*1
Side air
bagíX*1(impact side only)
X: The SRS air bag equipment is designed to deploy in a collision.
*1: The passenger front and side air bags and the seat belt pretensioner are designed to deploy depending on the condition of the total seated weight on the passenger seat or
the status of the passenger air bag deactivation switch.
2-40
Essential Safety Equipment
íSome models.
SRS Air Bags
MX-5_8CC1-EA-11F_Edition2 Page52
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (59,1)
Driver and Passenger Occupant Classification System
First, please read“Supplemental Restraint System (SRS) Precautions ”(page 2-30)
carefully.
q Driver Seat Slide Position Sensor
Your vehicle is equipped with a driver seat slide position sensor as a part of the
supplemental restraint system. The sensor is located under the driver seat. The sensor
determines whether the driver seat is fore or aft of a reference position and sends the seat
position to the diagnostic module (SAS unit). The SAS unit is designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.
The air bag/seat belt pretensioner system warning light flashes if the sensor has a possible
malfunction (page 2-38).
qPassenger Seat Weight Sensors
Your vehicle is equipped with a passenger seat weight sensors as a part of the supplemental
restraint system. These sensors are located under both of the passenger seat rails. These
sensors determine the total seated weight on the passenger seat and monitor the seat belt
buckle for the passenger seat. The SAS unit is designed to prevent the passenger front and
side air bags and seat belt pretensioner system from deploying if the passenger air bag
deactivation indicator light illuminates.
To reduce the chance of injuries caused by deployment of the passenger air bag, the system
deactivates the passenger front and side air bags and also the seat belt pretensioner system
when the passenger air bag deactivation indicator light illuminates. Refer to the following
table for the passenger air bag deactivation indicator light illumination conditions.
This system shuts off the passenger front and side air bags and seat belt pretensioner
system, so make sure the passenger air bag deactivation indicator light illuminates
according to the following table.
The air bag seat belt pretensioner system warning light flashes and the passenger air bag
deactivation indicator light illuminates if the sensors have a possible malfunction. If this
happens, the passenger front and side air bags and seat belt pretensioner system will not
deploy.
Essential Safety Equipment
SRS Air Bags
2-47
MX-5_8CC1-EA-11F_Edition2 Page59
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F

Black plate (60,1)
Passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the passenger front and side air bags and
seat belt pretensioner will not deploy during a collision.
If the passenger weight sensors are normal, the indicator light illuminates when the ignition
is switched ON. The light turns off after a few seconds.
The passenger air bag deactivation indicator light illuminates or is off under the following conditions:Condition detected by the passenger occupant
classification system Passenger air bag
deactivation indicator light Passenger front and side
air bags Passenger seat belt
pretensioner system
Empty (Not occupied)
*1Off Deactivated Deactivated
Child or child-restraint
system
*2On Deactivated Deactivated
Adult
*3Off ReadyReady
If the passenger air bag has been deactivated using the key, the passenger air bag deactivation indicator light will
remain illuminated as long you leave the passenger air bag turned off, and the chart above no longer applies.
Refer to Passenger Air Bag Deactivation Switch on page 2-43.
*1 : If the passenger seat belt is buckled, the passenger air bag deactivation indicator light illuminates, however this does not indicate a malfunction.
*2 : If a larger child sits on the passenger seat, the sensors might detect the child as being an adult depending on the child's physique.
*3 : If a smaller adult sits on the passenger seat, the sensors might detect the person as being a child depending on the person's physique.
If the passenger air bag deactivation indicator light does not illuminate when the ignition is
switched ON and does not illuminate as indicated in the above chart, do not allow a child
to sit in the passenger seat and consult an Authorized Mazda Dealer as soon as possible.
The system may not work properly in an accident. You must deactivate the passenger air
bag using the key (page 2-43) and consult an Authorized Mazda Dealer.
2-48
Essential Safety Equipment
SRS Air Bags
MX-5_8CC1-EA-11F_Edition2 Page60
Monday, July 18 2011 10:7 AM
Form No.8CC1-EA-11F
