Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDo not race the engine.lDo not maintain one constant speed,
either slow or fast, for a long period of
time.
lDo not drive constantly at full-throttle
or high engine rpm for extended
periods of time.
lAvoid unnecessary hard stops.lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.lKeep the tires properly inflated.lDo not carry unnecessary weight.lDo not rest your foot on the brake
pedal while driving.
lKeep the wheels in correct alignment.lKeep windows closed at high speeds.lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause
damage to the drivetrain. Any loss of
steering or braking control could
cause an accident.
4-6
Before Driving Your Mazda
Driving Tips
MX-5_8CC1-EA-11F_Edition2 Page148
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (190,1)
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.
Refer to Vehicle with run-flat tires on
page 7-3.
Vehicles with Instant Mobility System
(IMS) emergency flat tire repair kit
If an emergency tire repair is needed,
repair the punctured tire with the
emergency flat tire repair kit (page 7-7).
CAUTION
Do not use non-genuine tire sealant.
It may damage the tire pressure
sensor.
Vehicles with optional temporary spare
tire
If you have bought the optional temporary
spare tire, replace the punctured tire with
the temporary spare tire. Refer to the
manufacturer's instructions.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
q Flat Tire Warning Light
This warning light illuminates for a few
seconds when the ignition is switched
ON.
Warning light illuminates/Warning
beep sounds
If the tire pressures decrease extremely
after the TPMS warning light has
illuminated, or if a tire is punctured, the
flat tire warning light also illuminates, and
a beep sound will be heard for
approximately 30 seconds.
Refer to Vehicle with run-flat tires on
page 7-3.
qSystem Error Activation
When the TPMS warning light flashes,
there may be a system malfunction.
Consult an Authorized Mazda Dealer.
A system error activation may occur in
the following cases:
lWhen there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.
lWhen a metallic device such as a non-
genuine navigation system is equipped
near the center of the dashboard, which
may block radio signals from the tire
pressure sensor to the receiver unit.
lWhen using the following devices in
the vehicle that may cause radio
interference with the receiver unit.
lA digital device such as a personal
computer.
lA current converter device such as a
DC-AC converter.
lWhen excess snow or ice adheres to
the vehicle, especially around the
wheels.
lWhen the tire pressure sensor batteries
are exhausted.
lWhen using a wheel with no tire
pressure sensor installed.
lWhen using tires with steel wire
reinforcement in the side walls.
lWhen using tire chains.
5-34
Driving Your Mazda
Starting and Driving
MX-5_8CC1-EA-11F_Edition2 Page190
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (206,1)
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.
Refer to Vehicle with run-flat tires on
page 7-3.
Vehicles with Instant Mobility System
(IMS) emergency flat tire repair kit
If an emergency tire repair is needed,
repair the punctured tire with the
emergency flat tire repair kit (page 7-7).
CAUTION
Do not use non-genuine tire sealant.
It may damage the tire pressure
sensor.
Vehicles with optional temporary spare
tire
If you have bought the optional temporary
spare tire, replace the punctured tire with
the temporary spare tire. Refer to the
manufacturer's instructions.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
q Flat Tire Warning Lightí
This warning light illuminates for a few
seconds when the ignition is switched
ON.
Warning light illuminates/Warning
beep sounds
If the tire pressures decrease extremely
after the TPMS warning light has
illuminated, or if a tire is punctured, the
flat tire warning light also illuminates, and
a beep sound will be heard for
approximately 30 seconds.
Refer to Vehicle with run-flat tires on
page 7-3.
qKEY Warning Light (Red)/KEY
Indicator Light (Green) (with
Advanced Key)
This indicator has two colors.
KEY Warning Light (Red)
When illuminated
lWhen the ignition is switched ON, it
illuminates momentarily and then goes
out.
lIf any malfunction occurs in the
advanced keyless system, it illuminates
continuously.
5-50
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
MX-5_8CC1-EA-11F_Edition2 Page206
Monday, July 18 2011 10:8 AM
Form No.8CC1-EA-11F

Black plate (309,1)
Flat Tireí
Either run-flat tires or conventional tires
are equipped on your Mazda depending
on the specification, therefore the
procedure for repairing a flat tire differs
depending on the type of tire. Before
driving, make sure which type of tire is
equipped on your Mazda. If you cannot
identify your tire type, consult an
Authorized Mazda Dealer.
qHow to identify your tire type
Run-flat tire
A run-flat tire has a “RFT ”mark on the
side wall.
Conventional tire
A conventional tire does not have a
“ RFT ”mark on the side wall.
q Vehicle with run-flat tires
WARNING
Have the tires checked or perform the
appropriate repair as soon as possible
by an Authorized Mazda Dealer:
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard, it is
dangerous to drive the vehicle at high
speeds, or perform sudden
maneuvering or braking. Vehicle
drivability could worsen and result in
an accident.
When the flat tire warning light
illuminates or the tire pressure
warning beep sound is heard,
decrease vehicle speed immediately
and avoid sudden maneuvering and
braking.
If a run-flat tire is punctured, the FLAT
TIRE warning light illuminates in the
instrument cluster, and a beep sound is
heard for about 30 seconds.
NOTE
Until the flat tire is changed, the beep sound is
heard for about 30 seconds every time the
ignition switch is turned to the ON position.
Vehicles with run-flat tires can be driven
even with a punctured tire under the
following conditions.
In Case of an Emergency
Flat Tire
7-3íSome models.
MX-5_8CC1-EA-11F_Edition2 Page309
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (310,1)
Maximum vehicle speed with a
punctured run-flat tire: 80 km/h (49
mph)
Maximum driving distance with a
punctured run-flat tire: 80 km (49
miles)
CAUTION
The maximum driving distance may
be shorter depending on the driving
conditions.
If a run-flat tire is punctured, carefully
drive the vehicle to the nearest Mazda
Dealer and have the tire changed.
NOTE
lA spare tire or Instant Mobility System
(IMS) emergency flat tire repair kit is not
equipped on vehicles with run-flat tires as
standard.
lReplacing a punctured run-flat tire with a
new run-flat tire is recommended.
lDo not use run-flat tires and conventional
tires on the same vehicle.
q Vehicle with conventional tires
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction. If a
conventional tire is punctured, refer to
“Tool Storage ”(page 7-5) and “Instant
Mobility System (IMS) Emergency
Flat Tire Repair Kit ”(page 7-7).
7-4
In Case of an Emergency
Flat Tire
MX-5_8CC1-EA-11F_Edition2 Page310
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (311,1)
Tool Storage

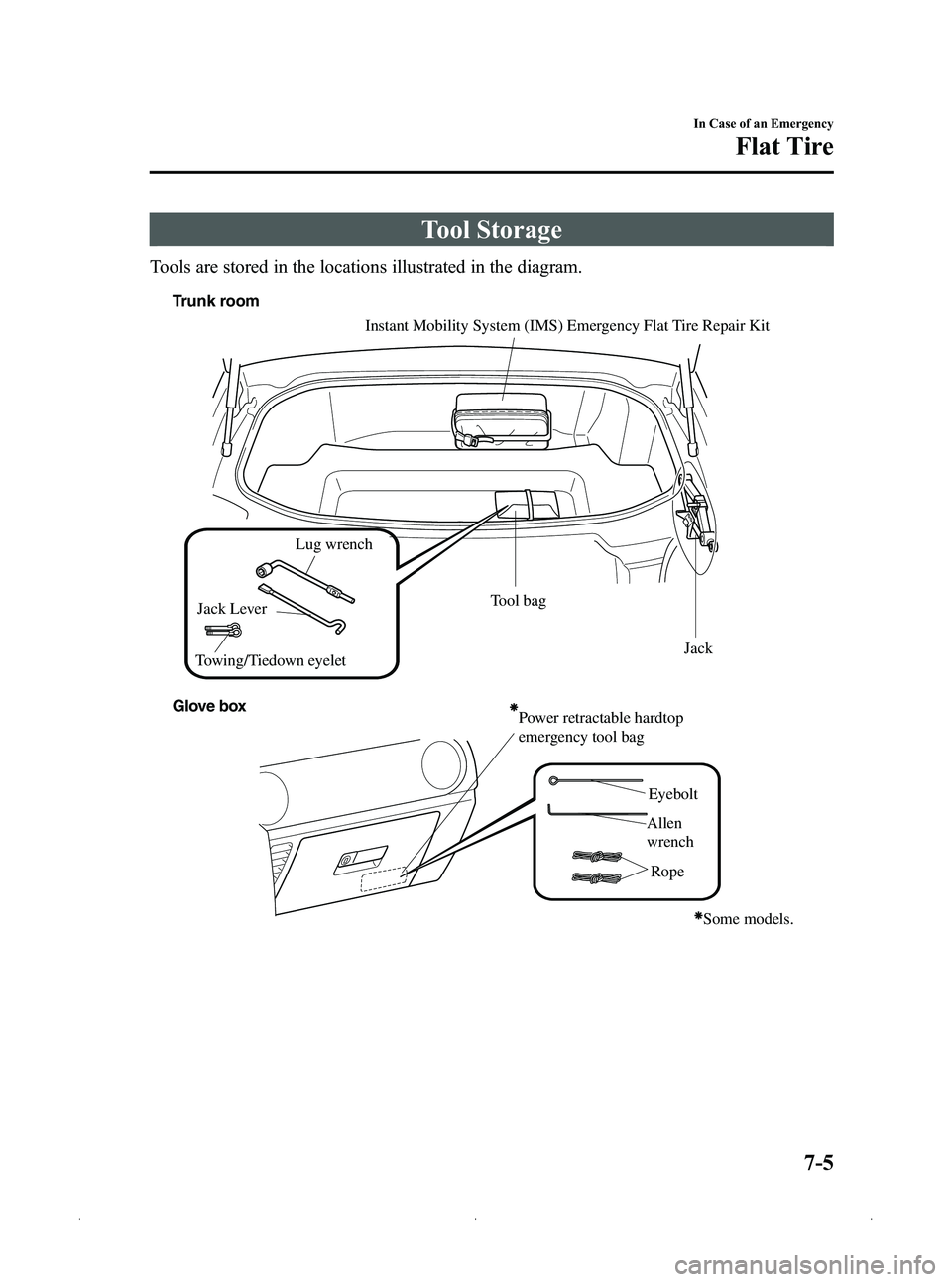

Tools are stored in the locations illustrated in the diagram.
Power retractable hardtop
emergency tool bag
Tool bagGlove box Lug wrench
Jack
Jack Lever
Some models.
Instant Mobility System (IMS) Emergency Flat Tire Repair Kit
Trunk room
Towing/Tiedown eyelet Allen
wrenchEyebolt
Rope
In Case of an Emergency
Flat Tire
7-5
MX-5_8CC1-EA-11F_Edition2 Page311
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (313,1)
Instant Mobility System
(IMS) Emergency Flat
Tire Repair Kit
í
The IMS emergency flat tire repair kit
included with your Mazda is for a
temporary repair of a slightly damaged
flat tire resulting from running over nails
or similar sharp objects on the road
surface.
NOTE
Your vehicle is not equipped with a spare tire.
In the event of a flat tire, use the emergency
flat tire repair kit to repair the tire temporarily.
When doing the repair, refer to the instructions
included in the emergency flat tire repair kit. If
an emergency repair was performed on a flat
tire using the emergency flat tire repair kit,
have an Authorized Mazda Dealer, repair or
replace the tire as soon as possible.
qAbout the IMS Emergency Flat
Tire Repair Kit
The IMS emergency flat tire repair kit
includes the following items.
Tire sealant
Injection hose Compressor
Repaired tire
sticker
Valve core
tool
Spare valve
core
Speed restriction
sticker
Instructions
Case
WARNING
Do not allow children to touch the tire
sealant: Ingestion of tire sealant is dangerous.
In the event tire sealant is
accidentally swallowed, drink large
amounts of water immediately and
seek medical assistance.
Do not allow children to touch the tire
sealant: Tire sealant that comes into contact
with the eyes and skin is dangerous.
If tire sealant enters the eyes or
contacts the skin, flush immediately
with large amounts of water and
seek medical assistance.
In Case of an Emergency
Flat Tire
7-7íSome models.
MX-5_8CC1-EA-11F_Edition2 Page313
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (318,1)
18. Install the tire valve cap.
19. Put the emergency flat tire repair kitin the trunk and continue driving.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
Ø If the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tire Pressure Monitoring System)
If the tire is not properly inflated, the tire
pressure monitoring system warning light will
illuminate (page 5-32).
20. After driving the vehicle for 10 minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
Ø If the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer. NOTE
When checking the tire inflation pressure with
the tire pressure gauge on the compressor unit,
make sure the compressor switch is turned off.
21. If the tire inflation pressure remains
stable, the tire repair is complete.
Drive the vehicle with care to an
Authorized Mazda Dealer to have the
tire replaced.
CAUTION
ØA tire that has been temporarily
repaired with the tire sealant
cannot be reused. Mazda
recommends replacing the tire
with a new one.
Ø The wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new
one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
NOTE
The tire sealant has a period of effective use.
Check the period of effective use indicated on
the bottle label and do not use it if it has
expired. Have the tire sealant replaced at an
Authorized Mazda Dealer before the period of
effective use has expired.
7-12
In Case of an Emergency
Flat Tire
MX-5_8CC1-EA-11F_Edition2 Page318
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (379,1)
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
License plate lights
1. Make sure the ignition is switched off,and the headlight switch is off.
2. Lift the trunk.
3. Slide the light to the left side of the vehicle and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse orderof the removal procedure.
qReplacing Interior Light Bulbs
Overhead light
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the cover.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-43
MX-5_8CC1-EA-11F_Edition2 Page379
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F

Black plate (380,1)
Trunk light
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, and then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
8-44
Maintenance and Care
Owner Maintenance
MX-5_8CC1-EA-11F_Edition2 Page380
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
