CAUTION
When cleaning the drainage outlets, be
careful not to touch the roof links or the
framework of the rear roof. Otherwise,
you could get injured.
Roof links Rear roof
6. After cleaning the drainage outlets,
continuously press the retractable
hardtop switch in the close direction to
close the rear roof.
Refer to Closing the Roof on page
3-44.

7. Pour about 200 ml (200 cc) of water at
once into each of the left and right
drainage outlets to wash away small
particles of foreign matter inside the
drainage path.

CAUTION
Use washer fluid instead of water in
cold weather.
If water is used, the water may freeze
inside the drainage path blocking the
path.
Maintenance and Care
Appearance Care
6-66
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

â–¼Jack*
To remove the jack
1. Remove the cover.

2. Turn the wing bolt and jack screwcounterclockwise.

Wing bolt
Jack screw
To secure the jack
1. Insert the wing bo lt into the jack with
the jack screw pointing back and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw clockwise.
Wing bolt
Jack screw
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure
the jack screw is sufficiently tightened.
4. Insert the cover tabs and install the
cover.
NOTE
Verify that the cover is securely
installed.
Maintenance
ï‚·Always keep the jack clean.
ï‚·Make sure the moving parts are kept
free from dirt or rust.
ï‚·Make sure the screw thread is
adequately lubricated.
If Trouble Arises
Flat Tire
7-4*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

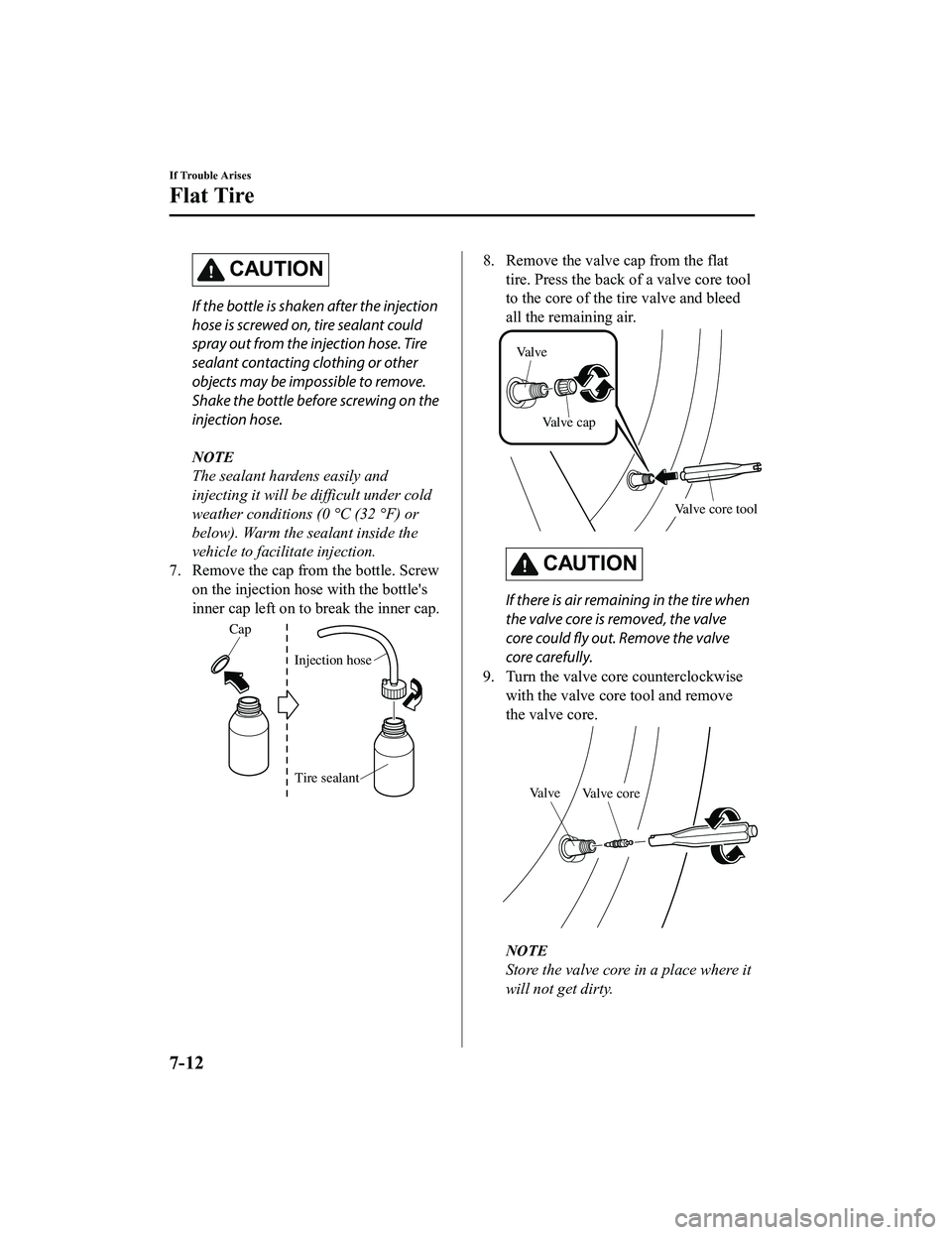

CAUTION
If the bottle is shaken after the injection
hose is screwed on, tire sealant could
spray out from the injection hose. Tire
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
NOTE
The sealant hardens easily and
injecting it will be difficult under cold
weather conditions (0 °C (32 °F) or
below). Warm the sealant inside the
vehicle to facilitate injection.
7. Remove the cap from the bottle. Screw on the injection hose with the bottle's
inner cap left on to break the inner cap.
Cap
Injection hose
Tire sealant
8. Remove the valve cap from the flat tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool
Valve
Valve cap
CAUTION
If there is air remaining in the tire when
the valve core is removed, the valve
core could fly out. Remove the valve
core carefully.
9. Turn the valve core counterclockwise with the valve core tool and remove
the valve core.
Valve Valve core
NOTE
Store the valve core in a place where it
will not get dirty.
If Trouble Arises
Flat Tire
7-12
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

10. Insert the injection hose into the valve.
ValveInjection hose
11. Hold the bottom of the bottle upright, squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
12. Pull out the injection hose from thevalve.
NOTE
The tire sealant cannot be reused.
Purchase a new tire sealant kit at an
Authorized Mazda Dealer.
13. Reinsert the valve core into the valve
and turn it clockwise to install it.
Injection hose Valve core
tool
Valve
Valve core
NOTE
Do not throw away the empty tire
sealant bottle after use. Return the
empty tire sealant bottle to an
Authorized Mazda Dealer when
replacing the tire. The empty tire
sealant bottle will need to be used to
extract and dispose of the used sealant
from the tire.
14. After that, install the injection hose to
the tab of the bottle to prevent leakage
of any remaining sealant.
Tab
15. Adhere the speed restriction sticker to an area where it can be viewed easily
by the driver.
If Trouble Arises
Flat Tire
7-13
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

Changing a Tire
WA R N I N G
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should place any portion of their
body under a vehicle th at is supported by a
jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, le vel surface off the
right-of-way and firm ly set the parking
brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reve rse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have passengers get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack and tool (page 7-3).
6. Block the wheel diagonally opposite the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.
â–¼Removing a Tire
WA R N I N G
When jacking-up a vehicle, always shift the
shift lever to 1st or R (manual transmission
vehicle) or shift the selector lever to P
(automatic transmission vehicle), apply the
parking brake, and place wheel blocks in
the position diagonally opposed to the
jack:
Changing a
flat tire without using wheel
blocks is dangerous because the vehicle
may move and fall off the jack even with
the shift lever in 1st or R, or the select lever
is in P, which could result in an accident.
If Trouble Arises
Flat Tire
7-17
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

1. Loosen the lug nuts by turning themcounterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head
4. Place the jack under the jack-up
position closest to the tire being
changed with the jack head squarely
under the jack-up point.

Jacking position
5. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.

Tire blocks
Jacking position
If Trouble Arises
Flat Tire
7-18
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

WA R N I N G
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.
Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
NOTE
When raising the ja ck head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of the
jack head contacts the vehicle's
underbody without the rail contacting
the bottom of the groove.
6. Insert the jack lever and attach the lug wrench to tire jack.

7. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tire is raised off the ground and can
be removed. Before removing the lug
nuts, make sure your Mazda is firmly
in position and that it cannot slip or
move.

If Trouble Arises
Flat Tire
7-19
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious injury if the vehicle
were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise; then remove the
wheel.
â–¼Locking Lug Nuts*
If your vehicle has Mazda optional
antitheft wheel lug nuts, each wheel will
have one locking lug nut that locks the
wheel and tire, and you must use a special
key to unlock the locking lug nut. This key
is stored in the glove compartment.
Register the key and l
ug nuts with the lock
manufacturer by filling out the card
provided in the glove compartment and
mailing it in the accompanying envelope.
If you lose this key, consult an Authorized
Mazda Dealer or use the lock
manufacturer's order form, which is with
the registration card.
Accessory wheel locks cannot be used on
steel wheels. This includes situations when
the spare tire is installed. If the spare tire is
installed, one of th e original lug nuts
(which should still be in the vehicle) must
be installed in place of the wheel lock.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the
antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
If Trouble Arises
Flat Tire
7-20*Some models.
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

3. Place the lug wrench on top of the keyand apply pressure. Turn the wrench
counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the nut, and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
â–¼Mounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WA R N I N G
Make sure the mounting surfaces of the
wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire, not
removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the tire.
3. Install the lug nuts with the beveled edge inward; tighten them by hand.

WA R N I N G
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident. In
addition, lug nuts and bolts could be
damaged if tightened more than
necessary.
If Trouble Arises
Flat Tire
7-21
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06

4. Turn the lug wrench counterclockwiseand lower the vehicle.
5. Use the lug wrench to tighten the nuts
in the order shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
6. Remove the tire blocks and store the tools and jack.
7. Check the inflation pressure. Refer to Tires on page 9-8.
WA R N I N G
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air pressure
is dangerous. Tires with incorrect pressure
could affect handling and result in an
accident. When you check the regular tires'
air pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from rattling,
store them properly.
If Trouble Arises
Flat Tire
7-22
MX-5_8JA4-EA-19K_Edition1_old 2019-8-29 16:18:06
