Page 431 of 609
6–3
Maintenance and Care
Scheduled Maintenance
S c h e d u l e d M a i n t e n a n c e
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Emission control and related systems
The ignition and fuel systems are highly important to the emission control system and to
ef ¿ cient engine operation. Do not tamper with them.
All inspections and adjustments must be made by an expert repairer, we recommend an
Authorised Mazda Repairer.
Europe
Maintenance Interval Number of months or kilometres (miles), whichever comes ¿ rst.
Months 12 24 36 48 60 72 84 96 108
×1000 km 20 40 60 80 100 120 140 160 180
×1000 miles 12.5 25 37.5 50 62.5 75 87.5 100
112.5
Spark plugs *1 Replace every 120,000 km (75,000 miles).
Air ¿ lter
*2 R R R
Evaporative system (if installed) I I I
Drive belts
*3 I I I
Engine oil & ¿ lter Flexible
*4 Replace when indicator is ON. (Max interval: 12
months/20,000 km (12,500 miles))
Other than
À exible
*5 R R R R R R R R R
Cooling system I I I I
Engine coolant
*6 Replace at ¿ rst 200,000 km (125,000 miles) or 10 years; after
that, every 100,000 km (62,500 miles) or 5 years.
Fuel lines and hoses I I I I
Battery
*7 I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I
Brake À uid
*8 R R R R
Parking brake I I I I I I I I I
Disc brakes I I I I I I I I I
Steering operation and linkages I I I I
Manual transmission oil R
Rear differential oil
*9
Front and rear suspension, ball joints and wheel
bearing axial play I I I I
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 432 of 609
6–4
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometres (miles), whichever comes ¿ rst.
Months 12 24 36 48 60 72 84 96 108
×1000 km 20 40 60 80 100 120 140 160 180
×1000 miles 12.5 25 37.5 50 62.5 75 87.5 100
112.5
Driveshaft dust boots I I I I
Exhaust system and heat shields Inspect every 80,000 km (50,000 miles) or 5 years.
Bolts and nuts on chassis and body T T T T
Body condition (for rust, corrosion and
perforation) Inspect annually.
Tyres (including spare tyre) (with in À ation
pressure adjustment)
*10*11 I I I I I I I I I
Emergency À at tyre repair kit (if installed)
*12 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain
Remarks:
*1 In the countries below, inspect the spark plugs at every 10,000 km (6,250 miles) or 12 months before replacing
them at the said interval.
Albania, Bosnia and Herzegovina, Bulgaria, Croatia, Latvia, Macedonia, Moldova, Montenegro, Romania,
Serbia, Ukraine
*2 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*3 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts at every
20,000 km (12,500 miles) or 12 months.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*4 SKYACTIV-G 1.5 and SKYACTIV-G 2.0 vehicles can select À exible setting only some countries in Europe.
Consult an Authorised Mazda Repairer for details. Flexible setting can be set if the vehicle is operated mainly
where none of the following conditions apply.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
Once the À exible maintenance is selected, the vehicle calculates the remaining oil life based on engine
operating conditions and lets you know when an oil change is due by illuminating the wrench indicator light in
the instrument cluster.
Replace the engine oil and ¿ lter when message/wrench indicator light is ON. And they must be changed at least
once a year or within 20,000 km (12,500 miles) since last engine oil and ¿ lter change.
The system must be reset whenever replacing the engine oil regardless of the message/wrench indicator light
display.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 433 of 609
6–5
Maintenance and Care
Scheduled Maintenance
*5 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter at
every 10,000 km (6,250 miles) or shorter.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*6 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*7 Inspect the battery electrolyte level, speci ¿ c gravity and outer appearance. The sealed battery only requires an
outer appearance inspection.
*8 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, replace the brake À uid annually.
*9 If this component has been submerged in water, the oil should be replaced.
*10 Tyre rotation is recommended every 10,000 km (6,250 miles).
*11 The Tyre Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*12 Check the tyre repair À uid expiration date every year when performing the periodic maintenance. Replace the
tyre repair À uid bottle with new one before the expiration date.
Except Europe
I s r a e l
Maintenance Interval Number of months or kilometres, whichever comes ¿ rst
Months 12 24 36 48 60 72 84 96 108 120 132 144
×1000 km 15 30 45 60 75 90 105 120 135 150 165 180
Spark plugs Replace every 120,000 km or 6 years.
Fuel ¿ lter Replace every 135,000 km.
Evaporative system (if installed) I I I
Fuel lines and hoses
I I
I
I I
I
Drive belts
*1 I I I I I I I I I I I I
Engine oil & oil ¿ lter *2 R R R R R R R R R R R R
Air ¿ lter *3 C C C R C C C R C C C R
Cooling system I I I I I I
Engine coolant
*4 Replace at ¿ rst 195,000 km or 10 years; after that, every
90,000 km or 5 years.
Battery
*5 I I I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I I I
Brake À uid
*6 I R I R I R I R I R I R
Parking brake I I I I I I I I I I I I
Power brake unit (Brake booster) and hoses I I I I I I I I I I I I
Disc brakes I I I I I I I I I I I I
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 434 of 609

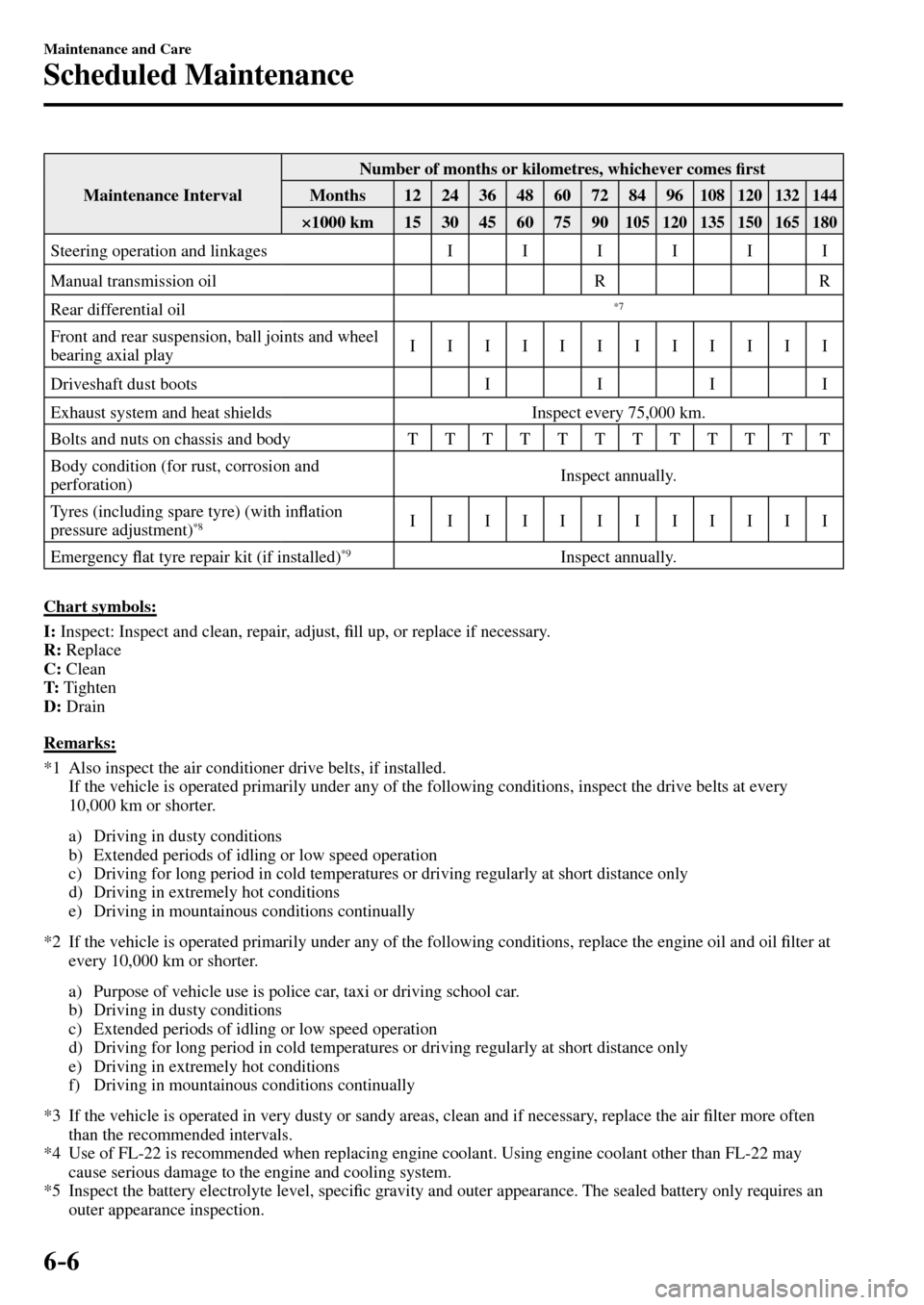

6–6
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometres, whichever comes ¿ rst
Months 12 24 36 48 60 72 84 96 108 120 132 144
×1000 km 15 30 45 60 75 90 105 120 135 150 165 180
Steering operation and linkages I I I I I I
Manual transmission oil R R
Rear differential oil
*7
Front and rear suspension, ball joints and wheel
bearing axial play I I I I I I I I I I I I
Driveshaft dust boots I I I I
Exhaust system and heat shields Inspect every 75,000 km.
Bolts and nuts on chassis and body T T T T T T T T T T T T
Body condition (for rust, corrosion and
perforation) Inspect annually.
Tyres (including spare tyre) (with in À ation
pressure adjustment)
*8 I I I I I I I I I I I I
Emergency À at tyre repair kit (if installed)
*9 Inspect annually.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, ¿ ll up, or replace if necessary.
R : Replace
C : Clean
T : Tighten
D : Drain
Remarks:
*1 Also inspect the air conditioner drive belts, if installed.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts at every
10,000 km or shorter.
a) Driving in dusty conditions
b) Extended periods of idling or low speed operation
c) Driving for long period in cold temperatures or driving regularly at short distance only
d) Driving in extremely hot conditions
e) Driving in mountainous conditions continually
*2 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter at
every 10,000 km or shorter.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*3 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*4 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*5 Inspect the battery electrolyte level, speci ¿ c gravity and outer appearance. The sealed battery only requires an
outer appearance inspection.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 435 of 609
6–7
Maintenance and Care
Scheduled Maintenance
*6 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle is
operated in extremely humid climates, replace the brake À uid annually.
*7 If this component has been submerged in water, the oil should be replaced.
*8 The Tyre Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*9 Check the tyre repair À uid expiration date every year when performing the periodic maintenance. Replace the
tyre repair À uid bottle with new one before the expiration date.
Except Israel
Maintenance
Interval Number of months or kilometres (miles), whichever comes ¿ rst.
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90
100 110 120 130 140 150 160
×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100
Fuel ¿ lter Replace every 60,000 km (37,500 miles).
Spark plugs *1 Replace every 120,000 km (75,000 miles).
Evaporative system (if installed) I I I I I I I I
Drive belts
*2 I I I I I I I I I I I I I I I I
Engine oil
*3
Except
below
countries R R R R R R R R R R R R R R R R
Georgia/
Armenia/
Cambodia Replace every 5,000 km (3,125 miles) or 6 months.
Engine oil ¿ lter
*3
Except
below
countries R R R R R R R R R R R R R R R R
Georgia/
Armenia/
Cambodia Replace every 10,000 km (6,250 miles) or 1 year.
Cooling system I I I I I I I I
Engine coolant
*4 Replace at ¿ rst 200,000 km (125,000 miles) or 10 years; after that, every
100,000 km (62,500 miles) or 5 years.
Air ¿ lter
*5
Except
below
countries C C R C C R C C
Georgia/
Armenia C R C R C R C R
Fuel lines and hoses I I I I I I I I
Battery
*6 I I I I I I I I
Brake lines, hoses and connections I I I I I I I I
Brake À uid
*7 I I I R I I I R I I I R I I I R
Parking brake I I I I I I I I I I I I I I I I
Power brake unit (Brake booster)
and hoses I I I I I I I I
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 437 of 609
6–9
Maintenance and Care
Scheduled Maintenance
*3 If the vehicle is operated primarily under any of the following conditions, replace the engine oil and oil ¿ lter
more often than the recommended intervals.
a) Purpose of vehicle use is police car, taxi or driving school car.
b) Driving in dusty conditions
c) Extended periods of idling or low speed operation
d) Driving for long period in cold temperatures or driving regularly at short distance only
e) Driving in extremely hot conditions
f) Driving in mountainous conditions continually
*4 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*5 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air ¿ lter more often
than the recommended intervals.
*6 Inspect the battery electrolyte level, speci ¿ c gravity and outer appearance. If the vehicle is operated in
extremely hot and cold areas, inspect the battery electrolyte level, speci ¿ c gravity and appearance every 10,000
km (6,250 miles) or 6 months. The sealed battery only requires an outer appearance inspection.
*7 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle
is operated in extremely humid climates, replace the brake À uid annually.
*8 If this component has been submerged in water, the oil should be replaced.
*9 The Tyre Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*10 Check the tyre repair À uid expiration date every year when performing the periodic maintenance. Replace the
tyre repair À uid bottle with new one before the expiration date.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 438 of 609
6–10
Maintenance and Care
Scheduled Maintenance
Maintenance Monitor
Maintenance Monitor (Type A audio)
“Oil Change” with À exible setting *1 is available. Consult an Authorised Mazda Repairer for
details*2 . When the engine oil À exible maintenance setting is selected, the wrench indicator
light in the instrument cluster will be illuminated when remaining oil life becomes less than
1,000 km (600 mile), or remaining days are less than 15 (Whichever comes ¿ rst).
Reset method
Press and hold the selector with the ignition switched off, then switch it on. Keep pressing
the selector for more than 5 seconds. The master warning light will À ash for a few seconds
when the reset is completed.
Selector
*1 The engine oil À exible maintenance setting is available (only some models). Based on
the engine operating conditions, the onboard computer in your vehicle calculates the
remaining oil life.
*2 When the engine oil À exible maintenance setting is selected, the system must be reset
whenever replacing the engine oil regardless of the wrench indicator light display.
Maintenance Monitor (Type B/Type C audio)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor”.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 439 of 609
6–11
Maintenance and Care
Scheduled Maintenance
You can customize settings in the setup display as follows:
Tab Item Explanation
Scheduled Setting Noti ¿ cation can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than
1,000 km or 600 mile, or the remaining number of days is less than
15 (whichever comes ¿ rst). Distance (mile or km)
Reset Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying
out maintenance.
Tyre Rotation Setting Noti ¿ cation can be switched on/off.
Distance (mile or km) Displays the distance until tyre rotation is due.
Select this item to set the tyre rotation distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever rotating
the tyres.
Oil Change Setting
*1 Noti ¿ cation can be switched on/off.
Distance (mile or km) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator light in the instrument cluster will
be illuminated when the remaining distance is less than 1,000 km
or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it needs to be reset whenever replacing
the engine oil.
*1 The engine oil À exible maintenance setting is available (only some models). Consult an Authorised Mazda
Repairer for details.
When the engine oil À exible maintenance setting is selected, you will see the following items in the display. The
vehicle calculates the remaining oil life based on the engine operating conditions and lets you know when an oil
change is due by illuminating the wrench indicator light in the instrument cluster.
Tab Item Explanation
Oil Change Oil life (%) Displays the engine oil life until the oil replacement is due.
The wrench indication/indicator light in the instrument cluster
will be illuminated when remaining oil life distance is less
than 1,000 km (600 mile), or remaining days are less than 15
(whichever comes ¿ rst).
Reset Resets the remaining oil life to 100 %.
The system must be reset whenever replacing the engine oil.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 440 of 609
6–12
Maintenance and Care
Owner Maintenance

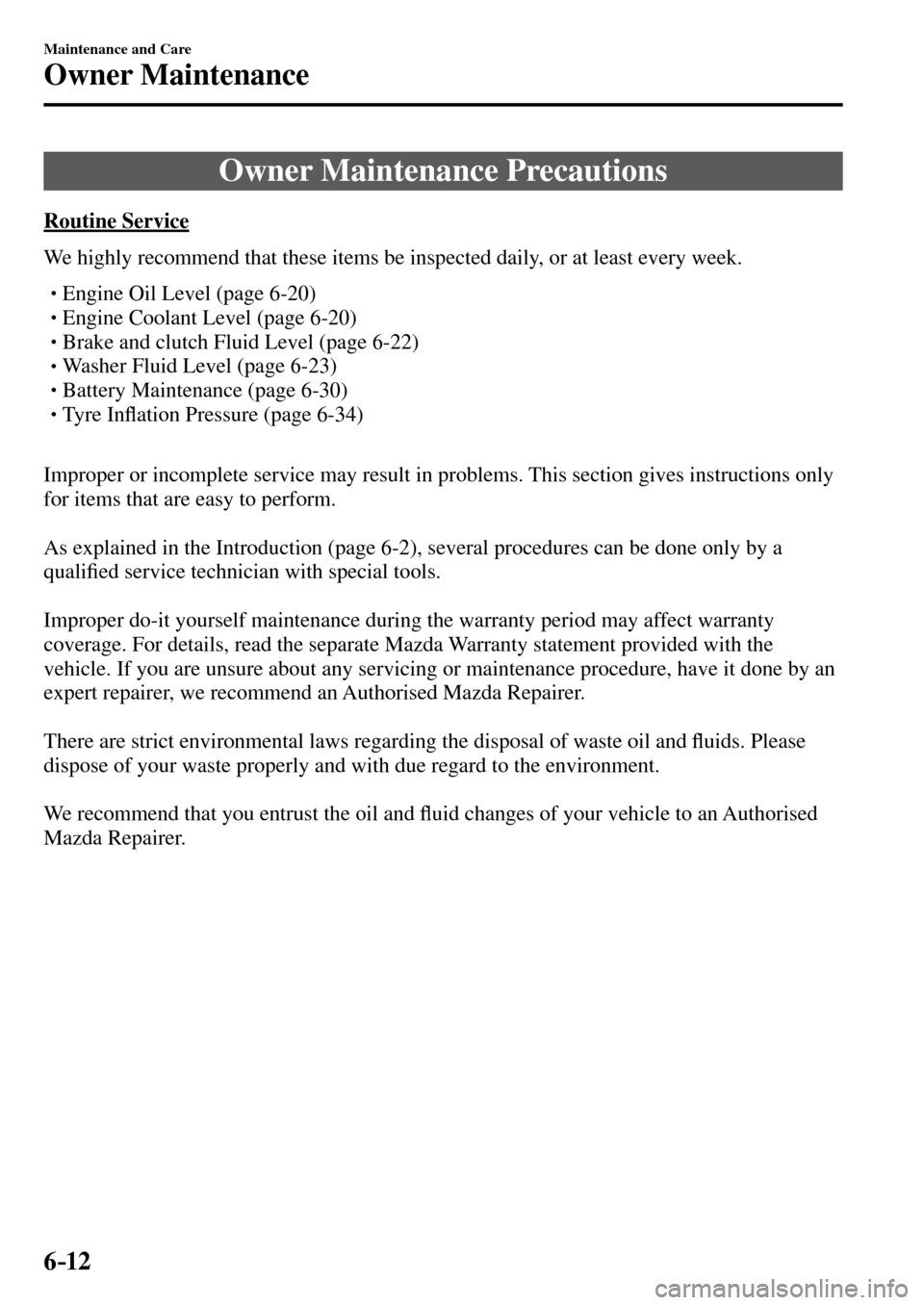

Owner Maintenance Precautions
R o u t i n e S e r v i c e
We highly recommend that these items be inspected daily, or at least every week.
Engine Oil Level (page 6-20 )
Engine Coolant Level (page 6-20 )
Brake and clutch Fluid Level (page 6-22 )
Washer Fluid Level (page 6-23 )
Battery Maintenance (page 6-30 )
Tyre In À ation Pressure (page 6-34 )
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2 ), several procedures can be done only by a
quali ¿ ed service technician with special tools.
Improper do-it yourself maintenance during the warranty period may affect warranty
coverage. For details, read the separate Mazda Warranty statement provided with the
vehicle. If you are unsure about any servicing or maintenance procedure, have it done by an
expert repairer, we recommend an Authorised Mazda Repairer.
There are strict environmental laws regarding the disposal of waste oil and À uids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and À uid changes of your vehicle to an Authorised
Mazda Repairer.
/ : A ( . ' ' , A ' F K V K Q P K P F D
Page 441 of 609
6–13
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack suf ¿ cient knowledge and experience
or the proper tools and equipment to do the work. Have maintenance work done by a
quali ¿ ed technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the bonnet, make certain that you
remove all jewellery (especially rings, bracelets, watches, and necklaces) and all
neckties, scarves, and similar loose clothing before getting near the engine or cooling
fan which may turn on unexpectedly:
Working under the bonnet with the engine running is dangerous. It becomes even more
dangerous when you wear jewellery or loose clothing.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is
not running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue
running inde ¿ nitely even if the engine has stopped and the engine compartment
temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have ¿ nished checking or doing servicing in the engine compartment, do not
forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a ¿ re
leading to an unexpected accident.
/ : A ( . ' ' , A ' F K V K Q P K P F D
